Trend T14EK 1/2" Variable Speed Workshop Router 2300W (240V)

The Trend T14EK Variable Speed Workshop Router is perfect for lock jigs, worktop joints and timber profiling

The Trend T14EK is a robust and reliable Variable Speed Workshop Router with a 7-Level Variable Speed Control, ranging from 9,000 to 22,000rpm, giving the user total control across a range of cutters, materials, and applications. The Top-Mount Cyclone Extraction with enhanced dust adapter efficiently clears debris to give users 360° visibility and prevent extraction hoses from ‘snagging’. Its Automatic Power Shut-Off prevents the router from accidental start-up if the trigger lock-on switch is engaged, and the power supply is lost and restored or interrupted. The 2-in-1 Plunge and Router Table Height Adjuster can be used from above AND below the router, in both table and hand-held mode. Each 360° turn gives a 1.0mm adjustment.

Features:

• Soft-start feature prevents kick-back for added user safety
• Powerful 2300W Motor delivers consistently high power, torque and speed
• 80mm Plunge Depth is ideal for lock jigs, worktop joints and timber profiling
• Anti-Scratch Base Plate Low-friction, screw-mounted, replaceable phenolic base plate
• Router Table Cam-Lock Quick-Release Mounts make mounting and unmounting the router quick and easy
• Integrated Power Trigger prevents accidental movement and kick-back when turning the router on and off
• Quick-Set Depth Post with rack & pinion 1.0mm indexed increments and zeroing function for fast, easy adjustment
• Top-Mount Cyclone Extraction clears debris to give users 360° visibility and prevent extraction hoses from ‘snagging'
• Auto-Lock Plunge Lever allows users to quickly and safely reposition the plunge position without releasing the handles
• Micrometer Fine Height Adjuster features 0.1mm increments and an easy-to-read display for precision depth adjustment
• Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers, when used with a Router Table
• Integrated Router Rest provides users with a safe way of changing cutters whilst preventing debris from entering motor vents
• Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
• Ergonomic Inclined Handles support a natural wrist position, reduce strain, and increase control when routing with arms outstretched
• Router Table Safety Switch bypasses the Automatic Power Shut Off feature and replaces the need for a typical NVR (No Volt Release) switch
• Phosphor Bronze Bushings are corrosion resistant, durable and self-lubricating to prevent racking and deliver a smooth, accurate plunge action
• 7-Level Variable Speed Control ranges from 9,000 to 22,000rpm, giving the user total control across a range of cutters, materials, and applications
• Automatic LED Work Lights allow users to accurately position the cutter prior to engaging the material and making costly errors in low-light situations
• Automatic Power Shut-Off prevents accidental start-up if the trigger lock-on switch is engaged, and the power supply is lost and restored or interrupted
• ER Style Collet features a double-locking safety feature to prevent accidental cutter ejection and a multi-slit profile for concentric clamping to the cutter shank
• 2-in-1 Plunge and Router Table Height Adjuster can be used from above AND below the router, in both table and hand-held mode. Each 360° turn gives 1.5mm adjustment
• Trend Base Configuration features a unique precision guide bush centring device to ensure perfect concentricity between cutter and collet for pinpoint accuracy when used with Trend routing jigs

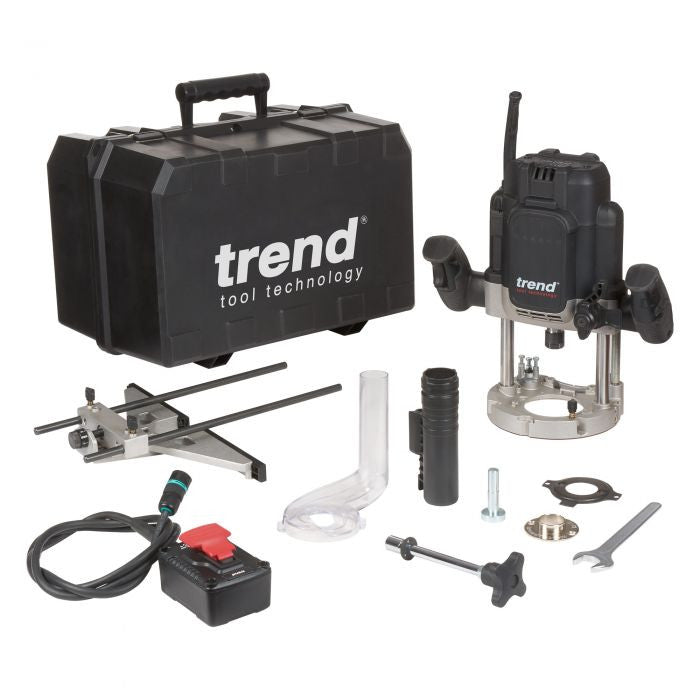

Comes with:

• 1x Collet
• 1x Side fence
• 1x Power switch
• 1x Guide bush pin
• 1x 22mm Spanner
• 1x Guide bush plate
• 1x Blow molded case
• 1x 30mm Guide bush
• 1x Cyclone dust adapter
• 1x 2-in-1 Height adjuster
• 1x Top-mount extraction adapter

Specification:

• Voltage: 240V
• Plunge stroke: 0-80mm
• Power input: 2300 watt
• Collet dia. supplied: 1/2 inch
• No load speed: 9000-22000 rpm
• Dust spout size ID: 35mm
• Guide bush dia. supplied: 30mm
• Cutter dia. max: 50mm hand-held
• Cutter dia. max: 86mm table mounted
• Base aperture size: 75mm
• Rod diameter: 10mm
• Rod length: 360mm
• Rod centres: 110mm
• Weight: 6.5 kg
• Sound pressure Lpa: 95.1 dB(A)1
• Acoustic pressure Lwa: 106.1 dB(A)2
• Cable length: 3.3m
• Hand arm vibration: <2.1 m/s2
