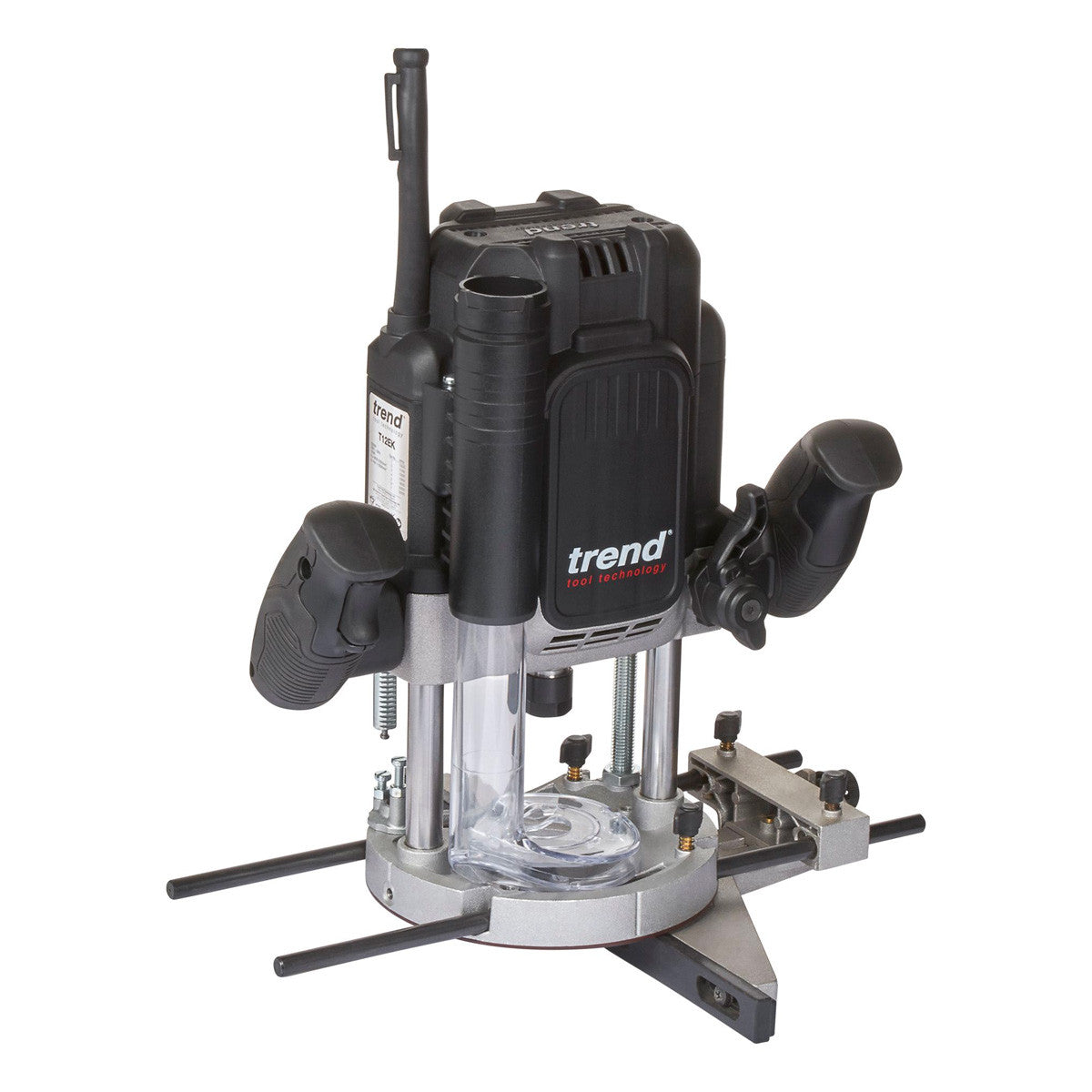

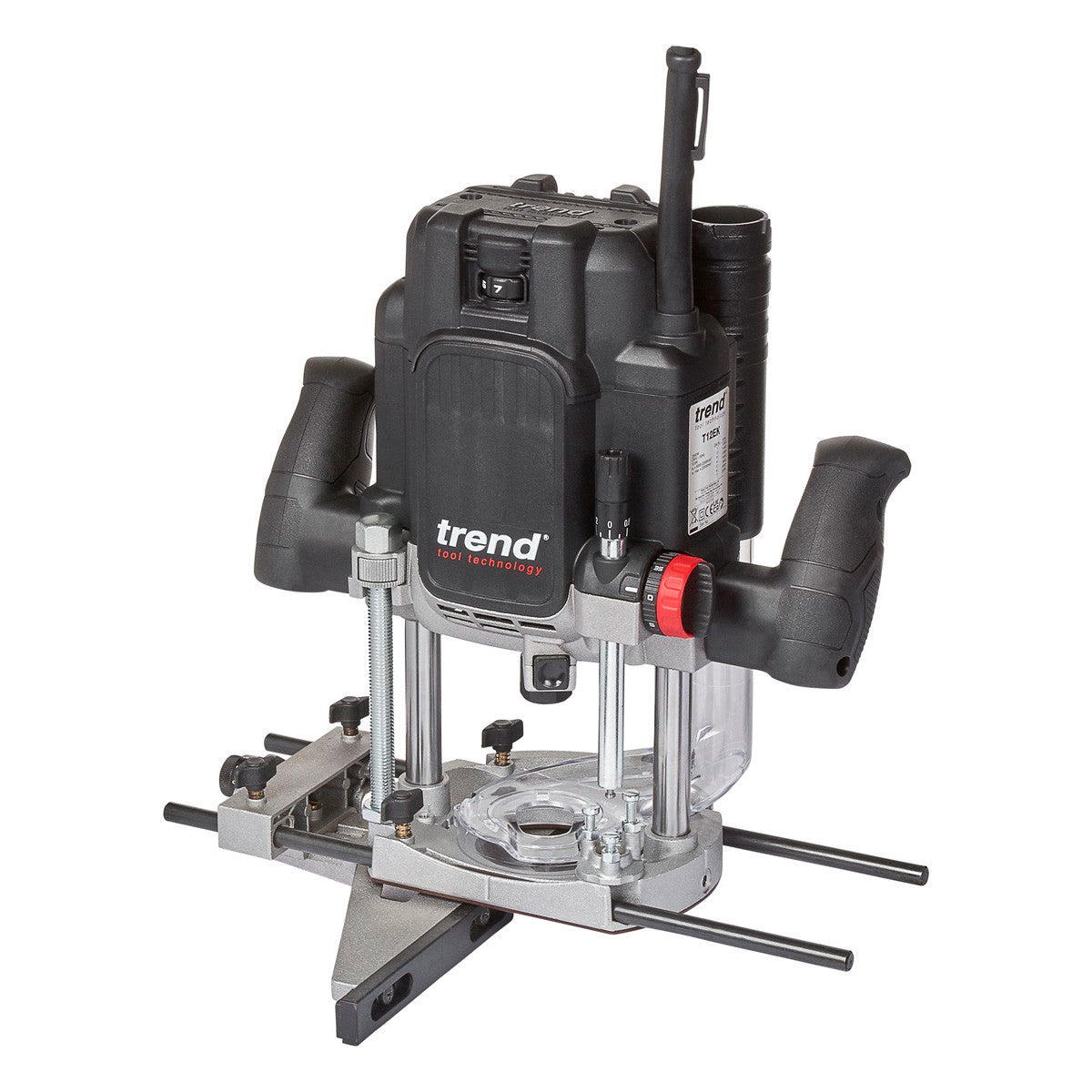

Trend T12EK 1/2" Variable Speed Plunge Router 2300W (240V)

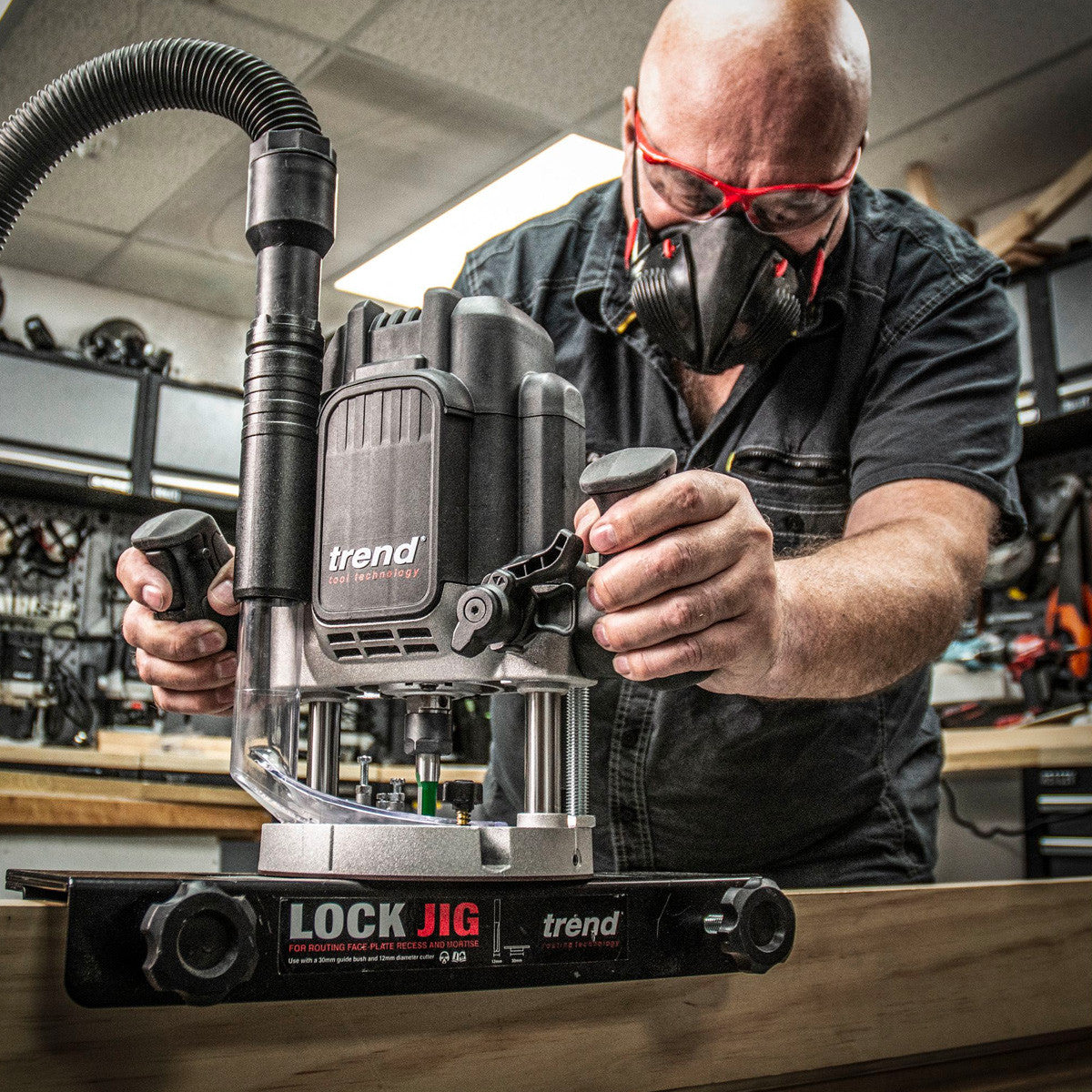

The Trend T12EK Variable Speed Plunge Router is perfect for lock jigs, worktop joints and timber profiling

The Trend T12EK is a robust and reliable 240V Variable Speed Plunge Router with a powerful 2300W Motor, consistently delivering high power, torque and speed, and features soft-start to prevent kick-back. Fitted with Top-Mount Cyclone Extraction with enhanced dust adapter efficiently clears debris to give users 360° visibility and prevent extraction hoses from ‘snagging’. The Micrometer Fine Height Adjuster features 0.1mm increments and an easy-to-read display for precision depth adjustment. Its Phosphor Bronze Bushings are corrosion resistant, durable and self-lubricating to prevent racking and deliver a smooth, accurate plunge action. The Automatic Power Shut-Off prevents the router from accidental start-up if the trigger lock-on switch is engaged, and the power supply is lost and restored or interrupted.

Features:

• Soft-start feature prevents kick-back for added safety
• Spindle Lock for quick and easy router cutter changes
• Wide Base Aperture to suit large profile and jointing cutters
• Powerful 2100W Motor delivers high power, torque and speed
• Plunge Depth Limiter is simple to use and prevents over-cutting
• Anti-Scratch Base Plate Low-friction, screw-mounted, replaceable phenolic base plate
• Integrated Power Trigger prevents accidental movement and kick-back when turning the router on and off
• Quick-Set Depth Post with rack & pinion 1mm indexed increments and zeroing function for fast, easy adjustment
• 80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling
• 3-Position Rotating Turret is used to pre-set plunge depth limits for fast, repeatable batch and stepped cutting
• Top-Mount Cyclone Extraction clears debris to give users 360° visibility and prevent extraction hoses from ‘snagging’
• Auto-Lock Plunge Lever allows users to quickly and safely reposition the plunge position without releasing the handles
• Integrated Router Rest provides users with a safe way of changing cutters whilst preventing debris from entering motor vents
• Micrometer Fine Height Adjuster features 0.1mm increments and an easy-to-read display for precision depth adjustment
• Phosphor Bronze Bushings are corrosion resistant, durable and self-lubricating delivering a smooth, accurate plunge action
• Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
• Ergonomic Inclined Handles support a natural wrist position, reduce strain, and increase control when routing with arms outstretched
• ER Style Collet with double-locking safety prevents accidental cutter ejection and a multi-slit profile for concentric clamping to the cutter shank
• 7-Level Variable Speed Control ranges from 9,000 to 22,000rpm, giving the user total control across a range of cutters, materials, and applications
• Automatic LED Work Lights allow users to accurately position the cutter prior to engaging the material and making costly errors in low-light situations
• Trend Base Configuration includes a standardised fixing pattern of holes that allow routers to be attached to a range of compatible tables, jigs and accessories
• Automatic Power Shut-Off prevents the router from accidental start-up if the trigger lock-on switch is engaged, and the power supply is lost and restored or interrupted
• Precision Centring System features a unique guide bush centring pin and adaptor plate that ensures perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs

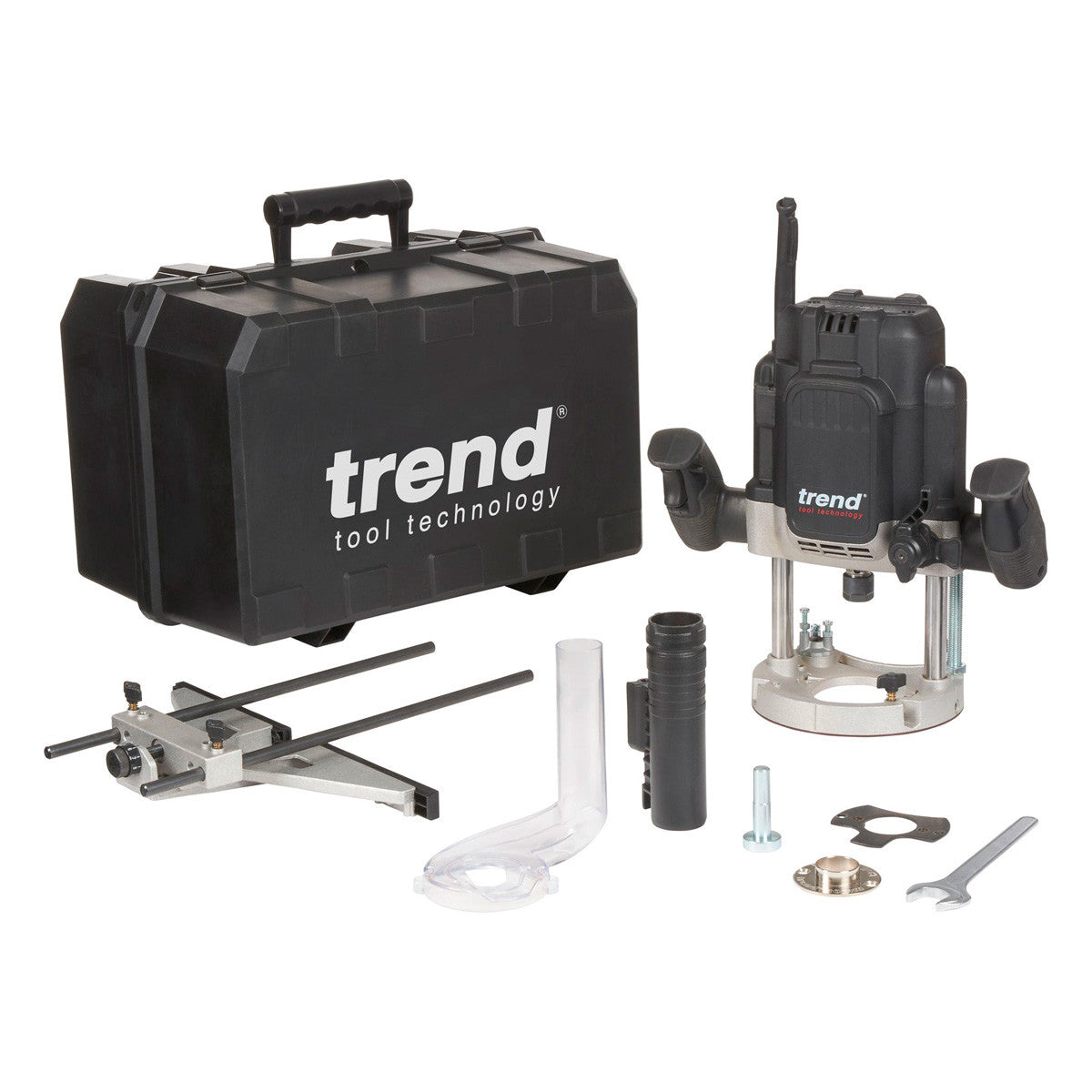

Comes with:

• 1x Collet
• 1x Side fence
• 1x Guide bush pin
• 1x 22mm Spanner
• 1x Guide bush plate
• 1x Blow molded case
• 1x 30mm Guide bush
• 1x Cyclone dust adapter
• 1x Top-mount extraction adapter

Specifications:

• Weight: 6.4kg
• Voltage: 240V
• Rod length: 360mm
• Rod centres: 100mm
• Rod diameter: 10mm
• Power input: 2300 watt
• Plunge stroke: 0-80mm
• Dust spout size ID: 35mm
• Base aperture size: 70mm
• Collet dia. supplied: 1/2 inch
• Hand arm vibration: <2.1 m/s2
• Guide bush dia. supplied: 30mm
• Sound pressure Lpa: 95.1 dB(A)1
• No load speed: 9000-22000 rpm
• Cutter dia. max: 50mm hand-held
• Acoustic pressure Lwa: 106.1 dB(A)2
