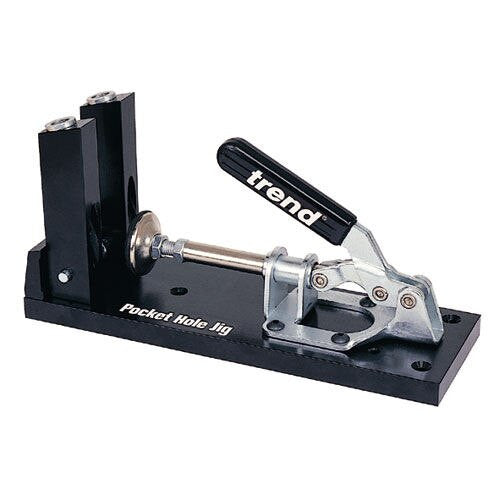

Trend PH/JIG Pocket Hole Jig

Trend PH/JIG Pocket Hole Jig

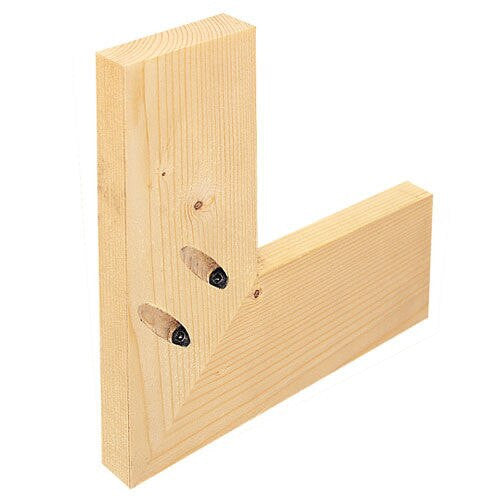

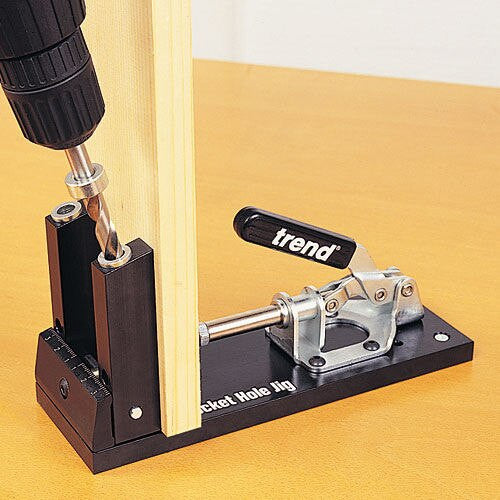

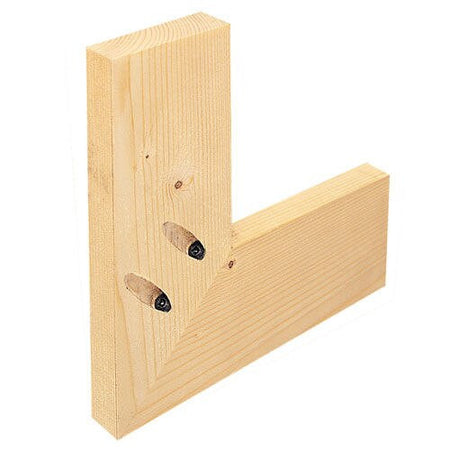

The Trend PH/JIG Pocket Hole Jig is designed for the fast and accurate joining of timber and plywood. It provides instant strong joints using square drive self-tapping screws, and there is no need to use clamps afterwards.

Features:

• For the fast and accurate joining of timber and plywood giving strong instant joints
• Solid hardened bushes with a variable pitch of 29mm to 63mm
• Use on timber, MDF, plywood and blockboard
• Allows a variety of joints to be created individually
• Uses square drive self-tapping screws
• The workpiece can be handled immediately after glueing & screwing creating time-saving benefits
• No clamps required

Comes with:

• 100 x Dome head screws
• 1 x Face clamp
• 1 x HSS drill bit with collar
• 1 x 75mm Square drive bit
• 1 x 150mm Square drive bit

Specification:

• Material thickness min.: 16mm
• Material thickness max.: 38mm
• Material width min.: 38mm
• Hole pitch: 29mm-63mm
• Drill diameter: 9.5mm
• Square drive bit size: No.2
• Screw size: No.7 x 30mm
• Weight: 1.899 kgs
