Trend LOCK/JIG/B Adjustable Trade Lock Jig

Trend LOCK/JIG/B Adjustable Trade Lock Jig

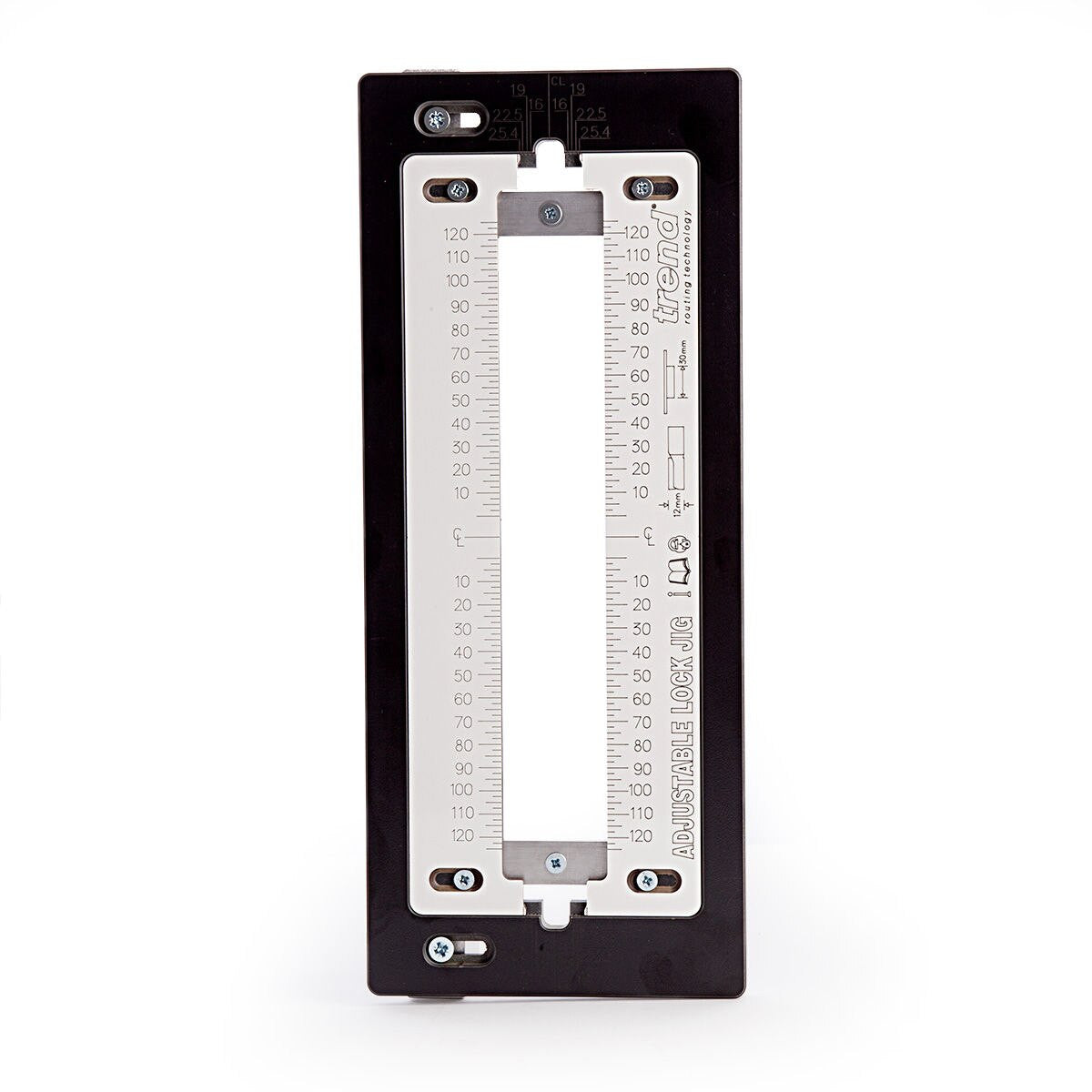

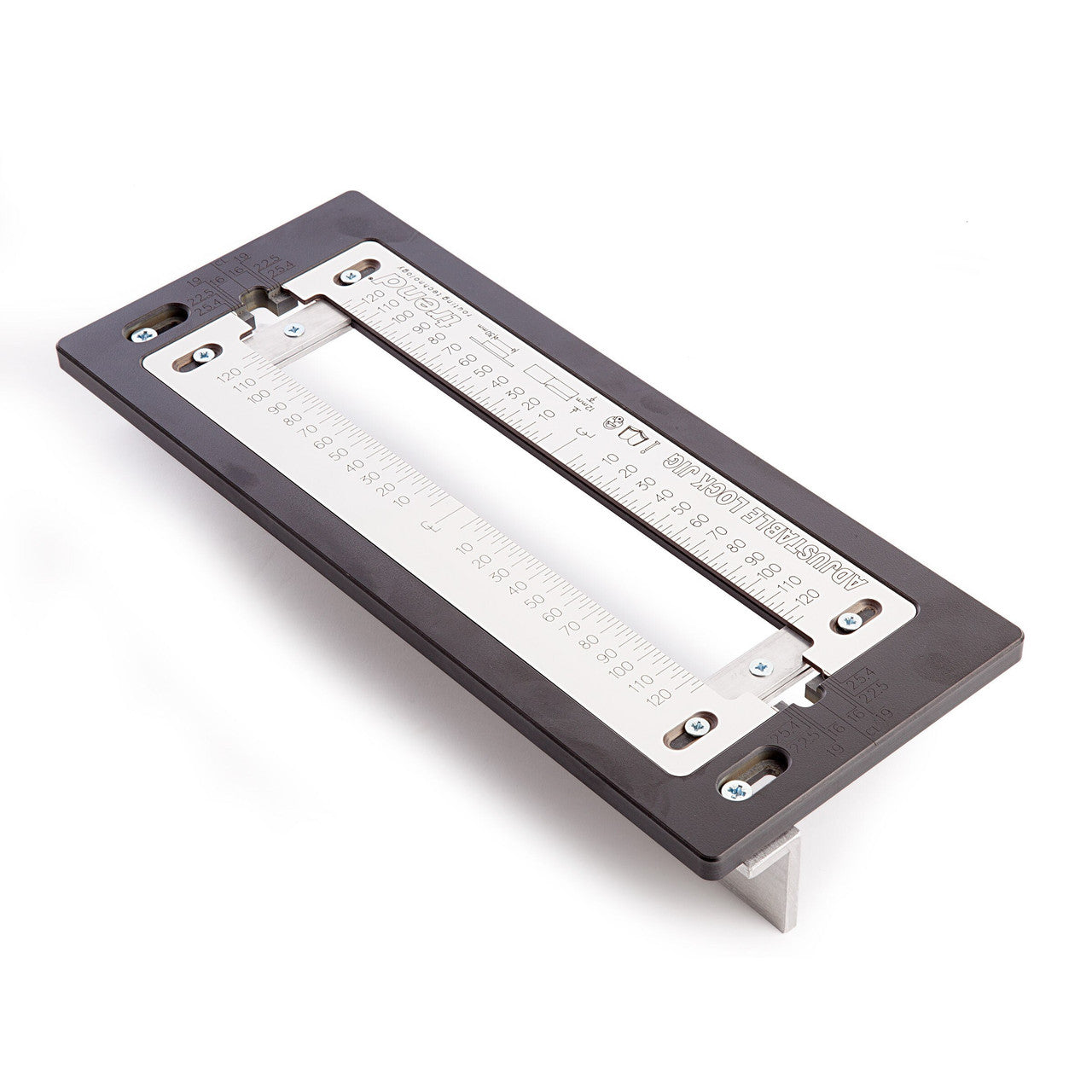

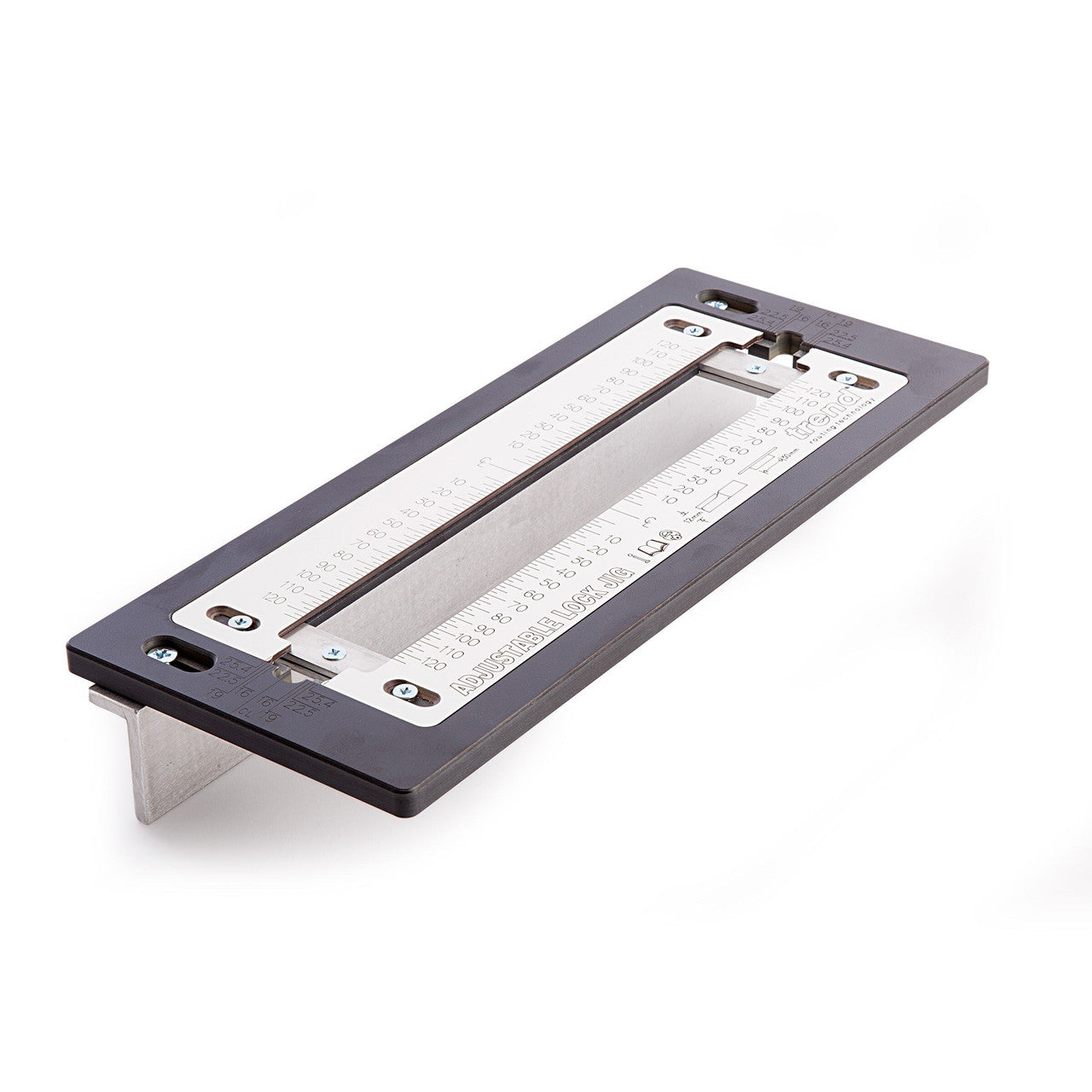

This Trend Adjustable Trade Lock Jig has adjustable sliding inserts to allow faceplate and mortise recesses for popular size door locks to be routed with a plunge router. It is quick and easy to set up using engraved lines for lock size and door sizes. It provides fast, clean & accurate results on doors even in hardwood. Deeper mortises can be achieved with a suitable size of auger bit. This lock jig is made from a Plastic laminate body with aluminium clamping bar, with clamping range 30mm to 80mm.

Features:

• Fully adjustable for lock face plate length up to 250mm.
• Quick and easy to set up using engraved lines for lock size and door sizes
• Fast, clean & accurate results on doors even in hardwood
• Engraved for 16mm and 19mm lock width and 22.5mm and 25.4mm face plate widths
• Measuring required for other lock widths
• Engraved on underside to allow set up for 35mm, 40mm, 44mm and 54mm door widths
• Deeper mortises can be achieved with a suitable size of auger bit
• Plastic laminate body with aluminium clamping bar, with clamping range 30mm to 80mm



Comes With:

• 2 x setting block

Specification:

• Door thickness min.: 30 mm
• Door thickness max.: 80 mm
• Faceplate length min.: 30 mm
• Faceplate length max.: 250mm
• Face Plate Dimension Engraved Widths: 22.5 mm and25.4 mm (1 inch)
• Mortise Dimension Engraved Widths: 16 mm (5/8 inch) and 19 mm (3/4 inch)
