Use The Trend KWJ900 Kitchen Worktop Jig for precise and accurate joints

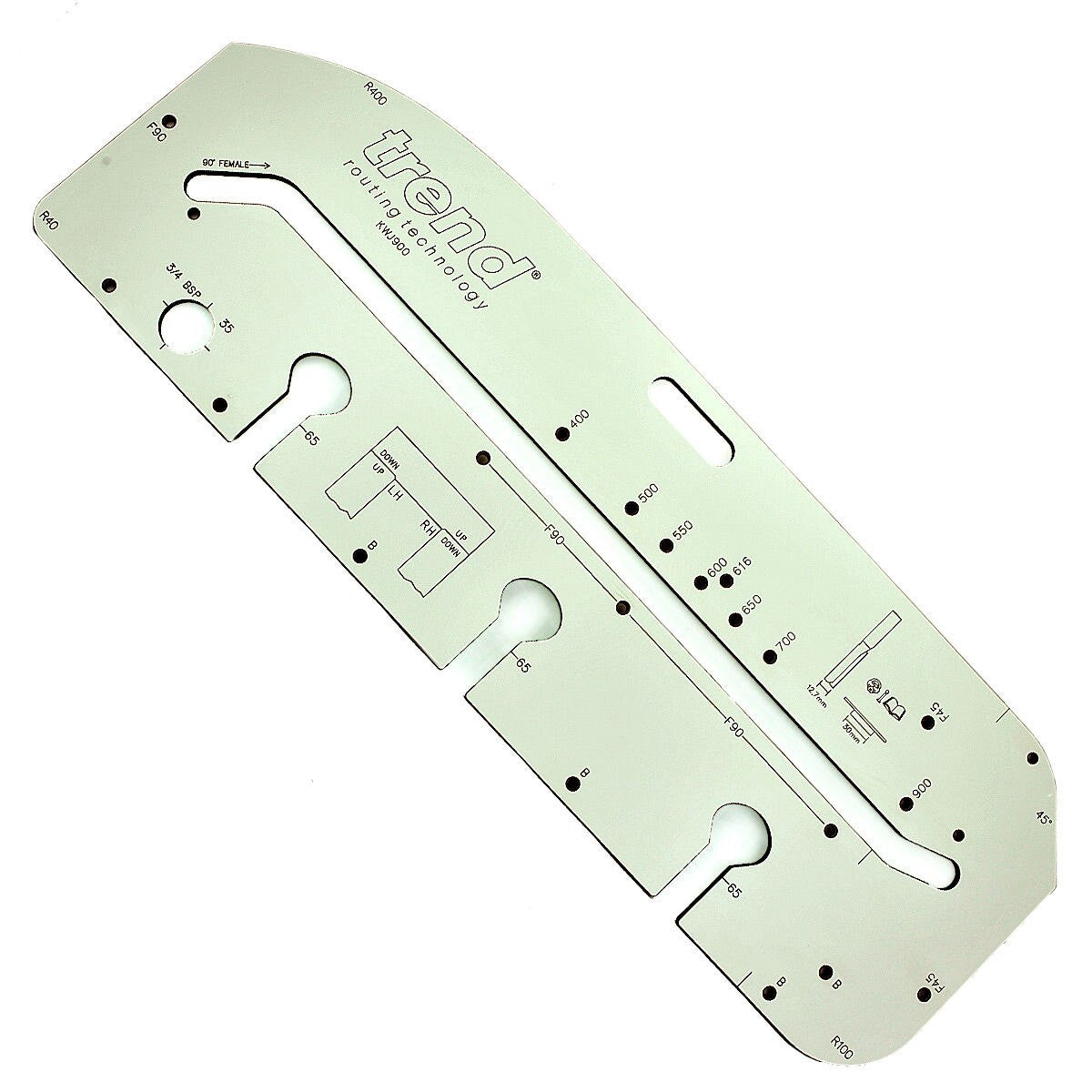

The Trend KWJ900 Kitchen Worktop Jig is a hard-wearing solid laminate, 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up. Trade all-in-one jig for joining worktops up to 900mm wide with a router.
Features:
- Engraved markings for identification of pinholes
- Comes with pins made from ABS plastic for strength
- Engraved lines for short 65mm bolts and worktop cross-cut
- Three open-ended bolt recesses (dog bone style) for 150mm bolts
- Cuts up to 40mm thick worktops with or without anti-drip post formed edge
- Fixed lengths for 400mm, 500mm, 550mm, 600mm, 616mm, 650mm, 700mm and 900mm wide worktops
- 10mm diameter plastic pins with tapered shoulder for tight fit provides three-point pin contact to ensure ease of setting up
- Left hand and right-hand corners, 400mm radius peninsular joint, 45-degree end cut with slight radius, 45-degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps
9 Functions:
- Male cut
- Female cut
- 45° end cut
- Curved peninsular
- 45° mitre corner joint
- R40mm corner radius
- Connector bolt recess
- R100mm corner radius
- 35mm circular hinge and 3/4" BSP hole
Specification:
- Weight: 8.2kg
- Width: 390mm
- Length: 1185mm
- Thickness: 12mm
- End Cut 45 degrees
- Corner Radius: 40mm
- Corner Radius: 100mm
- Corner Radius: 400mm
- Corner Mitre Joint: 45 degrees
