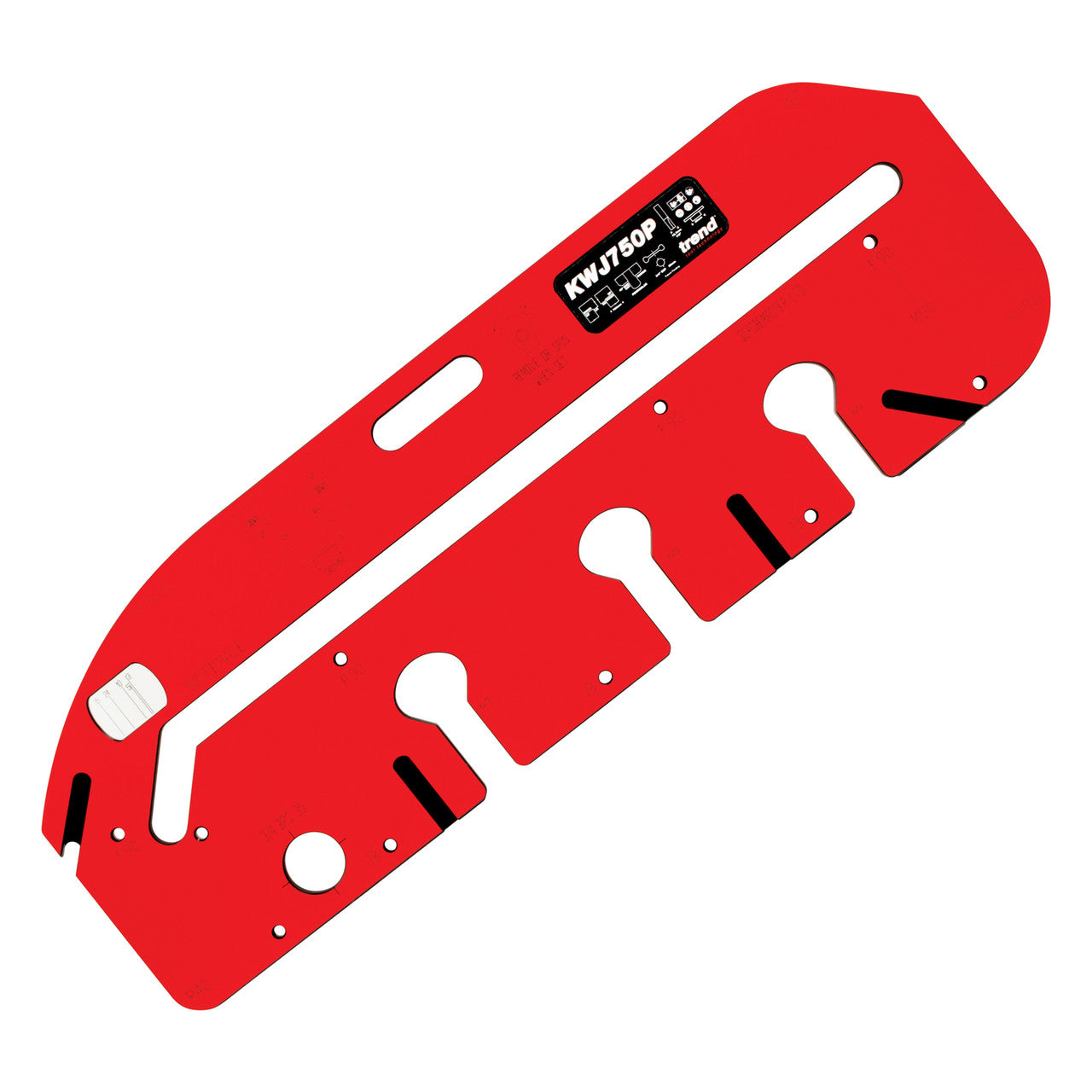

Trend KWJ750P Pro Multi-Material Worktop Jig

Pro Multi-Material Jig for worktop joints on any worktop ranging from 150mm - 750mm with unique easy set window

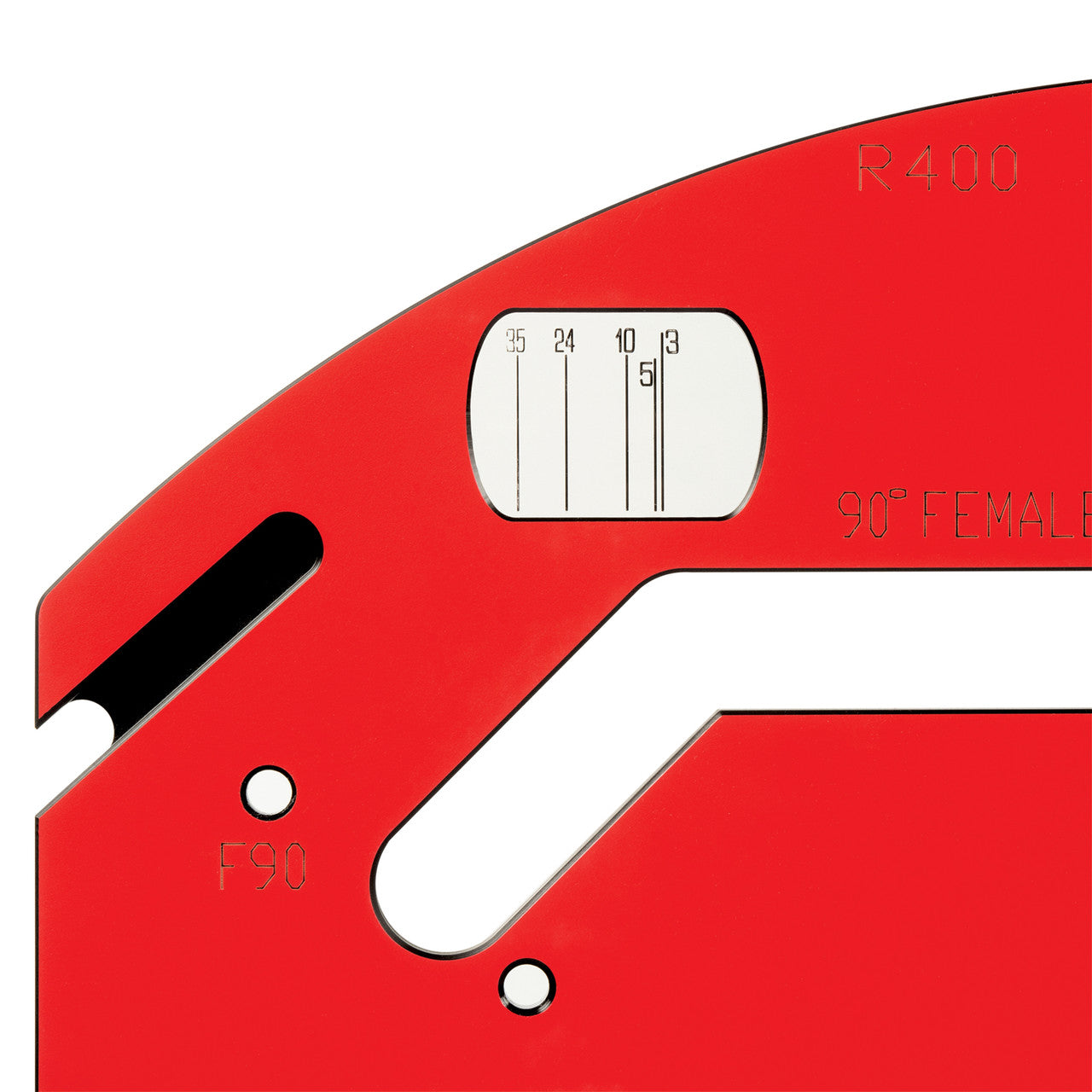

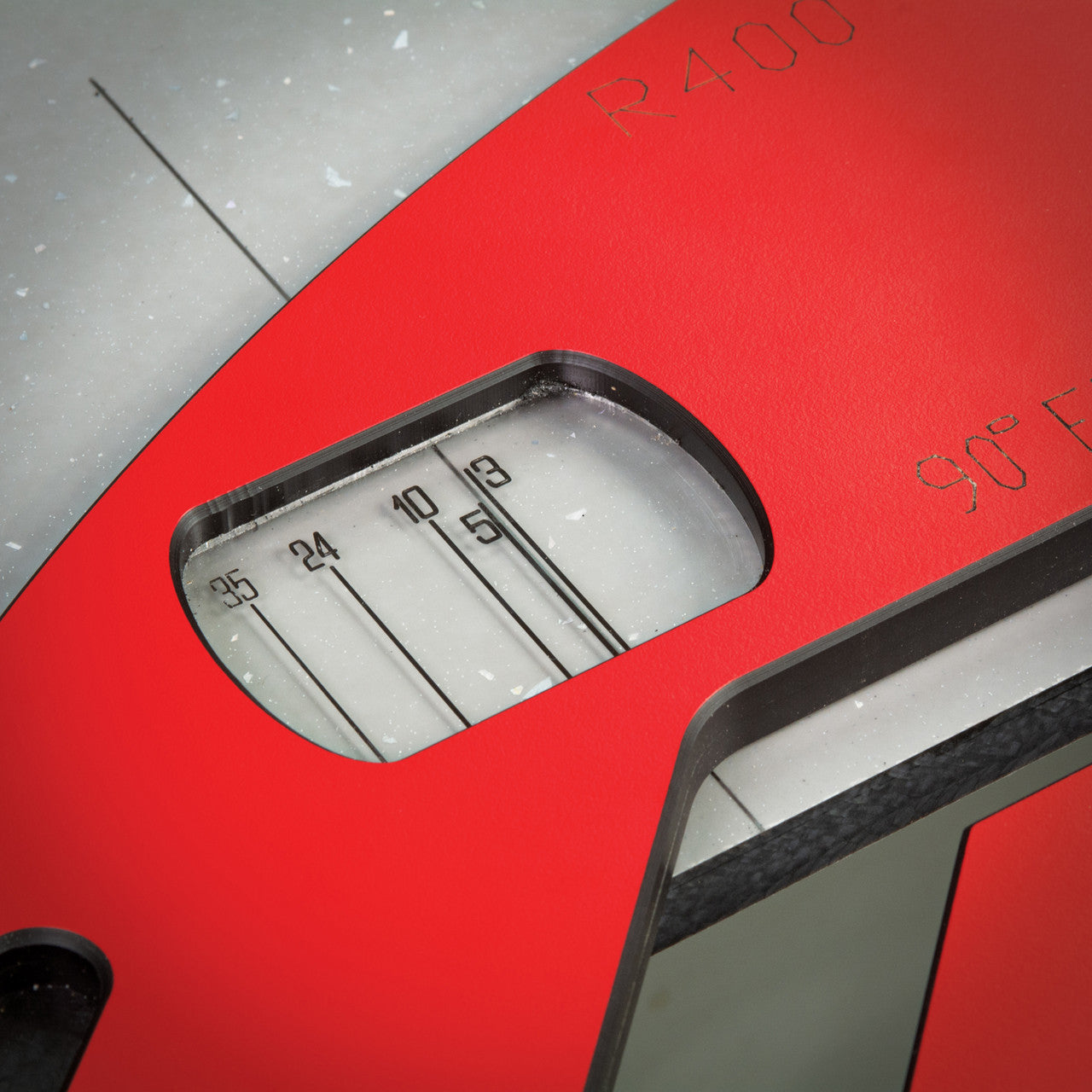

With the Trend KWJ750P Pro Multi-Material Worktop Jig all settings are done from the front edge eliminating any discrepancies from scribing or when using non-standard width worktops. Fitted with an easy set reference window for fast set up for any backset, simply align to a measured line. With 5 backset options (3, 5, 10, 24, 35mm) to meet the demands of new materials, edge profiles and trends. It’s time to throw the traditional worktop jointing jigs out of the window in favour of the revolutionary ‘Easy Set’ alignment window found on the new KWJ750P Pro Worktop Jig from Trend.

Features:

• FLUSH EDGE COMPATABILITY Allows worktops to be cut flush with door faces for handleless contemporary styles without additional measuring or marking up
• SINGLE PASS JOINT CUTTING ON NARROWER BACKSETS WITH THINNER WORKTOPS Minimises strain on the router and extends cutter life
• FAST JOINTING Cuts a full male and female joint in 15 minutes including setting up
• MULTIPLE WORKTOP MATERIAL COMPATABILITY Compact laminate, Composite, Solid Wood, Chipboard Laminate
• NO SET WORKTOP WIDTH RESTRICTION No need for alignment pins for worktop widths
• FRUSTRATION FREE SETUP Simple intuitive setup; measure, mark, clamp and cut

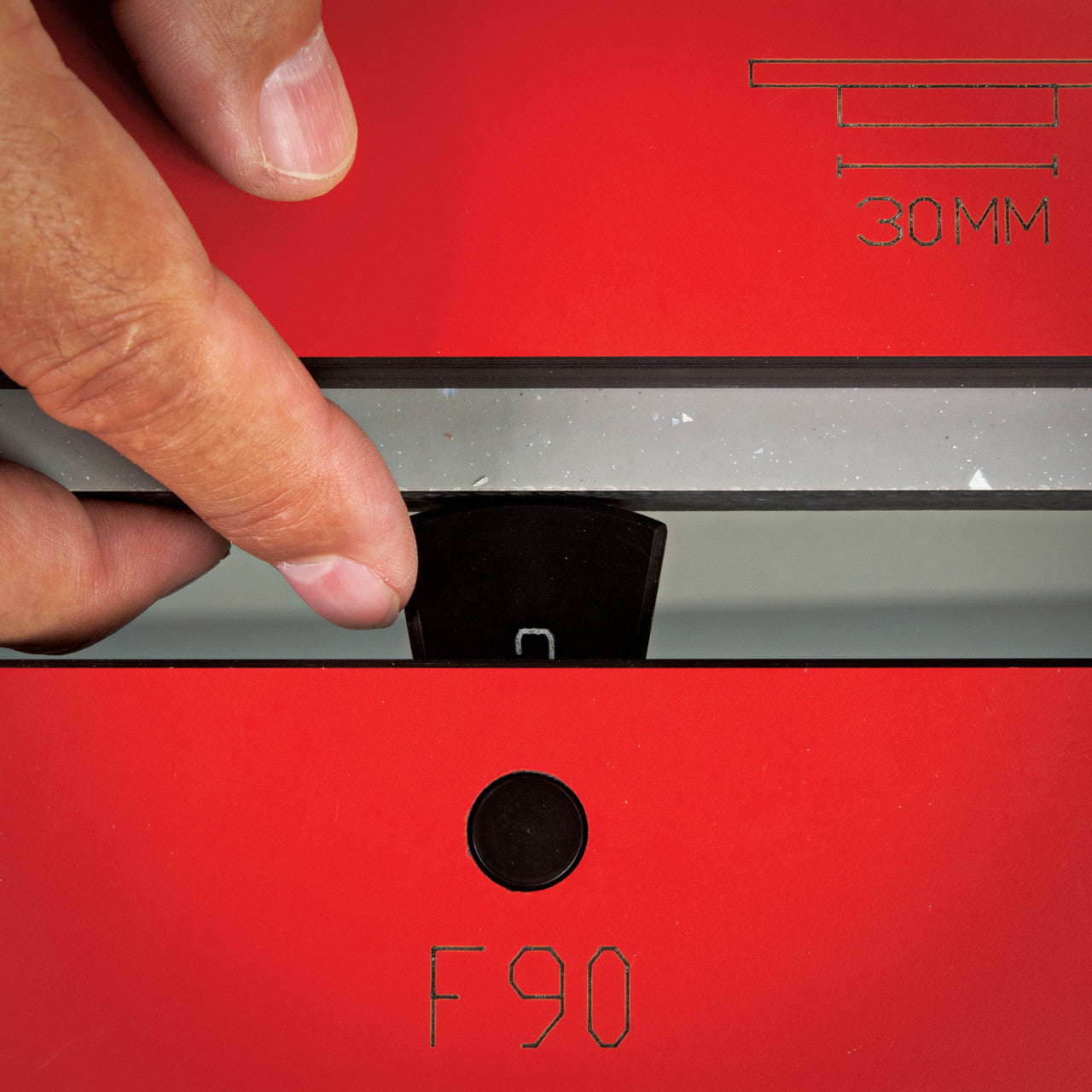

• OFFSET CAMS Unique backset wedges for consistent easy setting
• EDGE PROFILE COMPATABILITY Covers square edge, small radius, Postform radius and bullnose profiles

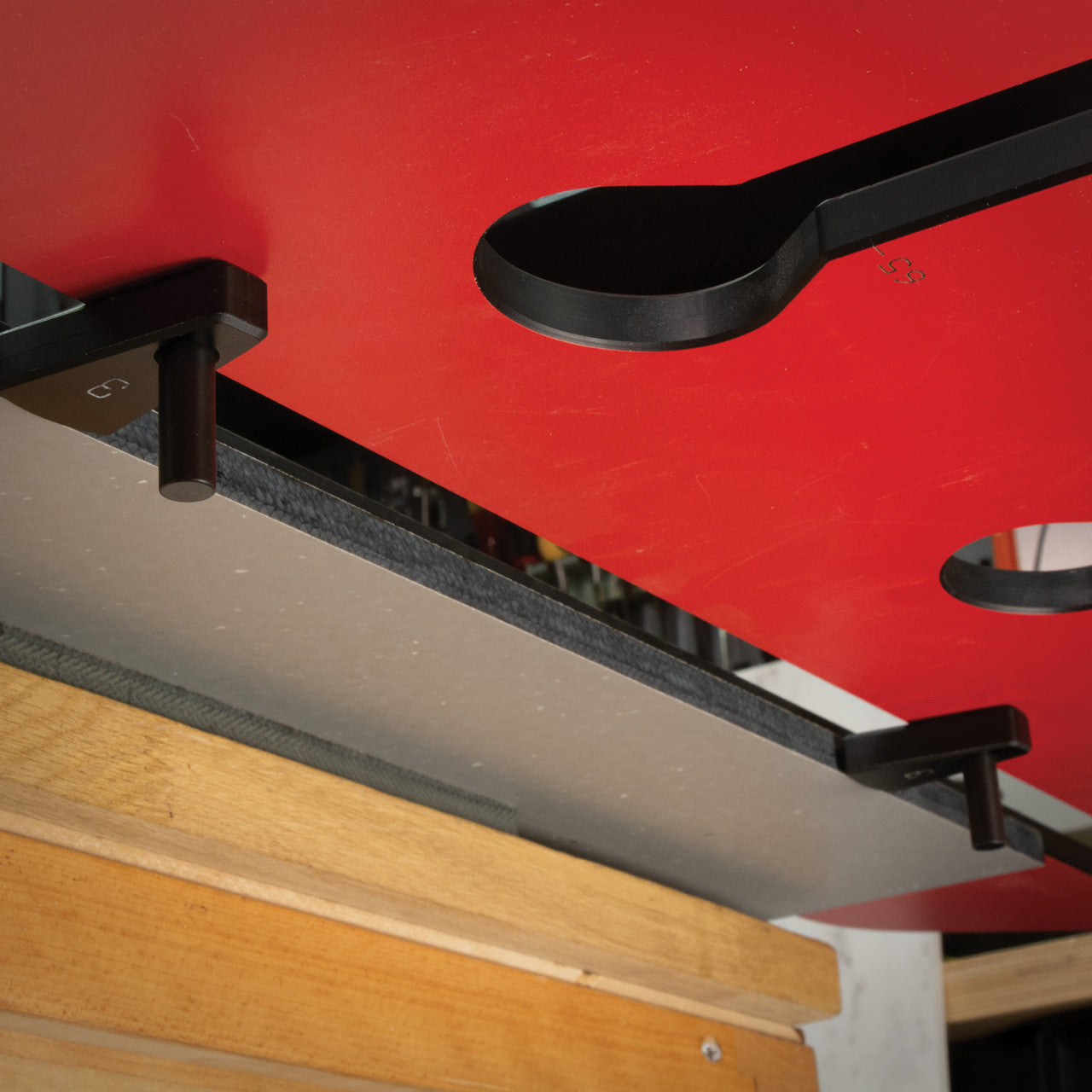

• CLAMP RECESSES For below the surface clamping for unrestricted routing with plunge saw clamps

Specification:

• Length: 985 mm
• Width: 335 mm
• Thickness: 12 mm
• End Cut: 45 degrees
• Corner Radius: 40 mm
• Corner Radius: 100 mm
• Corner Radius: 400 mm
• Corner Mitre Joint: 45 degrees
• Female cut material width loss (inset): variable
• Bolt recesses: 3
• Bolt recess centres: 175 + 175 mm
• Bolt recess width: 14 mm
• Guide bush: 30 mm

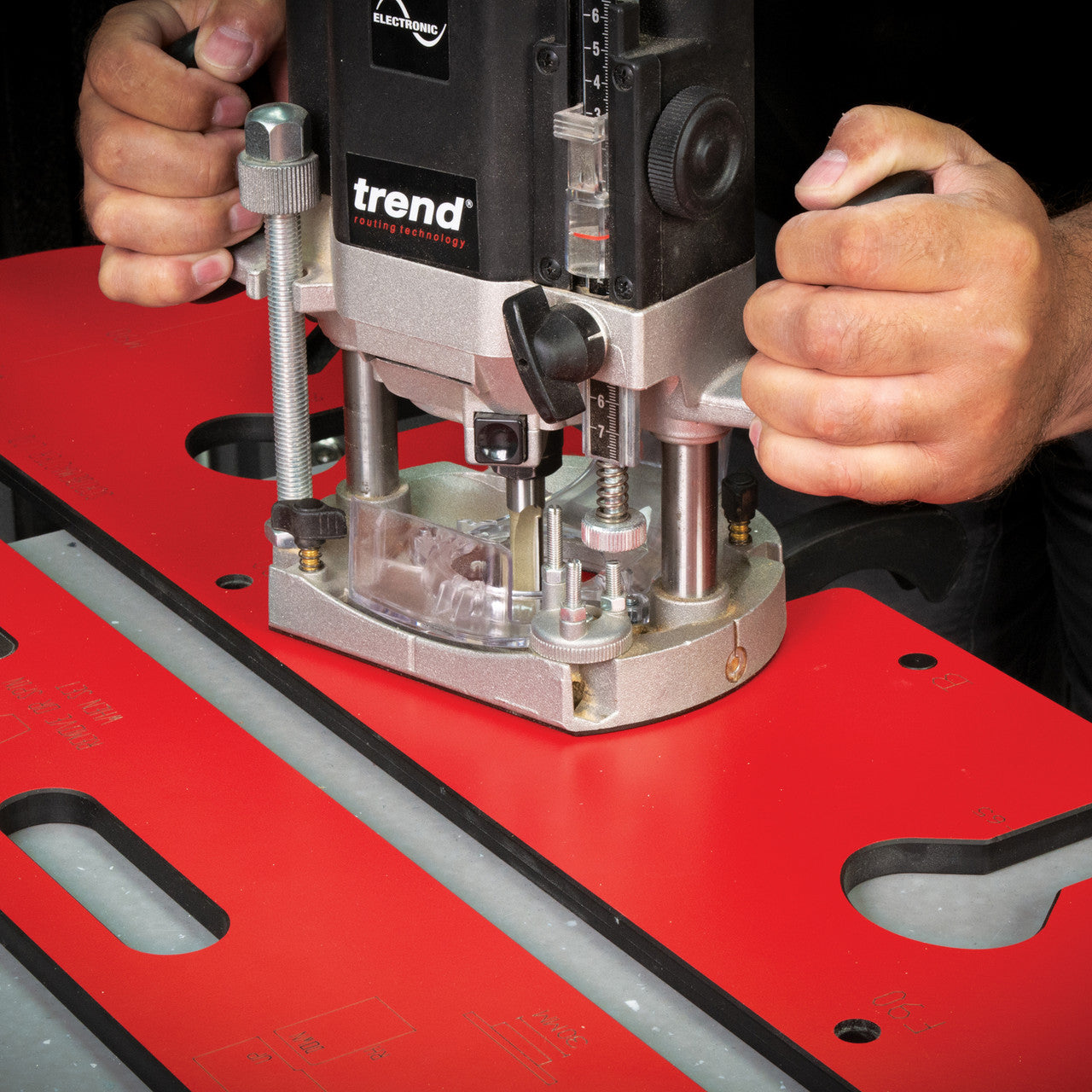

• Plunge router: 1/2-inch (min. 1300 watts)
• Cutter: 12.7 mm x 50 mm cut
• Clamps: Two
• Weight: 4.73 kg
