Trend H/JIG/C 2 Part Skeleton Hinge Jig

Trend H/JIG/C 2 Part Skeleton Hinge Jig

Two part adjustable block portable template set designed for recessing hinges in wooden doors & frames with a router.

Features:

• It is easy to use with minimal setting-up time, completing the job both accurately & quickly
• Used on-site & in joinery shops to increase productivity with excellent results
• Fully adjustable apertures for fire door requirements and renovation work
• Idea for fitting a new door in an old frame
• No need for marking out in the conventional way
• Quick & simple to set-up as the hinge is used as the pattern
• Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
• Use with a light duty plunge router with 1/4 inch collet
• Long reach router cutter required, 12mm diameter with 70mm overall length
• Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
• Unibase may be needed
• Patent No. GB2285410, GB1106608.1
• T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160

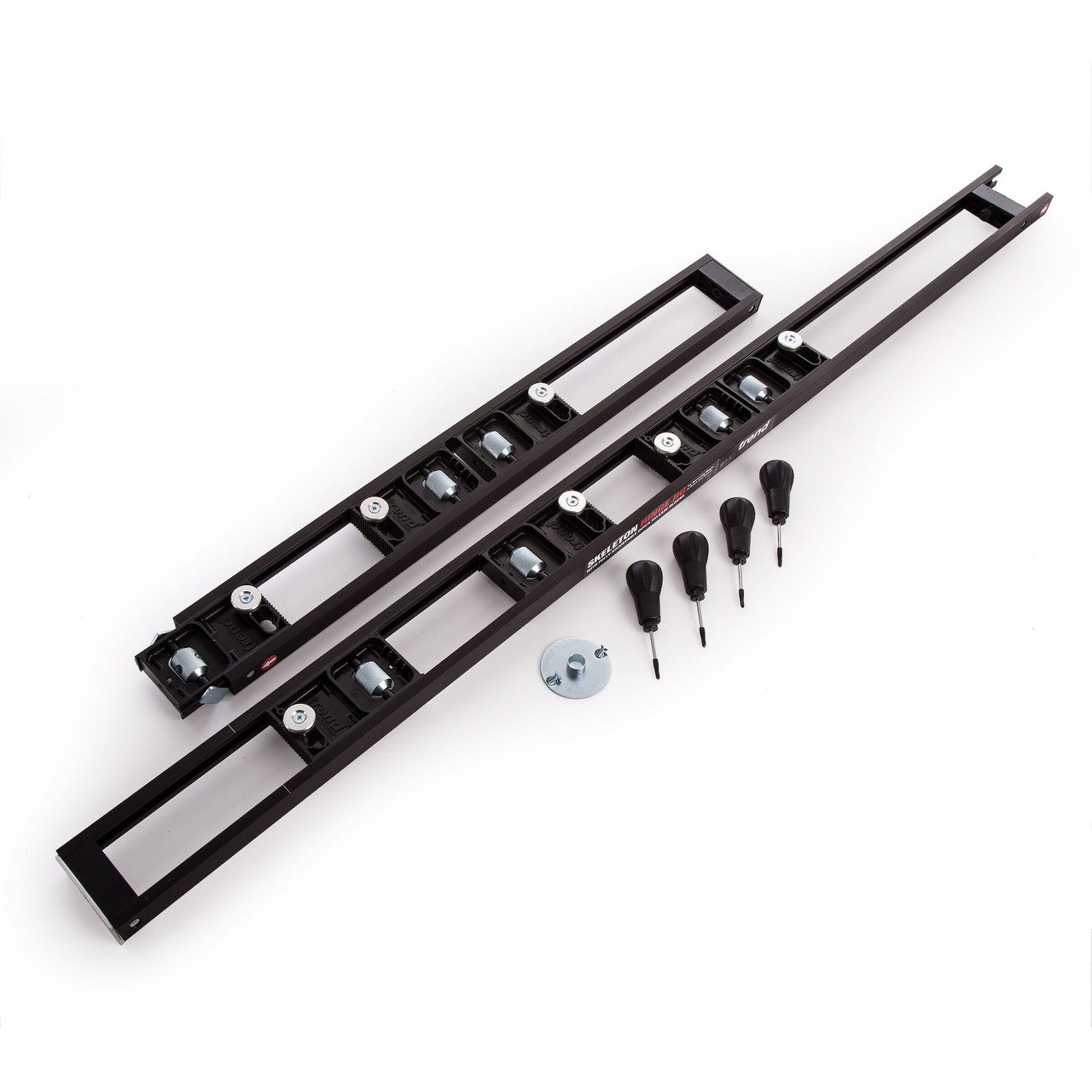

Comes with:

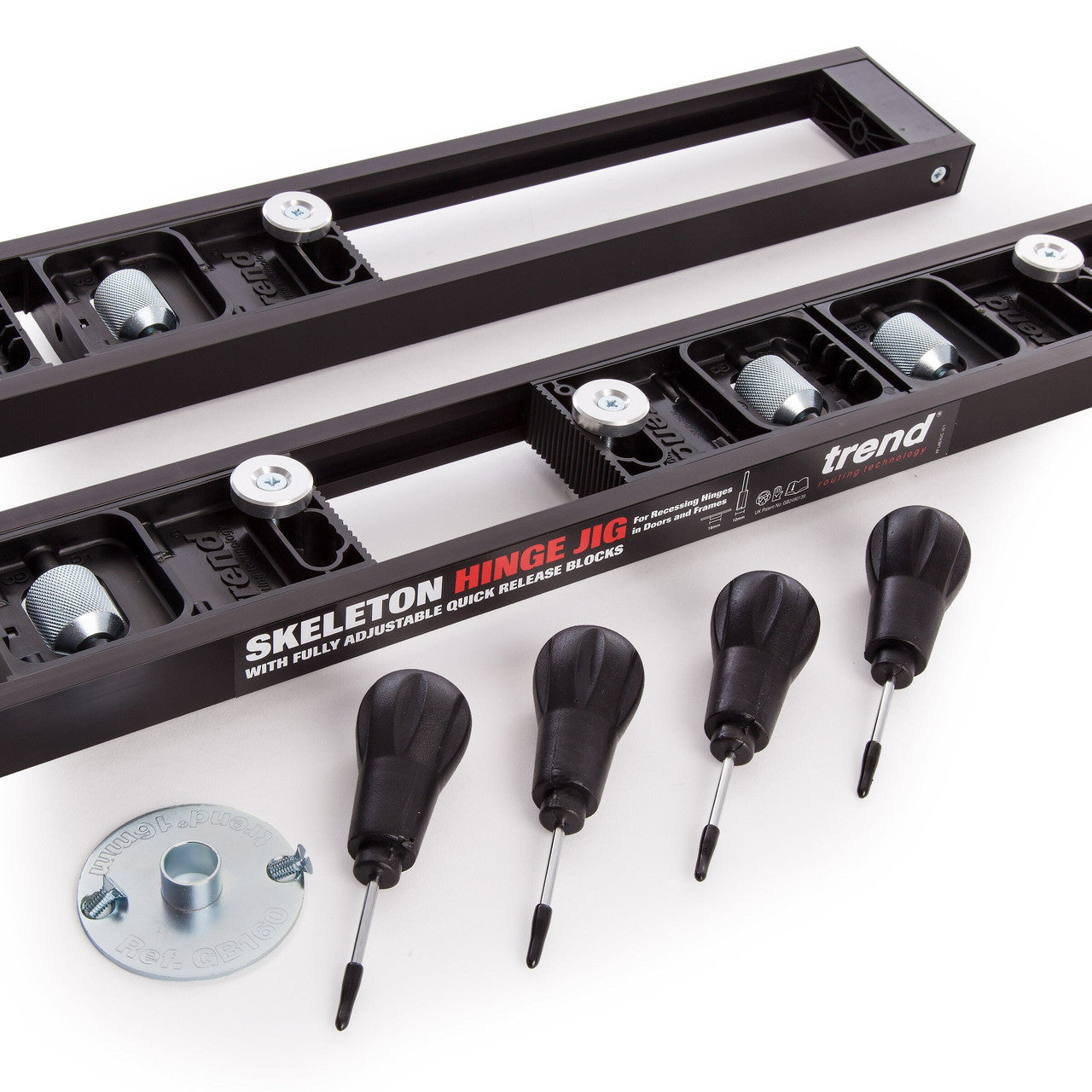

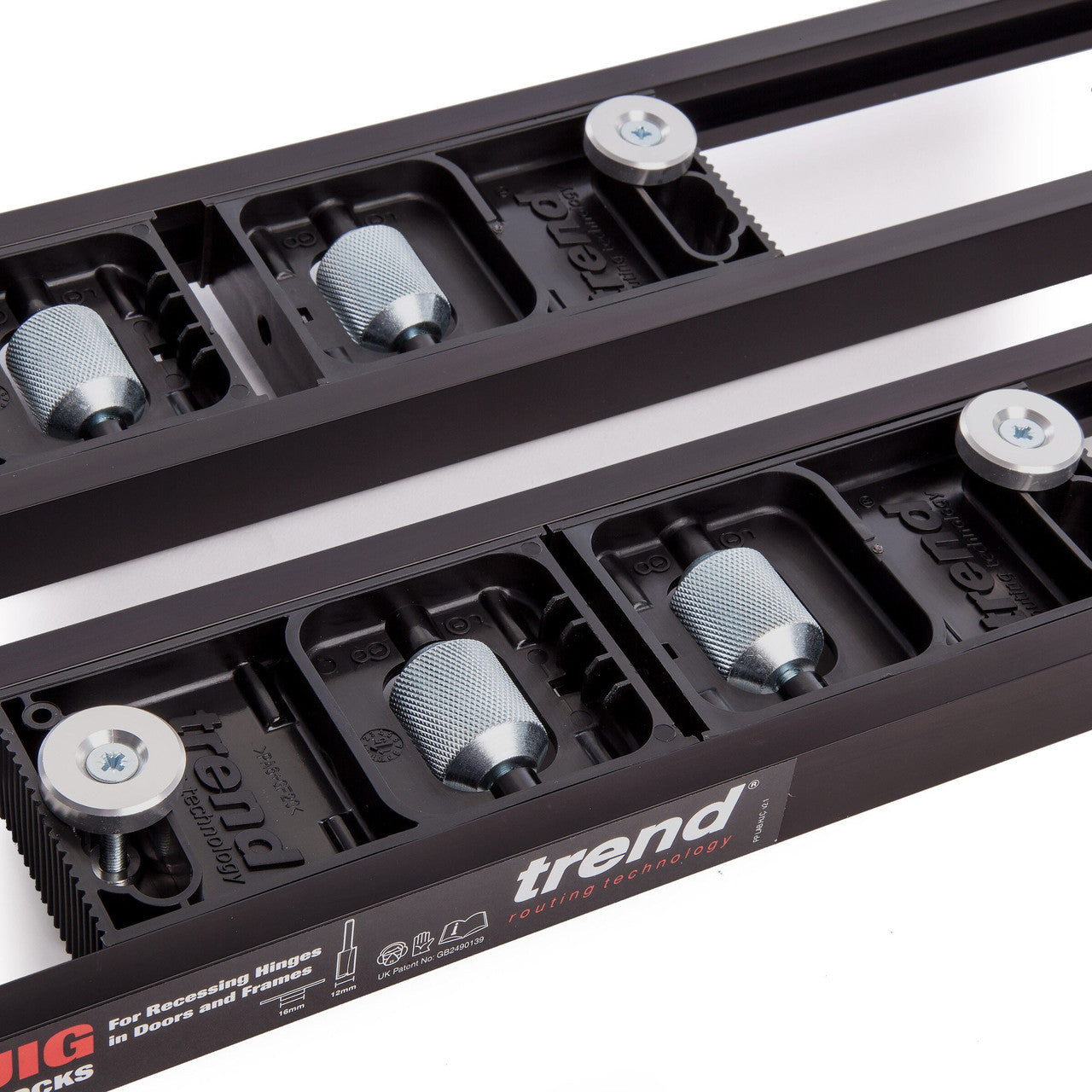

• 3 x Hinge sliding aperture block assemblies
• 4 x Bradawls (short blade)
• 1 x 16mm guide bush

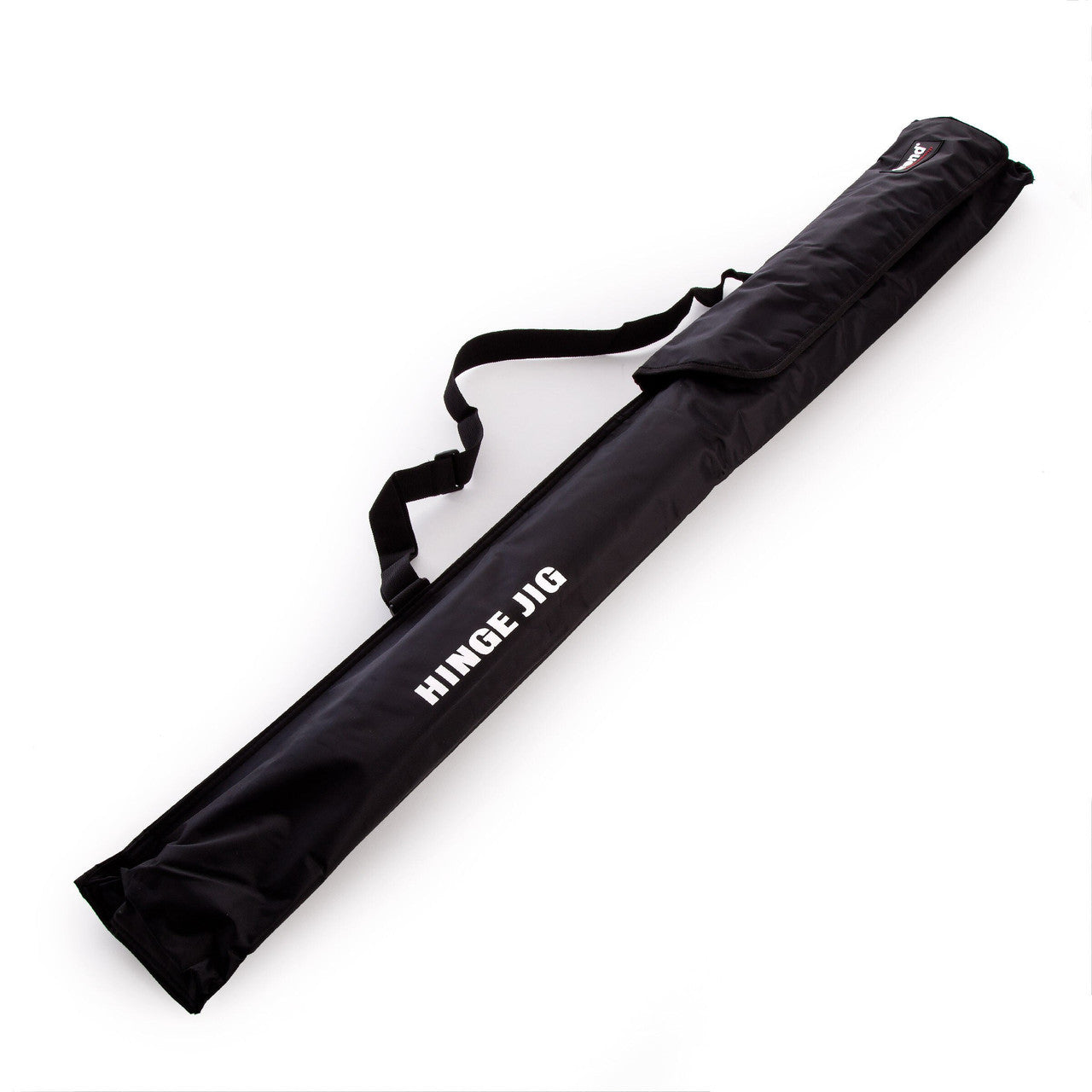

• 1 x Carry case

Specification:

• Hinge sizes possible:
• - Length min. 2 5/8" (67 mm)
• - Length max. 5" (127 mm)
• - Width min. 1/2" (12.7 mm)
• - Width max. 1 3/8" (35 mm)
• Door sizes possible:
• - Height min. 6' 5" (1956 mm)
• - Height max. 2100 mm* (6' 10"*)
• - Thickness min. 5/8" (16 mm)
• - Thickness max. 2" (51 mm)
• * Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
• Weight 2.9 kg
• Jig overall length 1956 mm
• Net Weight: 4.344kg
