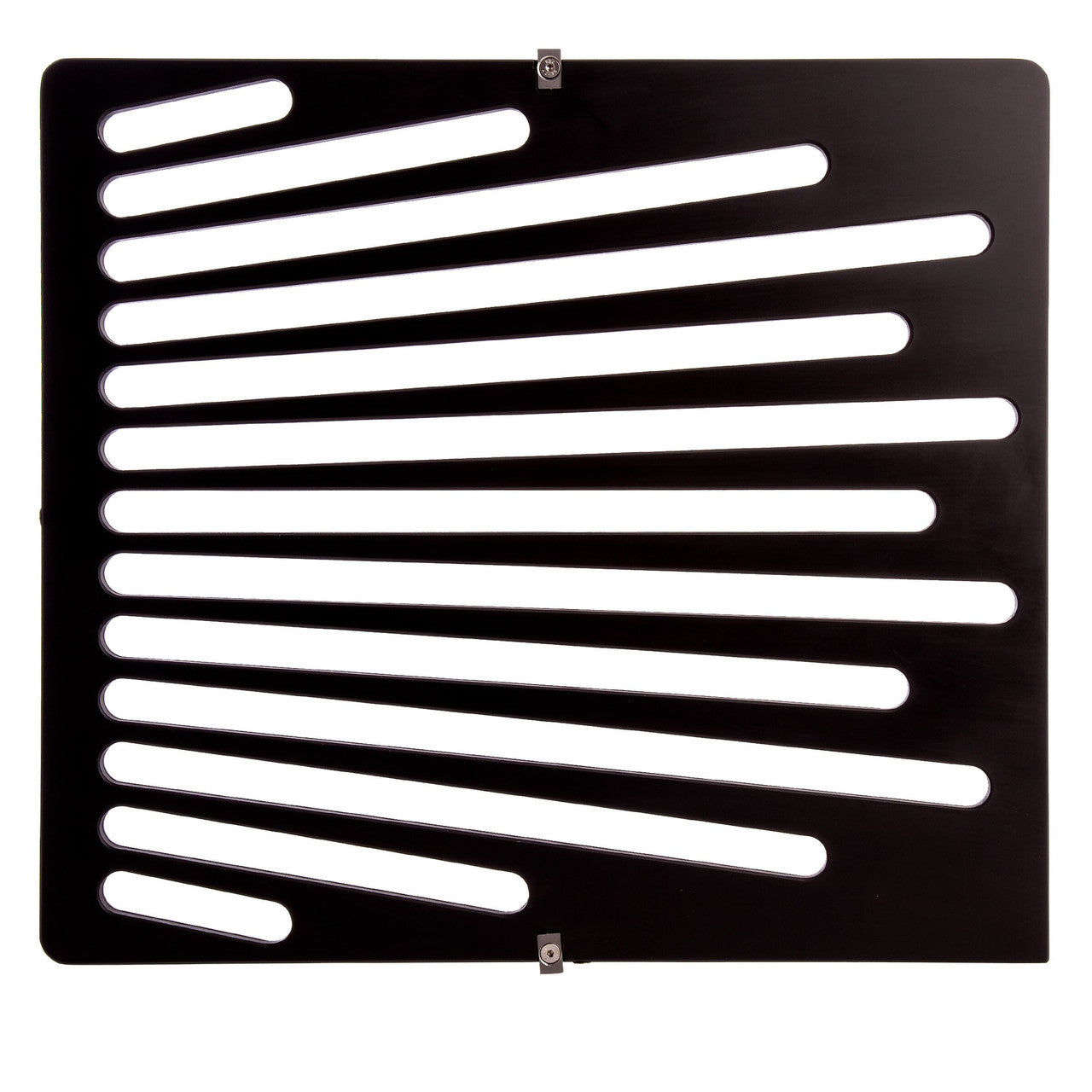

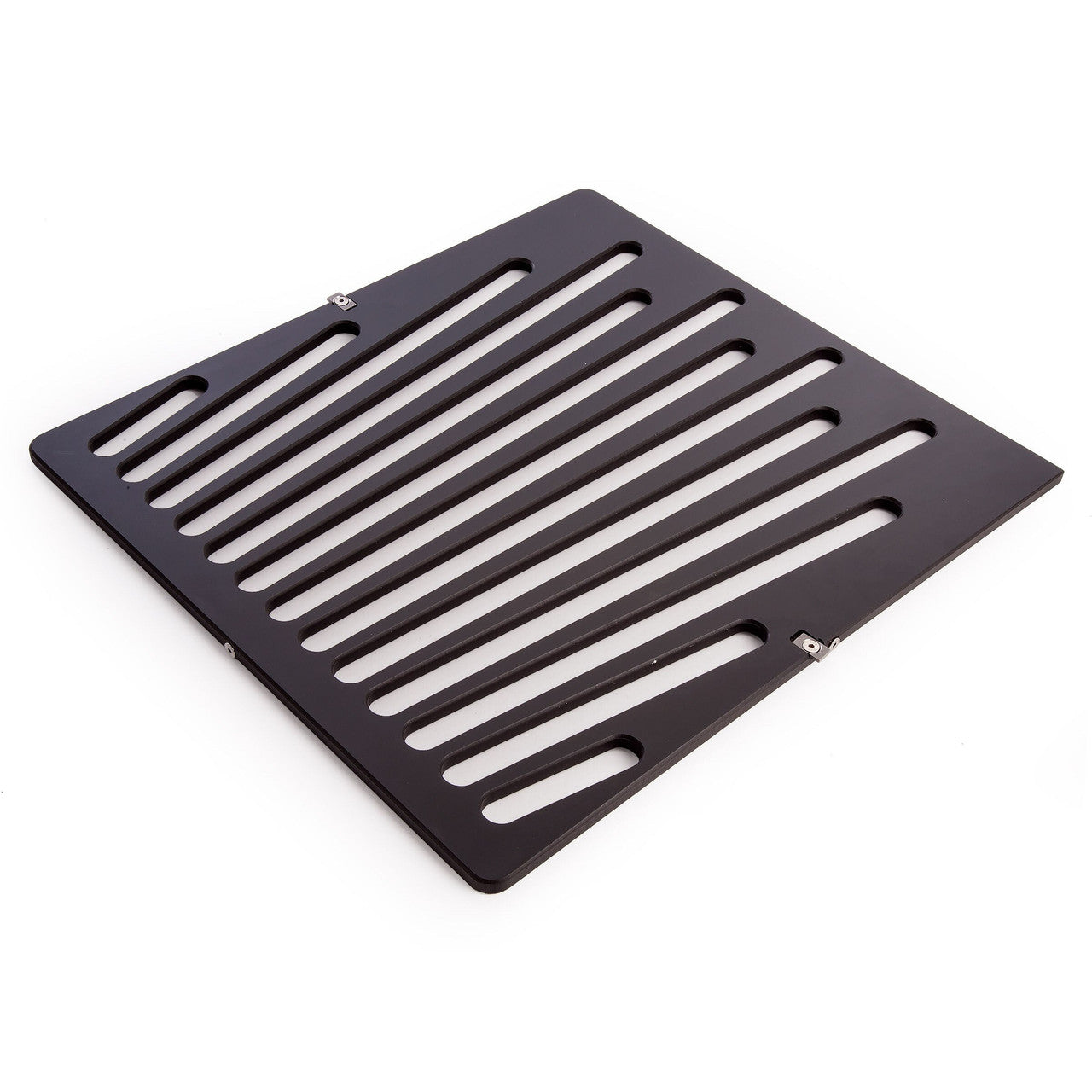

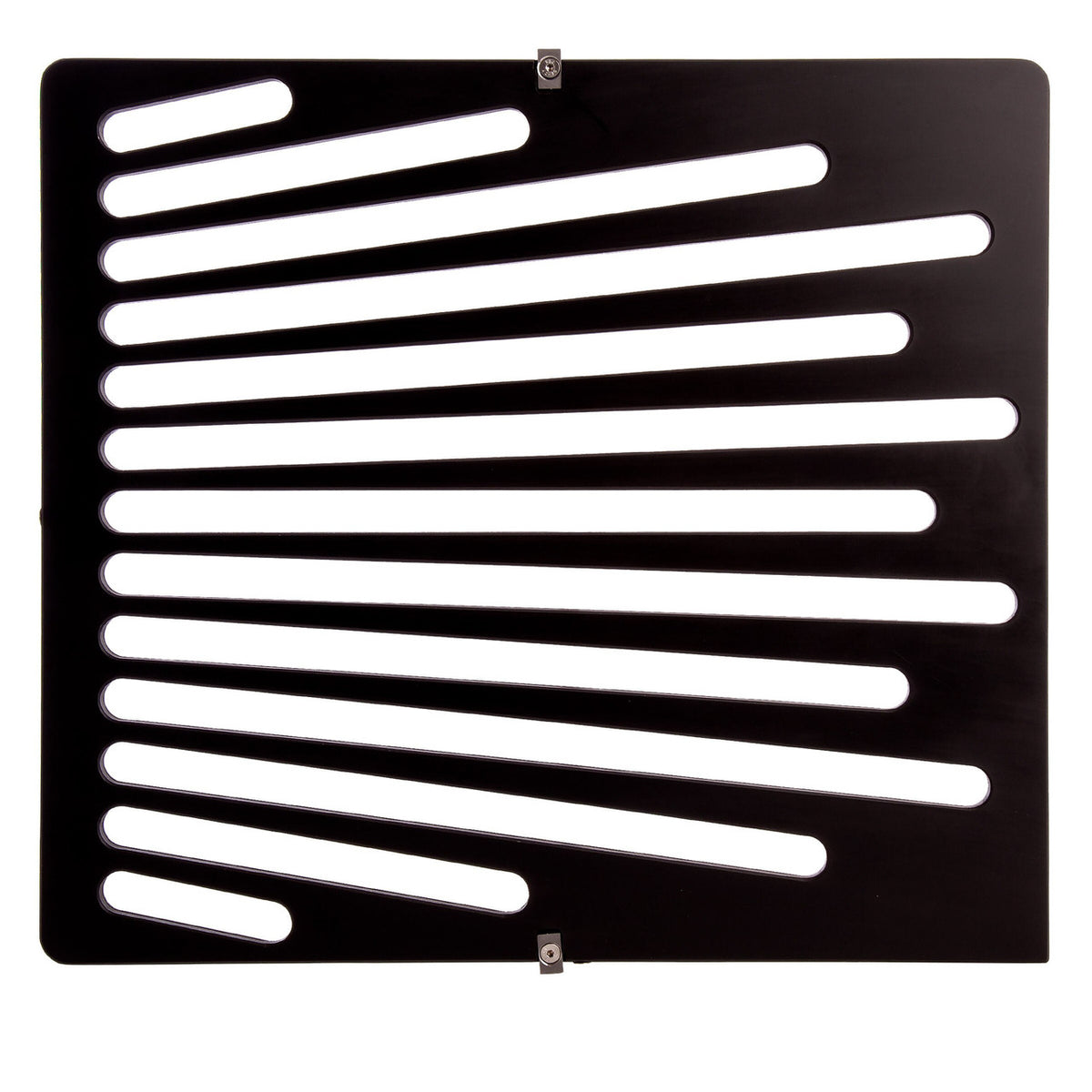

Trend DGP/IP/LF Inner Plate Lightning Fan
The Trend DGP/IP/LF Inner Plate Lightning Fan is suitable for use with the Drainer Groove Pro Jig Frame. Its job is to create straight fan drainer grooves in solid timber and solid surface worktops. It is made from 12mm CNC machined phenolic which is hard-wearing and robust for professional use.
Features:
- Made from 12mm hardwearing CNC machined phenolic
- Requires suitable plunge router with 20mm guide bush and R6mm cove cutter with a long shank
- Must be used with the DG/PRO jig frame to maintain 0.5-degree fall
Specification:
- Pitch: 32 mm to 44 mm
- Groove length: 425 mm
- Template Requirements:
- Guide bush: 20 mm
- Plunge router: 1/2-inch
- Cutter Cove: R6 mm
- Length: 500 mm
- Width: 500 mm
- Thickness: 12 mm
- Weight: 2.35kg
