Stabila Tech 700 Digital Angle Measurer 455mm

Stabila Tech 700 Digital Angle Measurer 45cm

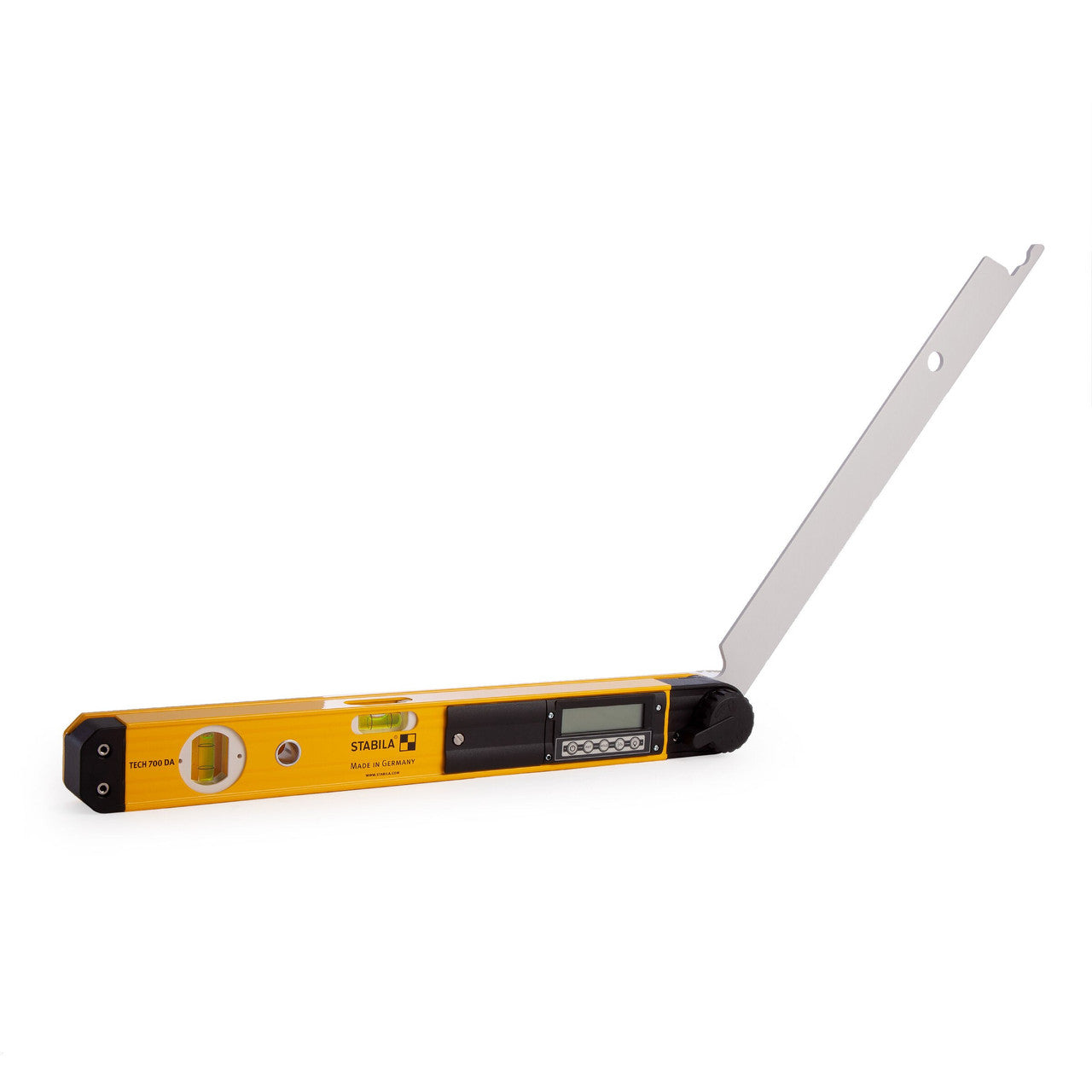

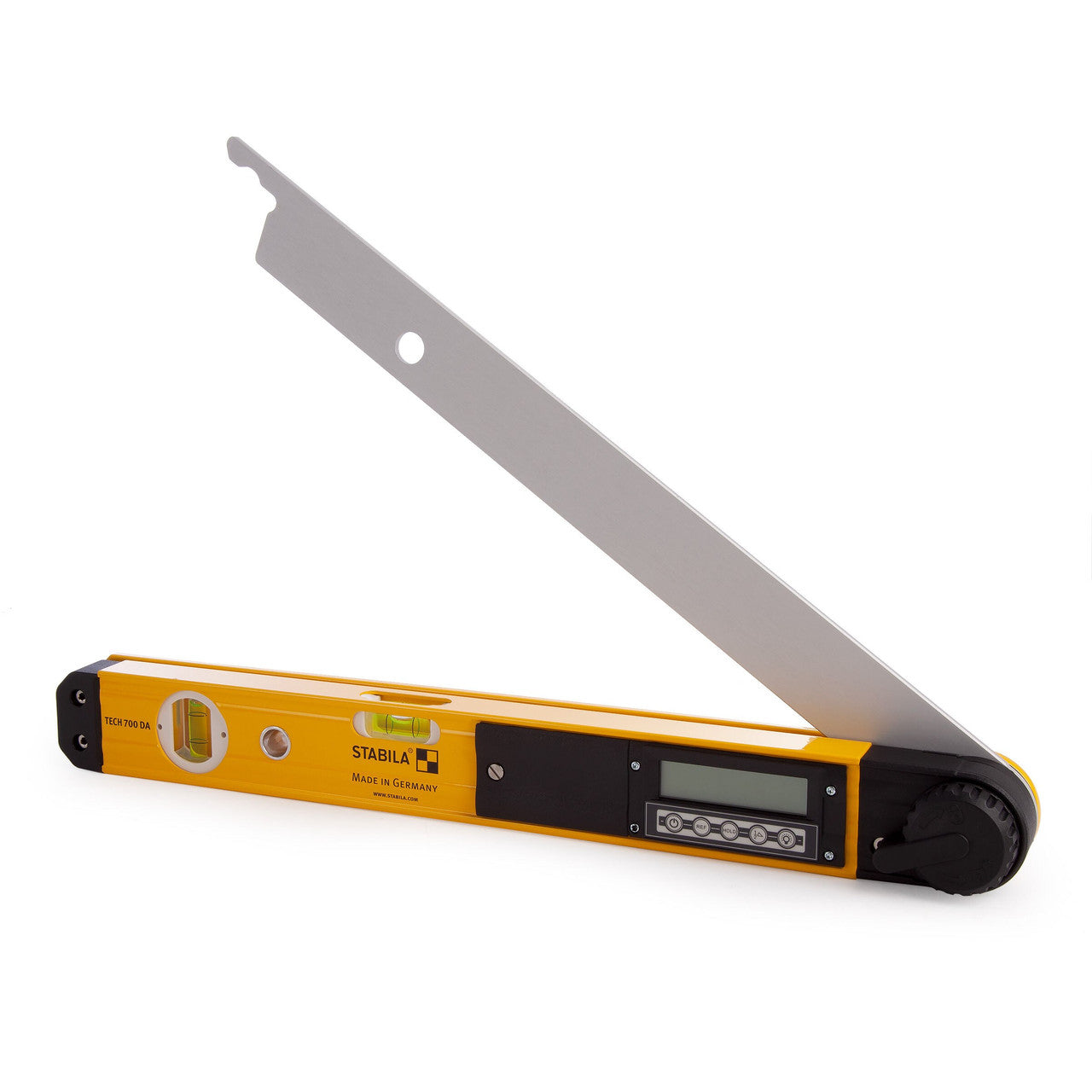

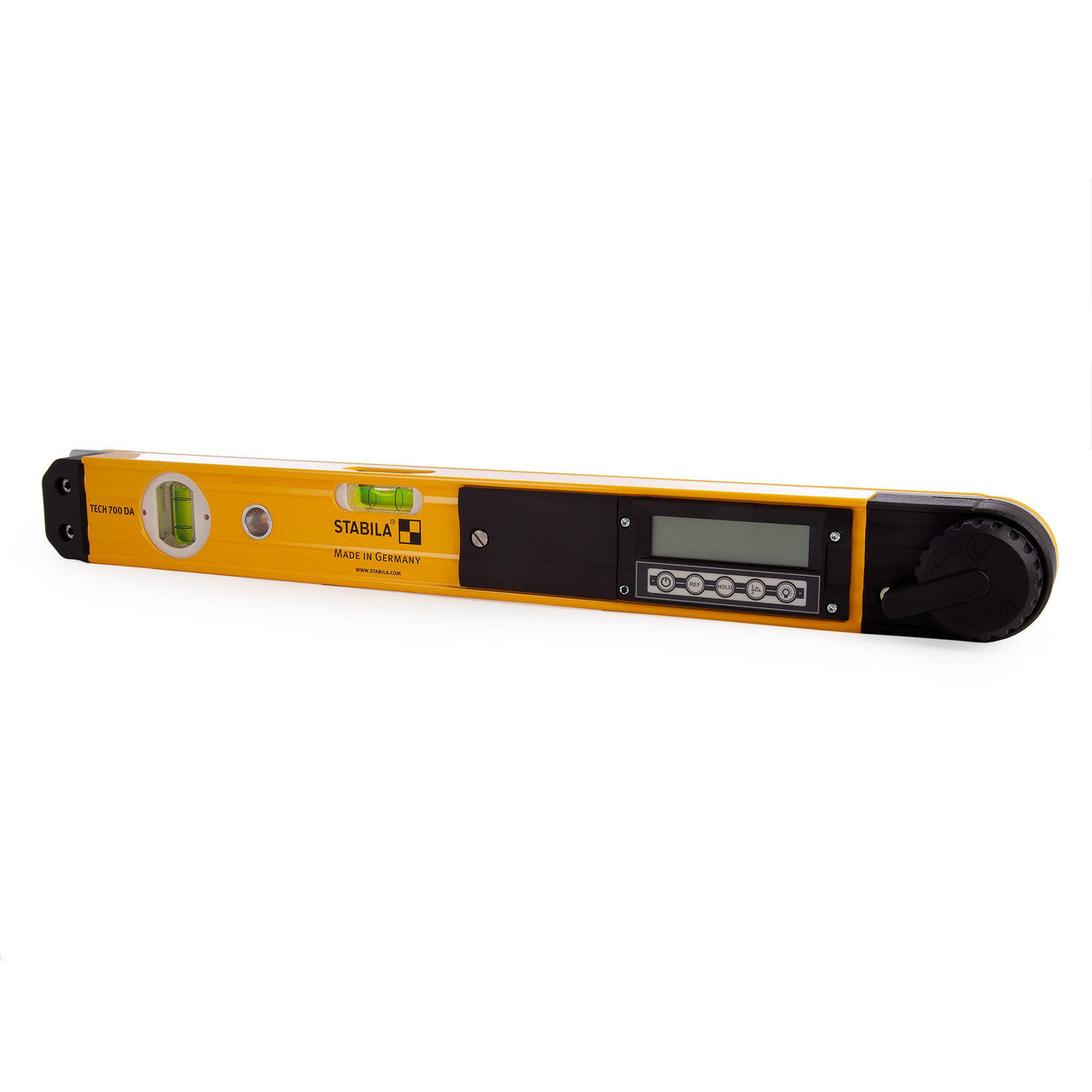

The Stabila Tech 700 is a 3 in 1, extremely versatile angle measurer. The three tools: angle finder, spirit level and bevel gauge calculate exact angles with the latest electronic measuring technology for precise results every time. Using the locking mechanism, you can use the tool as a bevel gauge and easily transfer the measured angles onto a part. It is the perfect all-rounder for everyday use thanks to its IP rating of 54 and high-quality materials.

Features:

• Electronic angle finder for quickly determining and transferring interior and exterior angles in the range from 0° – 270°
• Digital display with large digits and lighting that can be activated and dimmed
• LOCK function: locking mechanism for transferring angles reliably

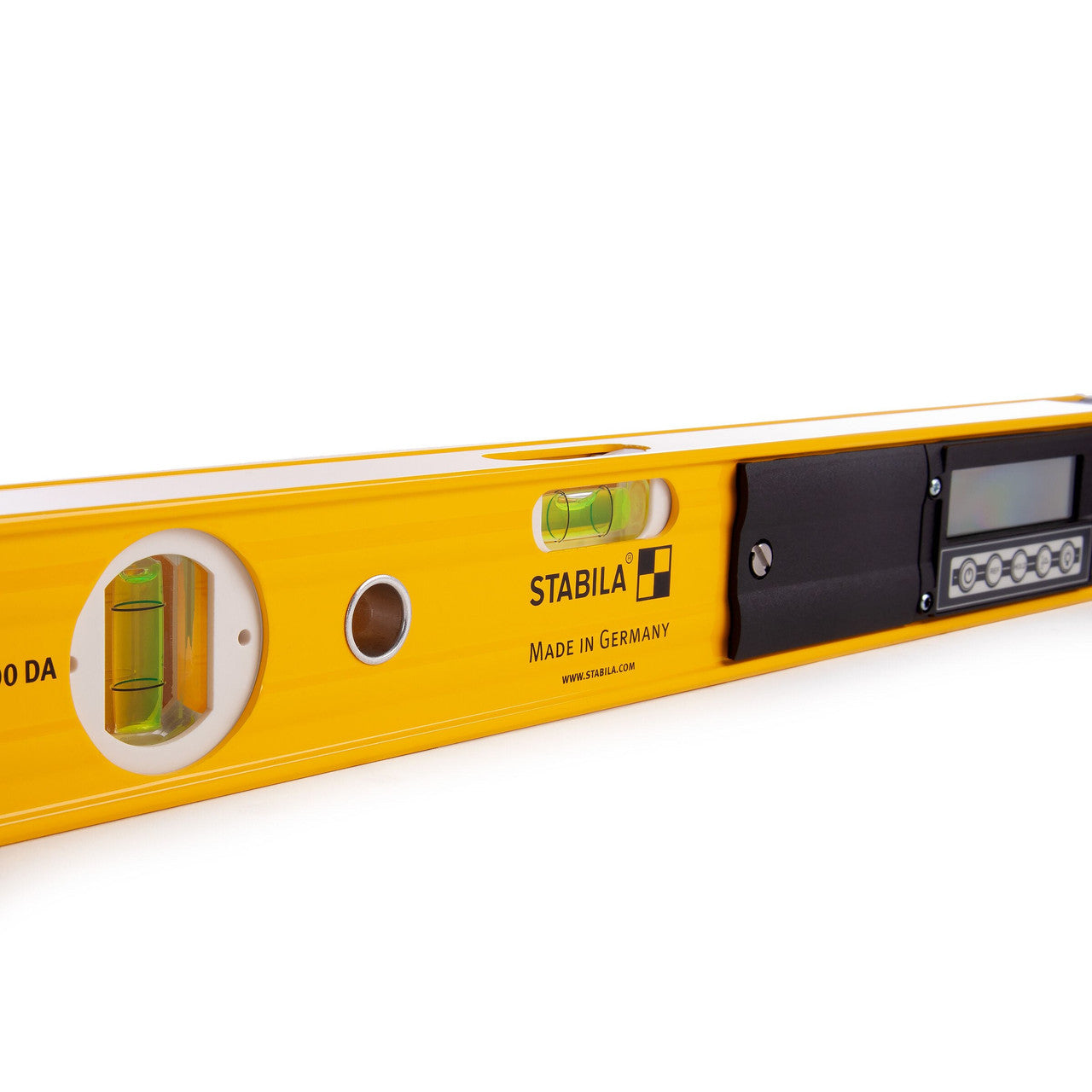

• Vials which can be read easily, even when the arm is folded in
• Two particularly wide contact edges for accurate and reliable marking of angles in all positions
• REF function: allows a reference angle to be accepted, saved and then transferred to other components
• HOLD function: saves the measured value – for accurate measurements and quick transferring even in hard-to-see places
• Displays the angle bisectors at the touch of a button – ideal for quick and accurate mitre cuts
• Switches off automatically if not used for 60 minutes
• Precise measuring results with an accuracy of ± 0.1°
• Protection class IP 54

Comes with:

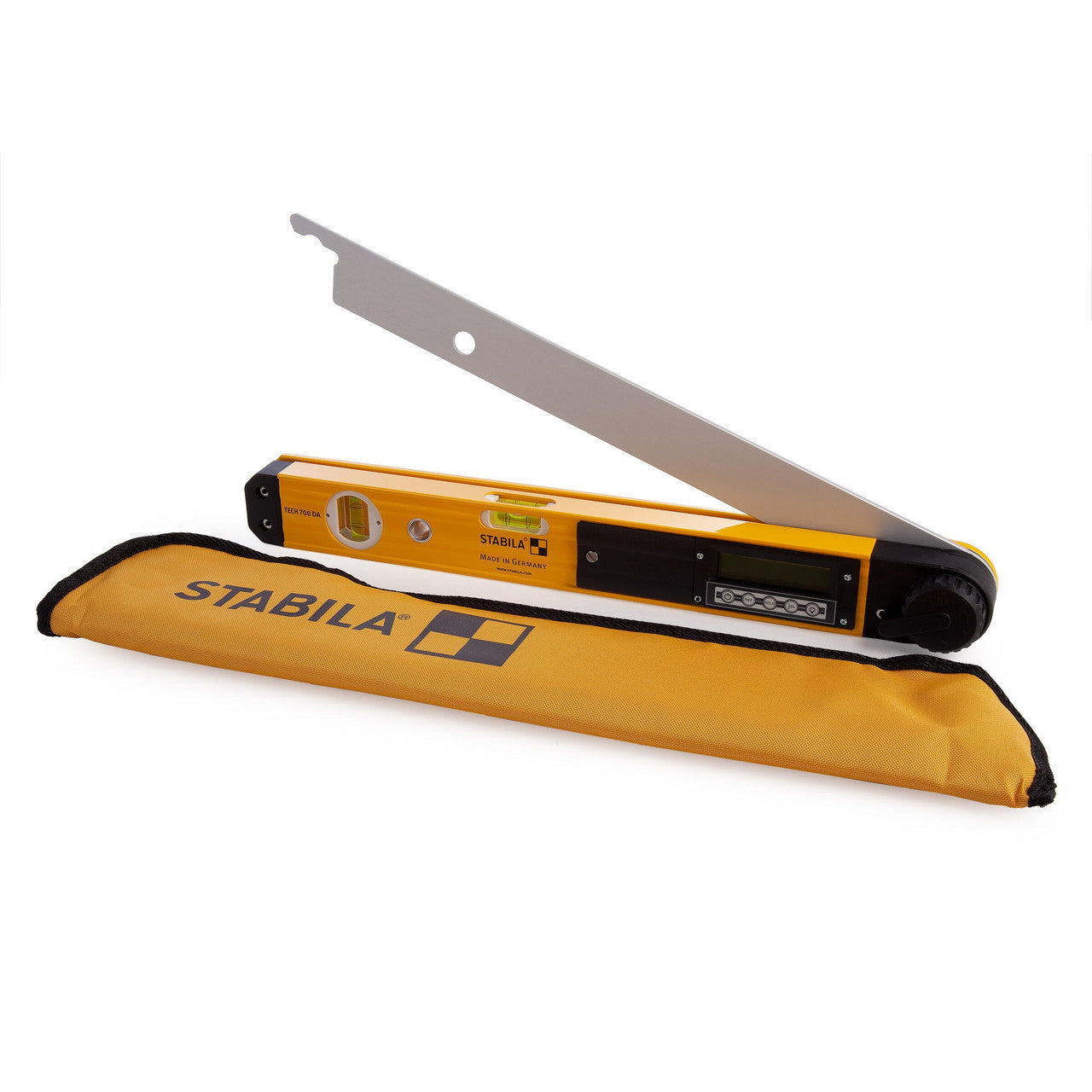

• Carrying case

Specification:

• Accuracy with electronic angle measurement: +/-0.10°
• Measurement accuracy in normal position: 0.50 mm/m
• Measurement accuracy in reverse position: 0.75 mm/m
• Protection class: IP 54
• Number of arms: 2
• Max. measuring range: 270°
• Measuring modes: °
• Operating life: 120 h
