Milwaukee M18 FMDP-502C FUEL Magnetic Drill Press with Permanent Magnet (2 x 5.0Ah Batteries)

SKU: MIL-M18FMDP-502C-4933451013

Have any questions about this product or placing bulk orders?

Use this text to encourage communication or promote sharing on social networks.

You can also add links

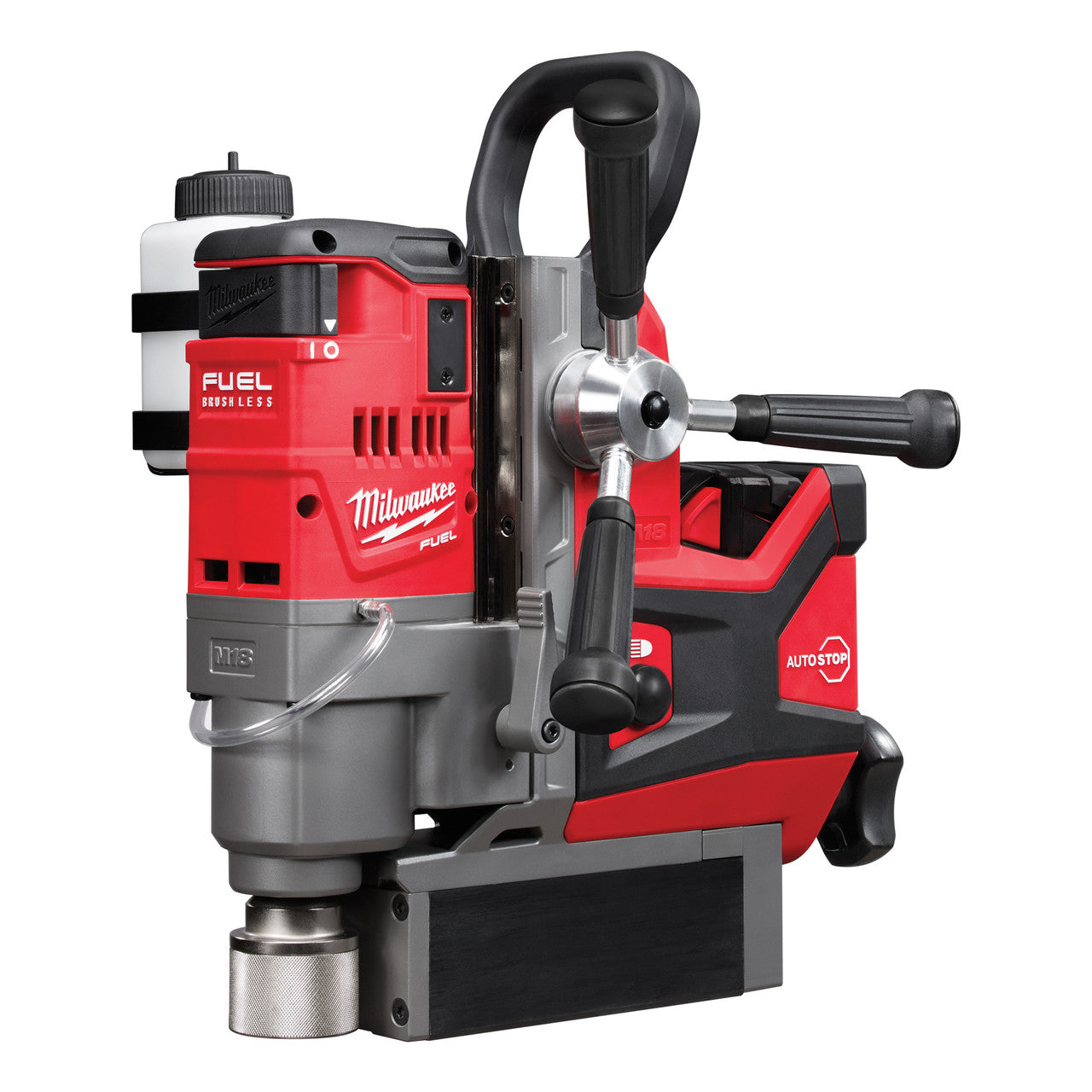

The Milwaukee M18 FMDP-502C FUEL Magnetic Drill Press has a keyless 19mm Weldon reception for fast and easy accessory change

The Milwaukee M18 FMDP has a Brushless POWERSTATE motor providing corded drilling performance with the strongest magnet holding force on ¼″ steel and 40 x 18mm holes per battery charge.The REDLINK PLUS intelligence system delivers advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load. The 5.0Ah REDLITHIUM battery packs provide superior construction, electronics and fade-free performance to deliver more run time and more work. Comes with 2 x M18 B5 Battery packs and a M12-18 FC Charger in a Kitbox.

Features:

  • AUTOSTOP lift-off detection: Detects excess rotation and automatically cuts power to the drill for best user protection
  • Self-powered permanent magnet with 8,890 N of holding force prevents accidental magnet deactivation for improved user protection and easy alignment
  • 2 speed gear box for optimised drilling speed with 400 and 690 rpm´s when using annual cutters or twist drill bits
  • Maximum drilling capacity of 38 mm with use of annual cutters and 13 mm straight shank twist drill bits

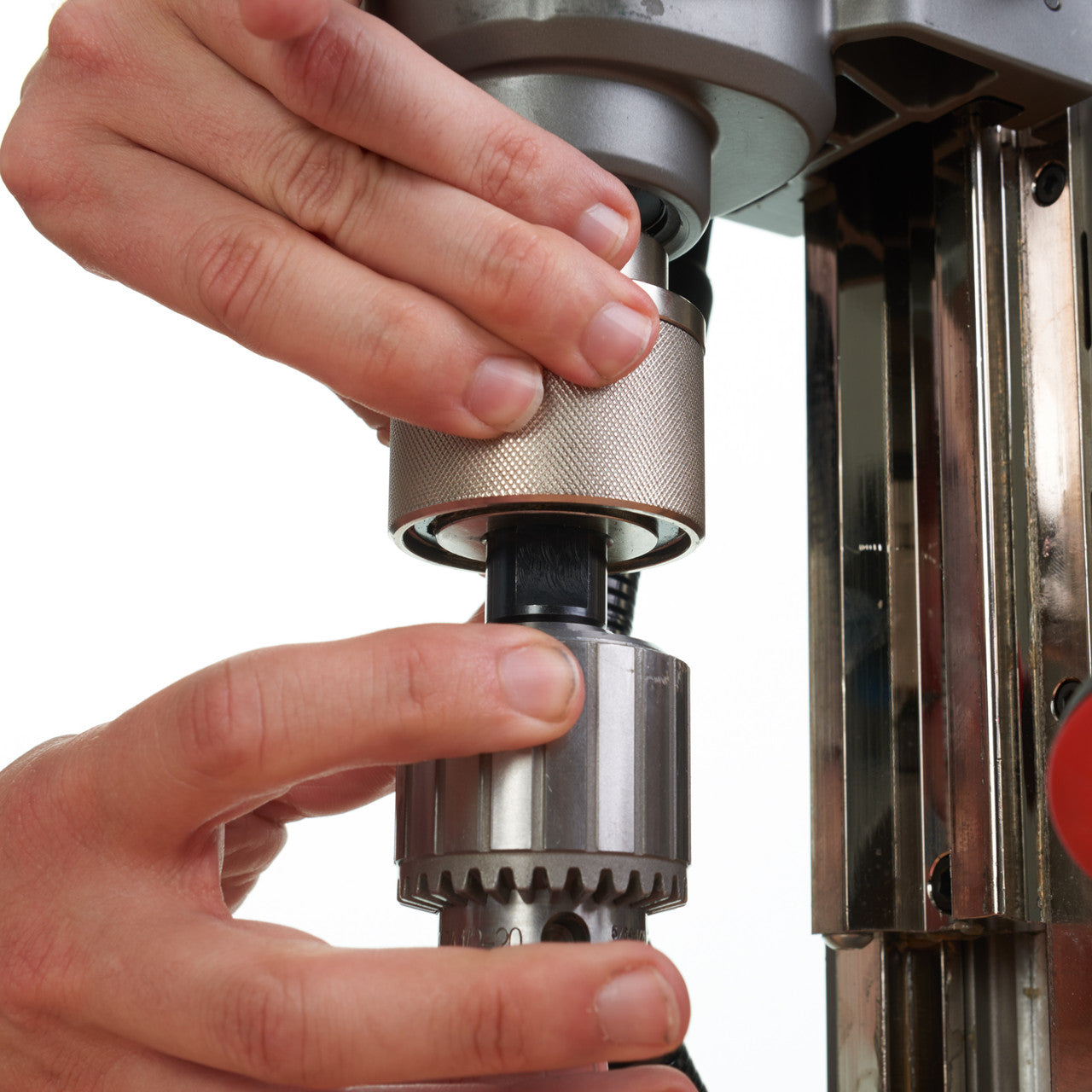

  • Keyless 19mm Weldon reception for fast and easy accessory change

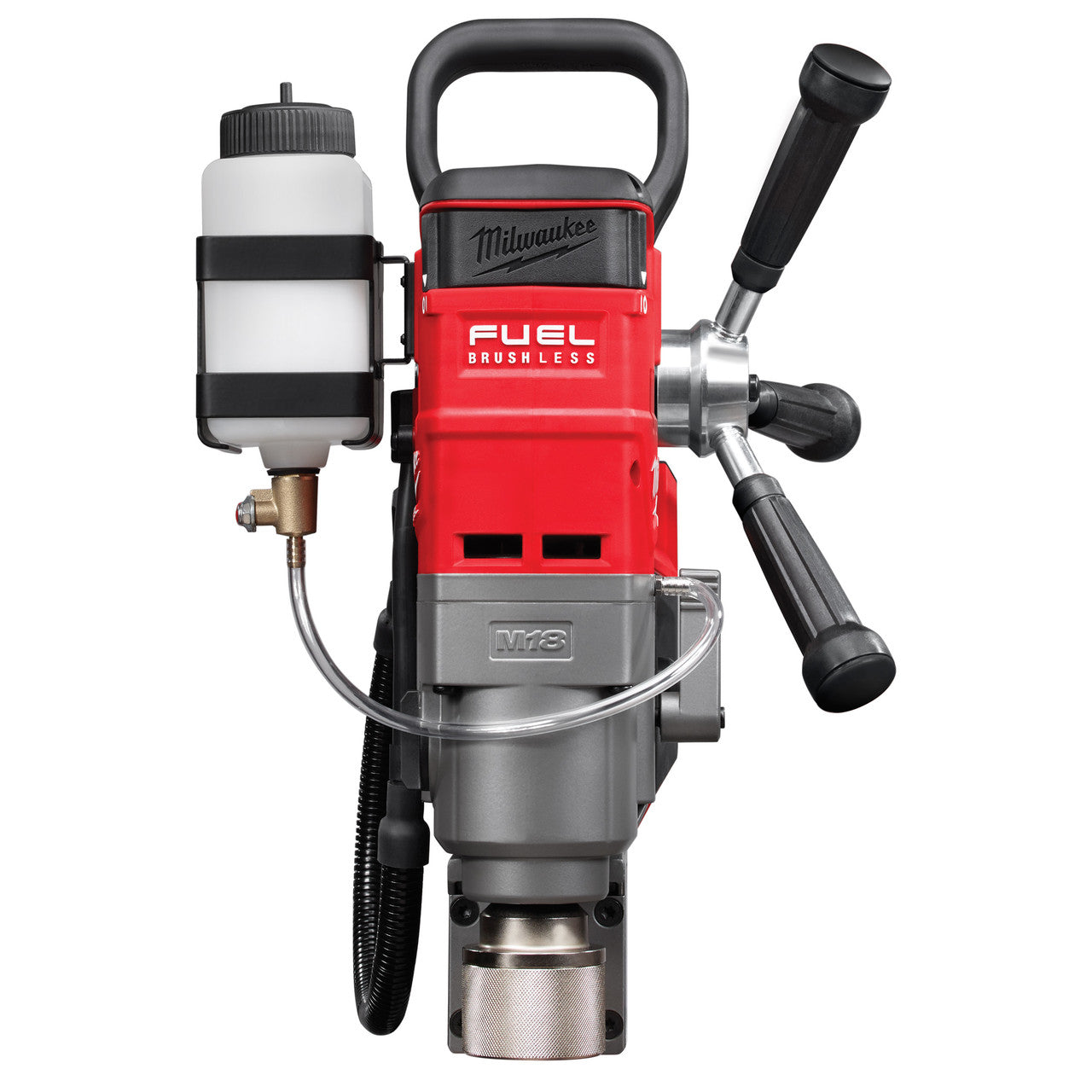

  • On board magnet lubrication tank for fixing on the machine or on the material, especially when drilling in vertical positions
  • 146mm stroke length for usage of different accessories
  • Tool-free detachable handle for right or left hand usage
  • On board LED light to illuminate the work surface
  • Flexible battery system: works with all MILWAUKEE M18 batteries

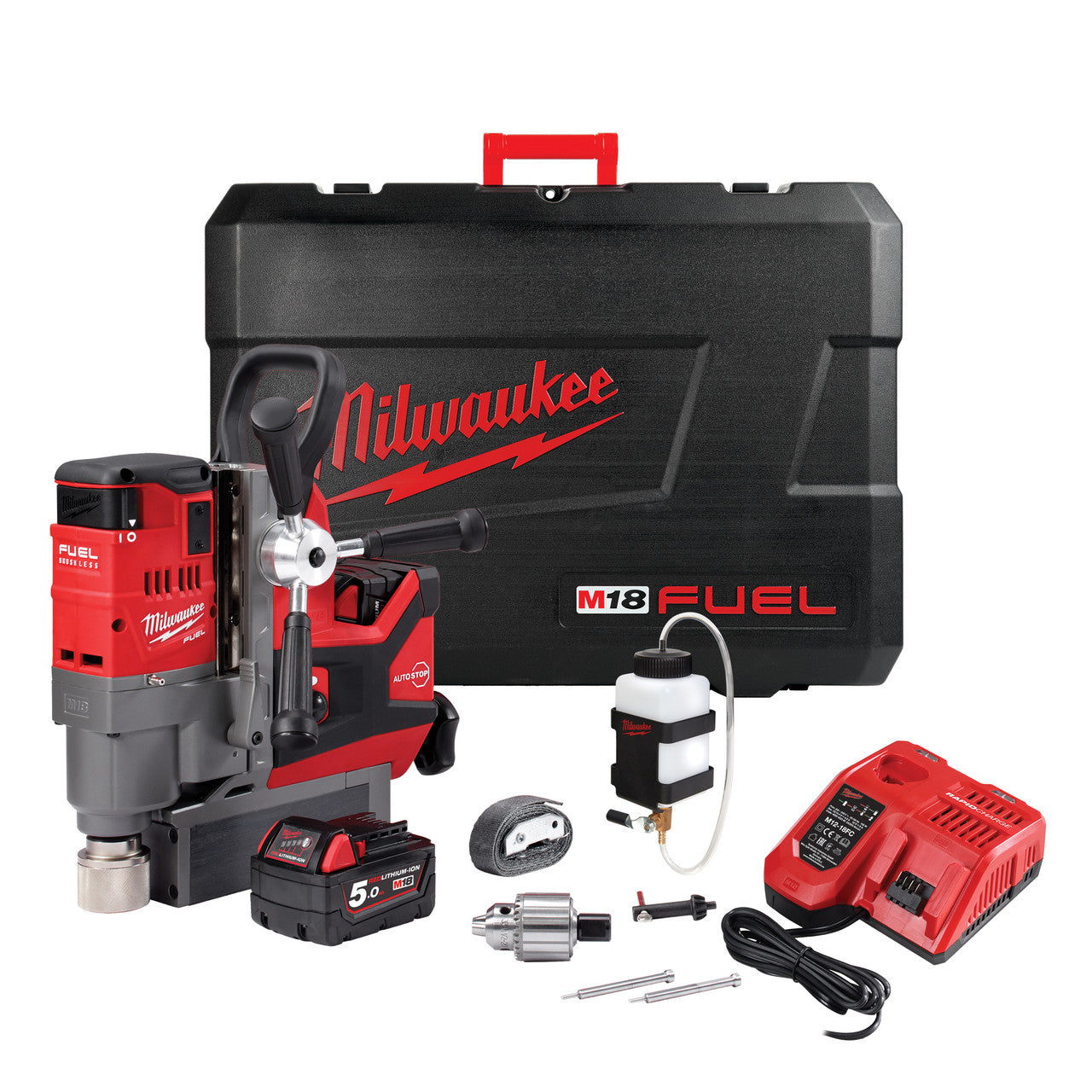

Comes With:

  • Lubrication tank with hose
  • Magnetic lubrication tank holder
  • 13mm chuck with Weldon adaptor
  • Chuck key
  • Ejector pin
  • Safety strap
  • 2 x M18 B5 Battery packs
  • M12-18 FC Charger
  • Kitbox

Specification:

  • Magn. holding power (at drill point pressure): 8890N
  • Max. depth broaching capacity: 50mm
  • Max. diameter broaching capacity: 38mm
  • Max. drilling solid bit: 13mm
  • No load speed: 400 / 690rpm
  • Stroke length: 146mm
  • Voltage: 18V
  • Weight with battery pack: 13.0kg
