Metabo

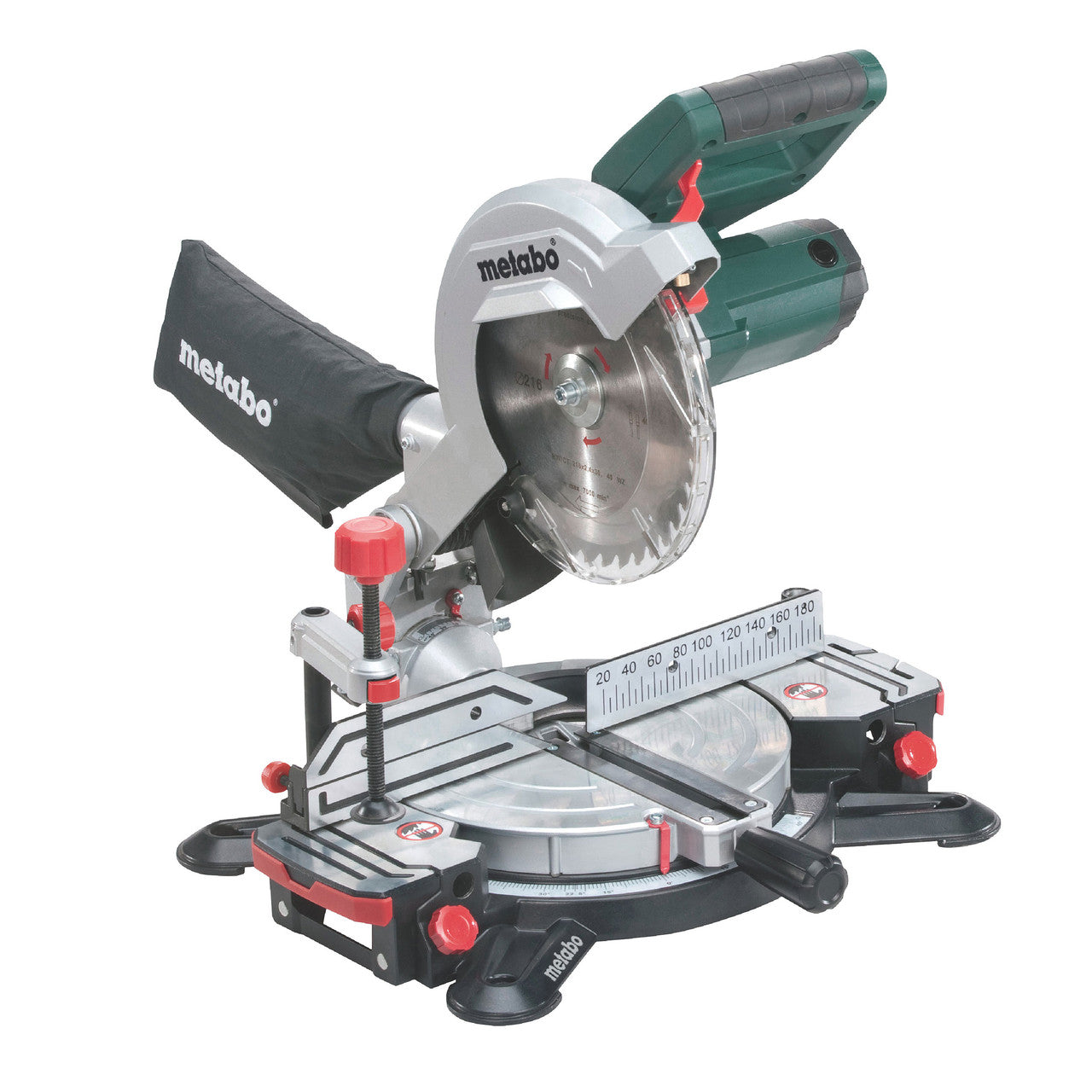

Metabo KS 216 M 216mm Lasercut Mitre Saw (240V)

SKU: MET-619216380-KS216M-240V

Have any questions about this product or placing bulk orders?

Use this text to encourage communication or promote sharing on social networks.

You can also add links

This compact, cross-cut mitre saw is powerful yet lightweight, suitable for 1 handed transport

The KS 216 M is part of Metabo's M-Class mitre saw range, offering a compact and lightweight design but with enough power to meet the demands of the professional user. This mains-powered machine is made from robust die-cast aluminium with extendable table-width extensions that can be removed and put underneath extremely long workpieces. The laser provides an exact display of the cutting line for extreme accuracy. This model will make 120 x 60mm cuts at 90°/45° and effective dust extraction can be achieved via the integrated dust scoop.

Features:​

  • Compact, lightweight and user friendly
  • Robust die-cast aluminium design for the highest demands
  • Easy transport thanks to ergonomically-designed handles and saw head lock
  • Effective dust extraction via integrated dust scoop
  • Fast and precise setting of common angles using stop points
  • Laser for exact display of the cutting line
  • Extendable table width extensions, also removable to put underneath extremely long workpieces
  • Bright LED work light for illumination of the cutting line
  • Sliding high rear fence profiles for safe sawing
  • Quick-action clamp for secure fixing of the work piece from the top or front
  • The saw head can be inclined to the left, with an additional angle range for undercuts
  • All scales and operating elements are visible from the working position and can be operated intuitively
  • Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required

Comes with:

  • Carbide saw blade (40 teeth)
  • Material clamp
  • Tool for saw blade change
  • Chip Collection Bag
  • 2 Table length extensions
  • Length Guide

Specification:

  • Dimensions: 475 x 465 x 285 mm
  • Support surface: 155 x 725 mm
  • Maximum cutting width 90°/45°: 120 / 80 mm
  • Maximum cutting depth at 90°/45°: 60 / 45 mm
  • Cutting capacity 90°/90°: 120 x 60 mm
  • Cutting capacity 45°/45°: 80 x 45 mm
  • Turntable setting left/right: 47 / 47 °
  • Saw blade tilt left/right: 47 / 2 °
  • Saw blade: 216 x 30 mm
  • Rated input power S1 100%: 1100 W
  • Rated input power S6 20%: 1350 W
  • No-load speed: 5000 rpm
  • Revolutions at rated load: 3450 rpm
  • Cutting speed: 57 m/s // 187 ft/s
  • Weight: 9.4 kg
  • Cable length: 2 m
  • Sound pressure level: 93 dB(A)
  • Sound power level (LwA): 100 dB(A)
  • Uncertainty of measurement K: 3 dB(A)
