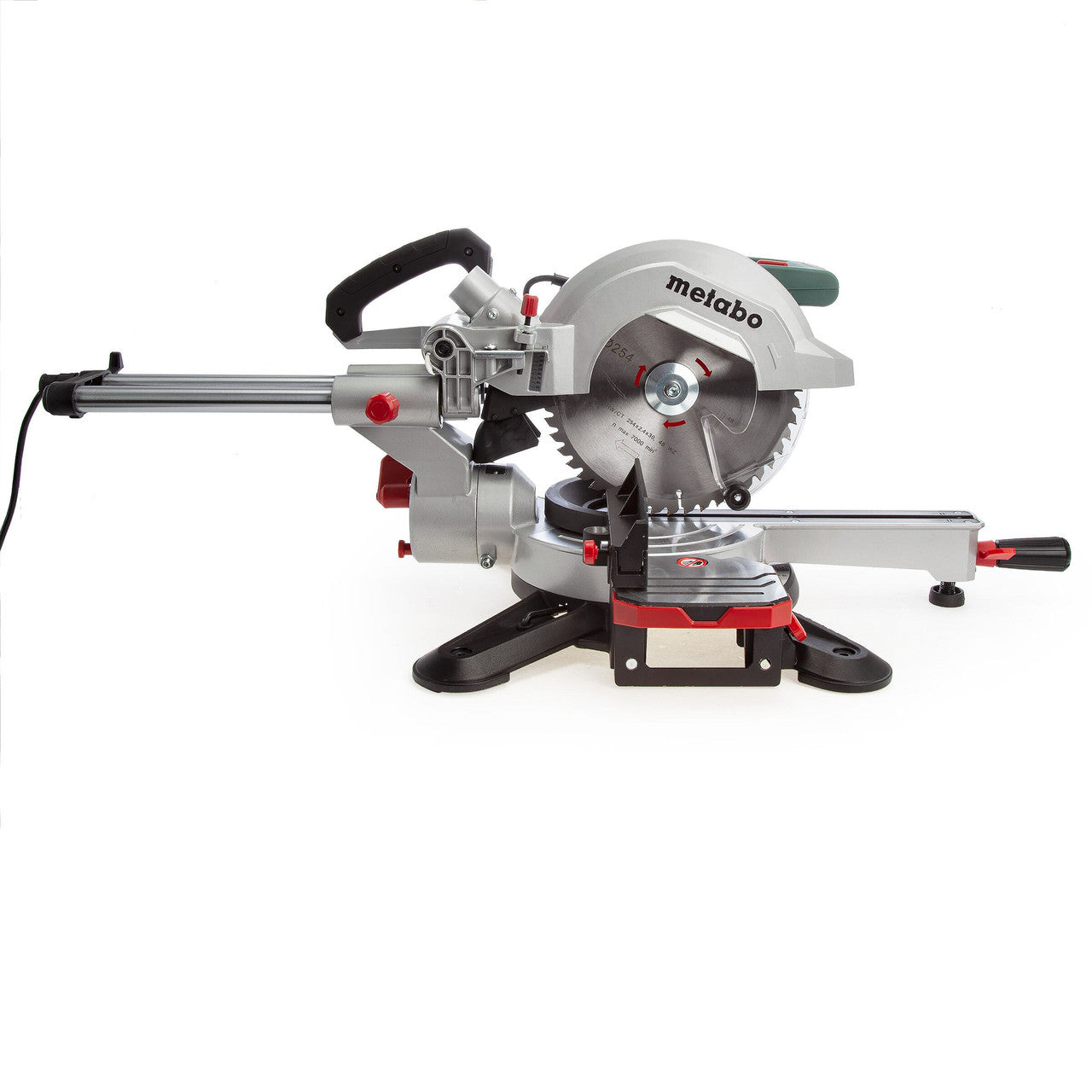

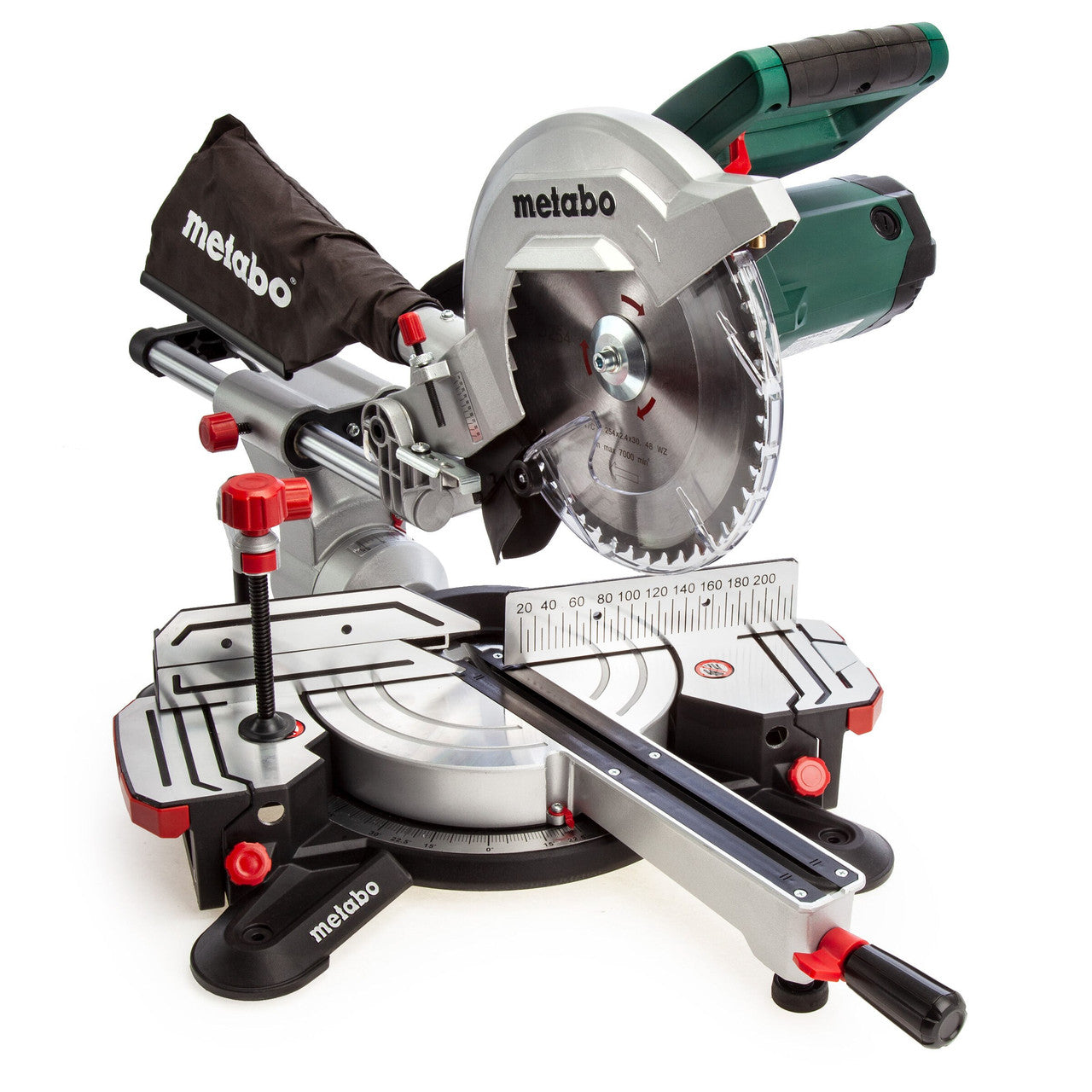

Metabo KGS254M 254mm Sliding Mitre Saw (240V)

SKU: MET-KGS254M-602540380-240V

Have any questions about this product or placing bulk orders?

Use this text to encourage communication or promote sharing on social networks.

You can also add links

This sliding mitre saw is ideal for cutting wide work pieces

The KGS 254 is a slide mitre saw designed for the woodworking enthusiast as well as the semi-professional. This is a well designed, well thought through machine that offers tremendous value and capacity. With a number of enhancements over the previous model, this 2015 design is a must for anyone serious about optimum mobility, precise cuts, clean working and flexibility.

Features:

  • Compact light weight, suitable also for one-handed transport
  • Sliding function for wide work pieces
  • Easy transport thanks to ergonomically-designed handles and saw head lock

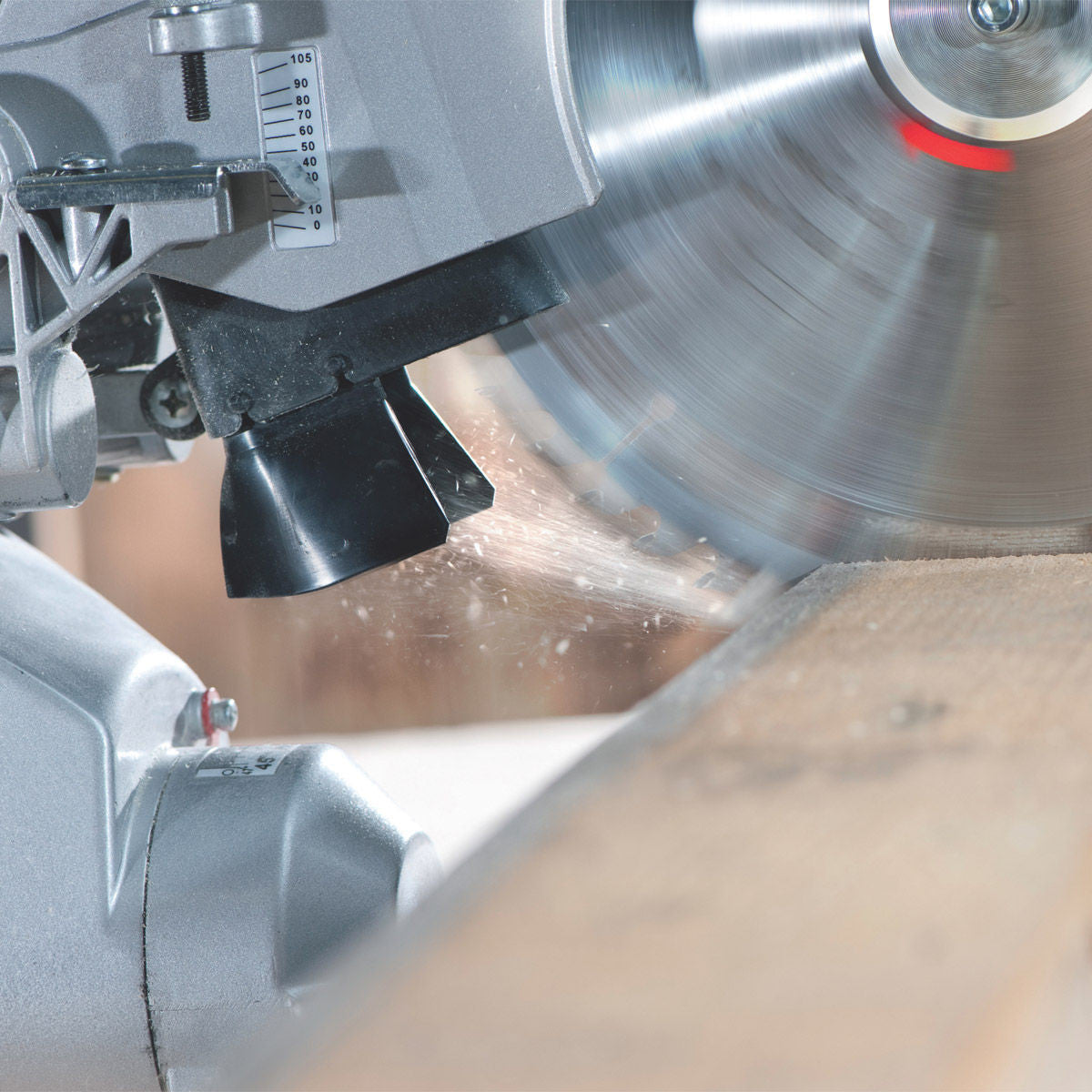

  • Effective dust extraction via integrated dust scoop
  • Fast and precise setting of common angles using stop points

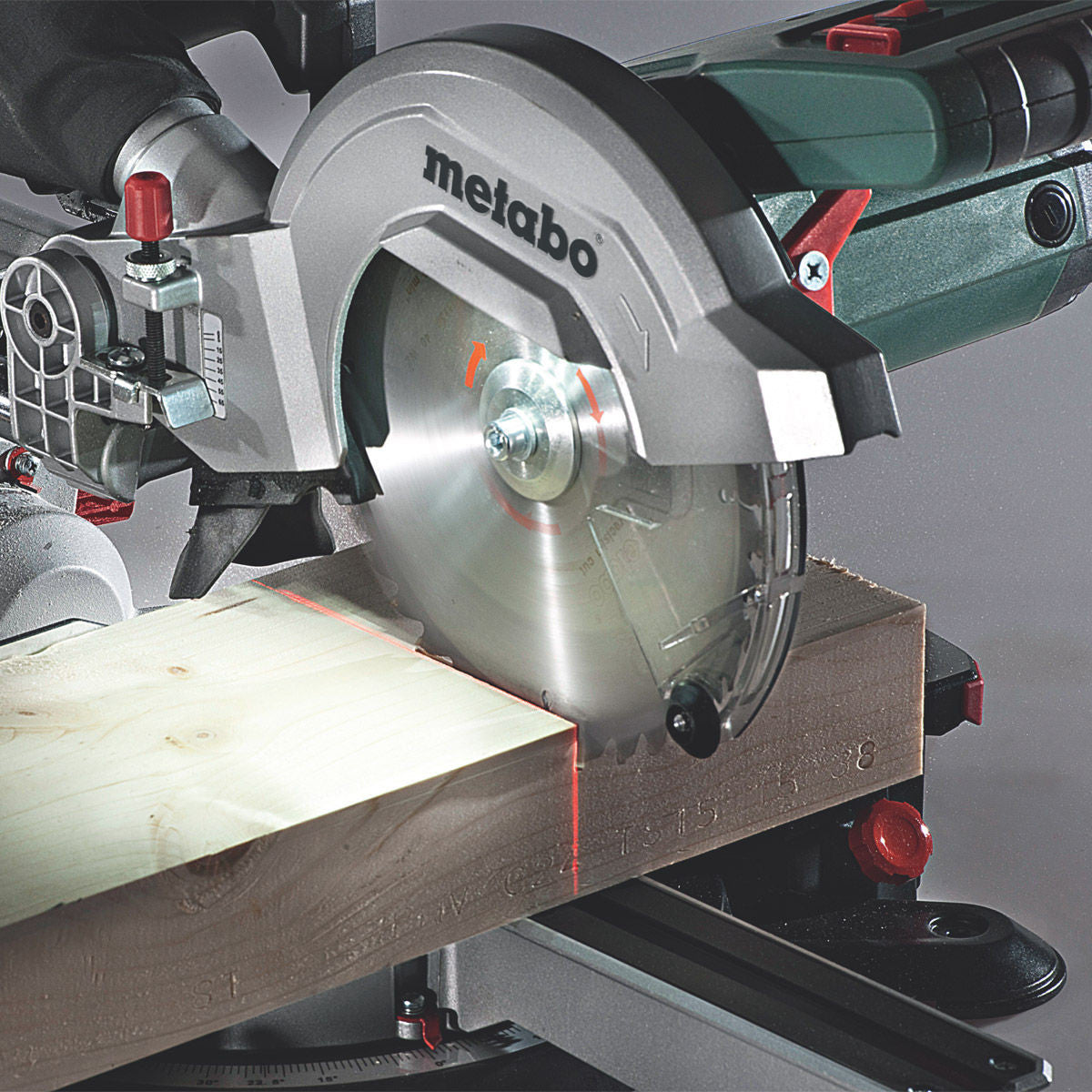

  • Laser for exact display of the cutting line (mains powered, no batteries required)
  • Infinitely extendable table width extension, removable to put long panels, slabs etc. underneath
  • Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
  • High sliding rear fence profiles for safe sawing

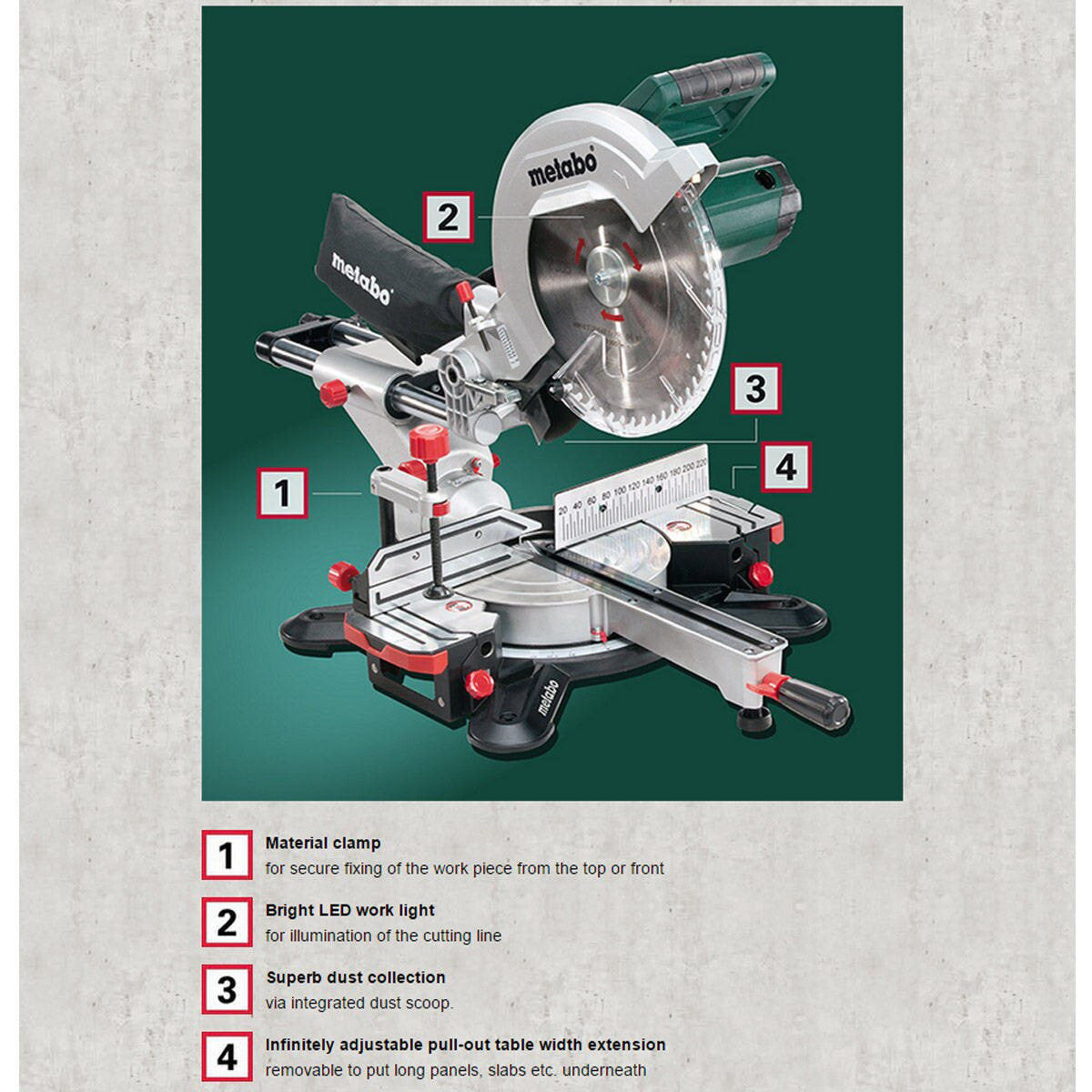

  • Material clamp for secure fixing of the work piece from the top or front
  • Depth stop for easy creation of grooves
  • Saw head can be inclined to the left, with additional angle range for undercuts
  • All scales and operating elements are visible from the working position and can be operated intuitively
  • Easy saw blade change by means of spindle lock: No dismantling of the pendulum protective cover required

Comes with:

  • Carbide saw blade (48 teeth)
  • 2 Table length extensions
  • Length guide
  • Material clamp
  • Tool for saw blade change
  • Cable winder
  • Chip collection bag

Specification:

  • Dimensions: 790 x 515 x 515 mm
  • Maximum cutting width 90°/45°: 305 mm/205 mm
  • Maximum cutting depth at 90°/45°: 92 mm/47 mm
  • Maximum cross-section of the workpiece: Straight cut 90°/90°: 305 x 92 mm, Double mitre 45°/45°: 205 x 47 mm
  • Turntable setting left/right: 47°/47°
  • Saw blade tilt left/right: 47°/2°

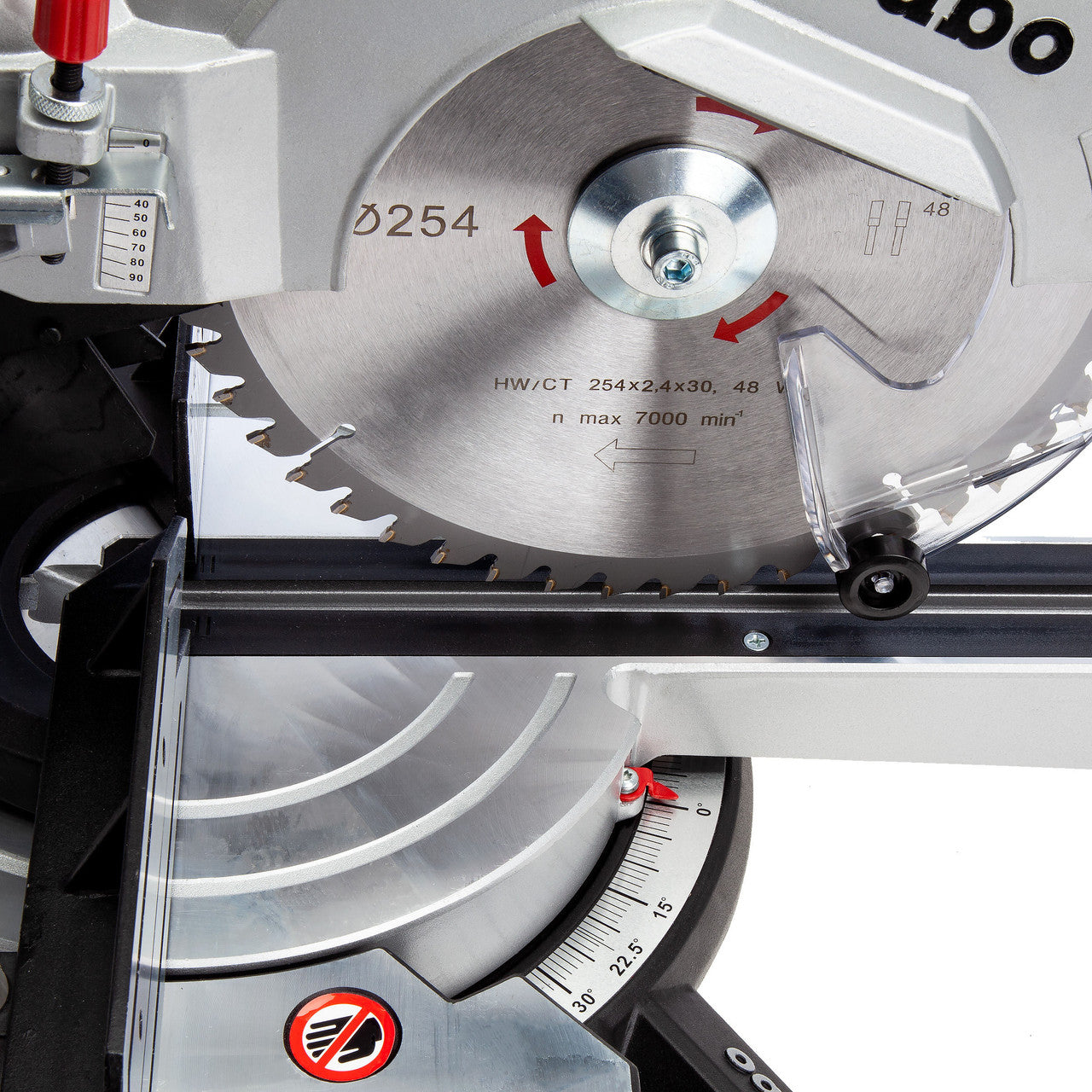

  • Saw blade: ∅ 254 x 30 mm
  • Rated input power S1 100%: 1.450 W
  • Rated input power S6 20%: 1.800 W
  • No-Load Speed: 4.500 /min
  • Revolutions at rated load: 3.150 /min
  • Max. cutting speed: 60/197 m/s
  • Weight: 16.3 kg
  • Cable length: 2 m
