Home » Metabo 601714840 KH 18 LTX BL 24 Q Hammer Drill (Body Only) in metaBOX 165 L
Metabo

Metabo 601714840 KH 18 LTX BL 24 Q Hammer Drill (Body Only) in metaBOX 165 L

SKU: MET-KH18LTXBL24Q-601714840

Have any questions about this product or placing bulk orders?

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Metabo 601714840 KH 18 LTX BL 24 Q Hammer Drill (Body Only) in metaBOX 165 L

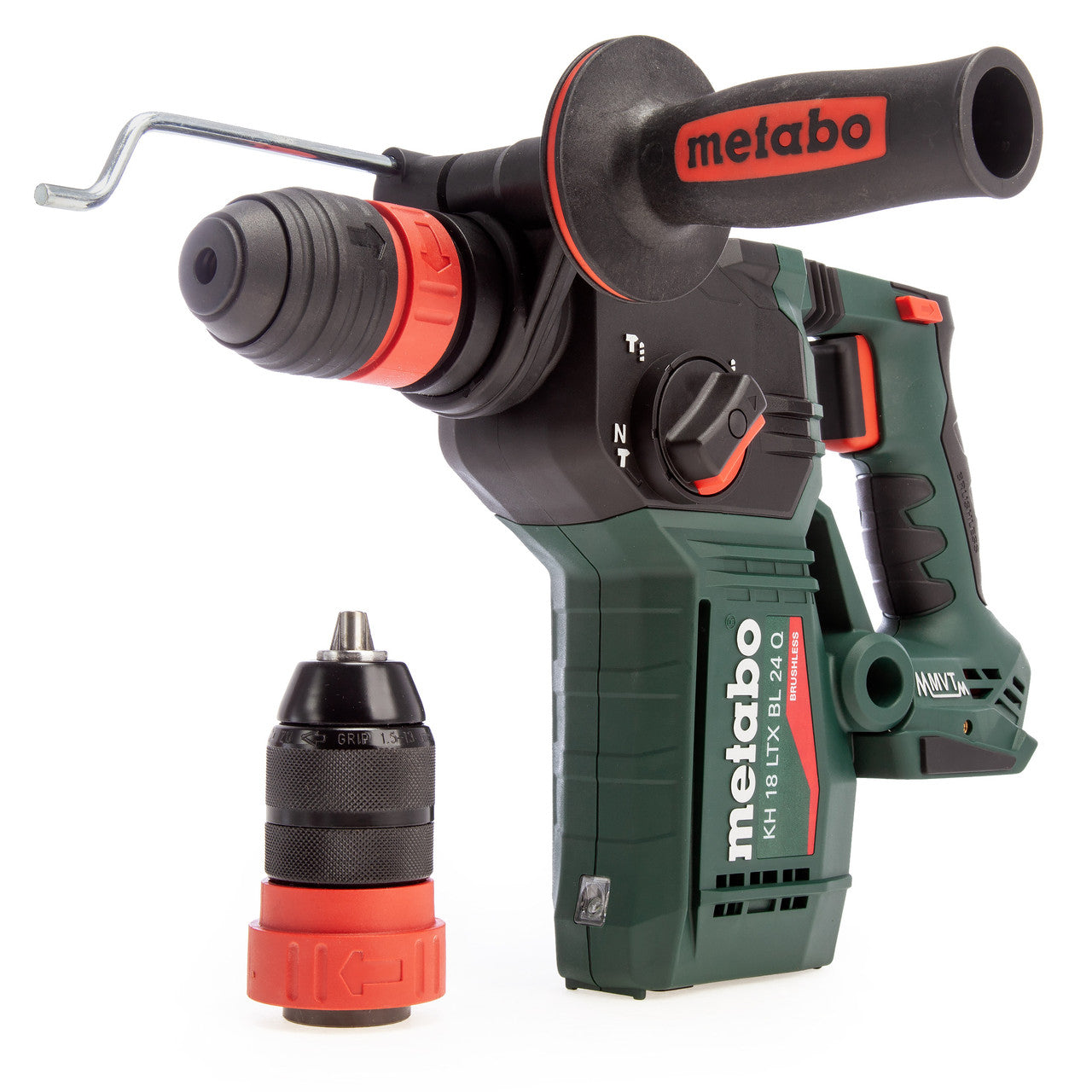

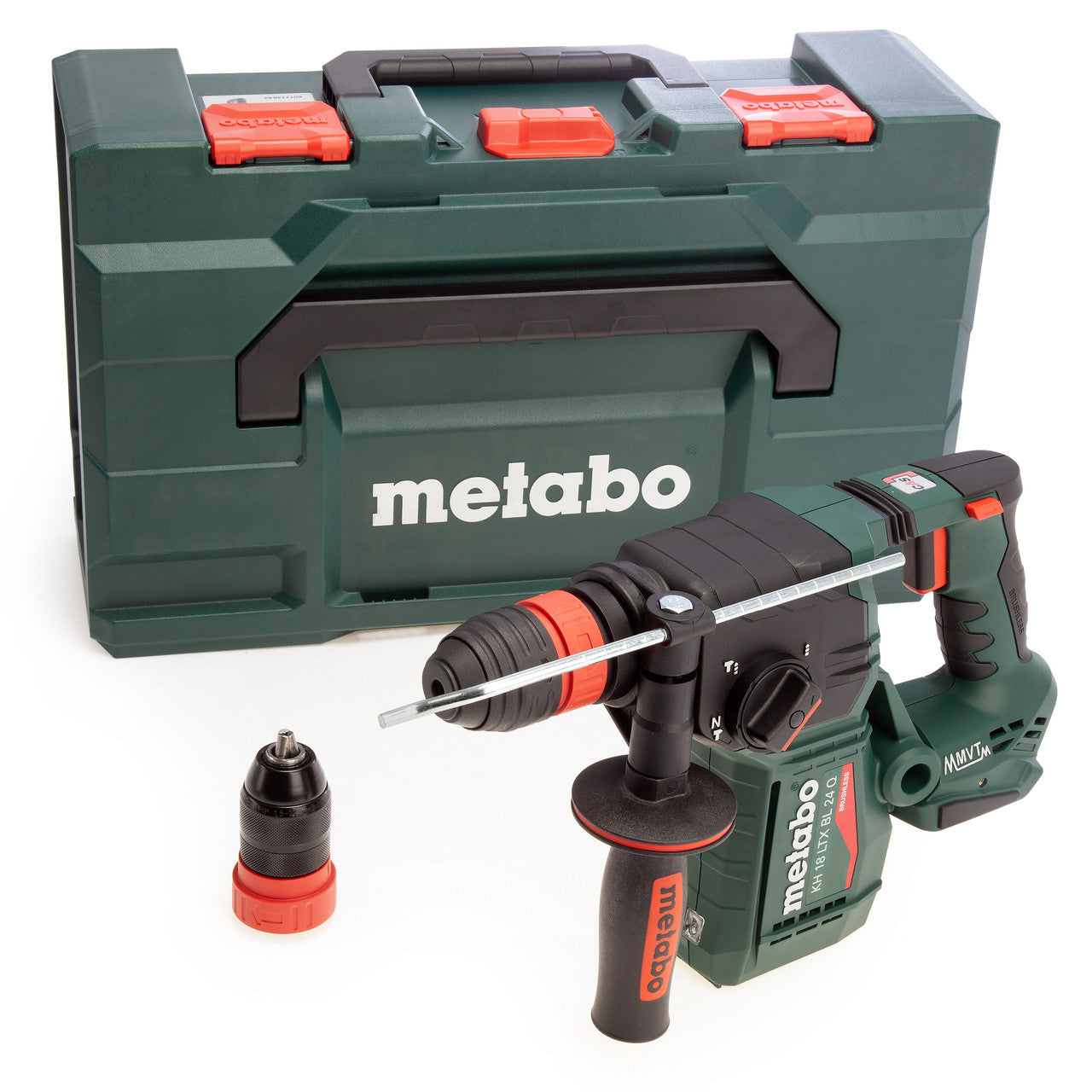

The Metabo 601714840 is a compact and lightweight Body Only Hammer with integrated extraction interface. It gives maximum drill efficiency and service life thanks to brushless technology and high-performance hammer action. This Combination Hammer has 3 functions: hammer drilling, drilling and chiselling. The machine comes with 2 Chucks, one with an SDS-plus shank and the other is a keyless chuck for tools with a cylindrical shank. Sold without battery or charger in a metaBOX 165 L case.

Features:

  • Dust-free drilling with compact dust extraction ISA 24 (accessory not included)
  • Metabo VibraTech (MVT): working, also continuously, in a low-fatigue manner whilst protecting the user's health
  • Metabo Quick: fast, tool-free chuck for working with SDS-plus and straight shank drill bits
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
  • Electronic soft start for precise spot-drilling
  • Double safety when the drill bit jams: No kick-back thanks to the mechanic decoupling plus ultra-fast sensor-controlled shutdown
  • LED work light for optimum view of the drilling site
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands

Comes With:

  • Hammer chuck for tools with SDS-plus shank end
  • Keyless chuck for tools with cylindrical shank
  • Rubber-coated side handle
  • Drilling depth guide

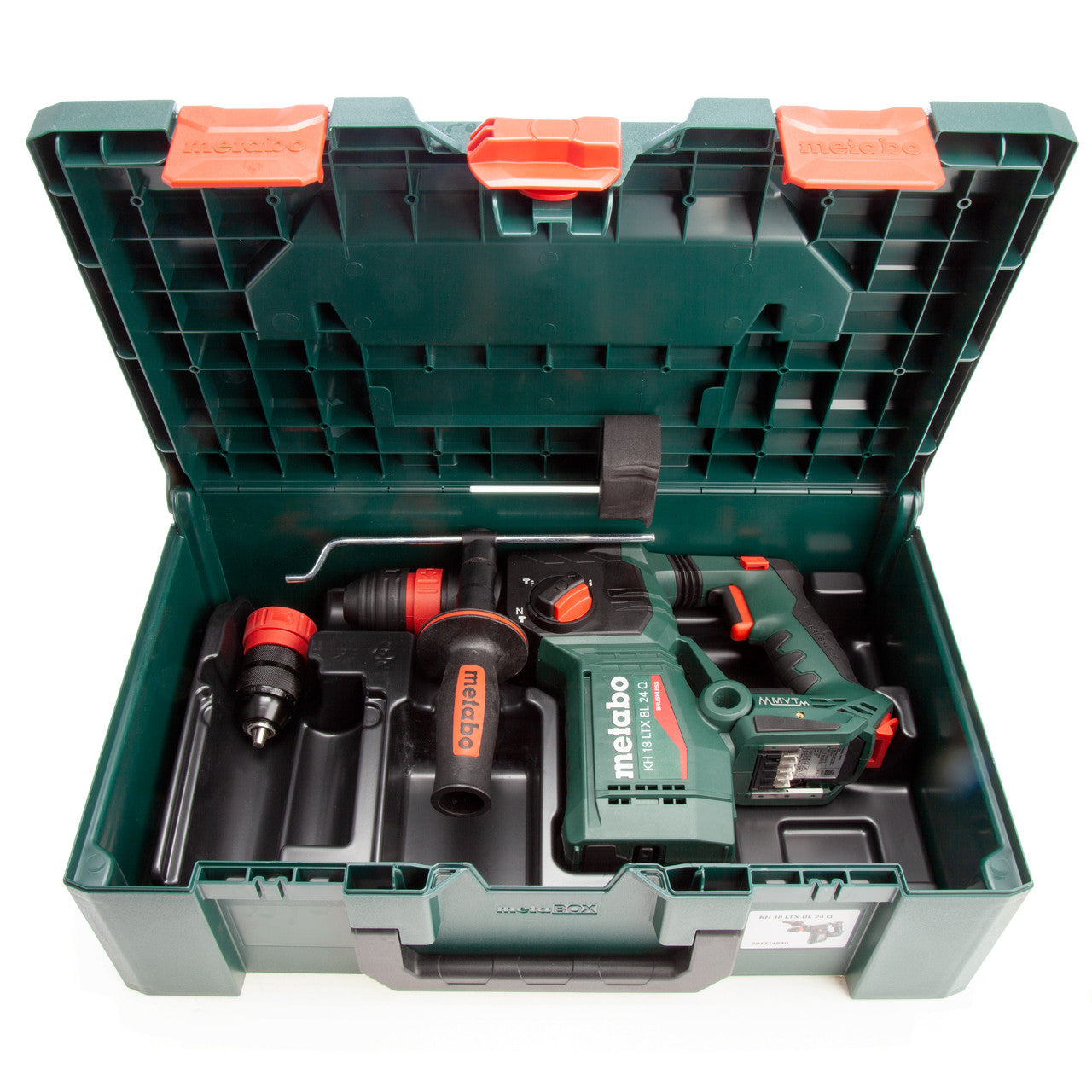

  • metaBOX 165 L

Specification:

  • Battery voltage: 18 V
  • Max. single blow energy (EPTA): 2.2 J
  • Maximum impact rate: 4750 bpm
  • Drill-Ø concrete with hammer drills: 24 mm
  • Drill-Ø masonry with core bits: 82 mm
  • Drill Ø steel: 13mm / 1/2in
  • Drill-Ø soft wood: 30 mm
  • No-load speed: 0 - 1280 rpm
  • Bit retainer: SDS-plus
  • Vibration:
  • Hammer drilling concrete: 13.4 m/s²
  • Uncertainty of measurement K: 1.5 m/s²
  • Chiseling: 9.1 m/s²
  • Uncertainty of measurement K: 1.5 m/s²
  • Noise emission:
  • Sound pressure level: 90 dB(A)
  • Sound power level (LwA): 101 dB(A)
  • Uncertainty of measurement K: 3 dB(A)
  • Weight without battery pack: 3 kg
