Home » Makita CLX224AJ 12Vmax CXT Impact Driver & Drill Driver Twin Pack (2 x 2.0Ah Batteries)
Makita

Makita CLX224AJ 12Vmax CXT Impact Driver & Drill Driver Twin Pack (2 x 2.0Ah Batteries)

SKU: MAK-CLX224AJ

Have any questions about this product or placing bulk orders?

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Compact yet powerful, this Makita impact driver set impresses with its functionality and features

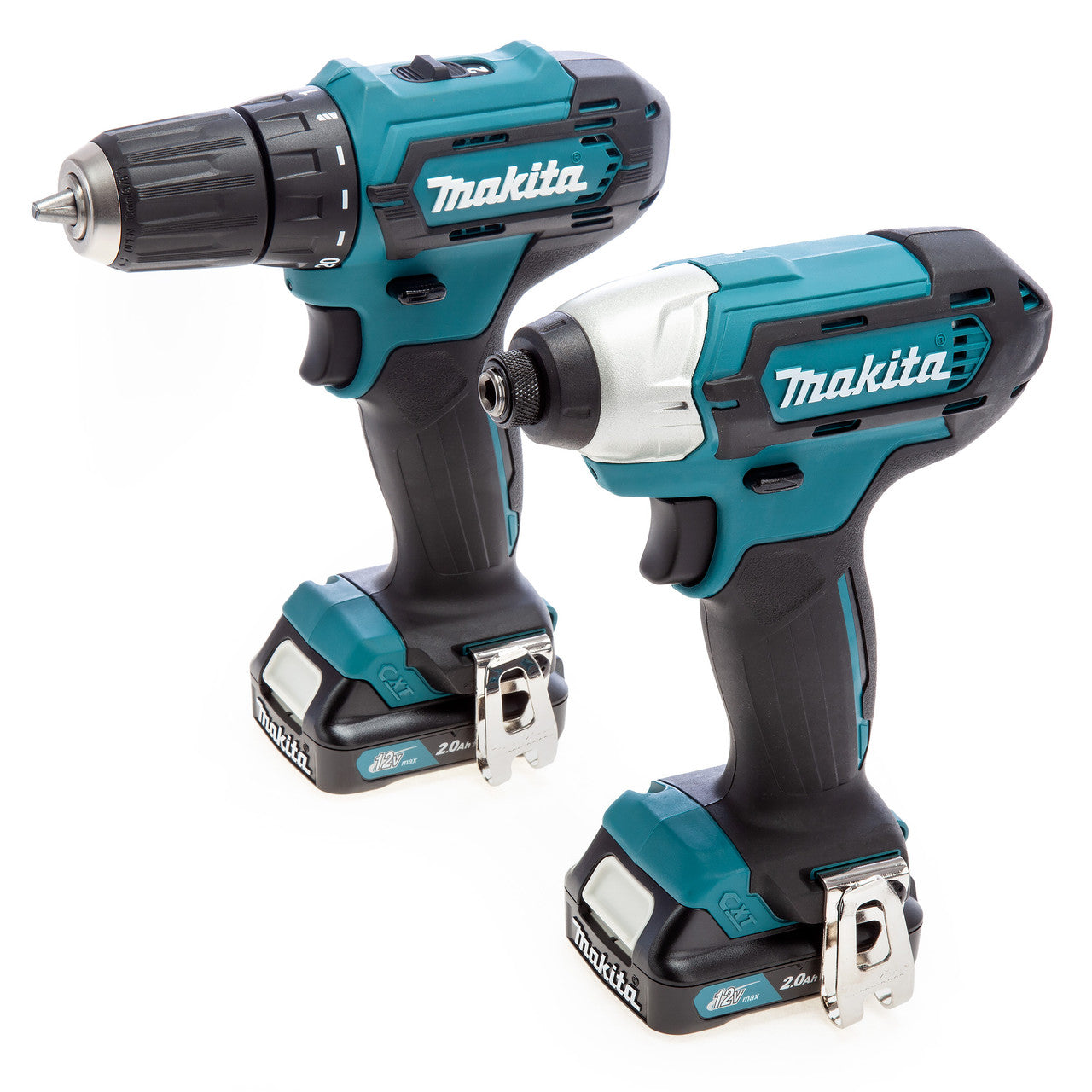

The Makita CLX224AJ twin pack consists of the TD110D impact driver and DF333D drill driver. The TD110D is one of the first new 10.8V platform models. It features increased motor power for higher application speed and max tightening torque. The DF333D has been developed based on DF331D. It is extremely powerful thanks to its 2 mechanical gears and improved durability under load. Both feature an LED job light for maximum precision even in darker areas.

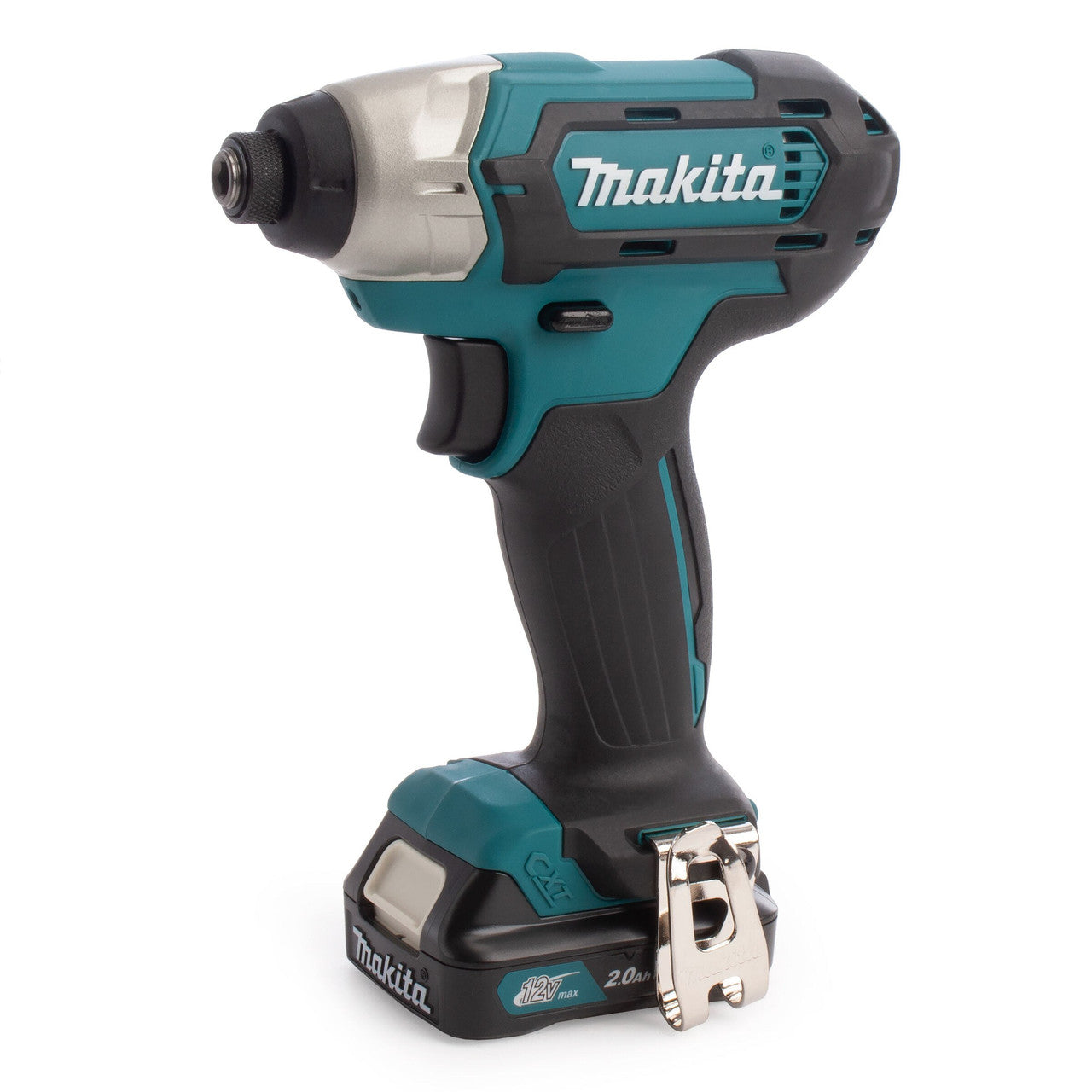

TD110D Features:

  • Slide type Li-ion battery
  • Electric brake for increased user safety
  • Variable speed control trigger
  • Equipped with Battery protection circuit: designed to protect the battery from damages due to over discharge, high temperature or overload current
  • Forward and reverse trigger
  • LED job light
  • Ergonomic soft grip for increased comfort upon use

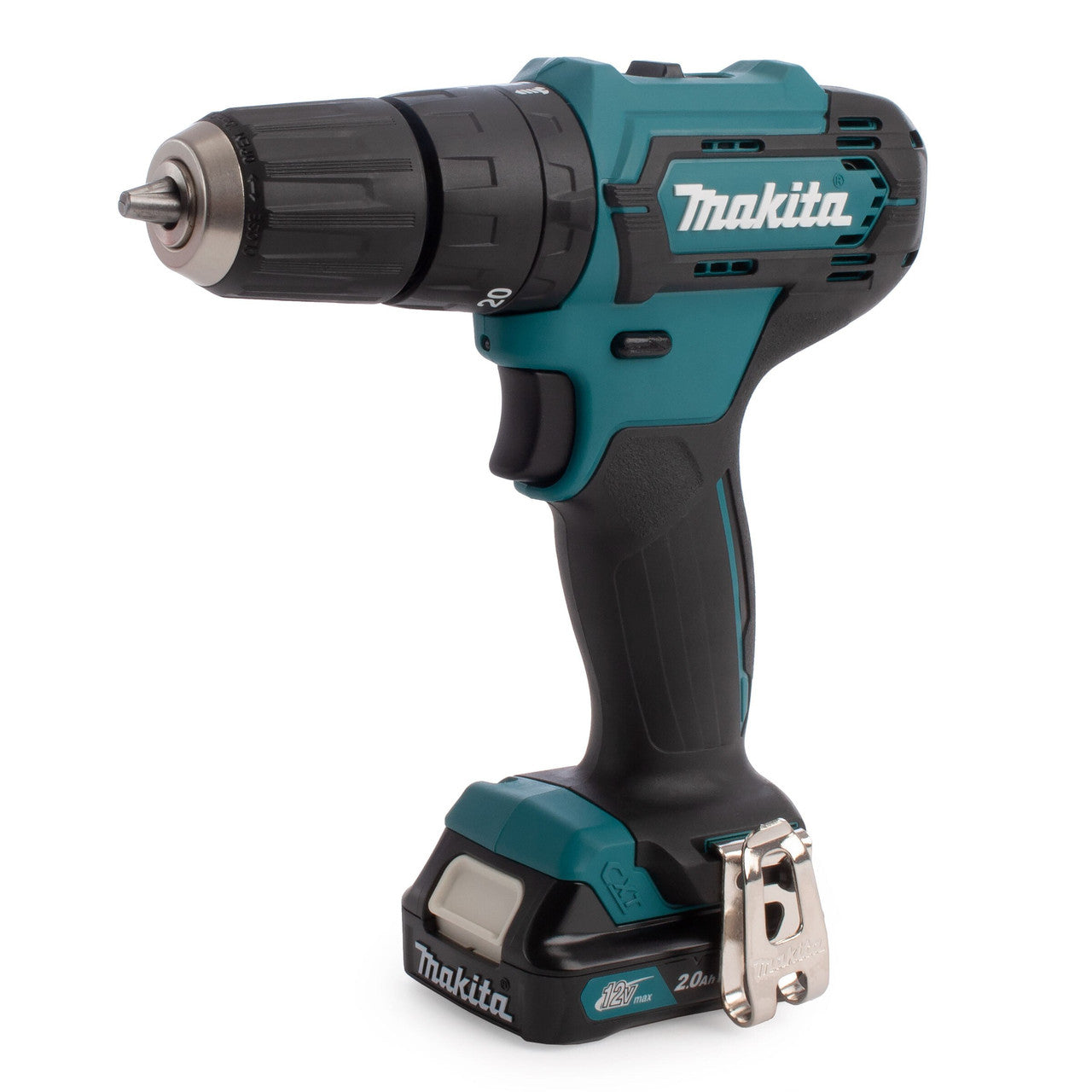

DF333D Features:

  • Slide type Li-ion battery
  • Electric brake for increased user safety
  • 2 mechanical gears
  • Variable speed control trigger
  • Keyless chuck
  • Equipped with battery protection circuit: designed to protect the battery from damages due to over discharge, high temperature or overload current
  • Forward and reverse trigger
  • LED job light for precision even in dark areas
  • Ergonomic soft grip for increased comfort upon use
  • Improved durability under load due to change in bearing type
  • Compact overall length 179mm

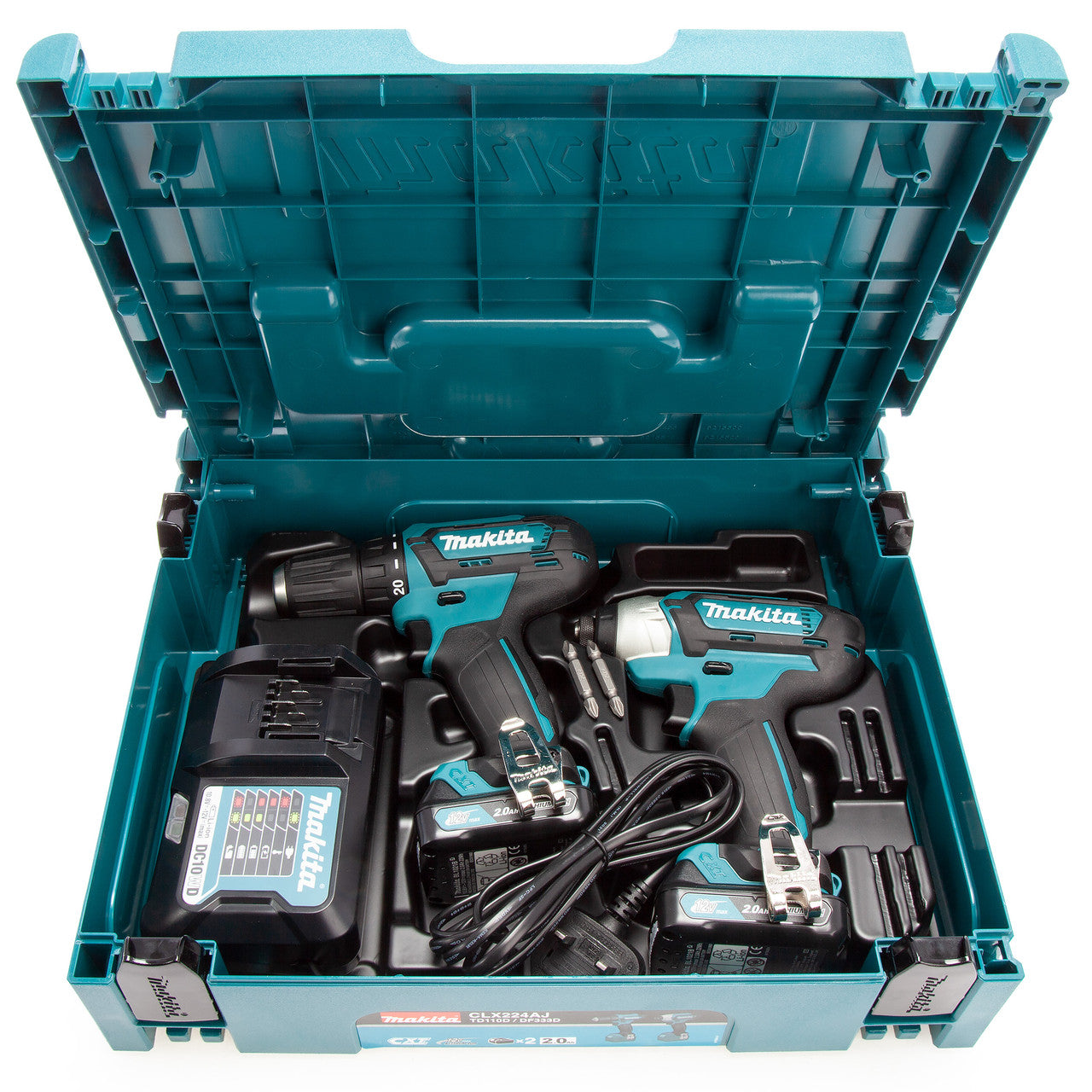

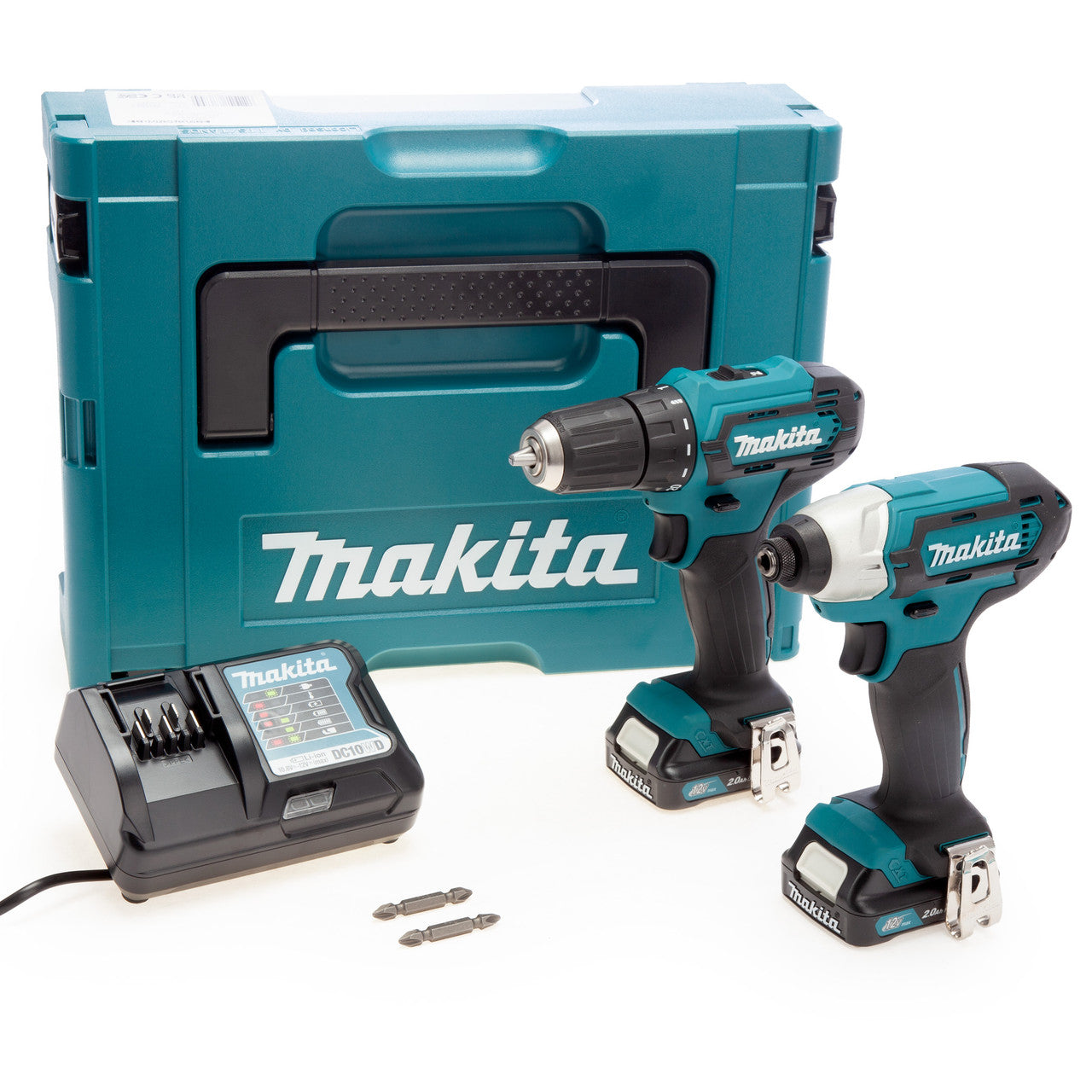

Comes with:

  • DC10WD 12Vmax standard charger
  • Makpac connector case type 1
  • 2 x BL1021B 2.0Ah batteries

Specification:

TD110D:

  • Voltage: 10.8V
  • Drive shank Hex: ¼ "
  • Standard Bolt: M5-M12
  • High Tensile Bolt: M5-M10
  • Coarse thread (length): 22 - 90 mm
  • Impacts: 0 – 3,500 ipm
  • Max Torque: 110 Nm
  • No Load Speed: 0 - 2600 rpm
  • Vibration Fastening Bolt: 8.0 m/sec²
  • Vibration K factor: 1.5 m/sec²
  • Noise sound pressure: 94 dB(A)
  • Noise sound power: 105 dB(A)
  • Noise K factor: 3 dB(A)
  • Machine Screw: M4-M8

DF333D:

  • Voltage: 12V
  • Max. in wood: 21 mm
  • Max. in steel: 10 mm
  • Torque Settings: 20 + Drill
  • Torque Settings; S/H Nm: 14/30
  • Vibration Drilling: 2.5 m/sec²
  • Vibration K factor: 1.5 m/sec²
  • Noise sound pressure: 70 dB(A)
  • Noise K factor: 3 dB(A)
  • Chuck Capacity: 0.8 – 10 mm
  • No Load Speed (Hi): 0 - 1,700 rpm
  • No Load Speed (Lo): 0 - 450 rpm
