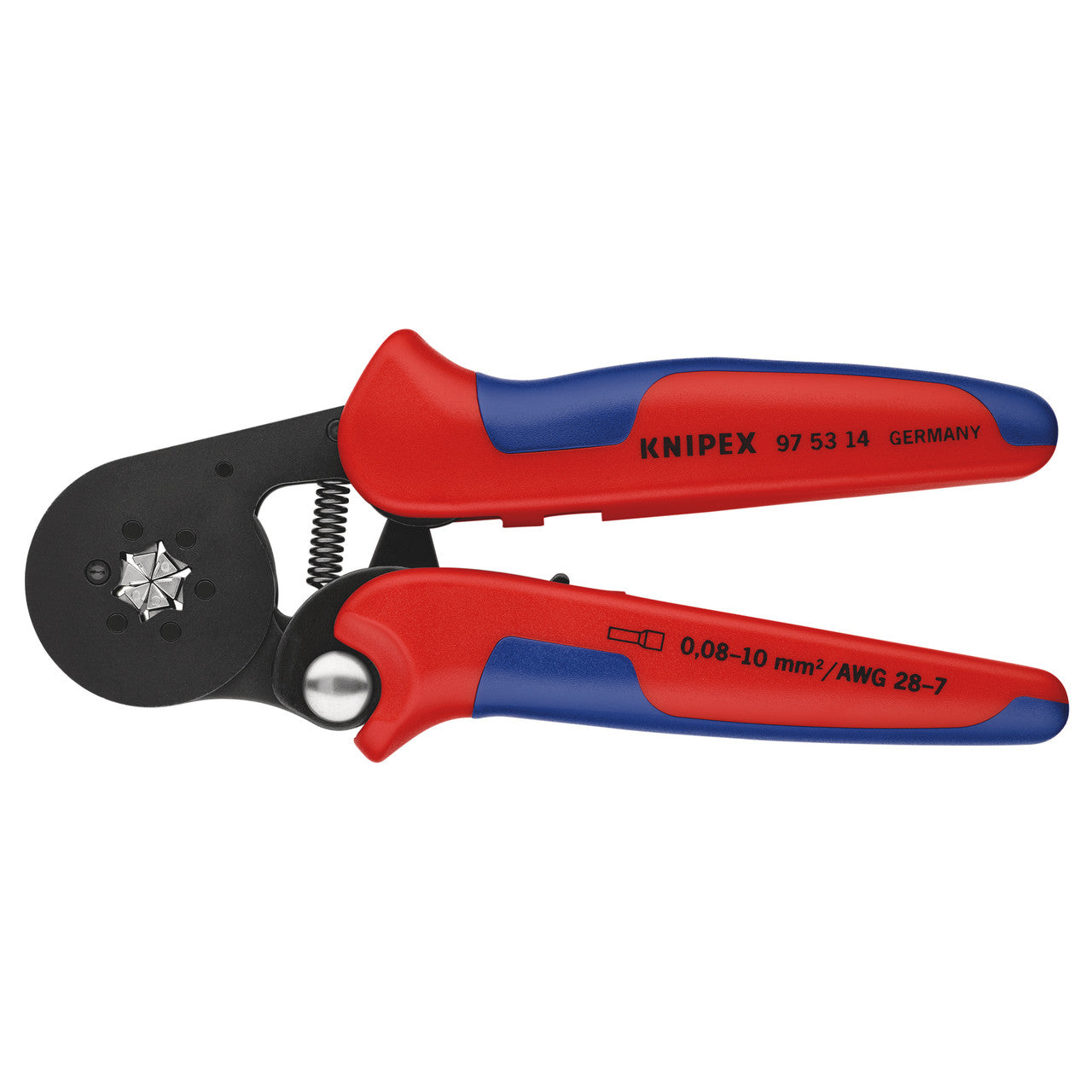

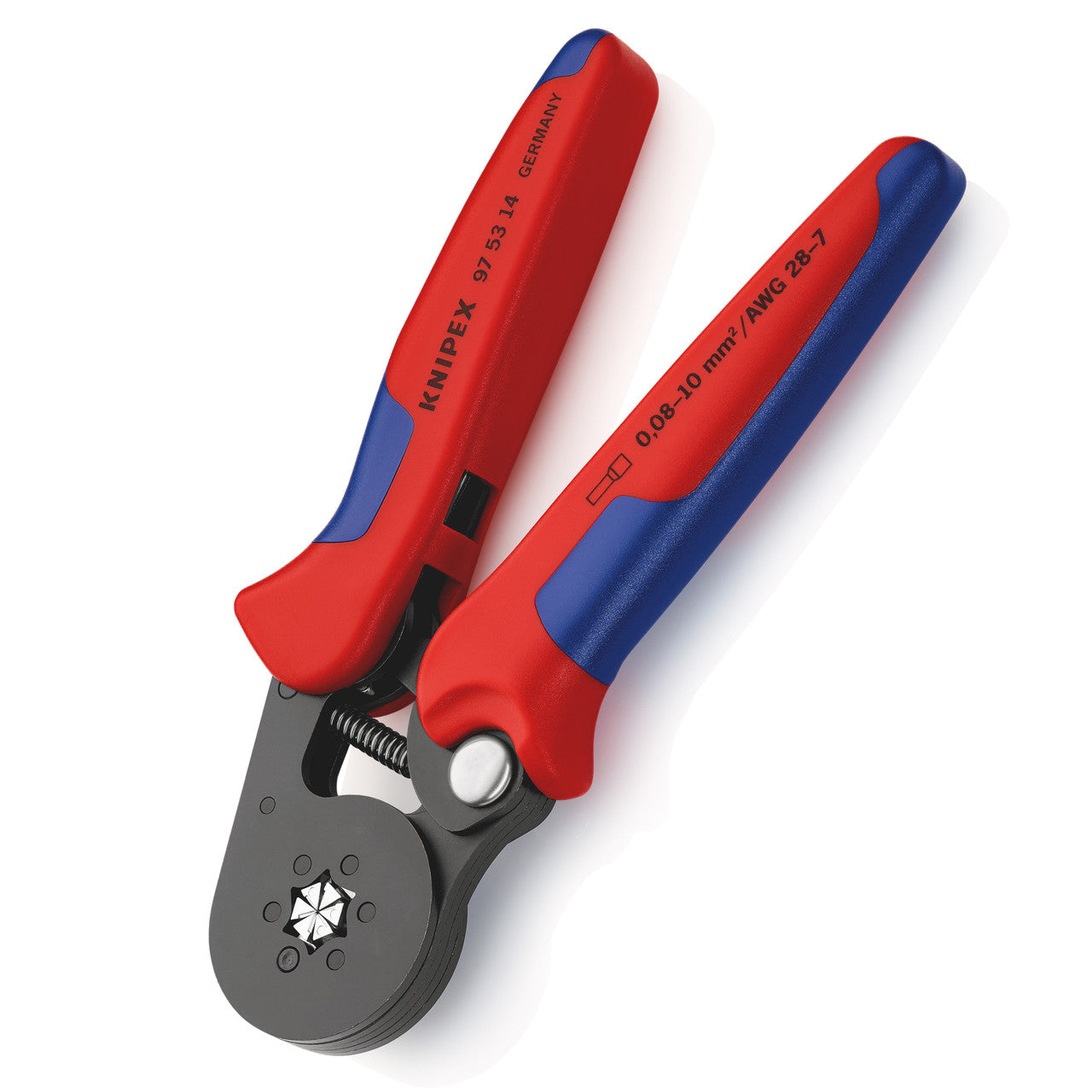

Knipex 975314SB Self-Adjusting Crimping Pliers 180mm
Have any questions about this product or placing bulk orders?
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Knipex 97 53 14 SB Self-Adjusting Crimping Pliers automatically crimp end sleeves between 0.08 mm² and 10.0 mm² correctly

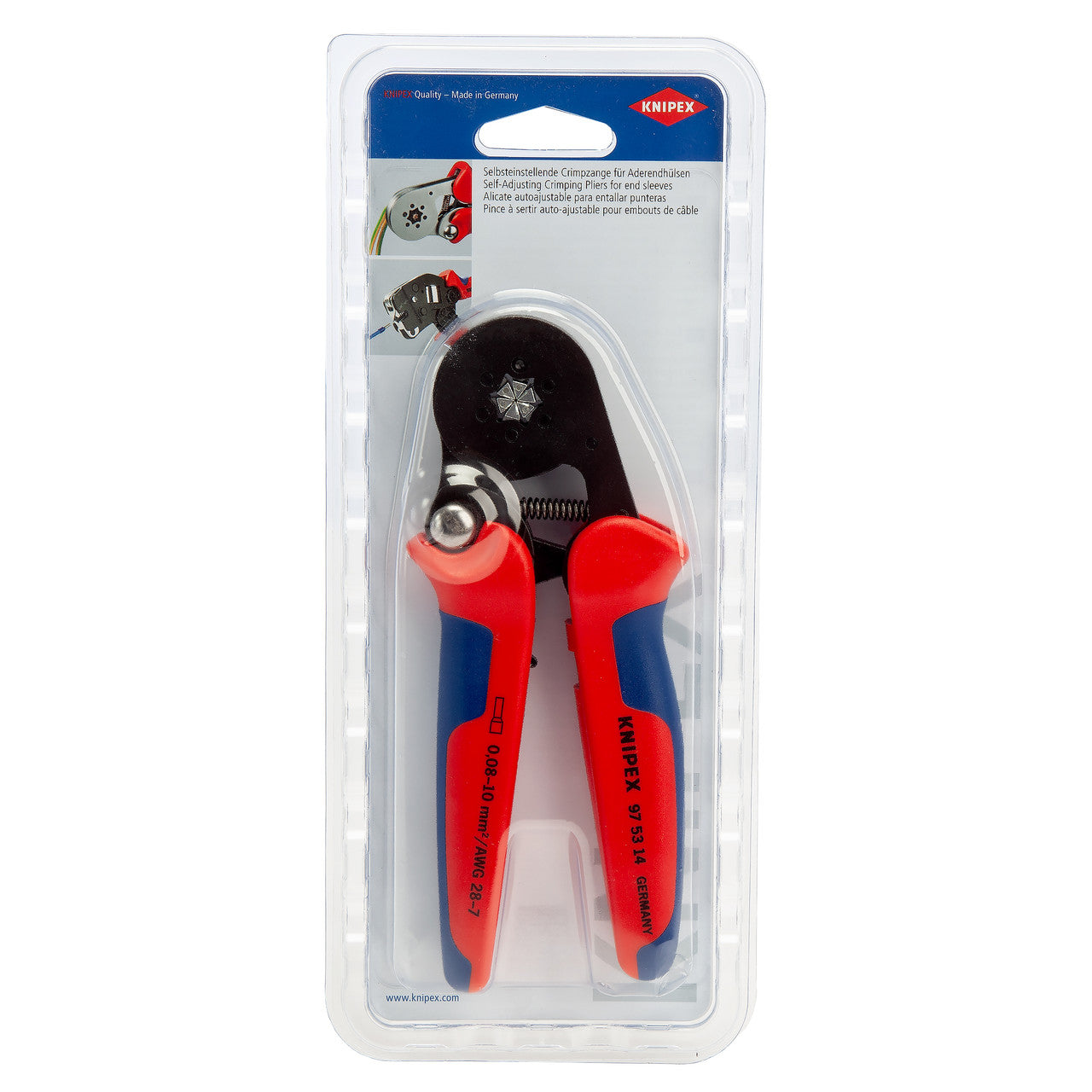

The Knipex 975314SB (carded) Crimping Pliers are 180mm in length. For reasons of design, it was a challenge to cover the wide capacity range of 0.08 to 10.0 mm² using just one pair of crimping pliers. Accurate work is called for when crimping end sleeves (ferrules). Adjustment to the desired size of the end sleeves is automatic with the Knipex 97 53 14 crimping pliers. The user does not need to measure manual force when crimping because the integral lock with release mechanism ensures that the right amount of pressure automatically reaches the end sleeve. The pliers are optimally set (calibrated) in the factory. The transmission ratio of these crimping pliers has been well-designed and is therefore hand-friendly; it provides a comfortable grip width. A toggle lever effectively supports manual force. This enables conductors with large cross-sections to be assembled well even in the case of extensive installations – also with twin end sleeves (ferrules) up to 2 x 4 mm² or 2 x AWG 10. The conductors are reliably connected to the end sleeves using a square profile – in all designated sizes.
Features:
- Narrow handle width and improved ergonomics
- Expanded capacity of hexagonal crimping up to 10 mm²
- Hexagonal compression for confined connection dimensions
- Suitable in particular for all twin wire ferrules up to 2 x 4 mm² or 2 x AWG 12
- For crimping wire ferrules according to DIN 46228 parts 1 + 4
- Self-adjustment to the size of wire ferrules required
- Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
- Tools have been set precisely (calibrated) in the factory
- Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
- Handy shape and low weight provide high operation comfort
- Chrome vanadium electric steel in special quality, oil-hardened
Specification:
- Part number: 975314SB
- Pliers: burnished
- Handles: with multi-component grips
- Dimensions: 180 x 75 x 21 mm
- Applications: Wire ferrules
- Capacity in square millimetres: 0.08 — 10 mm²
- Number of crimping positions: 1
- AWG: 28 — 8
- Weight: 0.445kg
