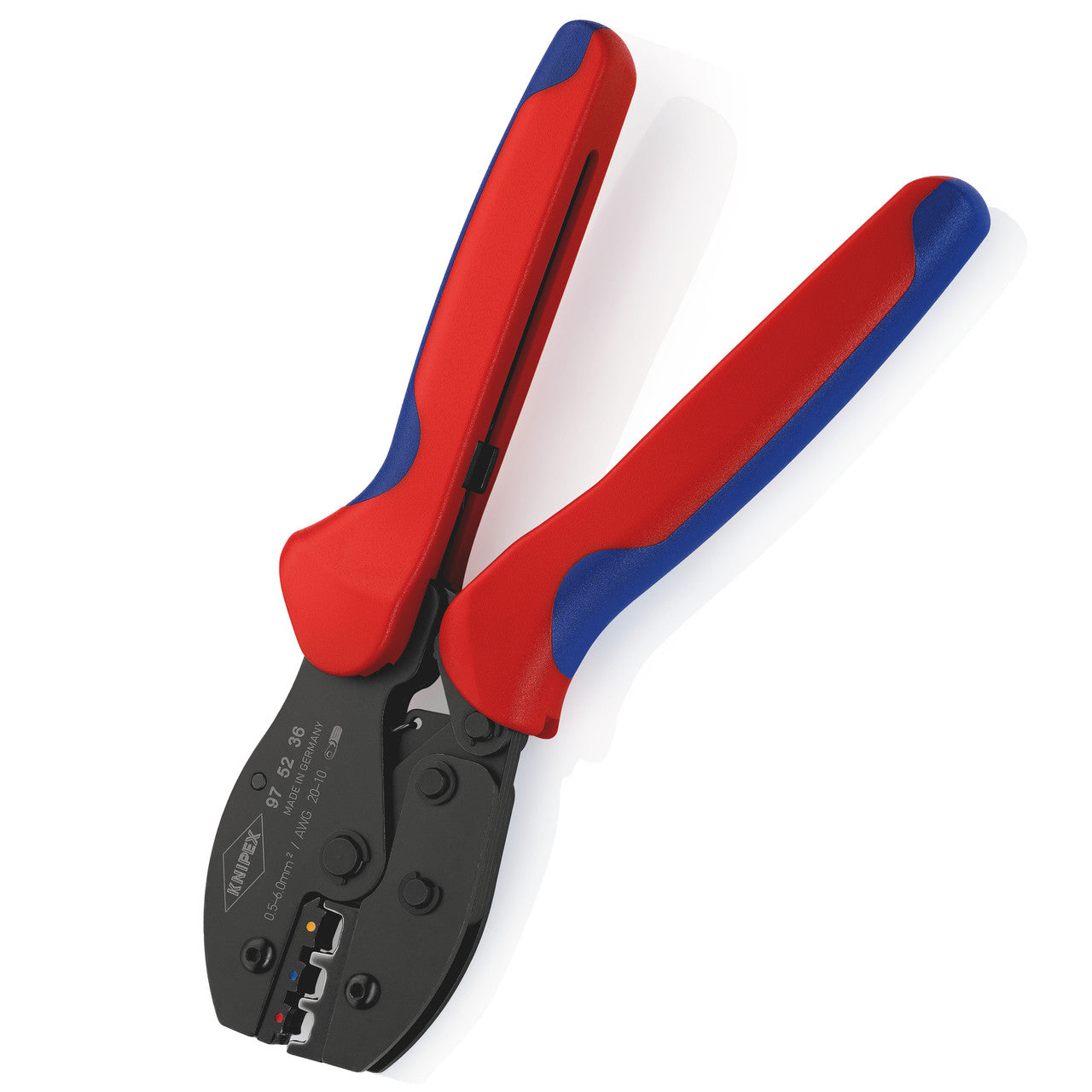

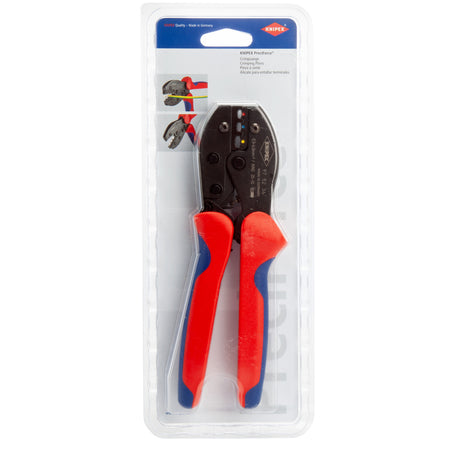

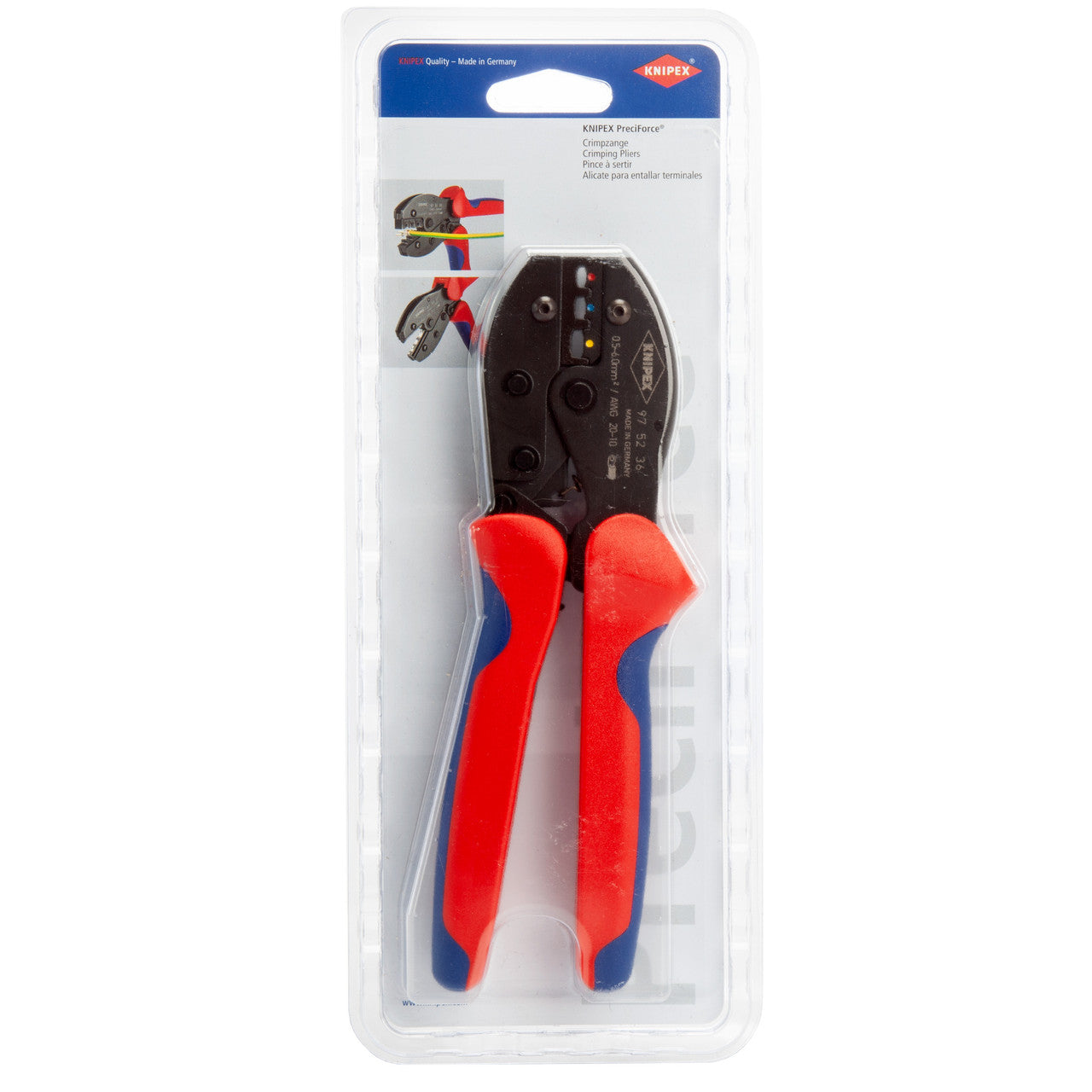

Knipex 975236SB PreciForce Crimping Pliers 220mm

Knipex PreciForce Crimping Pliers give accurately repeated crimping due to automatic opening of pliers after completed crimping operation

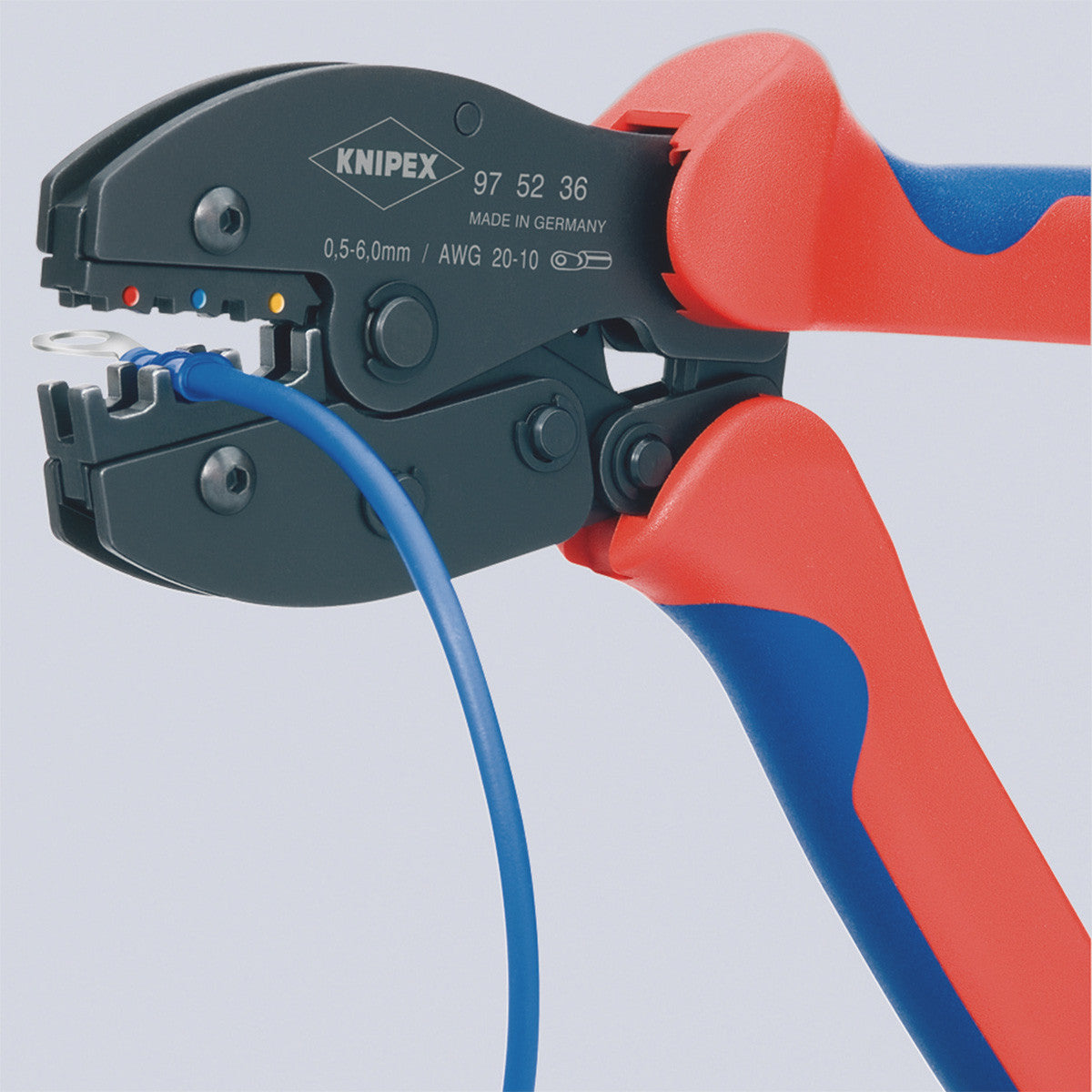

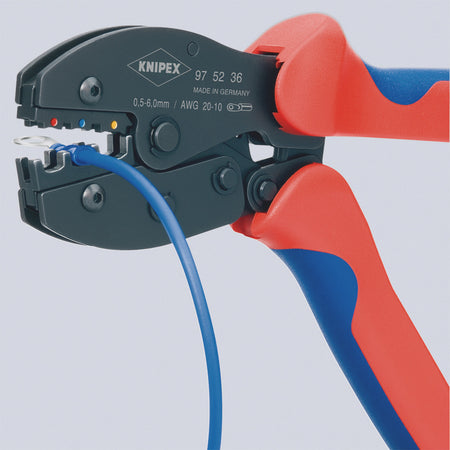

The Knipex 975236SB (carded) Crimping Pliers enable precise crimping, that's why they are called PreciForce. Crimping is high-precision work. Crimp profile and crimping pressure must be precisely matched to the connectors and corresponding cable used to create a connection that is permanently mechanically and electrically safe and secure. The Knipex PreciForce is impressive – also with frequently repeated crimping – due to the light, compact design with toggle lever reinforcement of manual force and precision crimp profile. The ideal, hand-friendly amount of pressure is exerted with precision on the connector being connected to the cable. The PreciForce is calibrated in the factory to insulated cable lugs, plug connectors and butt connectors. The integral lock blocks premature opening of the pliers before the set upper limit has been achieved using hand pressure. The pliers open automatically only on reaching the set crimping pressure, enabling the user to concentrate completely on crimping. The integral lock can be released where necessary, and the pressure of the pliers can be adjusted manually.

Features:

• Consistently high crimping quality thanks to precision dies and forced locking mechanism (unlockable)
• Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable
• Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
• Good handling thanks to favourable handle position, low weight, compact design and ergonomically shaped handles
• Chrome vanadium electric steel in special quality, oil-hardened

Specification:

• Part number: 975236SB
• Pliers: burnished
• Handles: with multi-component grips
• Dimensions: 220 x 63 x 23 mm
• Applications: insulated terminals, plug connectors + butt connectors
• Capacity in square millimetres: 0.5 — 6.0 mm²
• Number of crimping positions: 3
• AWG: 20 — 10
• Weight: 0.487kg
