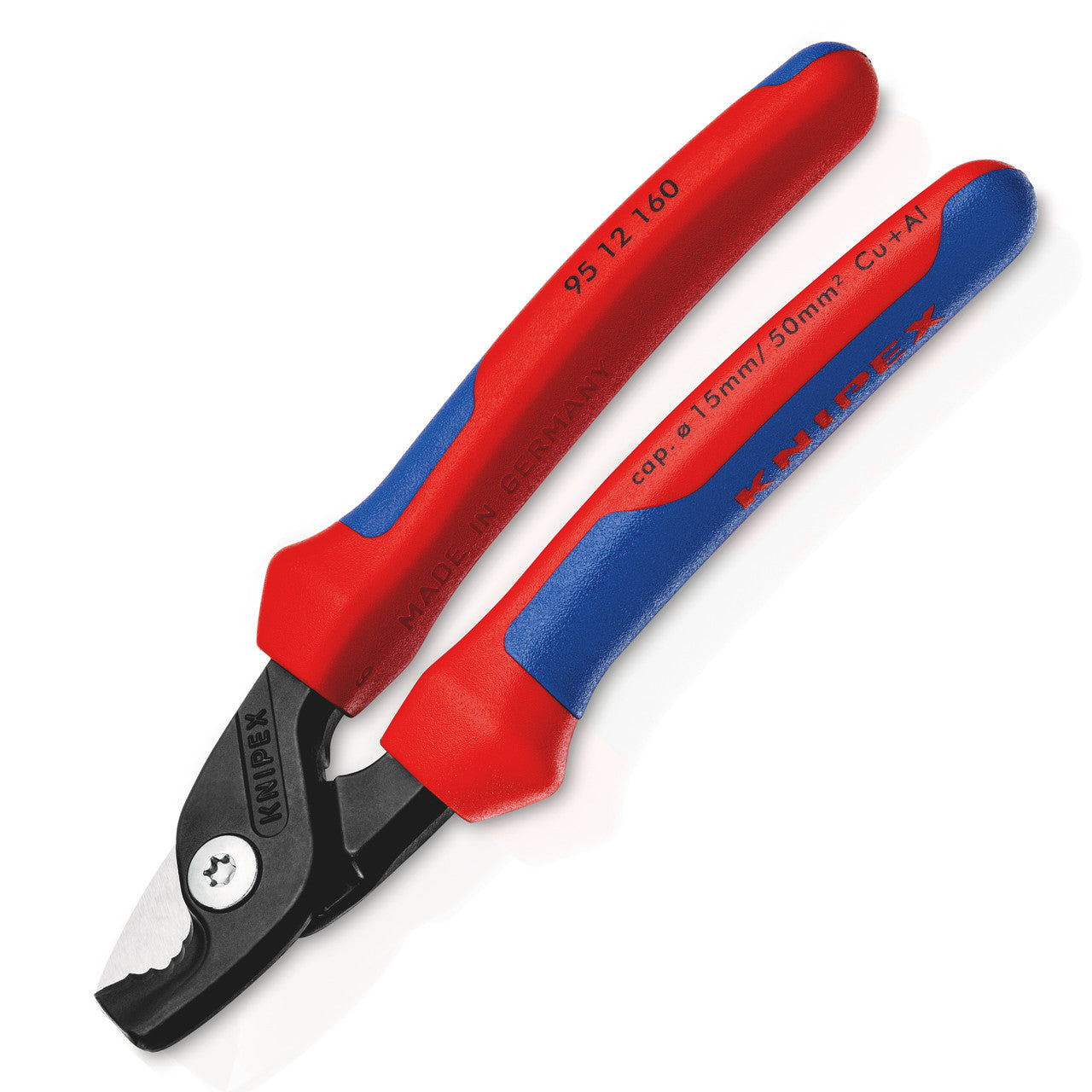

Knipex 9512160 StepCut Cable Shears 160mm

The Knipex 95 12 160 are small, light, strong and cut multi-core stranded copper and aluminium cables up to Ø 15 mm (50 mm²)

The StepCut feature makes cutting up to 40% easier than with standard cable shears of the same length. Cuts multi-core stranded copper and aluminium cables up to 15 mm in diameter. Cuts solid copper and aluminium cables up to 5 x 4 mm².

N.B. These Knipex 9512160 Cutters are identical to the Knipex 9512160SB but without the display card for hanging in a showroom.

Features:

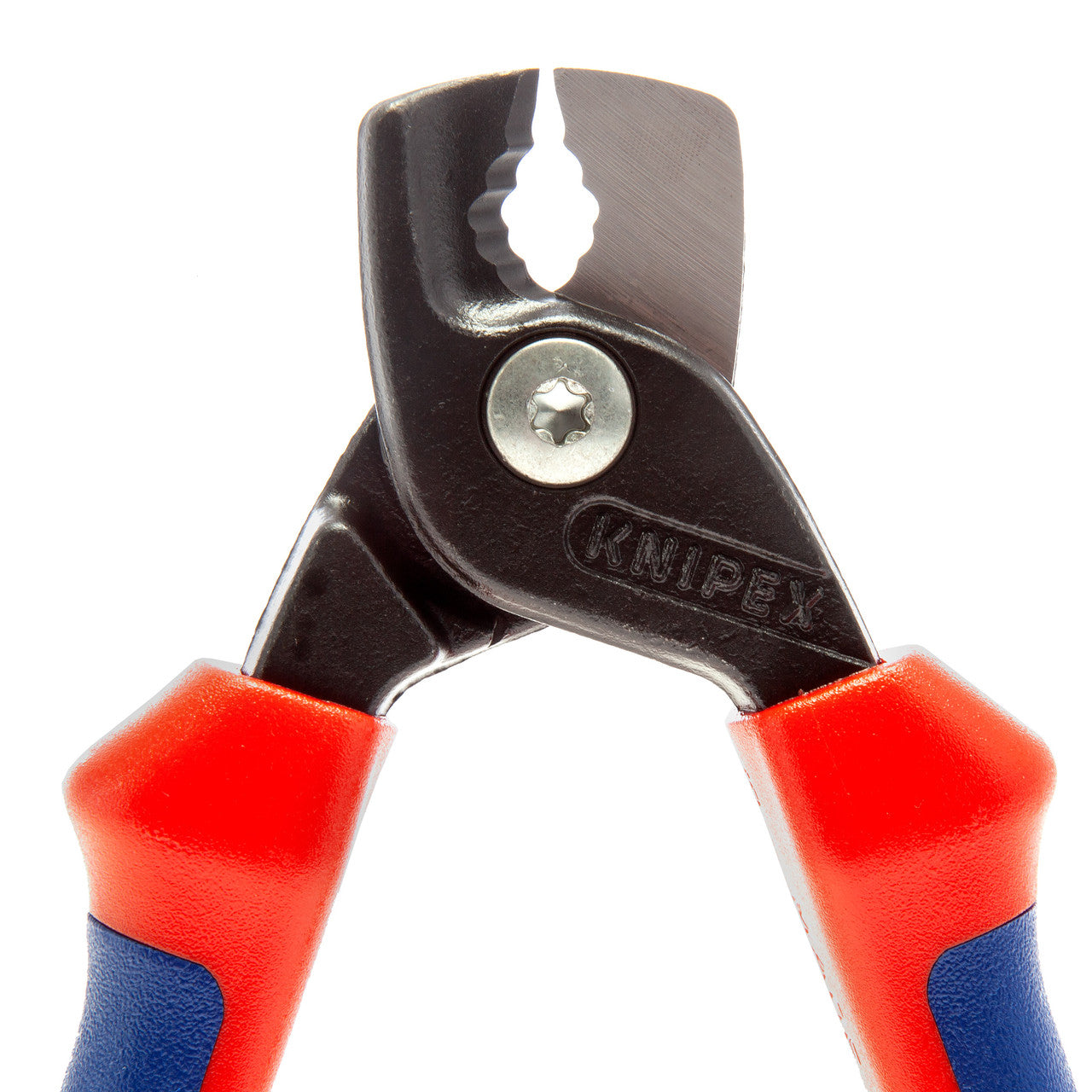

• Noticeably less effort: the gradations cut wires one after the other; cutting is up to 40% easier than with standard cable shears of the same length!
• Ergonomic handle design: optimal cutting feel even for larger cable diameters
• Cuts multi-core stranded copper and aluminium cables up to Ø 15 mm (50 mm²)
• Cuts solid copper and aluminium cables up to 5 x 4 mm²
• Cuts without crushing
• Bolted joint: precise, effortless, durable
• Pinch guard fitted for safe work
• Not suitable for steel wire and hard drawn copper conductors
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 56 HRC
• High-grade special tool steel, forged, oil-hardened

Specification:

• Shears: burnished
• Handles: with multi-component grips
• Weight: 230 g
• Dimensions: 160 x 85 x 26 mm
• Reach-konform: no
• RohS: no
• Cutting capacity copper cable, multiple-stranded: 50 mm²
• Cutting capacity copper cable, multiple-stranded: Ø 15 mm
• AWG: 1 / 0
