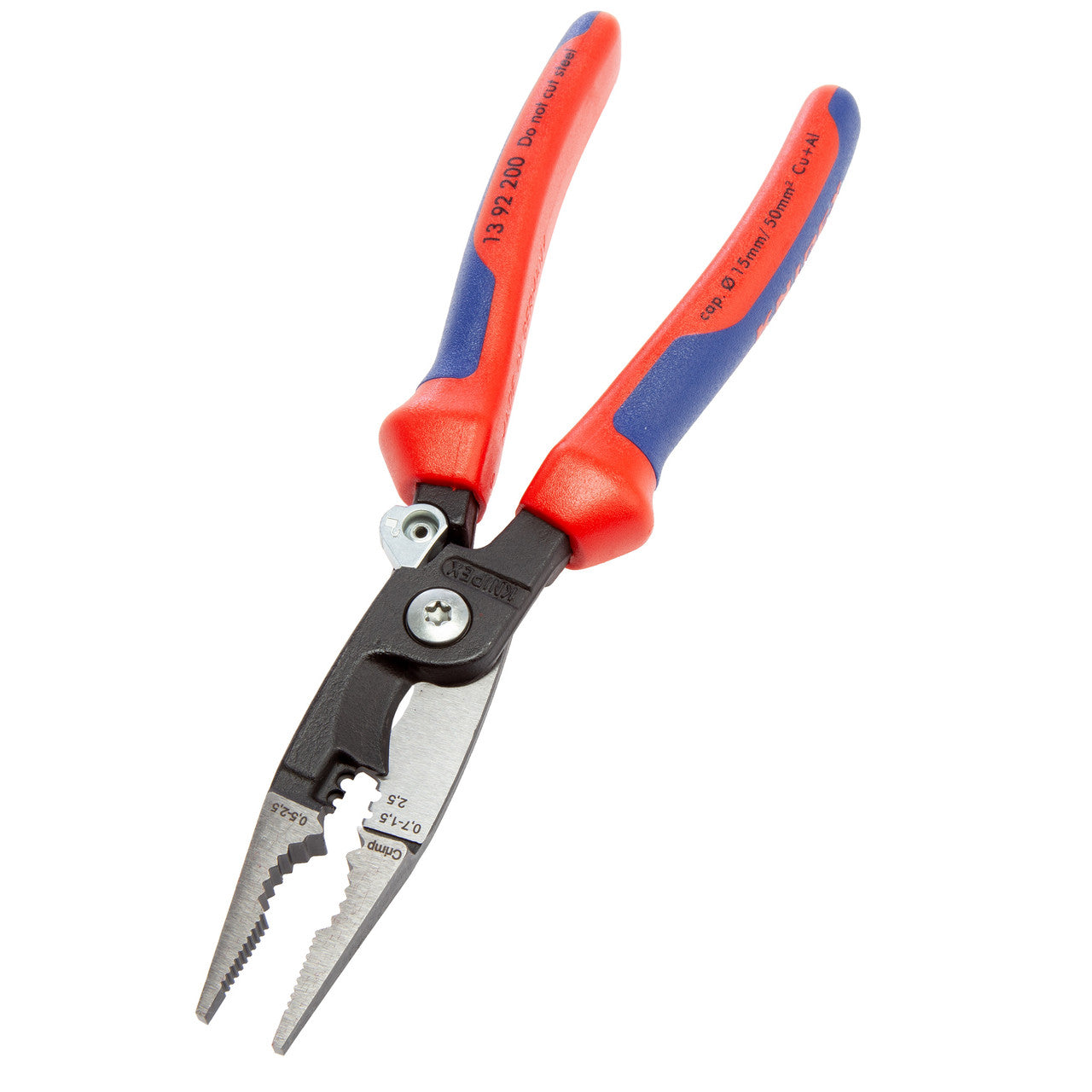

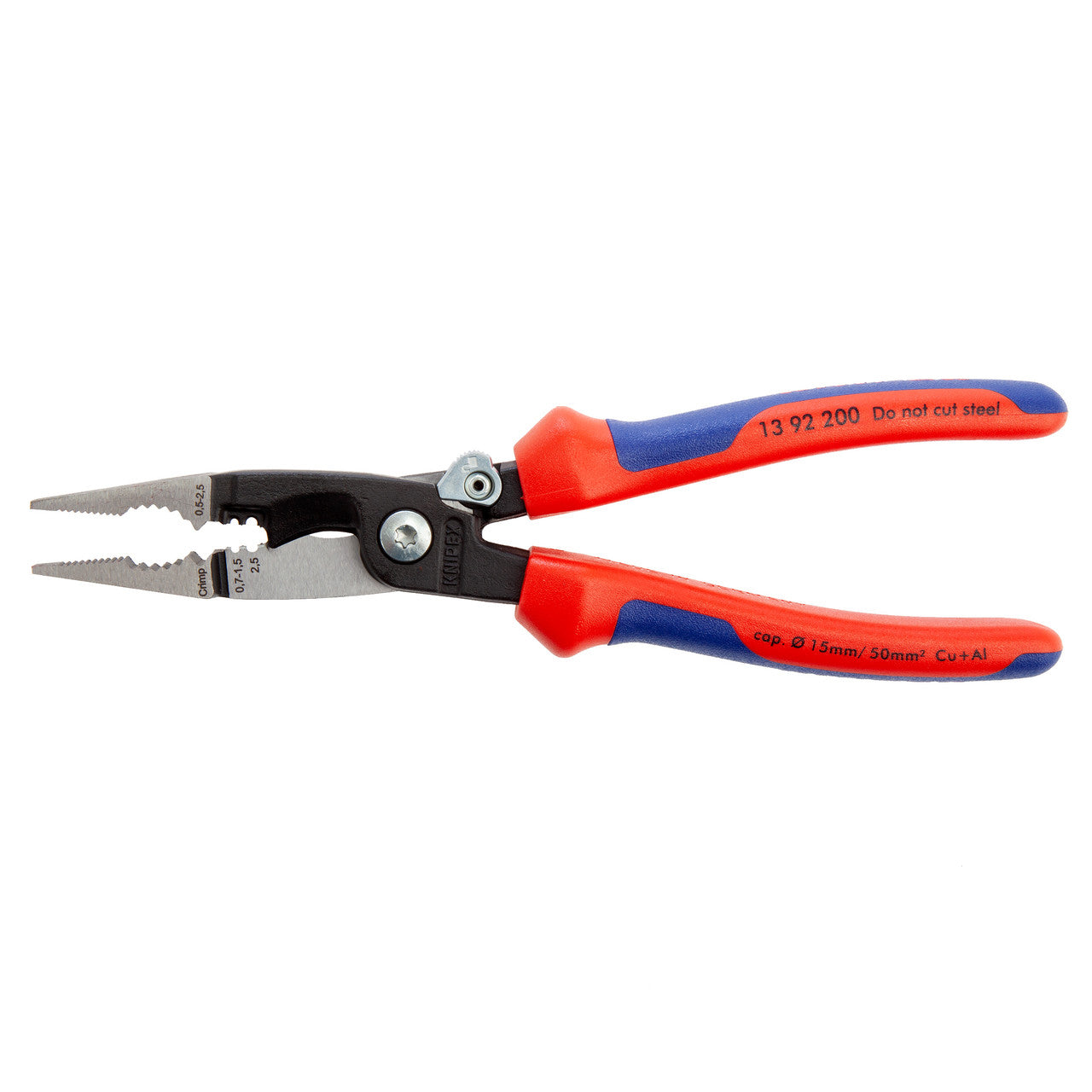

Knipex 1392200 Pliers for Electrical Installation 200mm

The multifunctional tool for electricians - for cutting cable, wire stripping, deburring, bending, gripping and crimping

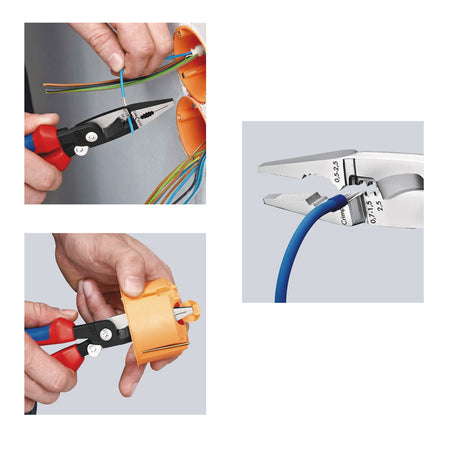

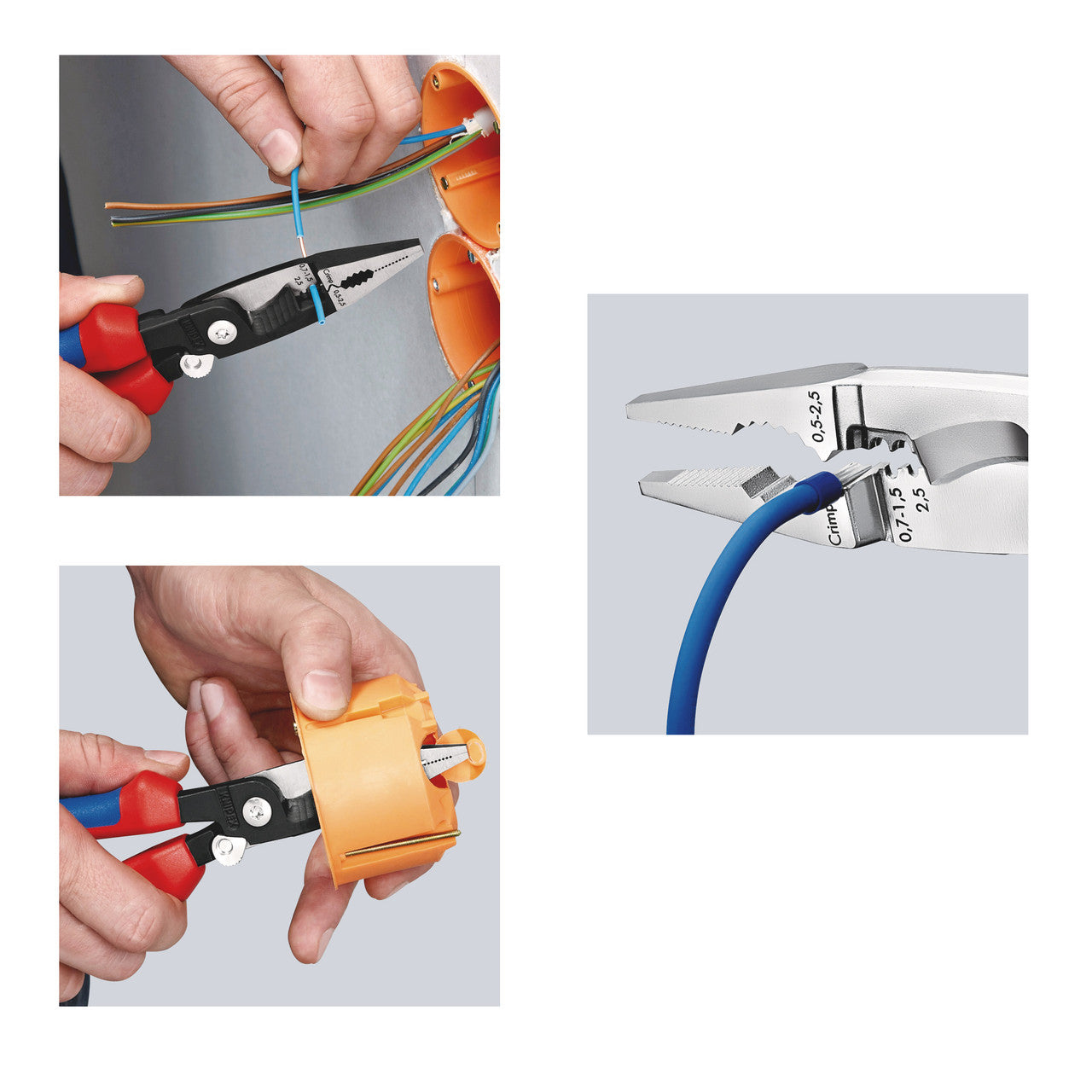

The Knipex 1392200 have many functions meaning there is no need to constantly change tools. Just one tool is adequate for the most important, recurring work steps in electrical installation. The activated pawl holds the cutting edges closed while other functions remain in place. With this intelligent closing mechanism, you can grip without opening the pliers. The cutting edge remains closed and protected. The gripping surfaces of the installation pliers are smooth at the tip, enabling single conductors to be held and positioned without being damaged. There are profiled gripping surfaces and a pipe grip for gripping flat and round material. The induction hardened precision cutting edges produce clean cuts on Cu and Al cables up to Ø 15 mm. Thanks to their non-slip multi-component grips, the installation pliers are safe and comfortable to use. The electrical installation pliers save time, space and weight. At 200 mm long, they fit in any tool bag and with a weight of just 280 g they are lightweight – especially compared to a number of individual tools.

Features:

• 6 functions in one pair of pliers
• Multifunctional pliers for the electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules
• In case of models with opening spring integrated in the joint, the activated locking lever keeps the cutting edges closed while other functions remain active
• The intelligent latching mechanism enables you to "grip" without opening the pliers. The cutting edge remains closed and protected.
• Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
• Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes
• Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²
• Crimping die for wire ferrules 0.5 - 2.5 mm²
• Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
• Slim dimensions for easy access
• Bolted joint: precise, zero backlash operation of pliers
• High-grade special tool steel, forged, multi stage oil-hardened

Specification:

• Pliers: black atramentized
• Head: polished
• Handles: with multi-component grips
• Dimensions: 200 x 85 x 20 mm
• REACH compliant: does not contain SVHC
• Cutting capacity copper cable, multiple-stranded: Ø 15 mm
• Cutting capacity copper cable, multiple-stranded: 50 mm²
• Stripping capacity for cross-sections: 0.75 — 1.5 mm² / 2.5 mm²
• Capacity in square millimetres: 0.5 — 2.5 mm²
• AWG: 1 / 0
• Weight: 0.280kg
