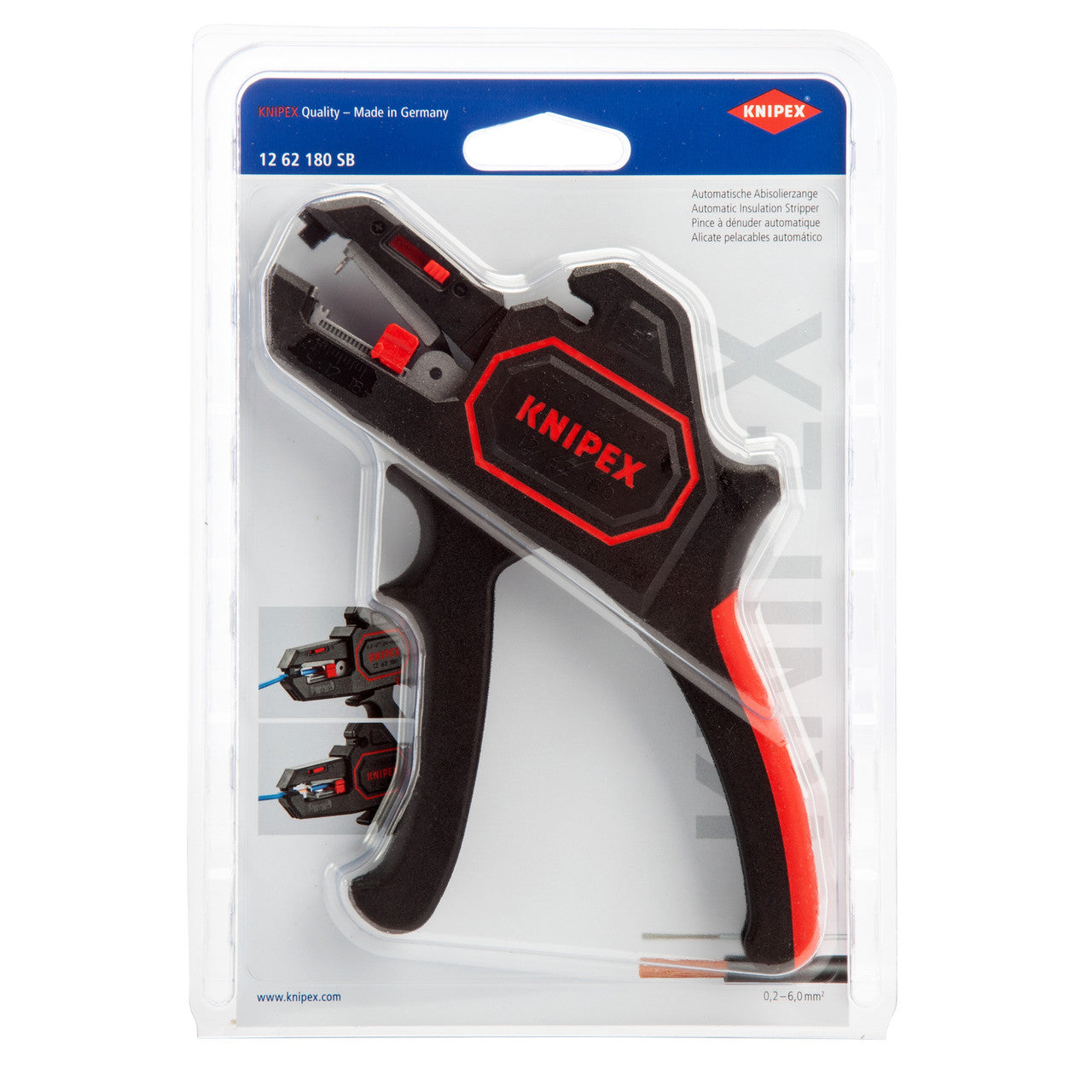

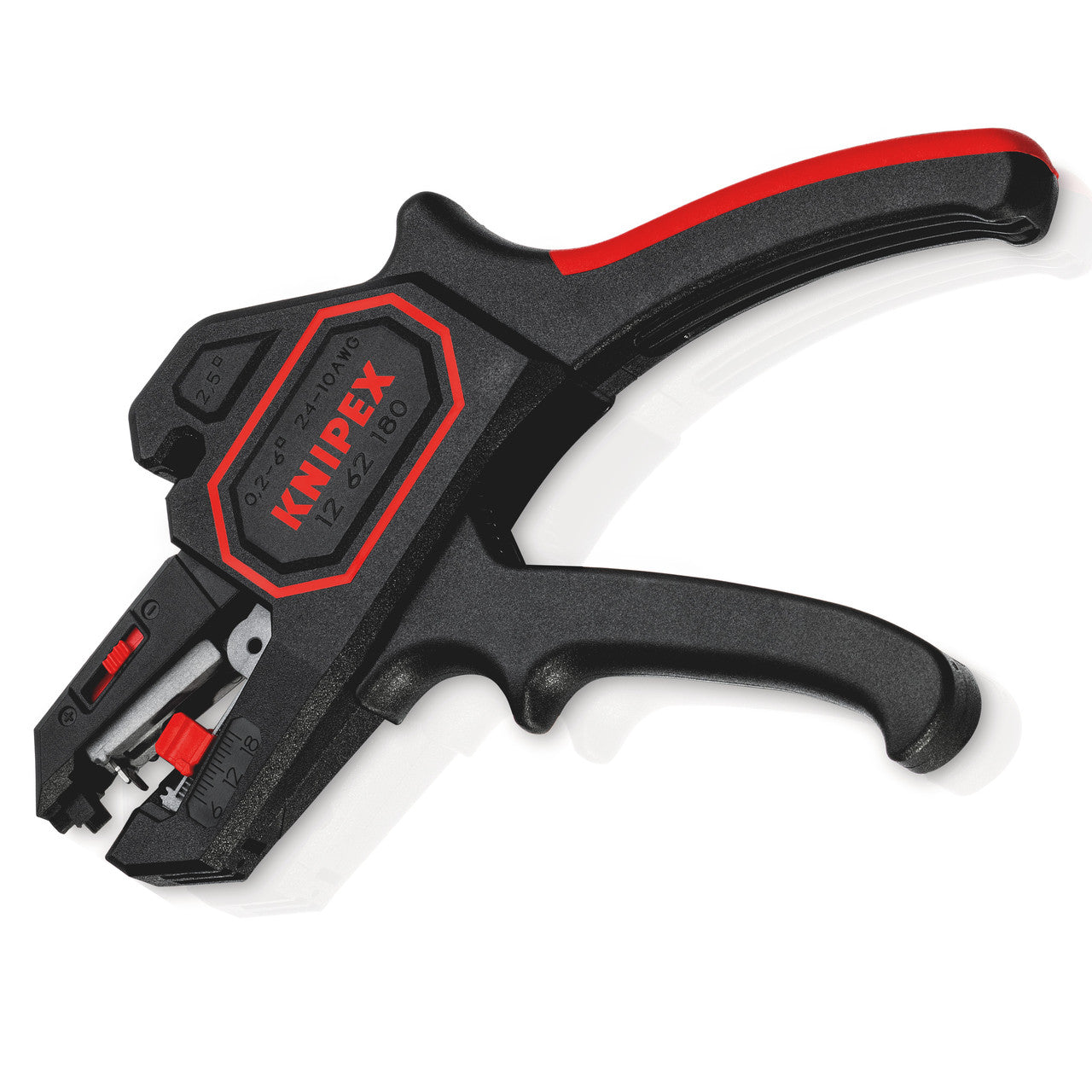

Knipex 1262180SB Automatic Insulation Stripper 180mm
Have any questions about this product or placing bulk orders?
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Automatic Insulation Stripper works faster adjusting automatically to most cable types, with fine adjustment for special materials

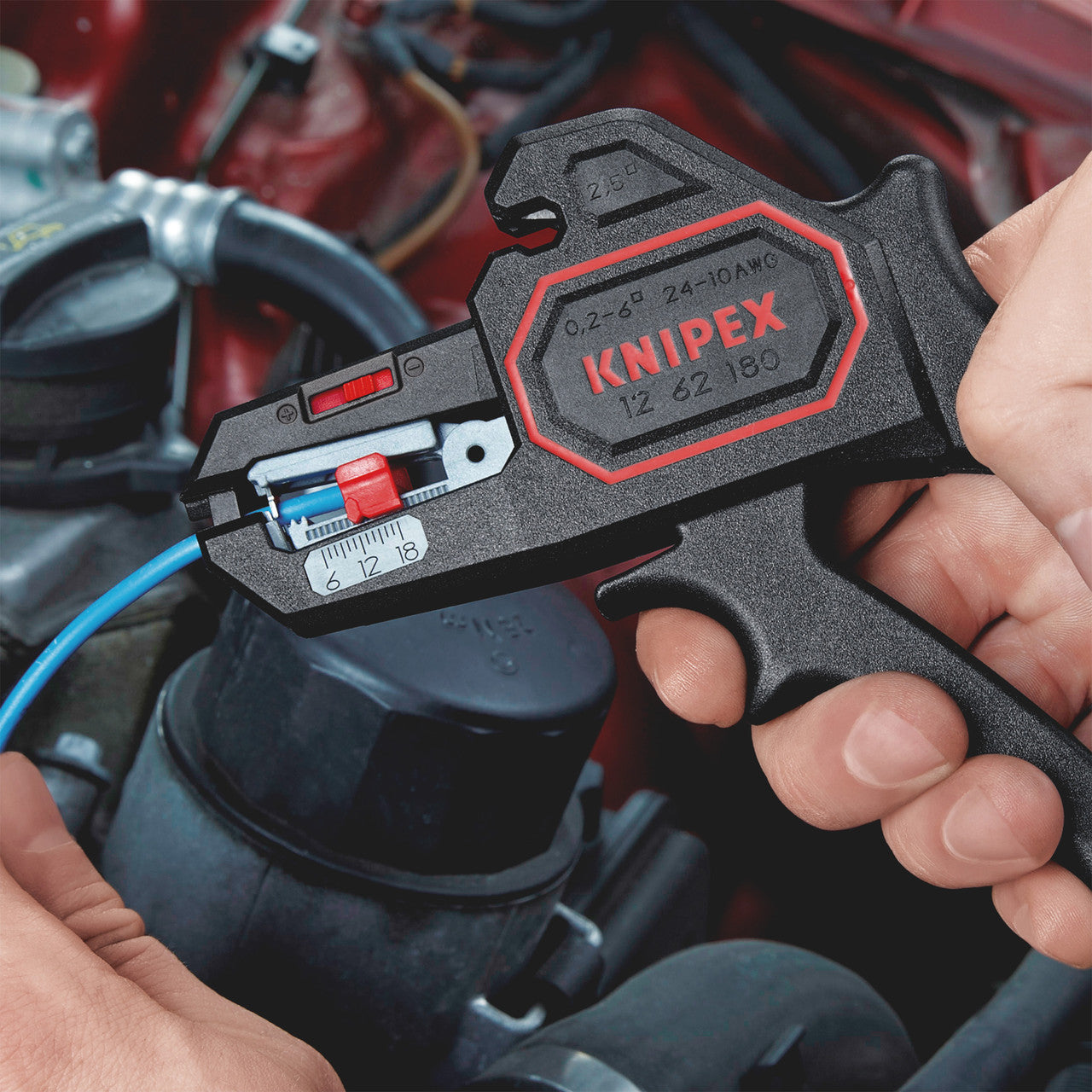

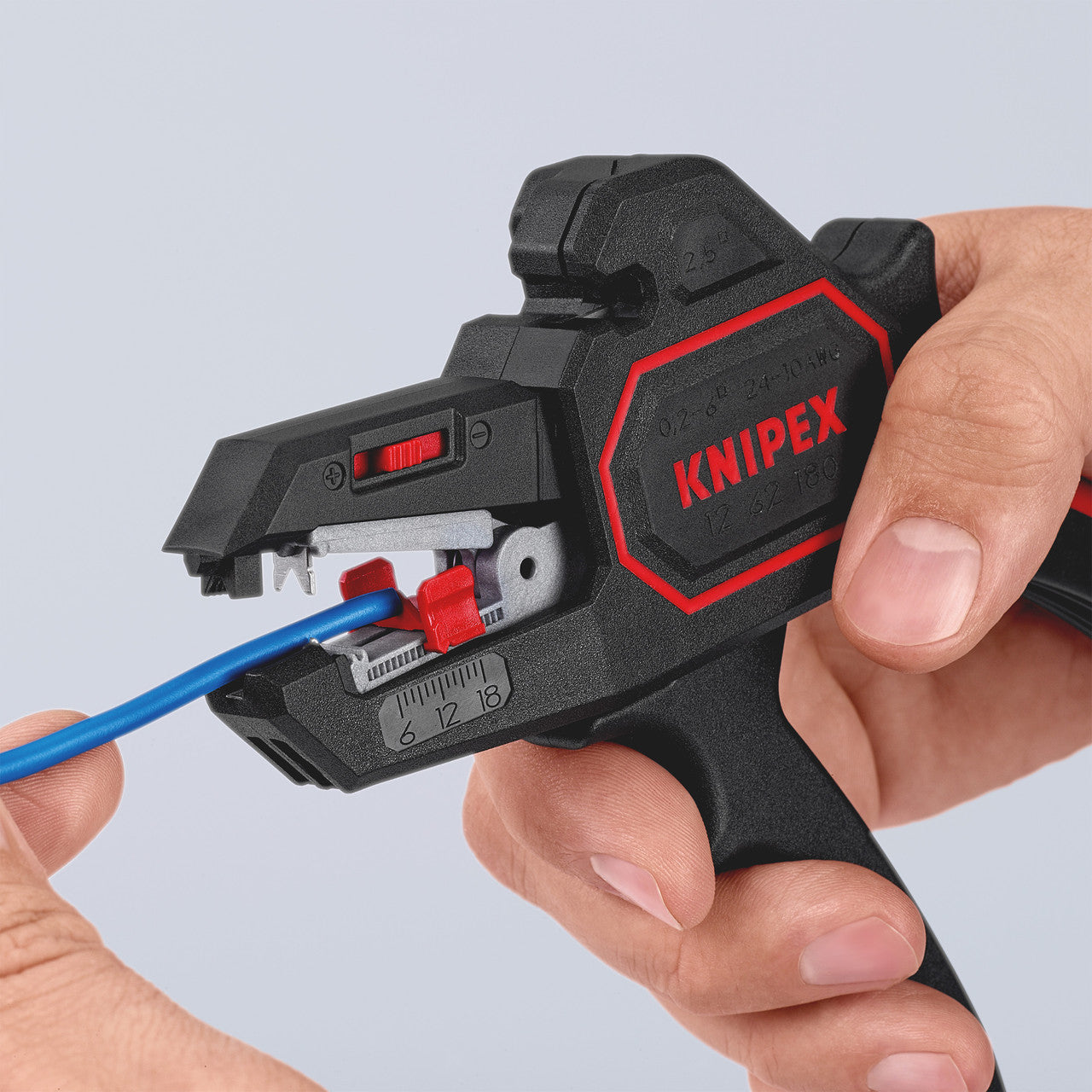

The Knipex 1262180SB (carded) Automatic Insulation Stripper is a good choice if you occasionally need to strip cable, e.g. when installing lighting, during model making, work on a camper van or when installing new sockets. It greatly reduces strain, both for DIY enthusiasts and for professional users. Firstly, there is no need to adjust to different cable cross-sections because the pliers do this automatically. Secondly, thanks to the slim head shape, it is also possible to strip the wire in poorly accessible areas, such as in junction boxes. It has a wire cutter for shortening cables and cutting Cu and Al conductors up to 2.5 mm², so users need one less tool. The cable to be stripped is inserted in the pliers from the front and pushed up to the individually adjustable length stop. After this, the user only needs to press the handle. The wire stripping process takes place automatically. The insulation is only cut as deeply as needed for removal of the insulation layer. When the Knipex 12 62 180 is used correctly, it protects solid, multicore and finely stranded conductors from damage.
Features:
- Strips cables with standard materials without any need for manual adjustment
- Fine adjustable zero correction of the blade setting to special material requirements, e.g. due to large temperature differences
- Compact, handy and lightweight tool for common cable cross-sections and insulating materials
- For single, multiple and fine stranded cables of 0.2 up to 6 mm² with standard insulation
- Narrow head style for use in confined areas

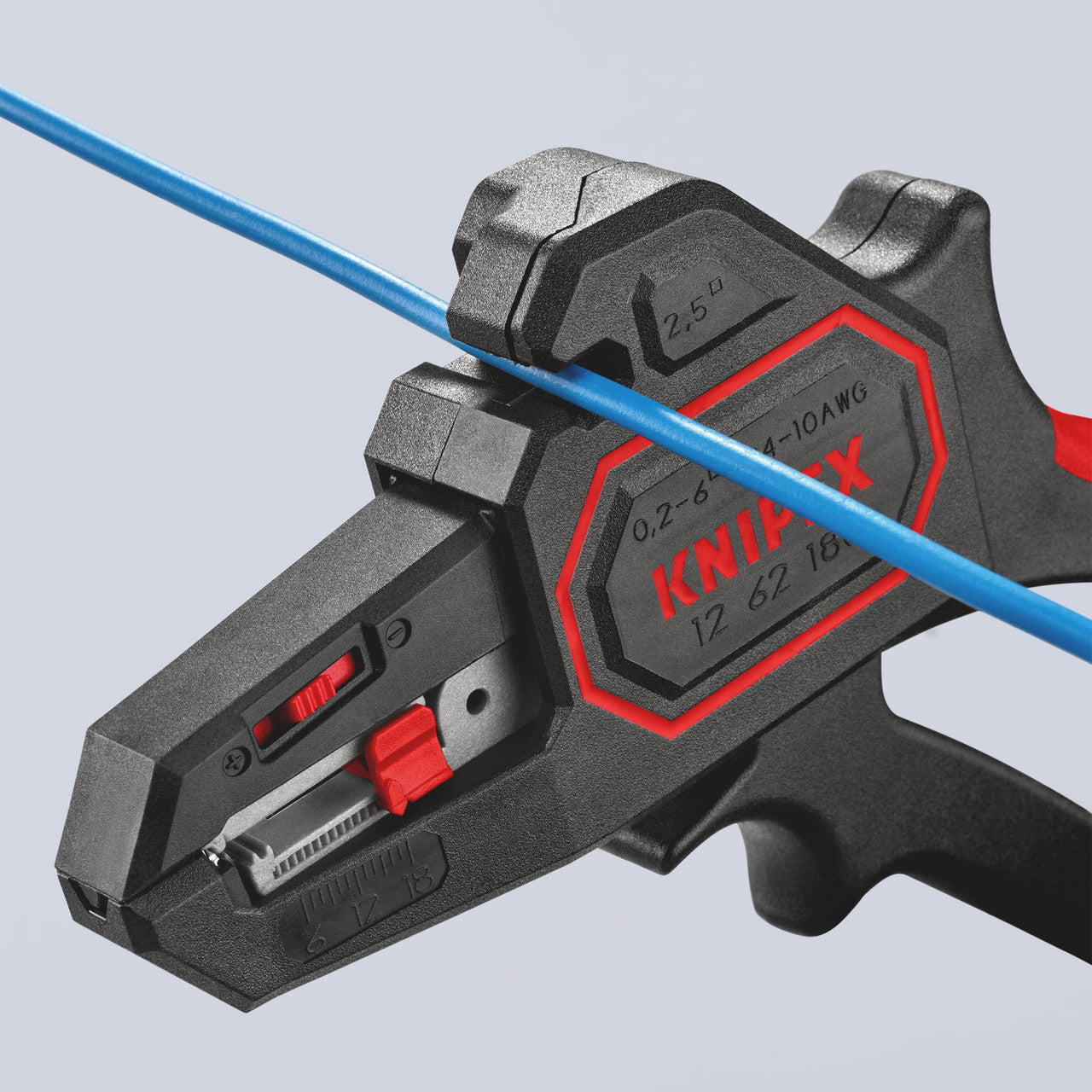

- With wire cutter for copper and aluminium wires up to 2.5 mm²

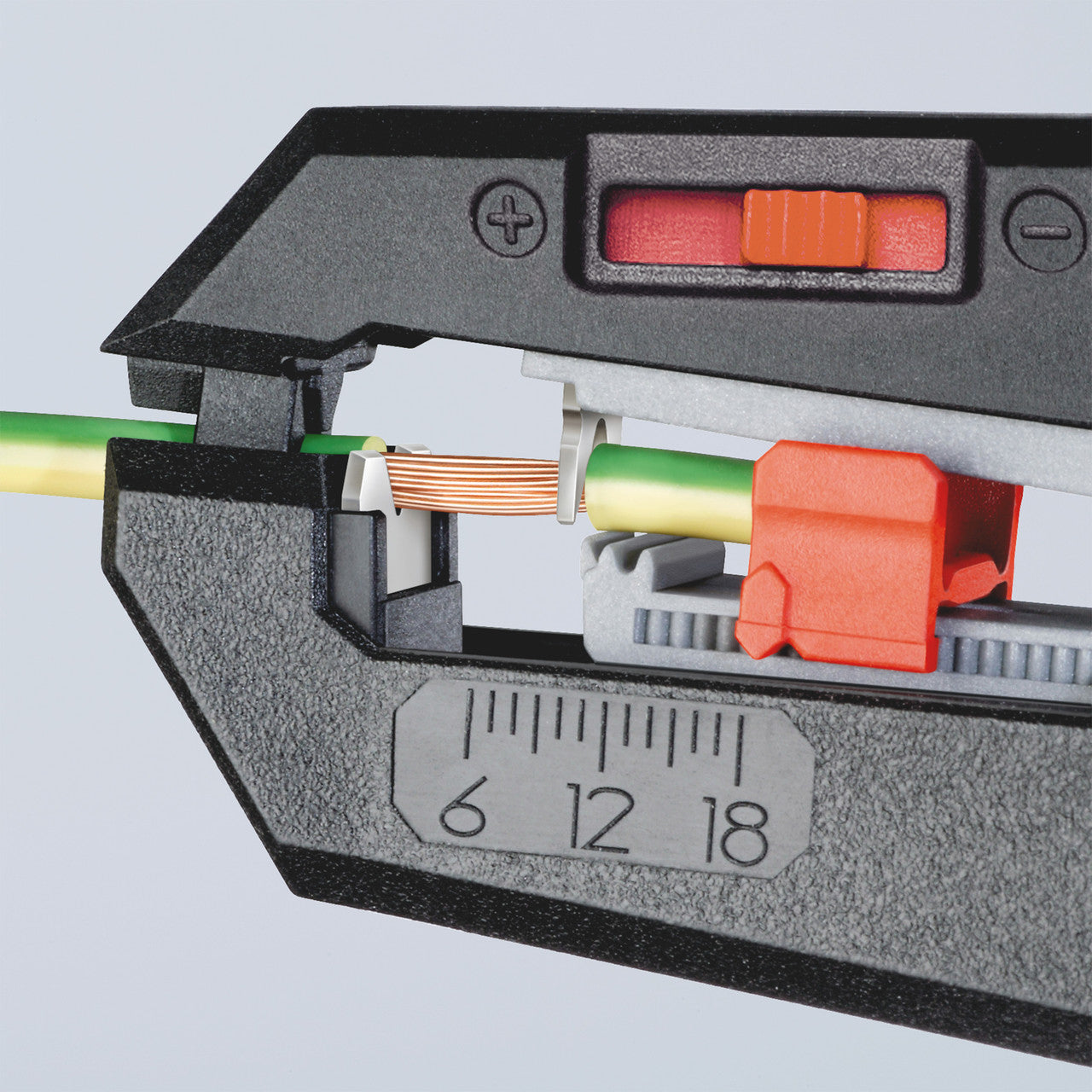

- With adjustable length stop from 6.0 - 18.0 mm for constant stripping lengths
- Body: plastic, fibreglass-reinforced
- Blades: special tool steel, oil-hardened, interchangeable
Specification:
- Part number: 1262180SB
- Dimensions: 180 x 75 x 21 mm
- Stripping capacities in square millimetres: 0.2 — 6.0 mm²
- AWG: 24 — 10
- Weight: 0.151kg
