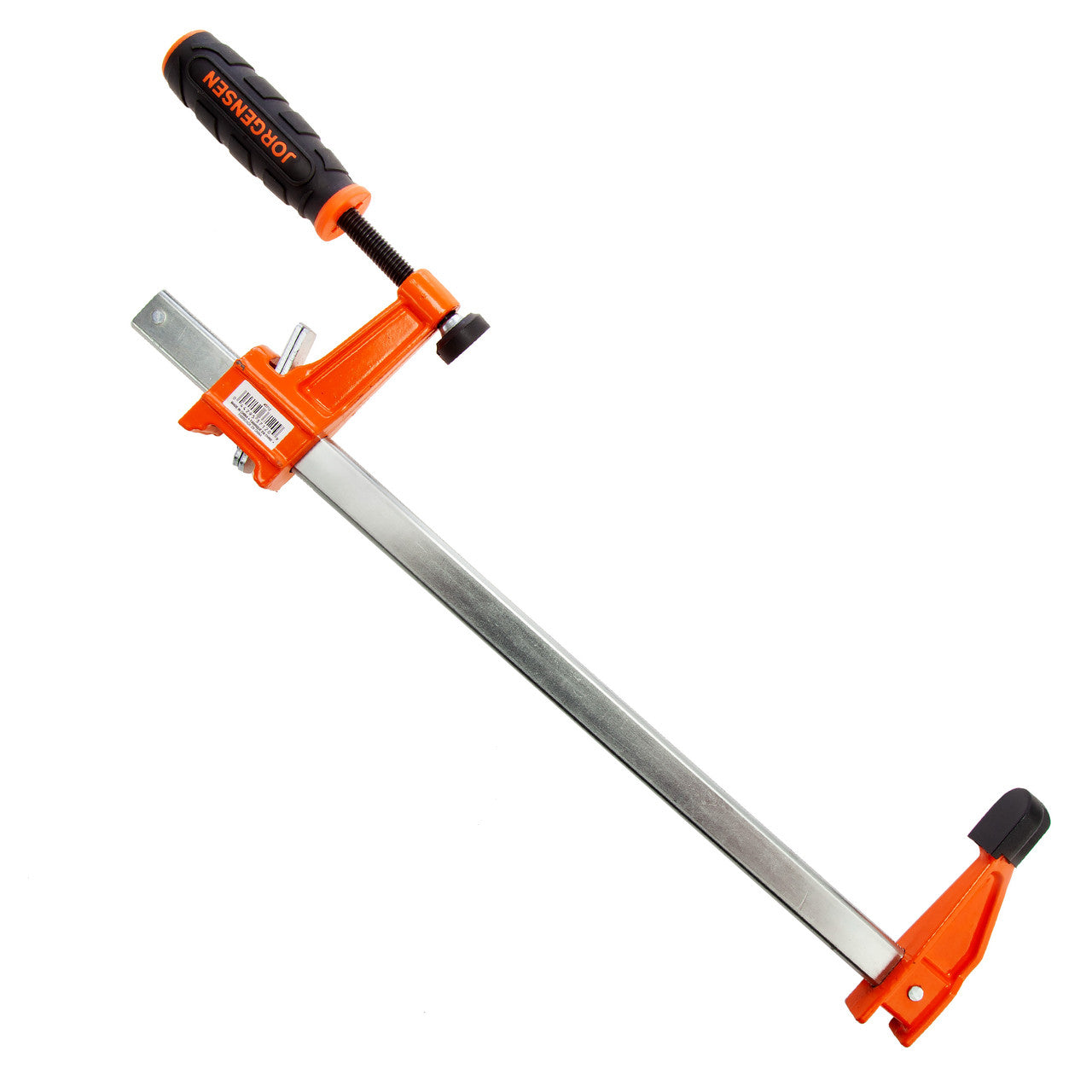

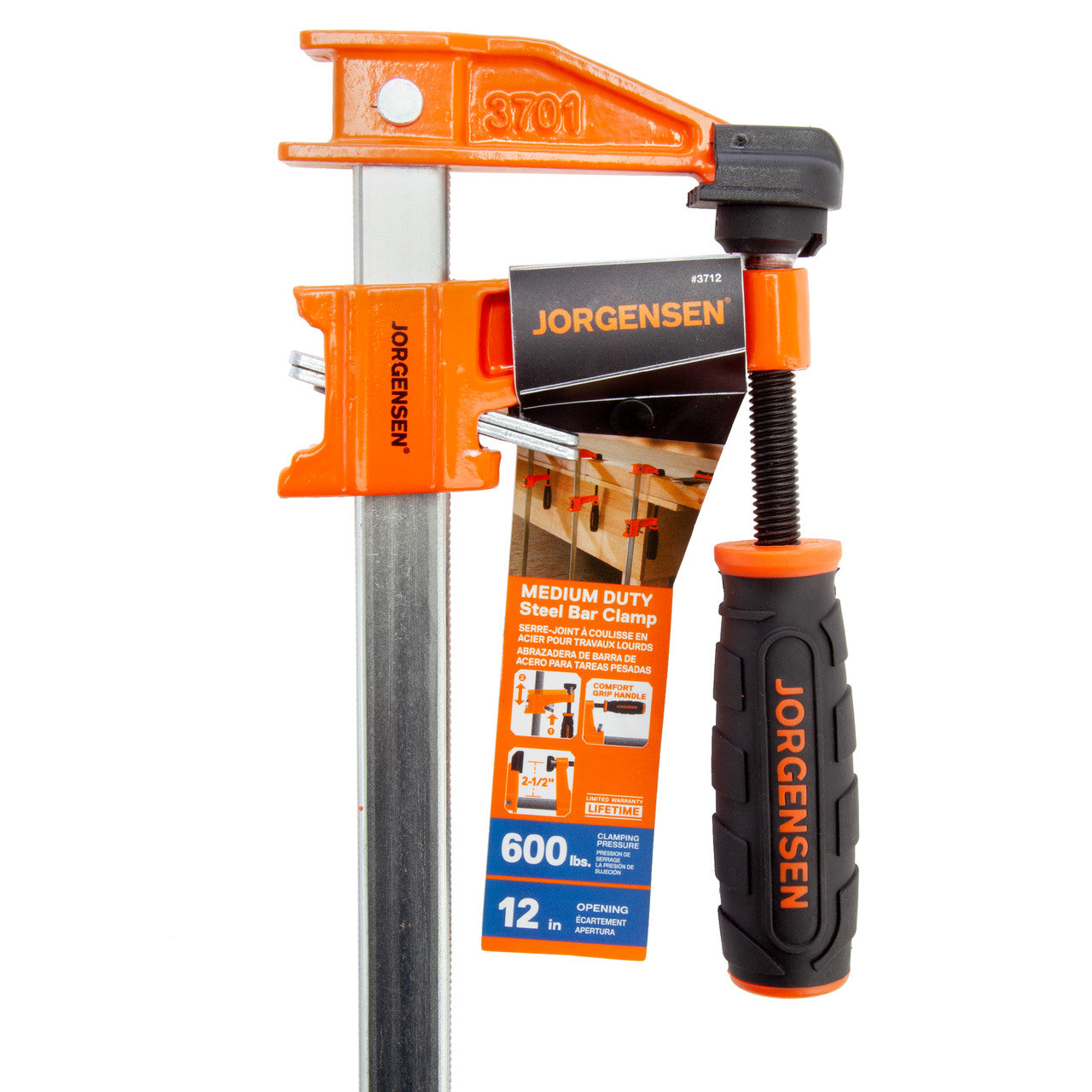

Jorgensen 3712 Medium Duty Steel Bar Clamp 12in

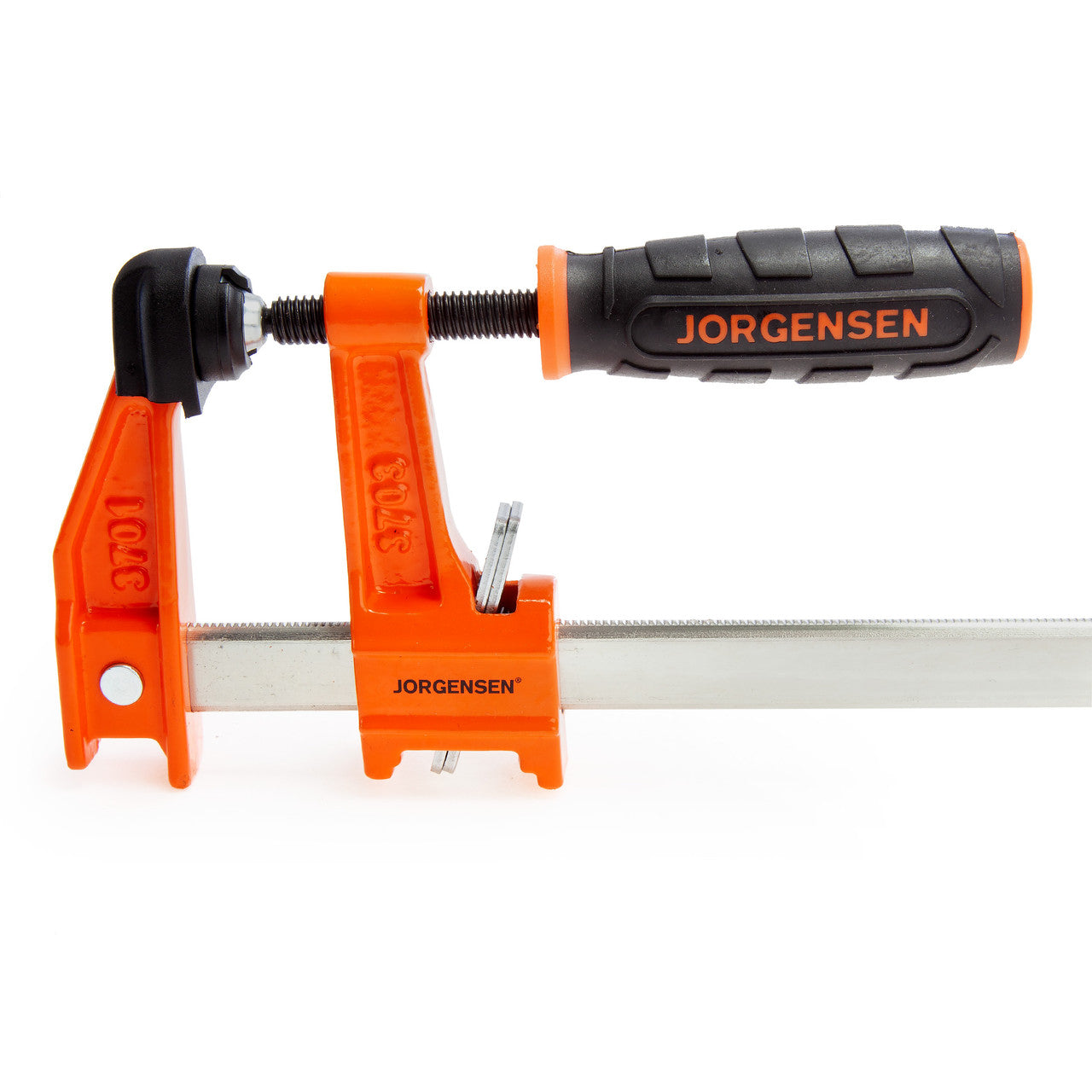

The Jorgensen 3712 Medium Duty 12-Inch Steel Bar Clamp is suitable for all types of heavy-duty clamping. Used by cabinet-makers, woodworkers, metalworkers or for home-shop and do-it-yourself projects. Clamps rest parallel on work surface for ease of work placement and adjustment. Jorgensen steel bar clamps are seriously strong. Cast‑iron stationary and sliding heads with an orange, powder-coated finish are merged with a high‑carbon, rust‑resistant steel bar that packs a whopping 80,000 pounds per square inch of tensile strength. The fast‑acting sliding head is acme threaded to accommodate a cold‑drawn steel screw with a large easy‑grip handle and swivel pad. And our original multiple‑disc‑clutch design allows the sliding head to hold securely at any point along the bar. Available in a wide variety of sizes and clamping forces for light‑duty, medium‑duty, and heavy‑duty applications.
Features:
- Two clamp pads standard with clamp
- Solid steel swivel
- Fixed head is pressed and riveted
- Multiple Disc Clutch design
- Durable comfort grip handle
Specification:
- Max. Opening Capacity: 12 Inches
- Throat Depth: 2 1/2 Inches / 64mm
- Bar Width: 1/4 Inches / 6.35mm
- Bar Thickness: 3/4 Inches / 19mm
- Spindle Diameter: 3/8 Inches / 9.5mm
- Clamping Force: 600lb / 272kg
