Imex LX22 Cross Line Plumb Red Laser Level with Magnetic Bracket

SKU: IMEX-012-LX22

Have any questions about this product or placing bulk orders?

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Imex LX22 Cross Line Plumb Red Laser Level - with Magnetic Bracket

A breakthrough in Laser EDGE Technology, the brightest Line Laser has arrived featuring up and down plumb spot. Imex International has developed new technology in laser diodes to create extremely clear and precise laser lines. Traditionally line lasers will have a thin laser line when close by and then, the further away the line travels the wider the laser line gets. This is not good as the laser line becomes more and more inaccurate. The LX22 has a great laser line that can be easily seen up to 40M away inside, and has sharp clear, thin lines all the way. The Imex cross-liner and plumb spot, self - levelling laser has 1 sharp vertical line and 1 horizontal line and a plumb up and down spot. Featuring an excellent magnetic rotating bracket and a pulsating mode for outdoor use with optional detector (not supplied) up to 50m. This is the most efficient cross line laser available giving accurate results every time. It is the ultimate palm laser. You can also turn the self-levelling function off and create a laser line wherever needed. This Cross Line Laser level can be fitted to a clamp mount (not supplied) so you can attach it to a variety of surfaces. The standard tripod threading on the rotating bracket makes it highly usable in a variety of situations. The tool has a locking pendulum, which is both a very important safety feature to protect the integrity of the laser level and a useful feature for projecting lines out of level when needed.The Imex LX22 Cross line Laser level has one of the best 2 Year Warranties and can be used in a variety of situations without issue. It has a IP rating of IP54 and is powered by 4 x AA batteries (not included).

Features:

  • Up and down plumb spot
  • Ultra bright laser beams
  • Robust moulded housing
  • 2 Year Warranty
  • IP54 water debris resistant
  • Full time pulse mode allows use with a detector
  • Laser EDGE technology
  • 1 Vertical, 1 Horizontal beam
  • Self levelling

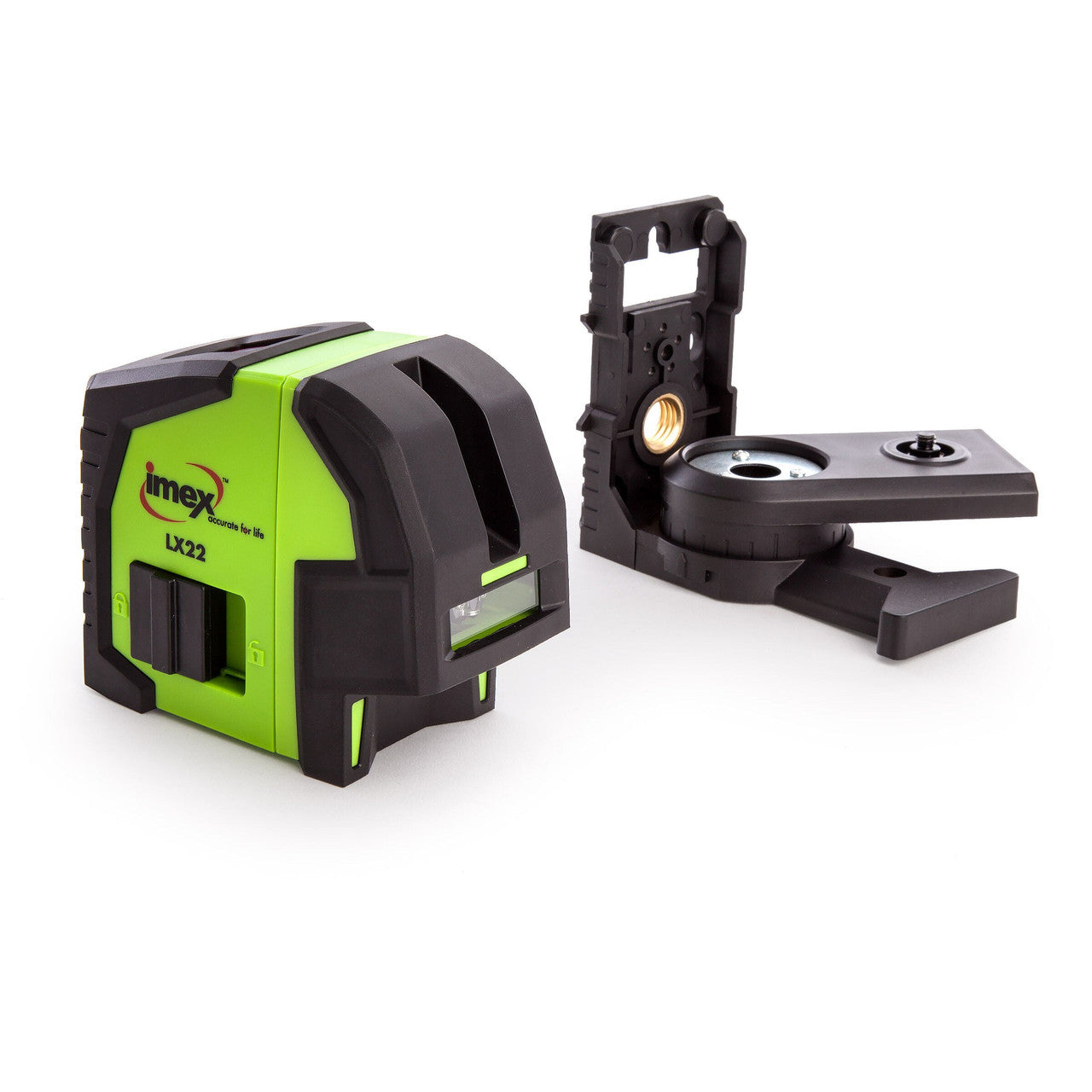

  • Magnetic pivoting base bracket
  • Lock mode for fixed angles

Ideal For:

  • Shop fitting and cabinet installation
  • Wall and floor tiling
  • Wall Partitions
  • Electrical switch and light placement
  • Steel fabrication alignment and set out
  • Interior decorating
  • Window and door placement

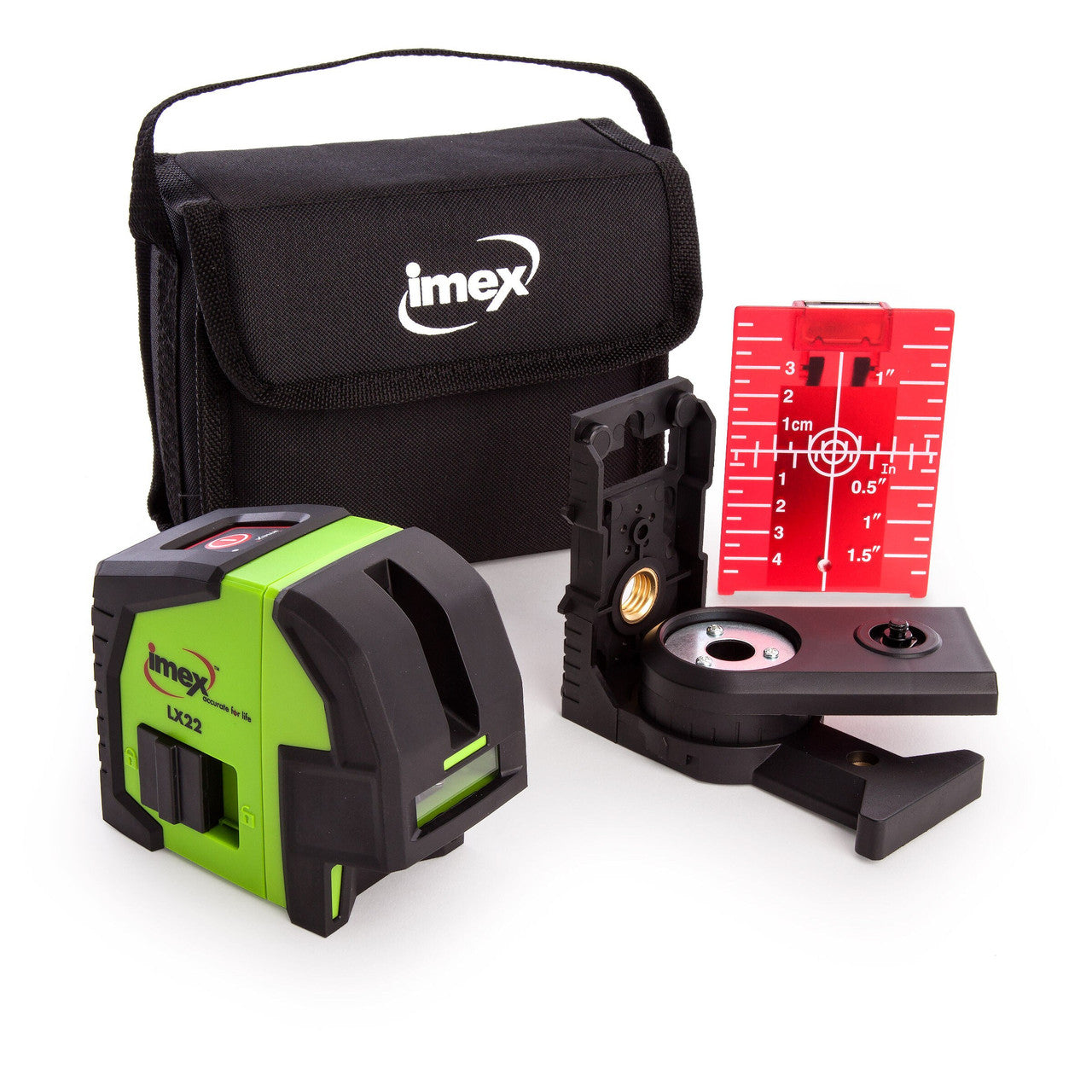

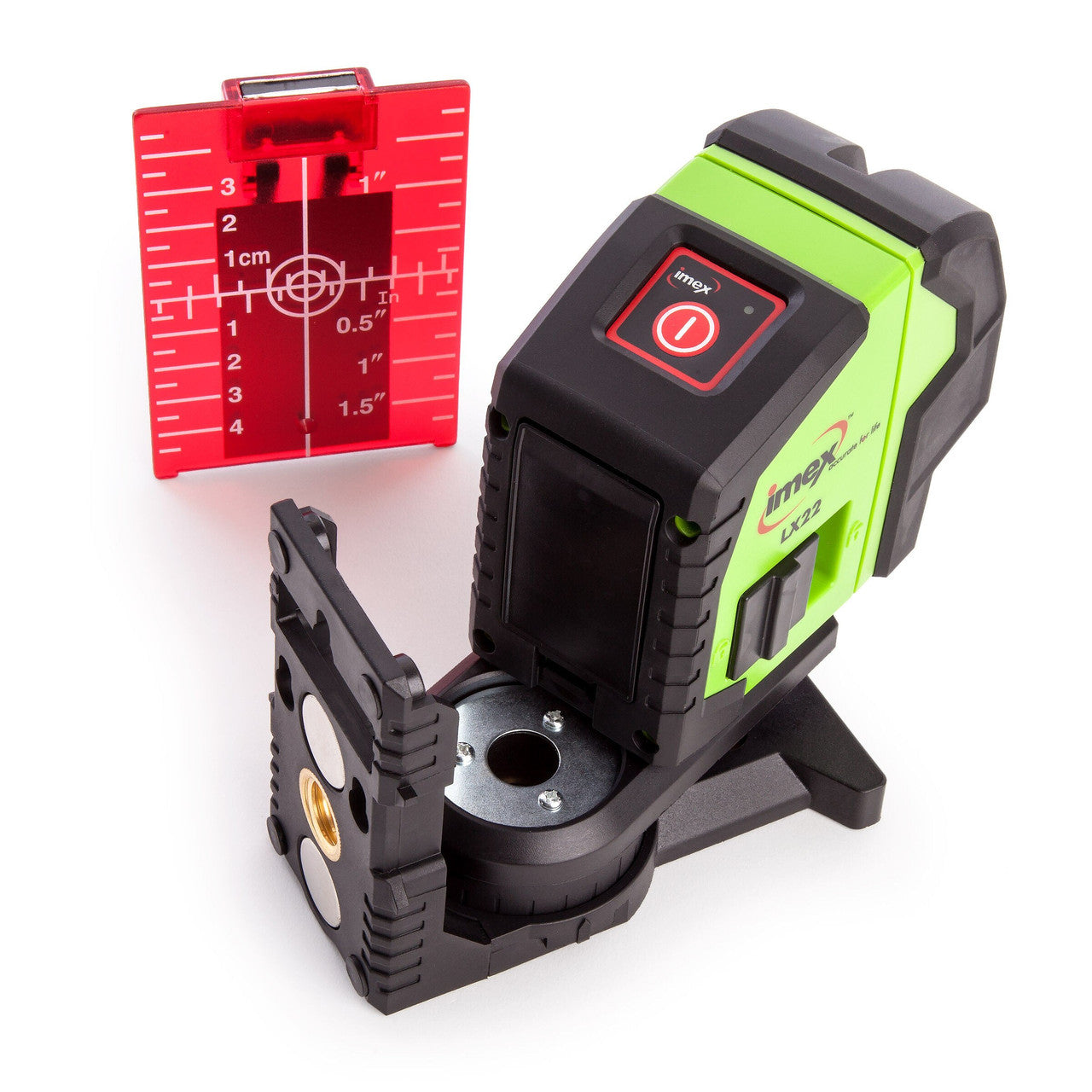

Comes with:

  • Magnetic rotating bracket
  • Target
  • Carry case

Specification:

  • Light Source diode: 635nm Red diodes
  • Output Laser: Class II
  • Accuracy: +/-3mm @ 15m
  • Beams: 1 horizontal, 1 vertical plus 2 plumb spot up and down
  • Damping type: Self Levelling - Magnetic
  • Hours of continuous use Approximately: 16 Hours (All beams on)
  • Working distance: 30m 55m with detector
  • Dimensions: 65 x 95 x 85mm
  • Batteries: 4 x AA not included
  • Weight: 0.6kg
