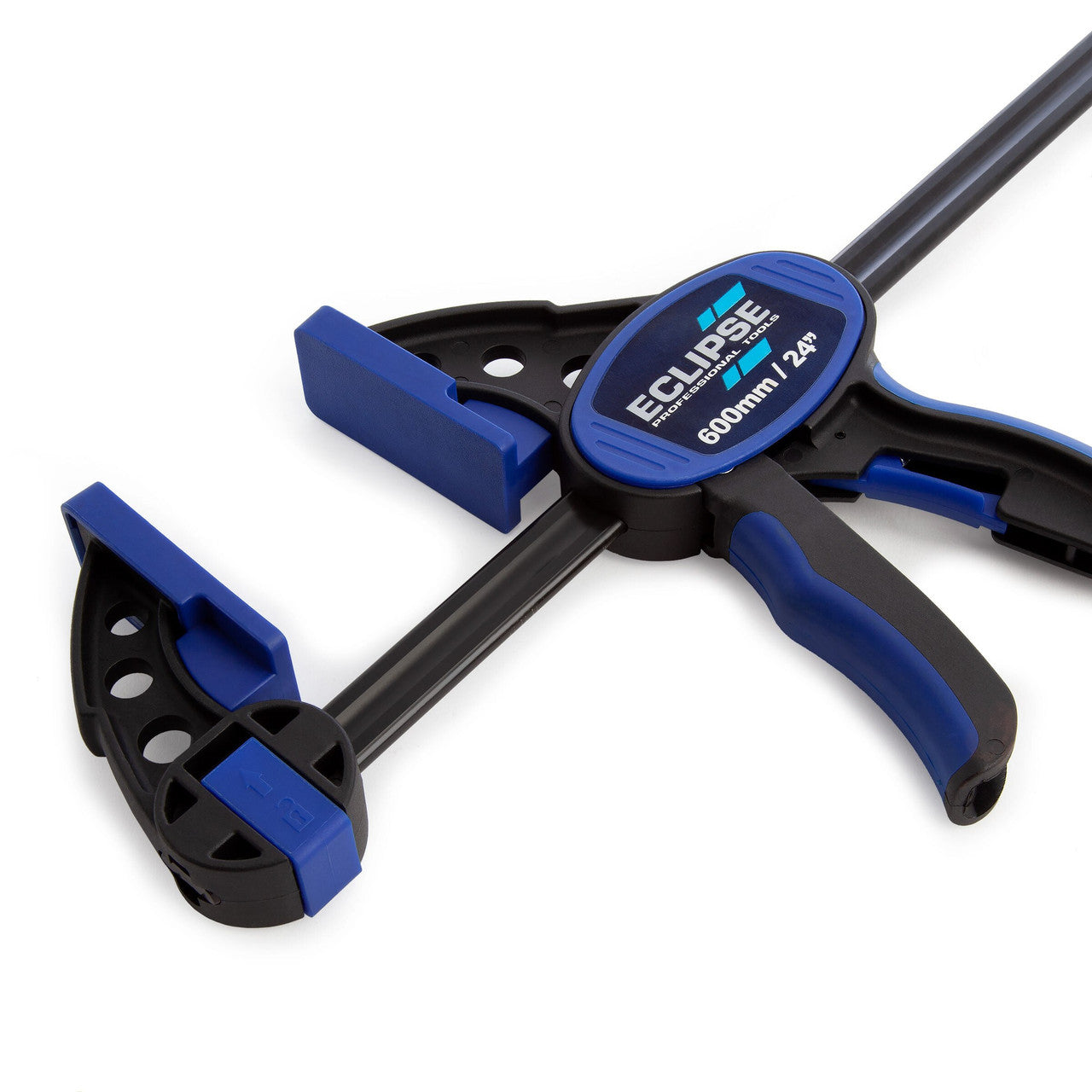

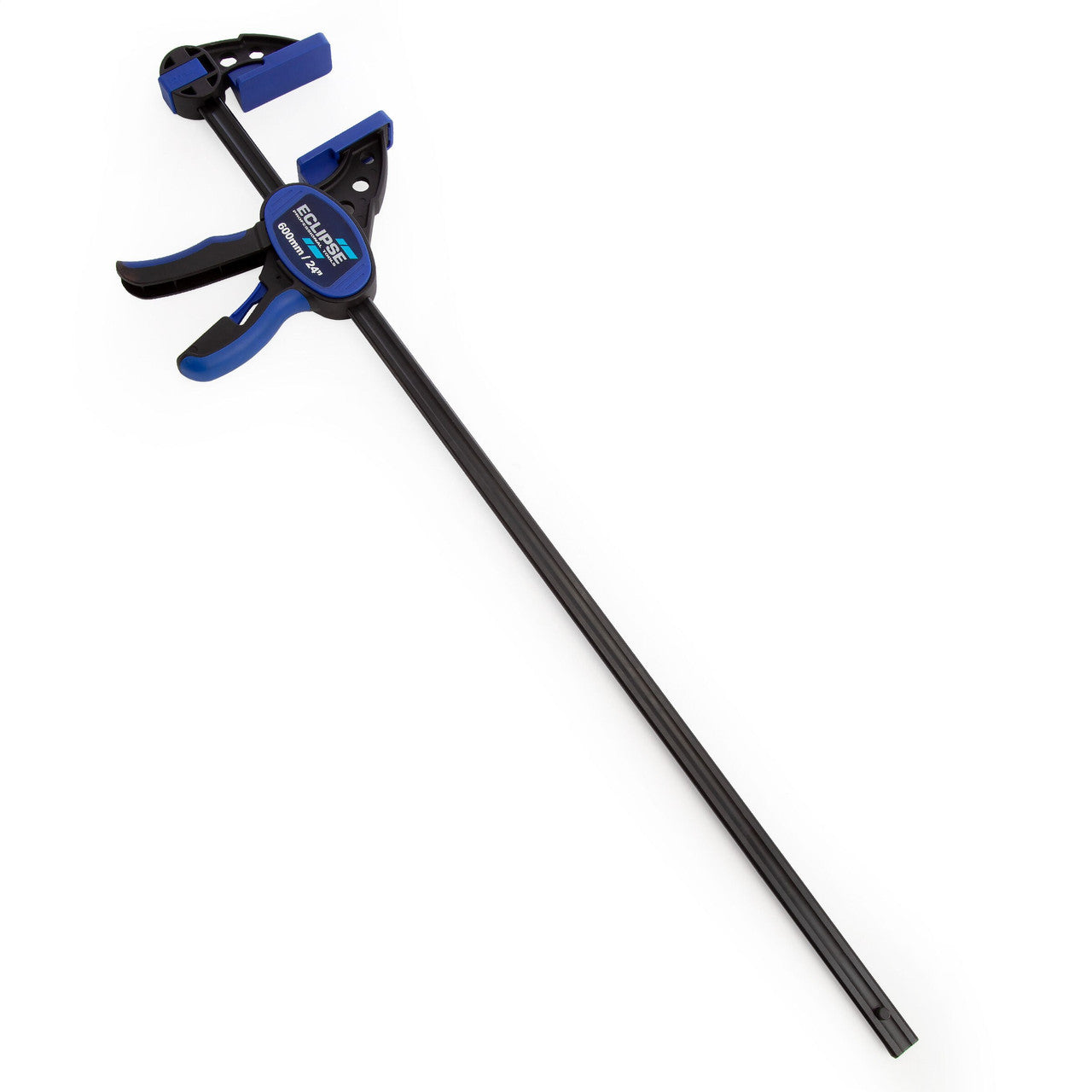

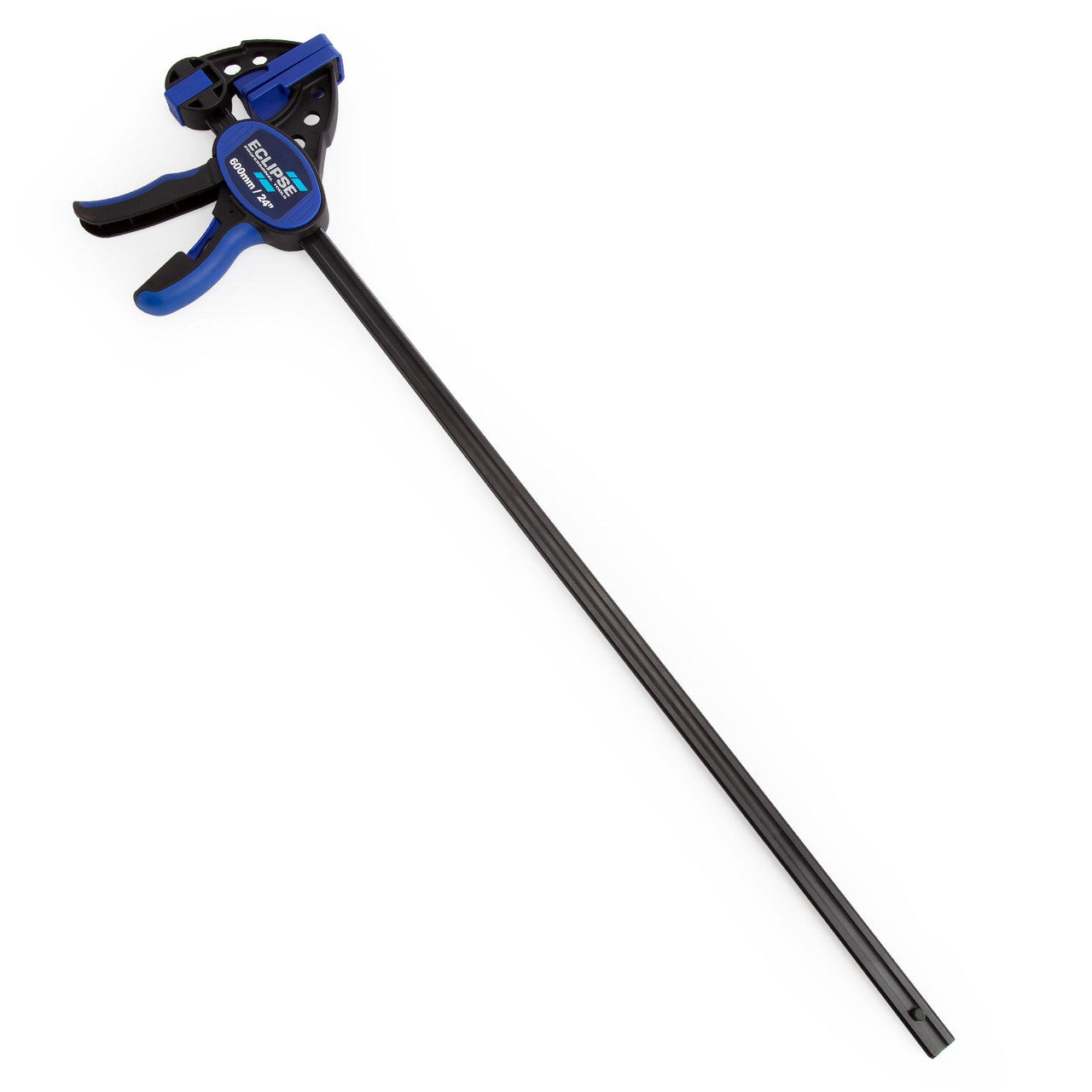

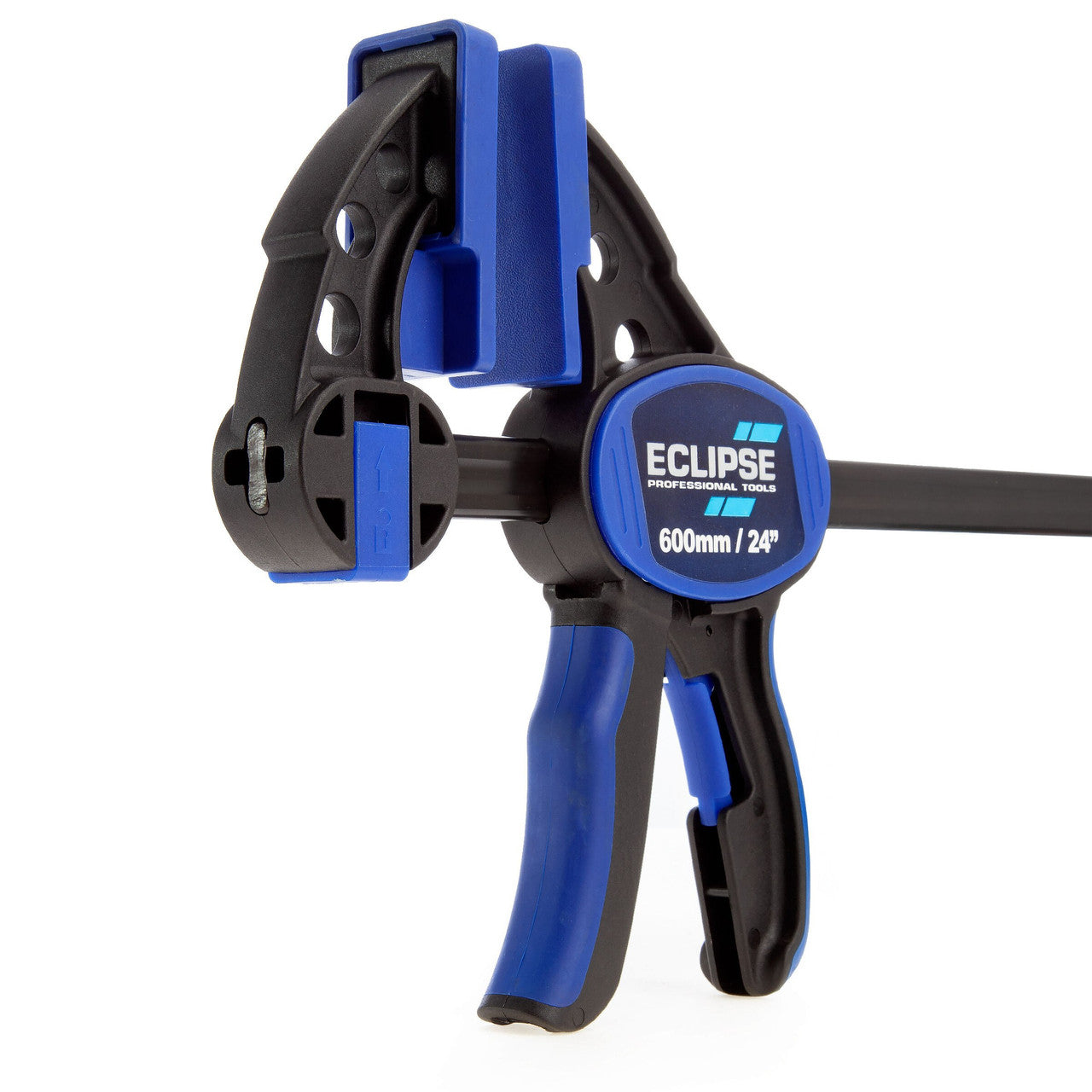

Eclipse EOHBC24 One Handed Bar Clamp & Spreader 24in / 600mm

Eclipse EOHBC24 One Handed Bar Clamp & Spreader 24 Inch / 600mm

The Eclipse EOHBC24 is suitable for a variety of medium-duty woodworking applications. Its carbon steel bar and reinforced nylon body ensure maximum strength and durability delivering up to 150 kg of clamping force. The quick-release insert trigger enables the clamps to be quickly positioned and released whilst protecting the work surface from marks.

Features:

• Carbon steel bar and reinforced nylon body for strength and durability and can achieve a sustainable clamping force up to 150 Kgf
• Ideal for medium-duty clamping and temporary hold down work.
• The quick-release insert trigger enables the clamps to be quickly positioned and released.
• The easy push-button system allows a quick change from a clamp to a spreader
• Ergonomically designed soft feel pistol grip handle is comfortable to use
• The removable pads stay fixed to the clamp and have an additional toe-in feature giving an even distribution of clamping force across the workpiece protecting it from marking damage

Specification:

• Clamping capacity: 600mm / 24"
• Minimum spreading capacity: 168mm (6 5/8")
• Maximum spreading capacity: 800mm (31 1/2")
