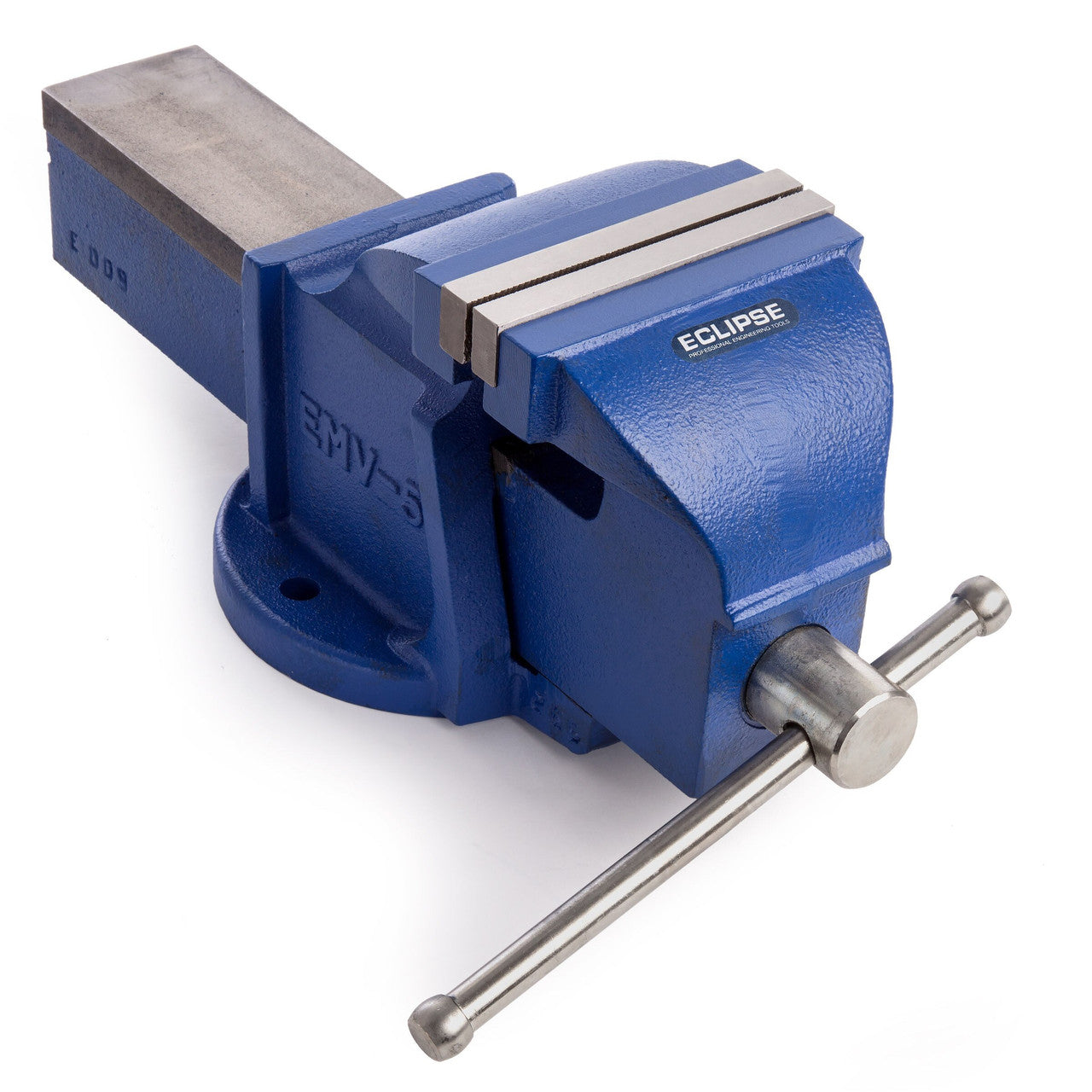

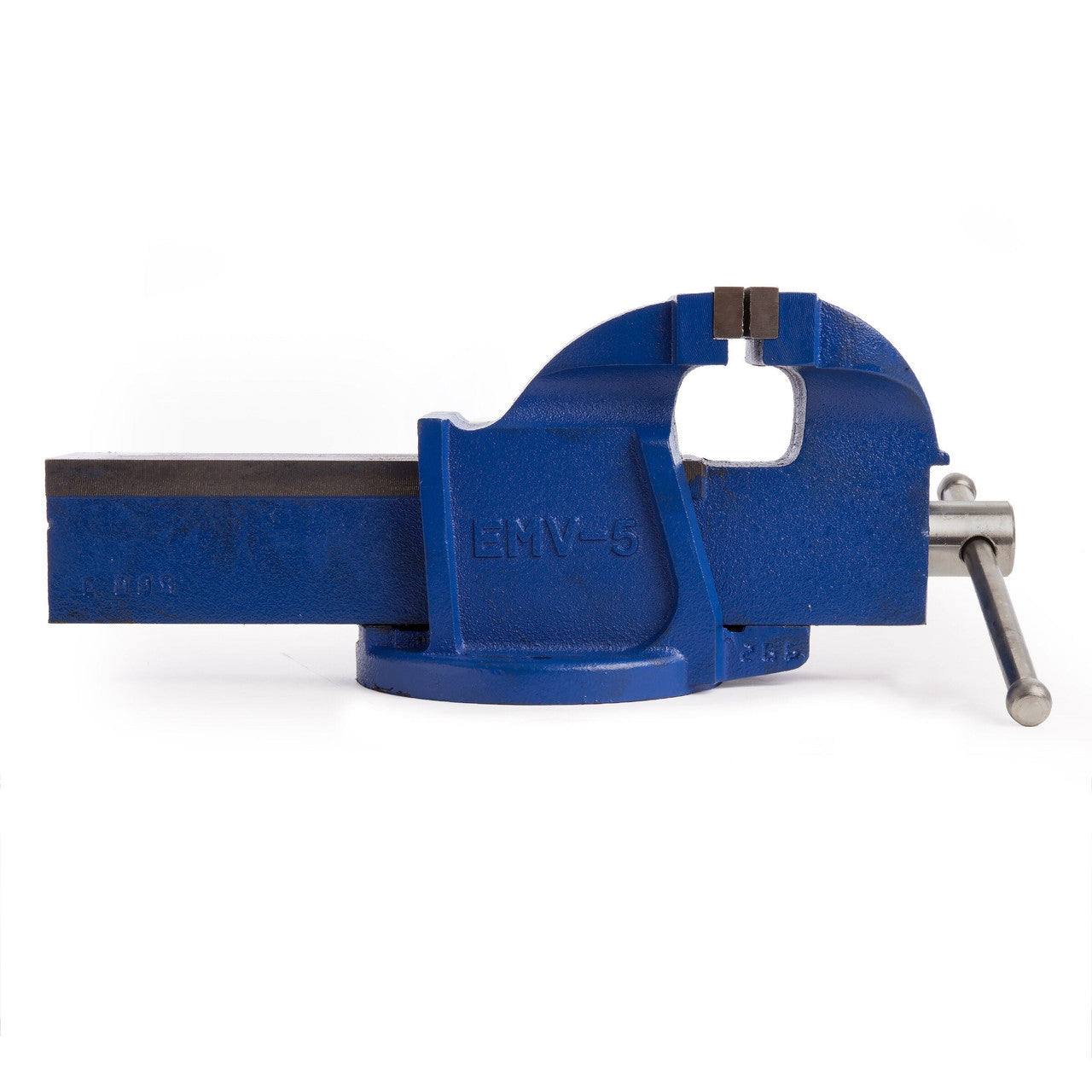

Eclipse EMV-5 Mechanics Vice 5 Inch / 125mm
The EMV-5 is one of a range of high quality cast iron vices from Eclipse for general metalworking applications. The EMV-5 has 5 Inch wide jaws and is capable of generating 2500 Kgf of force.
Features:
- Body and sliding jaw are manufactured from high-quality grey cast iron. This material has excellent shock absorbing qualities
- For added safety, the tommy bar will bend before the vice becomes over-stressed
- Tommy bar and main screw are manufactured from steel
- Hardened steel replaceable jaw plates
- Slide is precision milled to a high tolerance for a fast, smooth operation
Specification:
- Jaw width: 5 Inches / 125mm
- Throat depth: 73mm
- Opening: 136mm
- Clamping Force: 2500 Kgf
- Weight: 16.25kg
