Dormer P88001 Solid Carbide Burr Set (5 Piece)

For top-quality, choose The Dormer P88001 Solid Carbide Burr Set

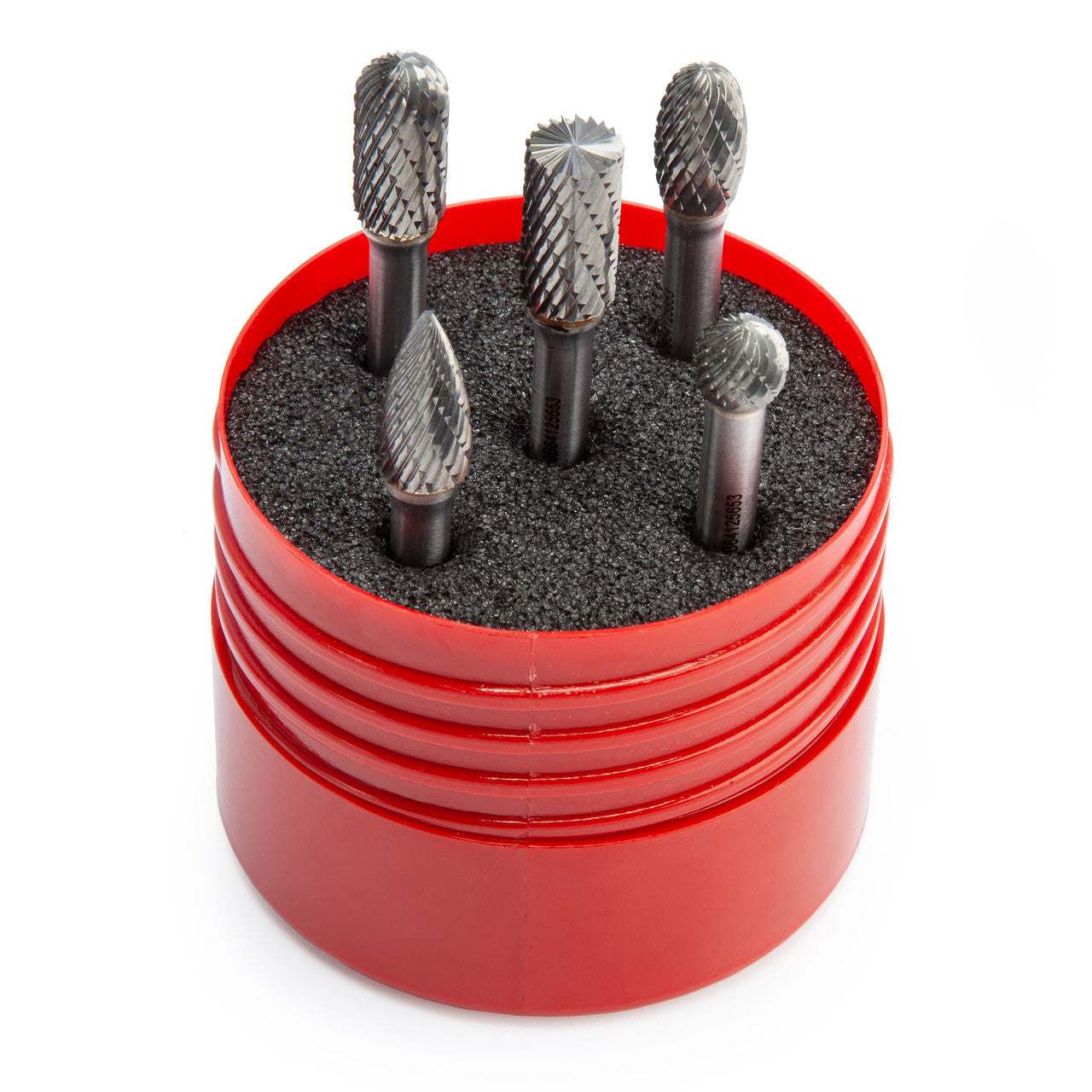

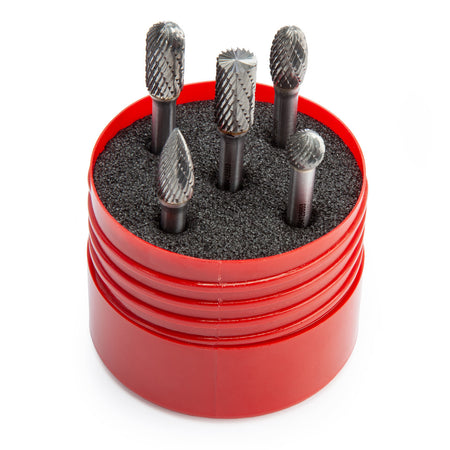

The P88001 Set consists of P803-P805-P807-P809-P813 carbide burrs of high quality, in shapes to offer a solution for the majority of applications in major industries. The combination of premium grade materials for both shank and head with the precise production processes results in a consistent and secure product which Dormer consider essential in the usage of carbide burrs.

Features:

• Double Cut:
• Improves ease of control
• Increases metal removal rate
• First choice for general machining
• Breaks swarf into small manageable pieces
• Aluminium Cut:
• First choice for non-ferrous materials and plastics
• High helix and large flute volume for rapid metal removal
• Shank:
• Provides rigidity and strength
• Resulting in improved tool life
• Toughened and hardened steel shanks
• Prevents bending and reduces vibrations
• Ground to h6 (carbide) and h7 (steel) for improved holding
• Brazing:
• Able to withstand higher temperature without failing
• Excellent impact strength able to withstand high forces
• Special brazing elements provide excellent braze strength
• Ball Nose Geometry:
• Skip flute grinding
• Increased strength at the centre
• Reduced chance of swarf congestion
• Improved cutting action closer to the centre
• TiAlN Coating:
• Increased tool life in difficult conditions
• Reduced friction improves swarf evacuation
• Helps resist “built-up edge” common with cutting tools with small flute volumes

Specification:

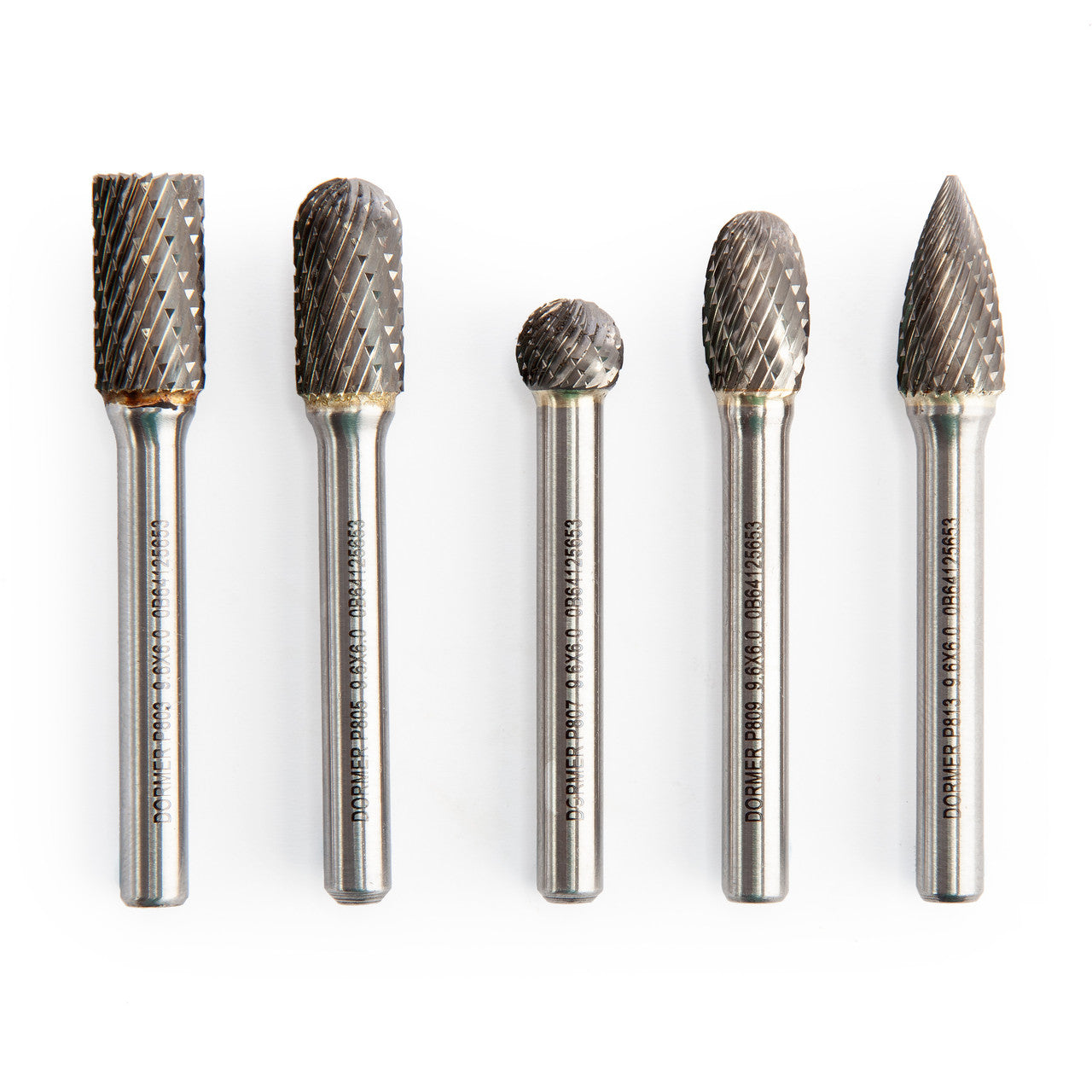

• P807 - Rotary Burr - Ball - 9.6 x 6.00mm
• P809 - Rotary Burr - Oval - 9.6 x 6.00mm
• P813 - Rotary Burr - Pointed Tree - 9.6 x 6.00mm
• P805 - Rotary Burr - Ball Nosed Cylinder - 9.6 x 6.00mm
• P803 - Rotary Burr - Cylinder with end-cut - 9.6 x 6.00mm
