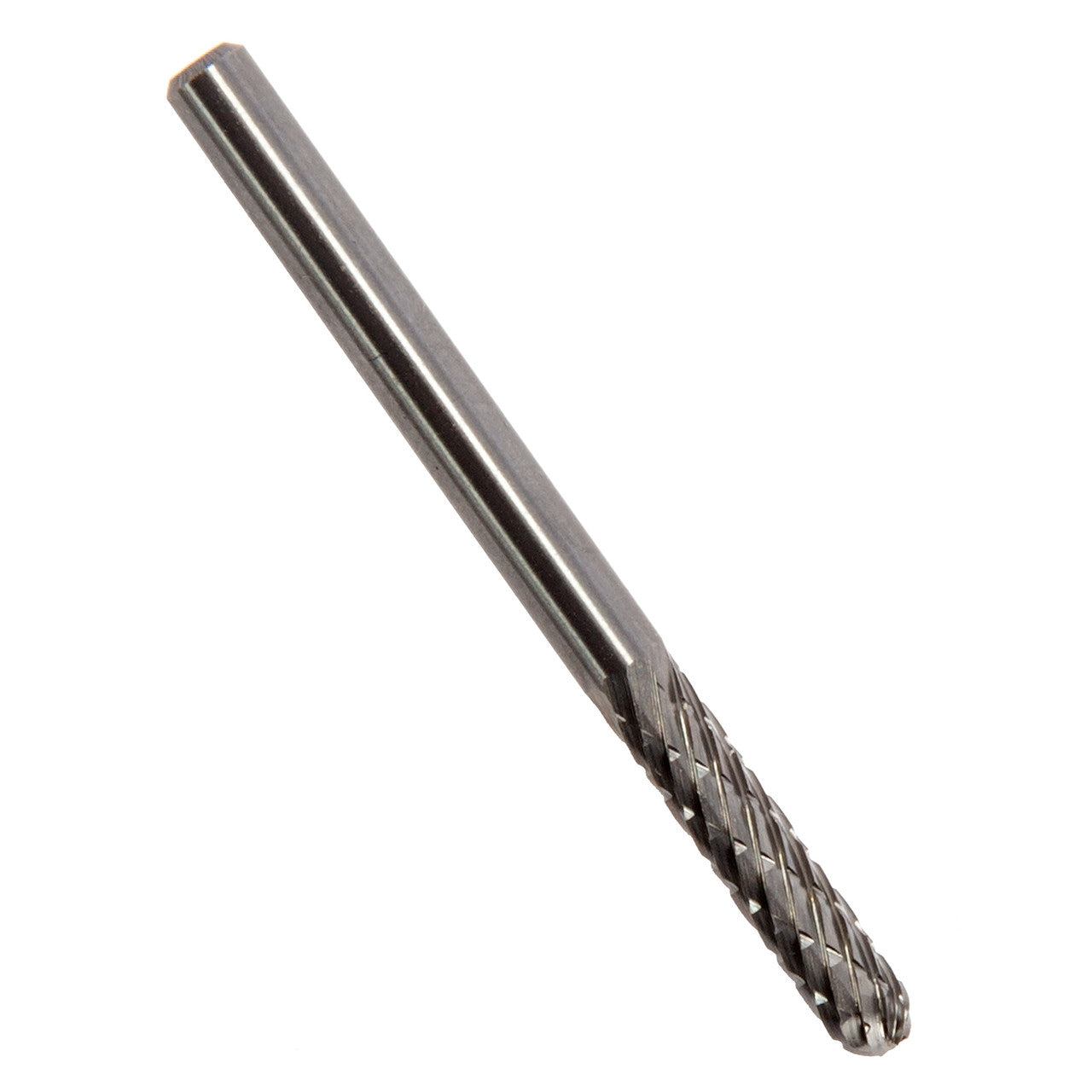

Dormer P805 Rotary Burr - Ball Nosed Cylinder 3.0mm x 3.0mm
Have any questions about this product or placing bulk orders?
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Dormer P805 Rotary Burr - Ball Nosed Cylinder 3.0mm x 3.0mm
This Dormer P805 is a Rotary Burr with ball nose (C shape), diameter 3.0mm with 14mm length of cut, 38mm overall length and 3mm shank. Solid carbide with bright finish, DC double cut flute style with close spaced edges for machining contours and circular arcs in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials.
Features:
- Carbide provides excellent wear resistance and improved tool life
- Double cut design improves ease of control, increases metal removal rate and breaks swarf into manageable pieces
- Skip flute grinding improves cutting action closer to the centre and further reduces chance of swarf congestion
- Carbide shank ground to h6 for improved holding stability (on sizes 6mm and below)
- Toughened and hardened steel shank ground to h7 for rigidity and strength (on sizes above 6mm)
Specification:
- Diameter: 3.0mm
- Shank: 3mm
- Burr length: 14mm
- Overall length: 38mm
