Dormer P805 Rotary Burr - Ball Nosed Cylinder 12.7mm x 6.0mm

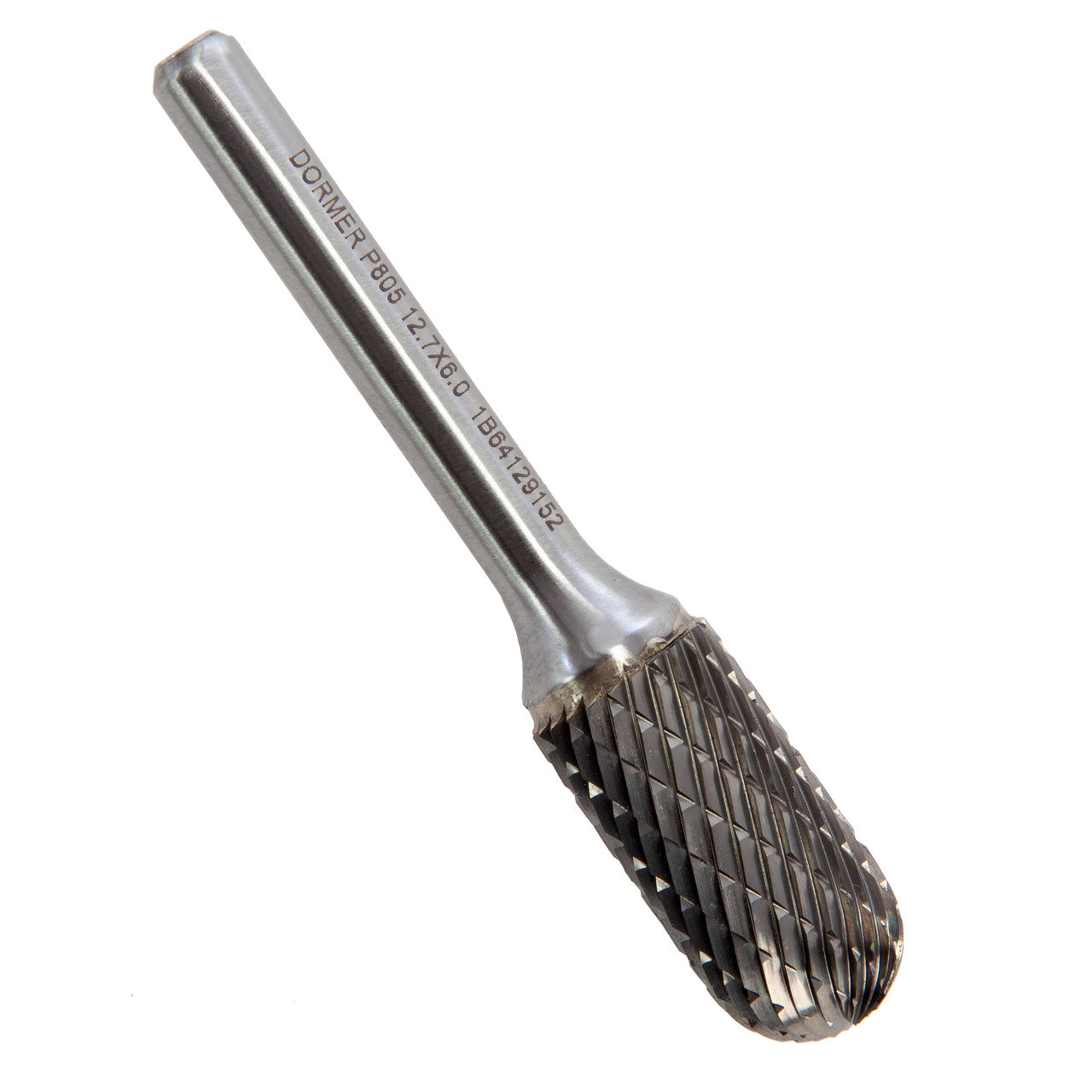

This Dormer P805 is a Rotary Burr with ball nose (C shape), diameter 12.7mm with 25mm length of cut, 70mm overall length and 6mm shank. Carbide tipped with toughened and hardened steel shank and bright finish, DC double cut flute style with close spaced edges for machining contours and circular arcs in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials.
Features:
- Carbide provides excellent wear resistance and improved tool life
- Double cut design improves ease of control, increases metal removal rate and breaks swarf into manageable pieces
- Skip flute grinding improves cutting action closer to the centre and further reduces chance of swarf congestion
- Carbide shank ground to h6 for improved holding stability (on sizes 6mm and below)
- Toughened and hardened steel shank ground to h7 for rigidity and strength (on sizes above 6mm)
Specification:
- Diameter: 12.7mm
- Shank: 6mm
- Burr length: 25mm
- Overall length: 70mm
