Dormer P803C Rotary Burr - Cylinder With End Cut 6.0mm x 6.0mm
Have any questions about this product or placing bulk orders?
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

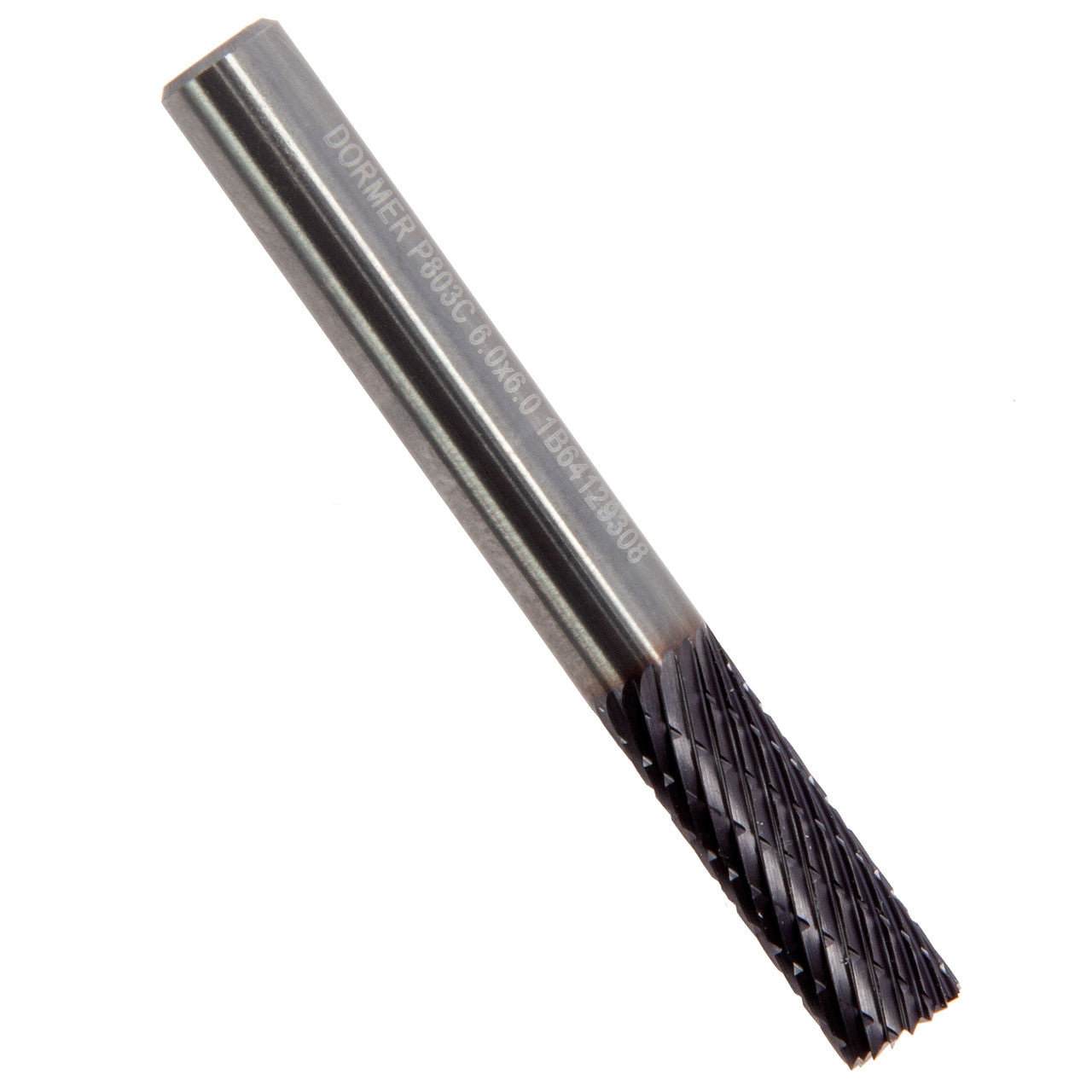

Dormer P803C Rotary Burr - Cylinder With End Cut 6.0mm x 6.0mm
This Dormer P803C is a Rotary Burr with end cut (B shape), diameter 6mm with 18mm length of cut, 50mm overall length and 6mm shank. Solid carbide with TiAlN coating, DC double cut flute style with close spaced edges for machining surfaces and right-angled corners in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials
Features:
- Carbide provides excellent wear resistance and improved tool life
- Double cut design improves ease of control, increases metal removal rate and breaks swarf into manageable pieces
- Carbide shank ground to h6 for improved holding stability (on sizes 6mm and below)
- Toughened and hardened steel shank ground to h7 for rigidity and strength (on sizes above 6mm)
- Special brazing elements provide excellent braze strength, impact resistance and tool life
Specification:
- Diameter: 6.0mm
- Shank: 6mm
- Burr length: 18mm
- Overall length: 50mm
