Dormer P803 Rotary Burr - Cylinder With End Cut 3.0mm x 3.0mm

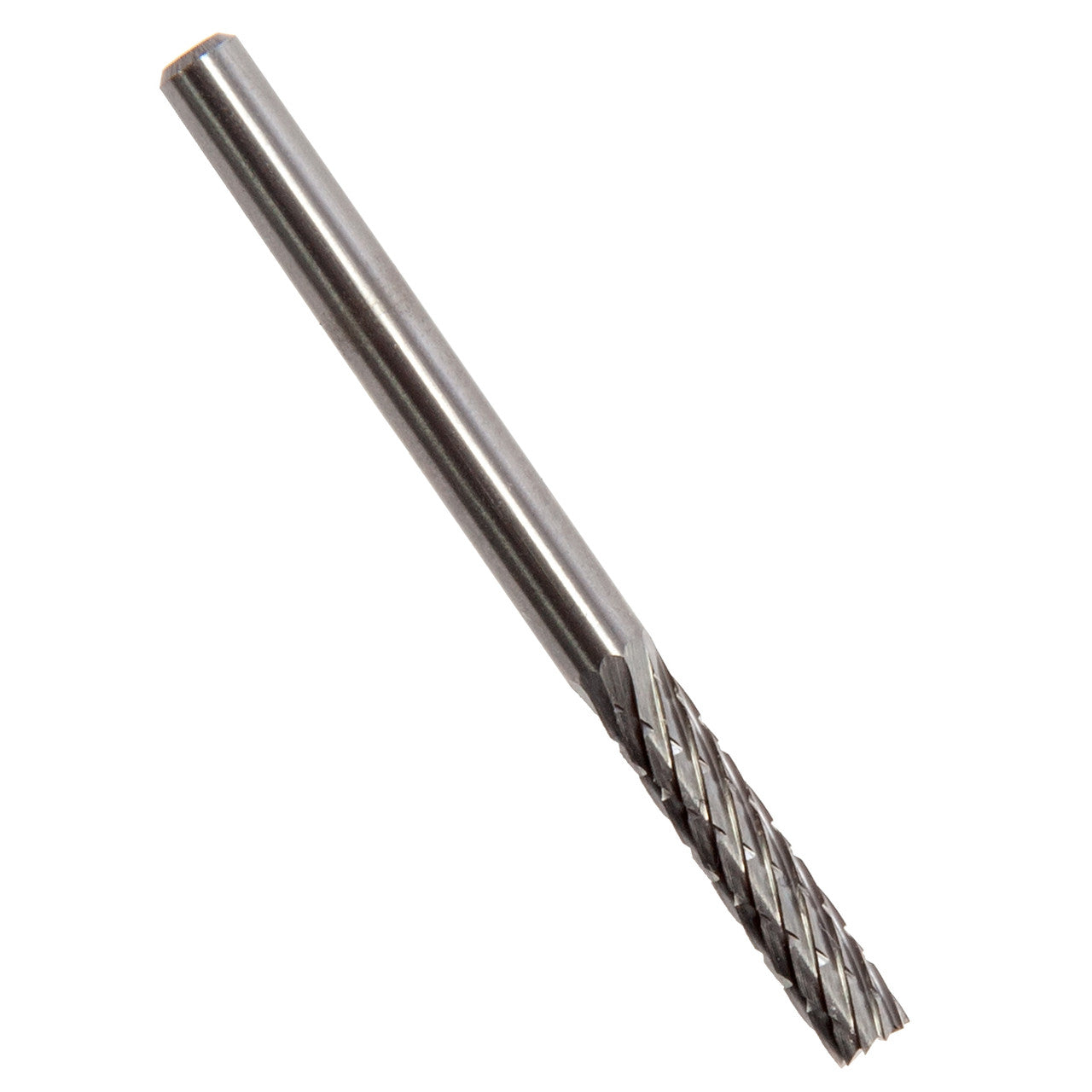

This Dormer P803 is a Rotary Burr with an end cut (B shape), diameter of 3mm with 14mm length of cut, 38mm overall length and 3mm shank. Solid carbide with bright finish, DC double cut flute style with close spaced edges for machining surfaces and right-angled corners in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials.
Features:
- Carbide provides excellent wear resistance and improved tool life
- Double cut design improves ease of control, increases metal removal rate and breaks swarf into manageable pieces
- Carbide shank ground to h6 for improved holding stability (on sizes 6mm and below)
- Toughened and hardened steel shank ground to h7 for rigidity and strength (on sizes above 6mm)
- Special brazing elements provide excellent braze strength, impact resistance and tool life
Specification:
- Diameter: 3.0mm
- Shank: 3mm
- Burr length: 14mm
- Overall length: 38mm
