Dormer A002 HSS TiN Coated Tip Jobber Drill Bits 11.3mm (Box Of 5)
Have any questions about this product or placing bulk orders?
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Dormer A002 HSS TiN Coated Tip Jobber Drill Bits 11.3mm (Box Of 5)

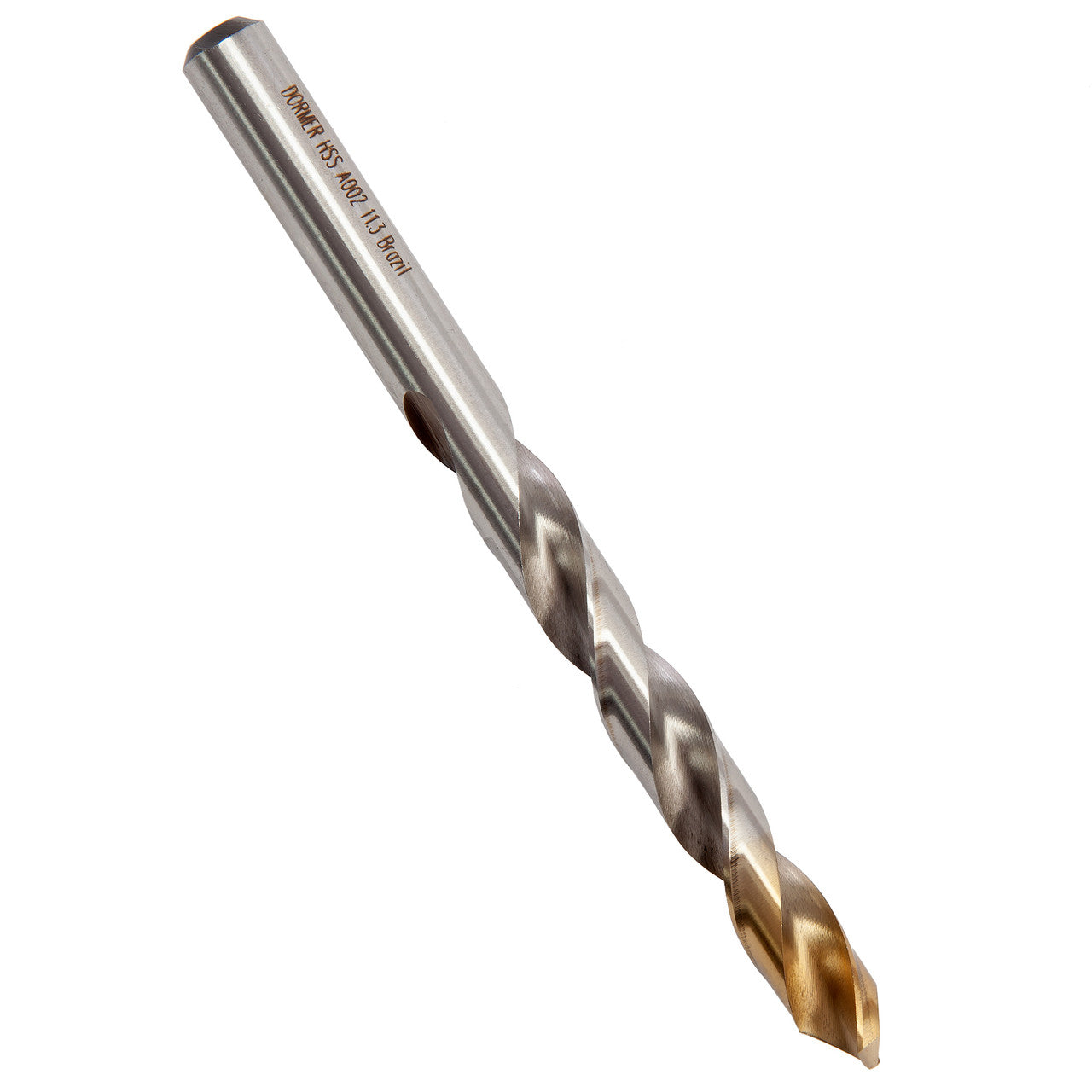

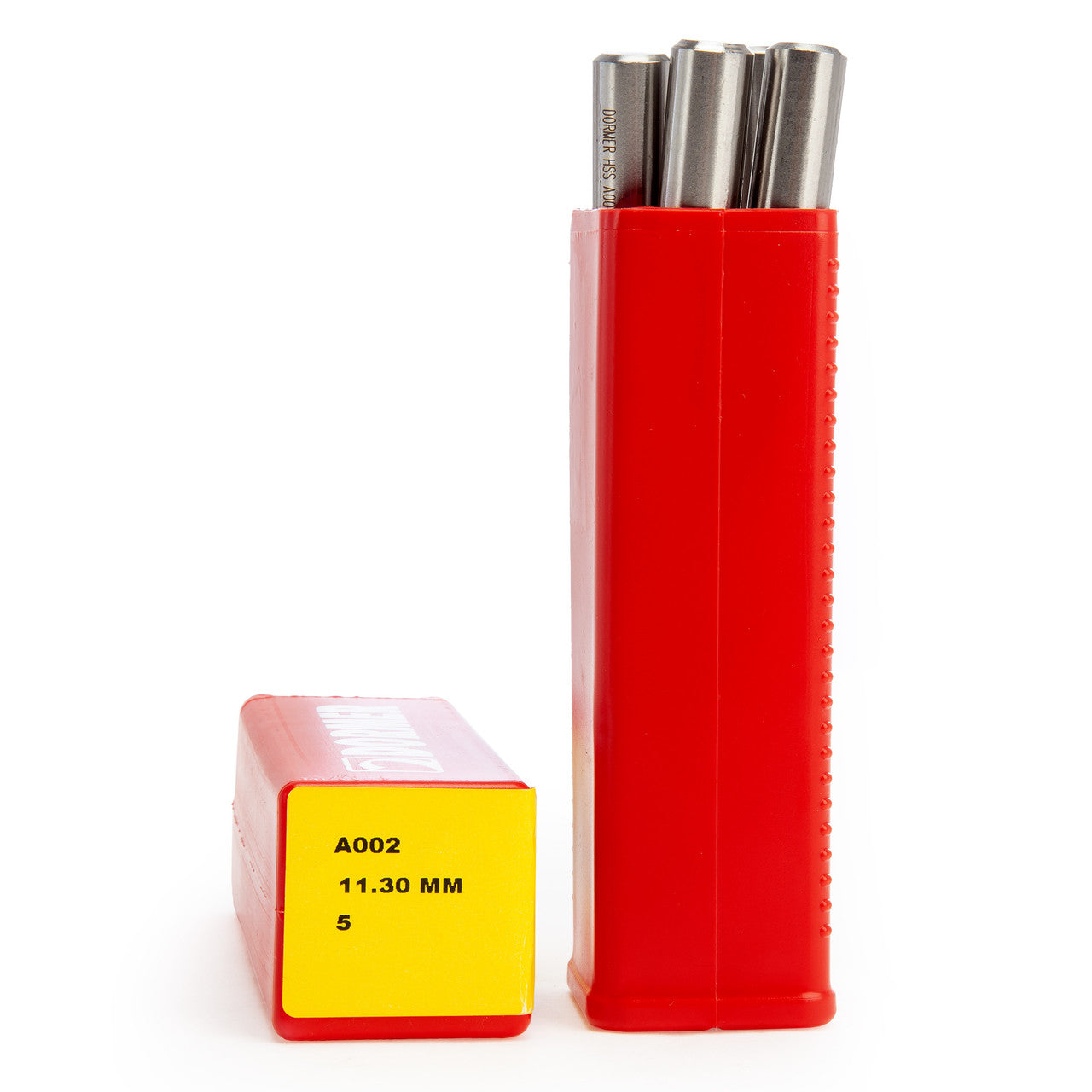

The Dormer A00211.3-5 is a Box of 5 Jobber length drills with straight shanks. They have a diameter of 11.3mm with an overall length of 142mm and flute length of 94mm according to DIN 338 standard with 118° conical point, HSS with TiN-tip coating for 4xD drilling without pecking in steel. Can be used for drilling many materials including steel, aluminium and stainless steel.
Features:
- Bright and TiN (Tip Coating)
- High Speed Steel Tool Material
- DIN 338 – Straight Shank Drill Standards
- 4×D Usable Tool Depth to Diameter Ratio
- Drill Point 118°
- Cylindrical Shank / Straight Shank
- Standard Spiral Flute Design
- Right Hand Rotation / Cutting
- h8 – Industry Standard Tool Tolerance Zone (based on diameter range)
Specification:
- Gross weight: 80.9 grams
- Cutting diameter - (DC): 11.3 mm
- Cutting diameter - (DC): 0.4449 inch
- Length chip flute - (LCF): 94 mm
- Overall length - (OAL): 142 mm
- Connection diameter - (DCON MS): 11.3 mm
- Length chip flute - (LCF): 3.7008 inch
