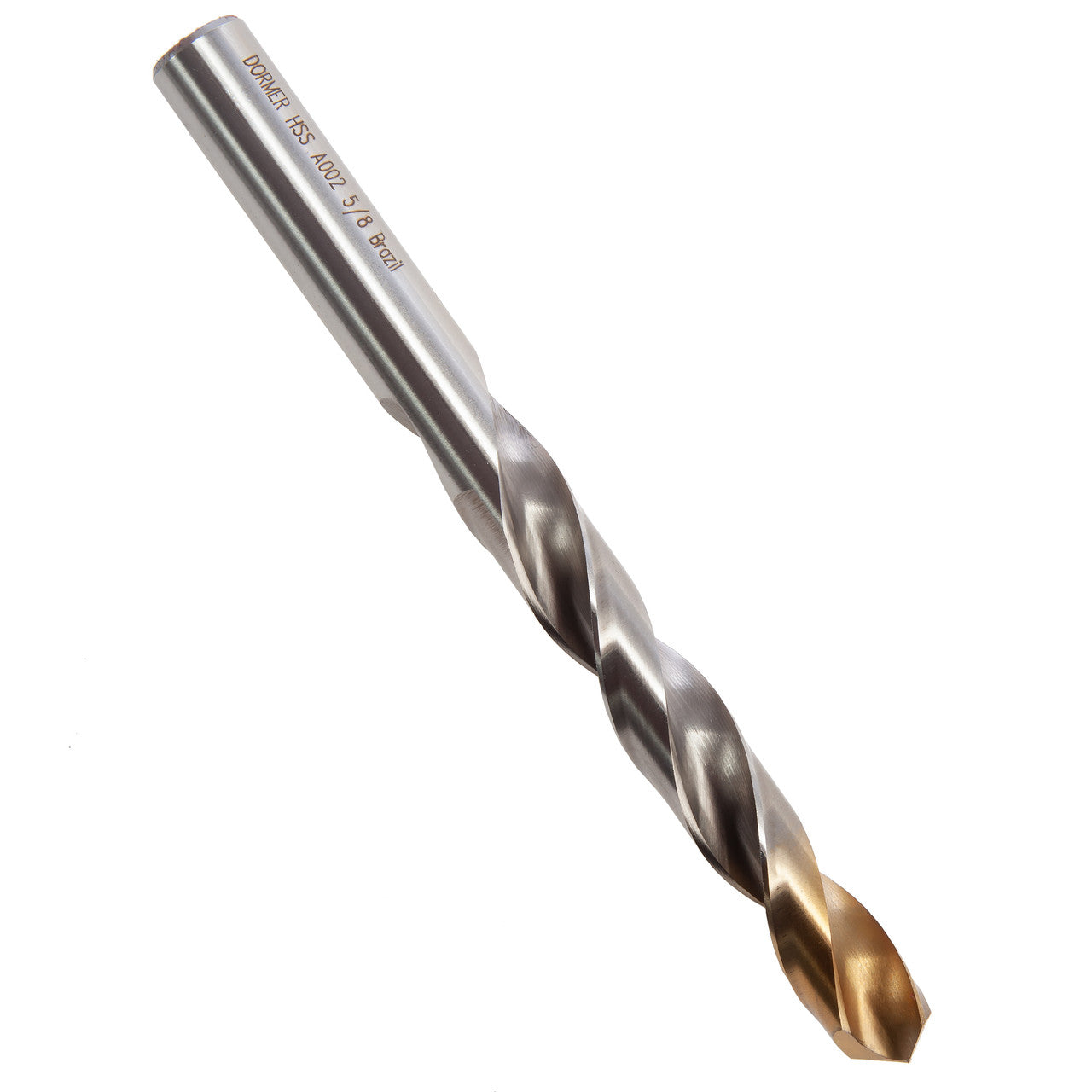

Dormer A002 HSS TiN Coated Tip Jobber Drill Bit 5/8in
The Dormer A0025/8 is a single Jobber length drill with a straight shank. It has a diameter of 5/8in with an overall length of 178mm and flute length of 120mm according to DIN 338 standard with 118° conical point, HSS with TiN-tip coating for 4xD drilling without pecking in steel. Can be used for drilling many materials including steel, aluminium and stainless steel.
Features:
- Bright and TiN (Tip Coating)
- High Speed Steel Tool Material
- DIN 338 – Straight Shank Drill Standards
- 4×D Usable Tool Depth to Diameter Ratio
- Drill Point 118°
- Cylindrical Shank / Straight Shank
- Standard Spiral Flute Design
- Right Hand Rotation / Cutting
- h8 – Industry Standard Tool Tolerance Zone (based on diameter range)
Specification:
- DIN338
- Overall Length: 178mm
- Cutting Length: 120mm
- Head Diameter: 5/8 in
