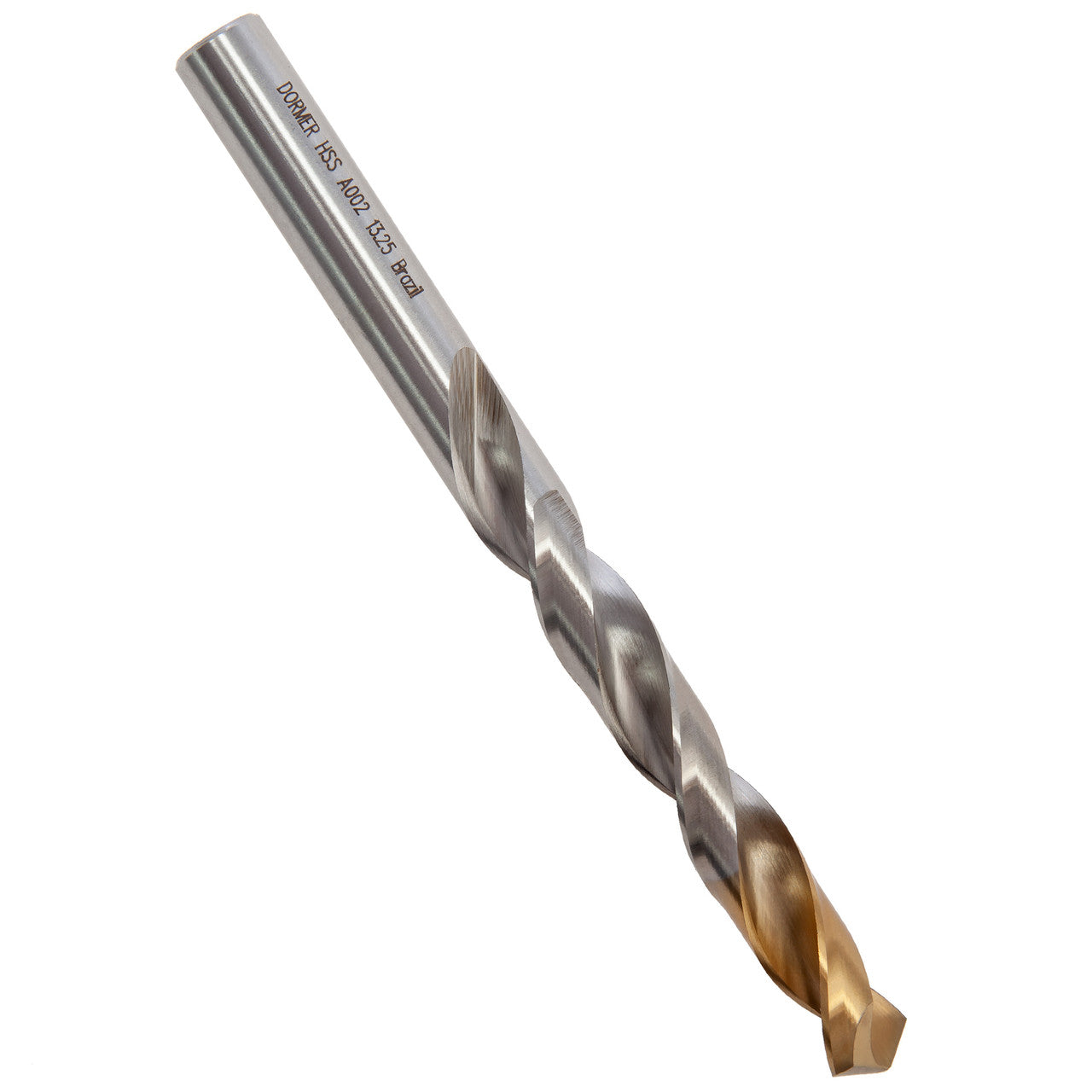

Dormer A002 HSS TiN Coated Tip Jobber Drill Bit 13.25mm
Have any questions about this product or placing bulk orders?
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Dormer A002 HSS TiN Coated Tip Jobber Drill Bit 13.25mm
The Dormer A00213.25 is a single Jobber length drill with a straight shank. It has a diameter of 13.25mm with an overall length of 160mm and flute length of 108mm according to DIN 338 standard with 118° conical point, HSS with TiN-tip coating for 4xD drilling without pecking in steel. Can be used for drilling many materials including steel, aluminium and stainless steel.
Features:
- Bright and TiN (Tip Coating)
- High Speed Steel Tool Material
- DIN 338 – Straight Shank Drill Standards
- 4×D Usable Tool Depth to Diameter Ratio
- Drill Point 118°
- Cylindrical Shank / Straight Shank
- Standard Spiral Flute Design
- Right Hand Rotation / Cutting
- h8 – Industry Standard Tool Tolerance Zone (based on diameter range)
Specification:
- Gross weight: 111 grams
- Cutting diameter - (DC): 13.25 mm
- Cutting diameter - (DC): 0.5217 inch
- Length chip flute - (LCF): 108 mm
- Overall length - (OAL): 160 mm
- Connection diameter - (DCON MS): 13.25 mm
- Length chip flute - (LCF): 4.252 inch
