Dormer A002 HSS TiN Coated Tip Jobber Drill Bit 13.1mm

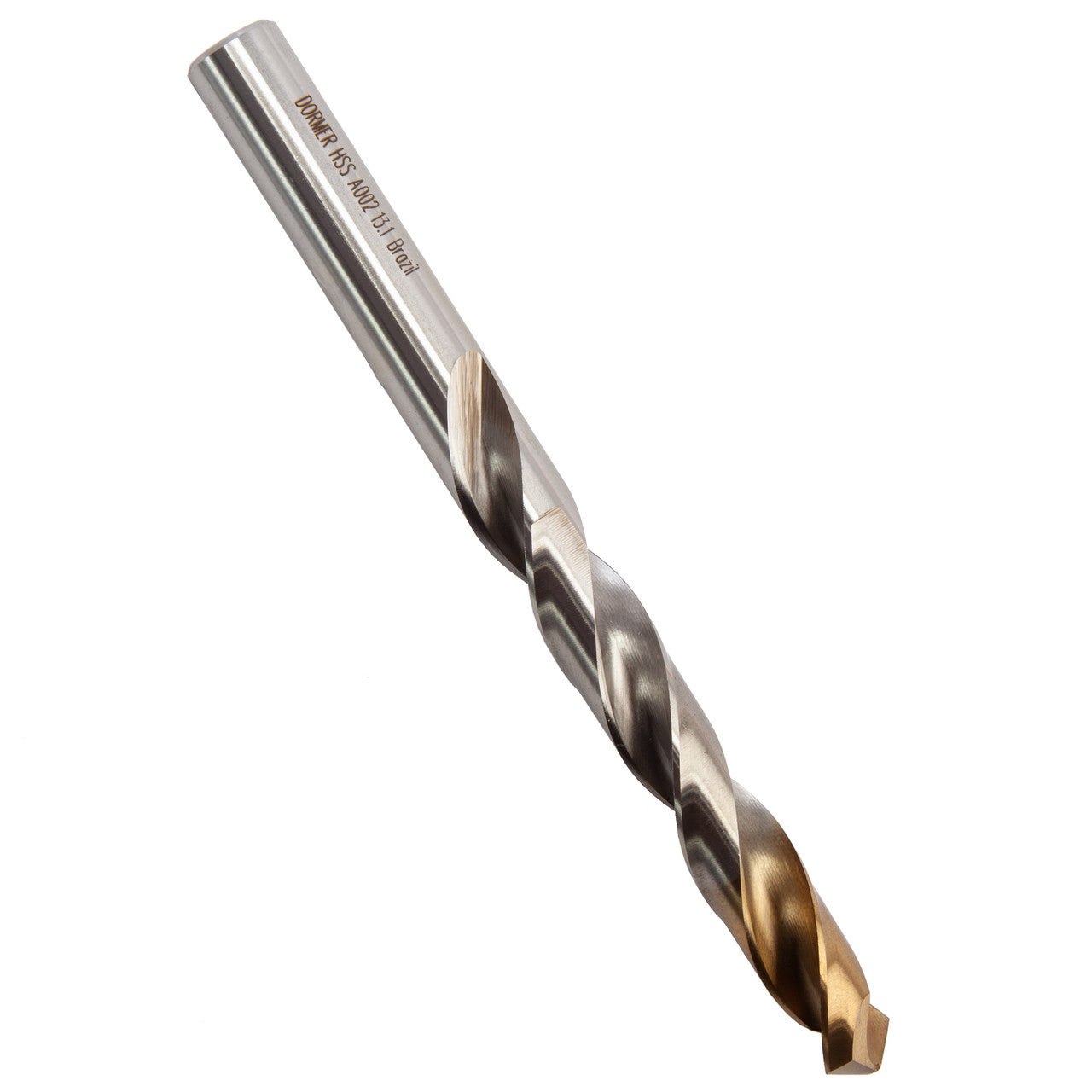

The Dormer A00213.1 is a single Jobber length drill with a straight shank. It has a diameter of 13.1mm with an overall length of 151mm and flute length of 101mm according to DIN 338 standard with 118° conical point, HSS with TiN-tip coating for 4xD drilling without pecking in steel. Can be used for drilling many materials including steel, aluminium and stainless steel.
Features:
- Bright and TiN (Tip Coating)
- High Speed Steel Tool Material
- DIN 338 – Straight Shank Drill Standards
- 4×D Usable Tool Depth to Diameter Ratio
- Drill Point 118°
- Cylindrical Shank / Straight Shank
- Standard Spiral Flute Design
- Right Hand Rotation / Cutting
- h8 – Industry Standard Tool Tolerance Zone (based on diameter range)
Specification:
- Gross weight: 118 grams
- Cutting diameter - (DC): 13.1 mm
- Cutting diameter - (DC): 0.5157 inch
- Length chip flute - (LCF): 101 mm
- Overall length - (OAL): 151 mm
- Connection diameter - (DCON MS): 13.1 mm
- Length chip flute - (LCF): 3.9764 inch
