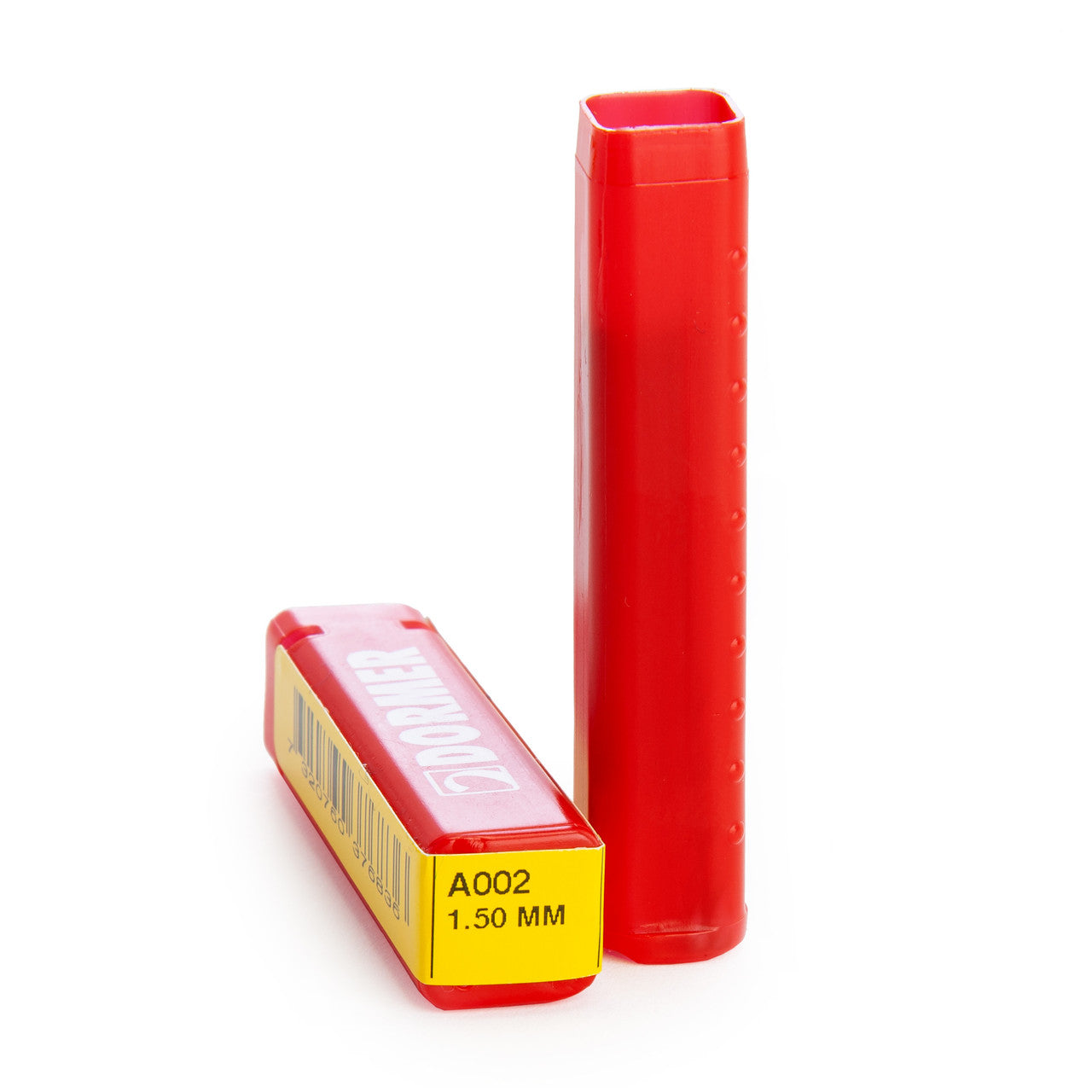

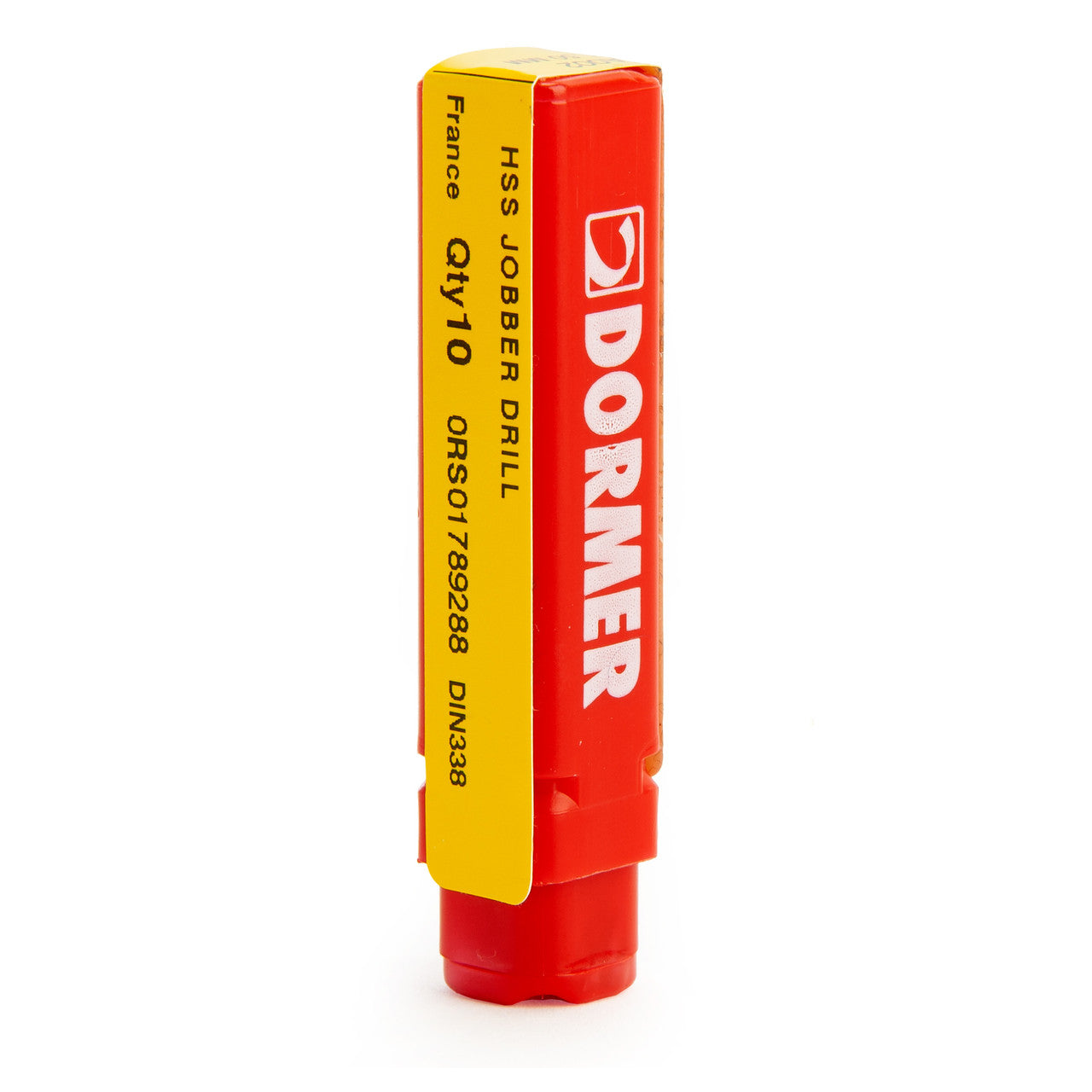

Dormer A002 HSS Jobber Drill Bits 1.5mm (Box Of 10)

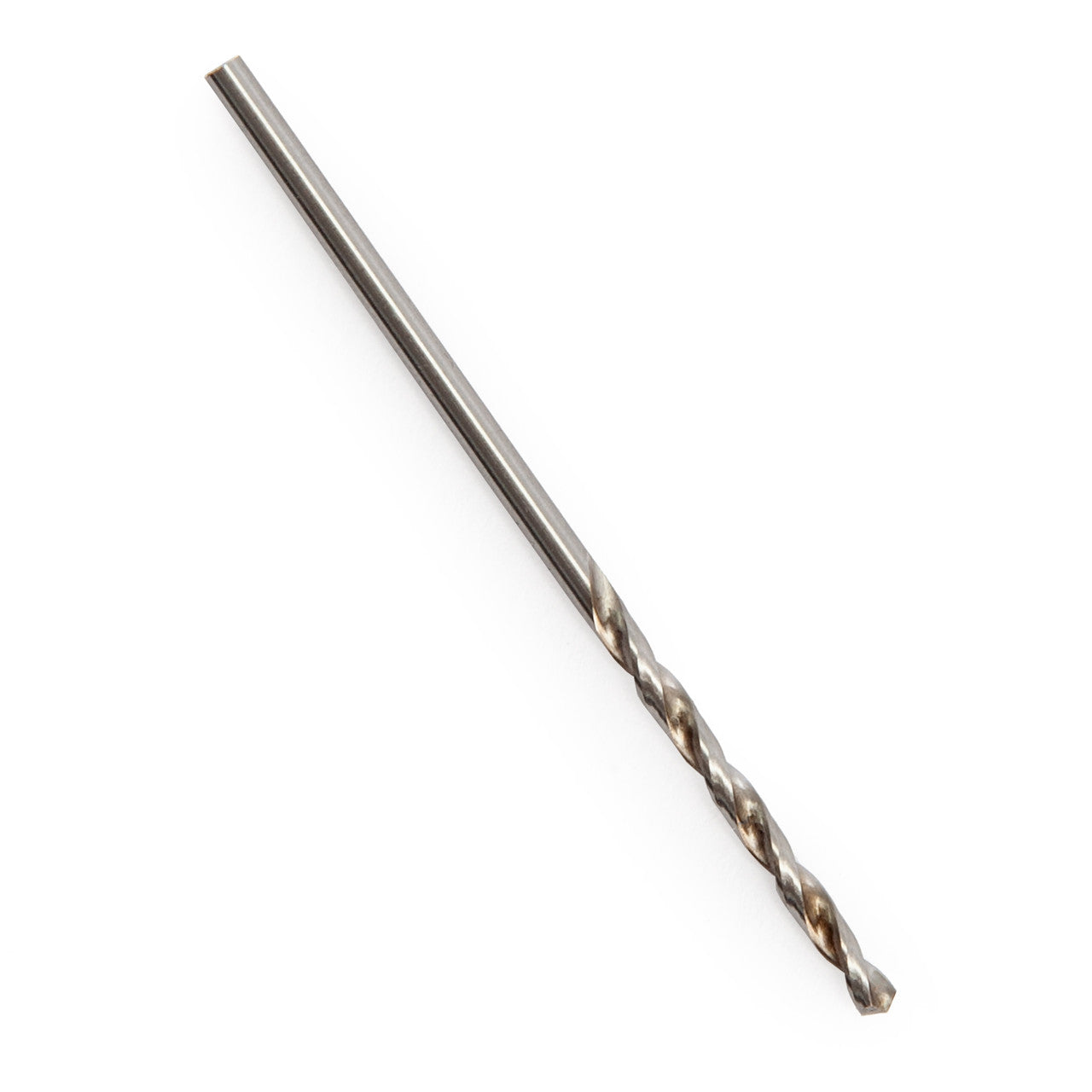

The Dormer A0021.5-10 is a Box of 10 Jobber length drills with straight shank. Diameter 1.5mm with an overall length of 40mm and flute length of 18mm according to DIN 338 standard with 118° conical point, HSS with bright finish for 4xD drilling without pecking in steel.
Features:
- Bright (uncoated)
- High Speed Steel Tool Material
- DIN 338 – Straight Shank Drill Standards
- 4×D Usable Tool Depth to Diameter Ratio
- Drill Point 118°
- Cylindrical Shank / Straight Shank
- Standard Spiral Flute Design
- Right Hand Rotation / Cutting
- h8 – Industry Standard Tool Tolerance Zone (based on diameter range)
Specification:
Gross weight: 0.4grams
Cutting diameter - millimeter (DC): 1.5 mm
Cutting diameter - inch (DC): 0.0591 inch
Length chip flute (LCF): 18 mm
Overall length: 40 mm
Connection diameter (DCON MS); 1.5 mm
Length chip flute (LCF): 0.7087 inch
