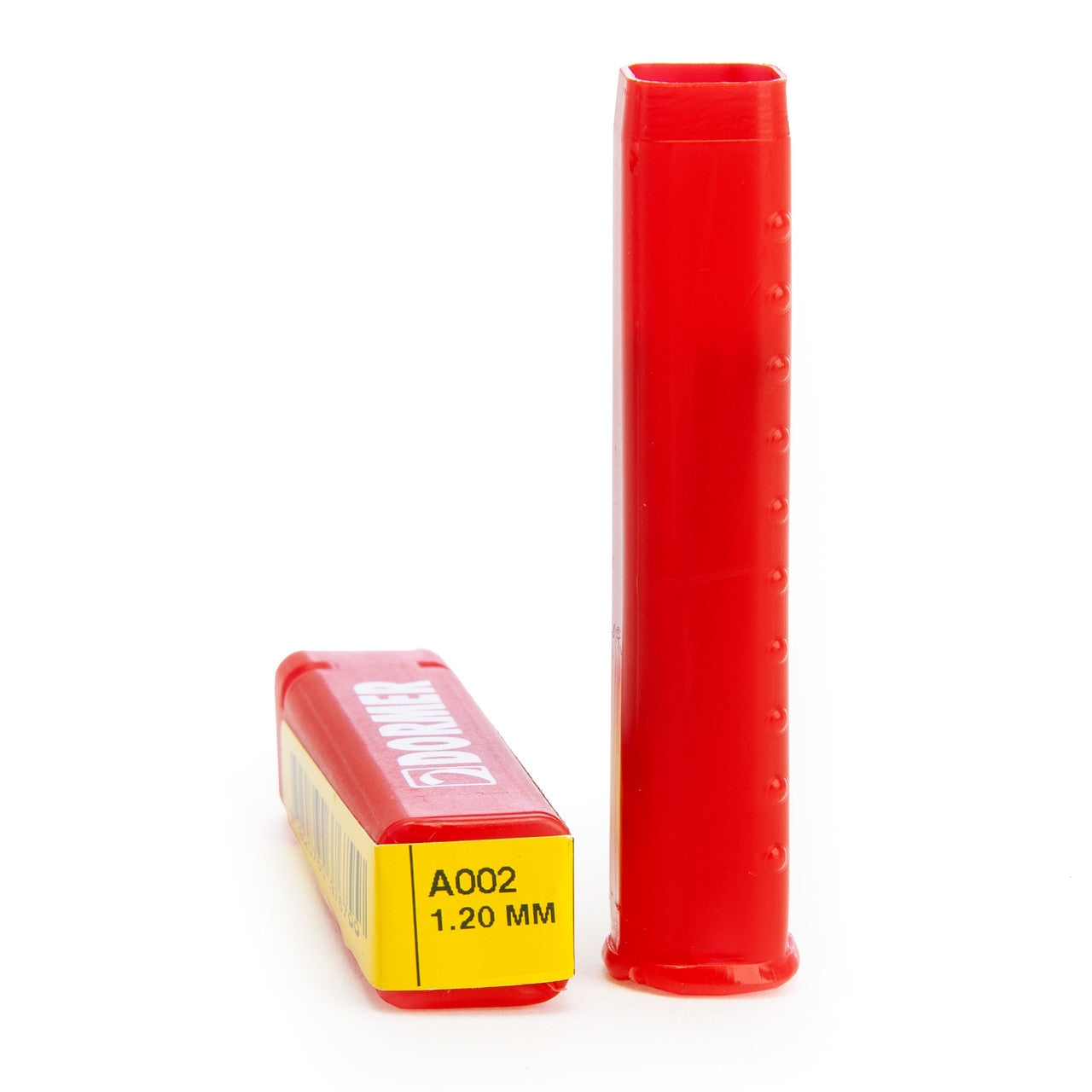

Dormer A002 HSS Jobber Drill Bits 1.2mm (Box Of 10)

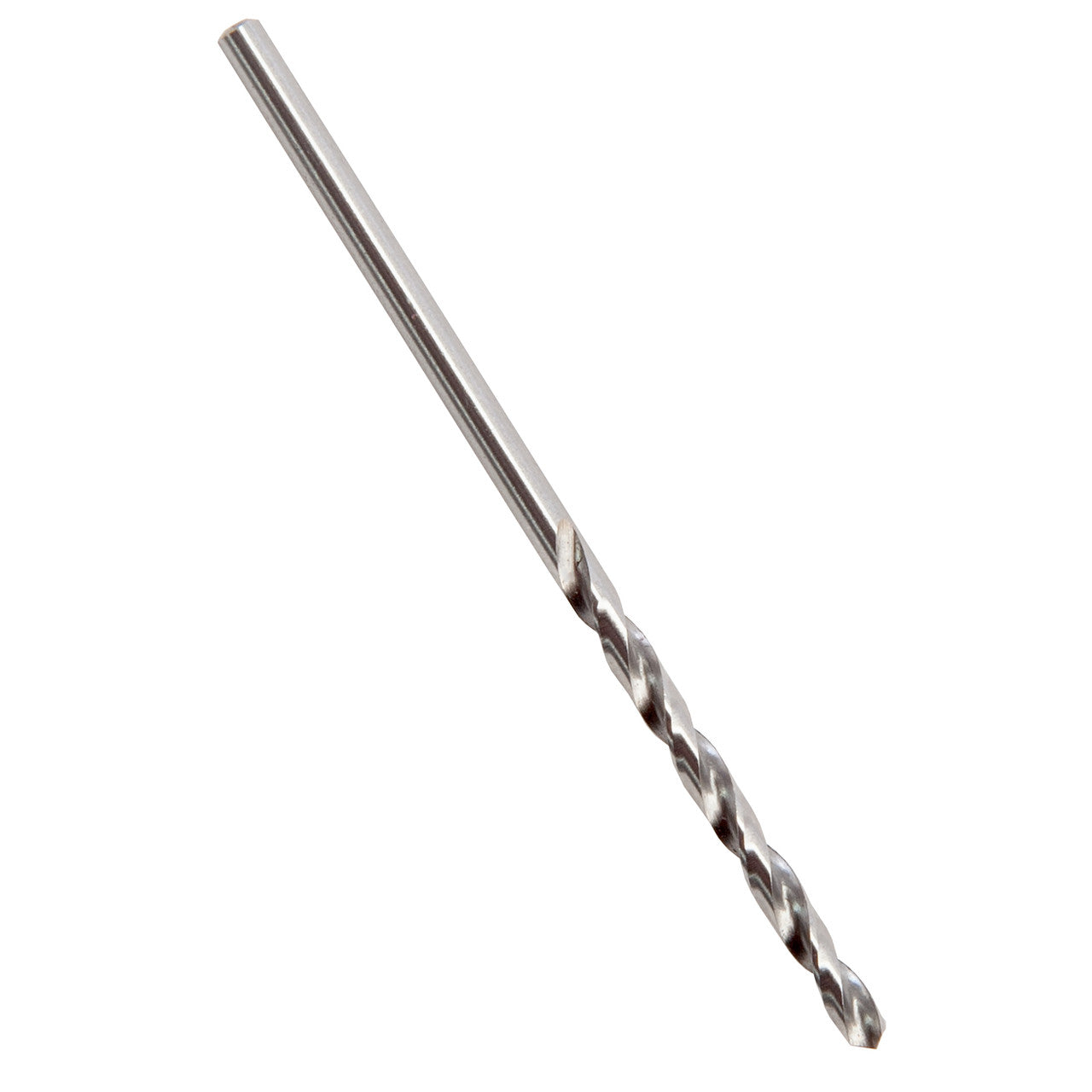

The Dormer A0021.2-10 is a Box of 10 Jobber length drills with straight shanks. They have a diameter of 1.2mm with an overall length of 38mm and flute length of 16mm according to DIN 338 standard with 118° conical point, HSS with bright finish for 4xD drilling without pecking in steel.
Features:
- Bright (uncoated)
- High Speed Steel Tool Material
- DIN 338 – Straight Shank Drill Standards
- 4×D Usable Tool Depth to Diameter Ratio
- Drill Point 118°
- Cylindrical Shank / Straight Shank
- Standard Spiral Flute Design
- Right Hand Rotation / Cutting
- h8 – Industry Standard Tool Tolerance Zone (based on diameter range)
Specification:
- Gross weight: 0.41grams
- Cutting diameter - millimeter (DC):1.2 mm
- Cutting diameter - inch (DC): 0.0472 inch
- Length chip flute (LCF): 16 mm
- Overall length: 38 mm
- Connection diameter (DCON MS); 1.2 mm
- Length chip flute (LCF): 0.6299 inch
