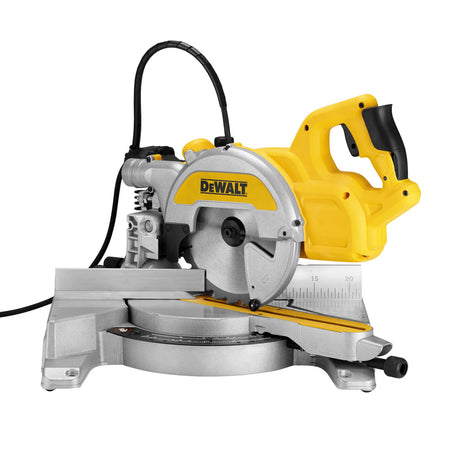

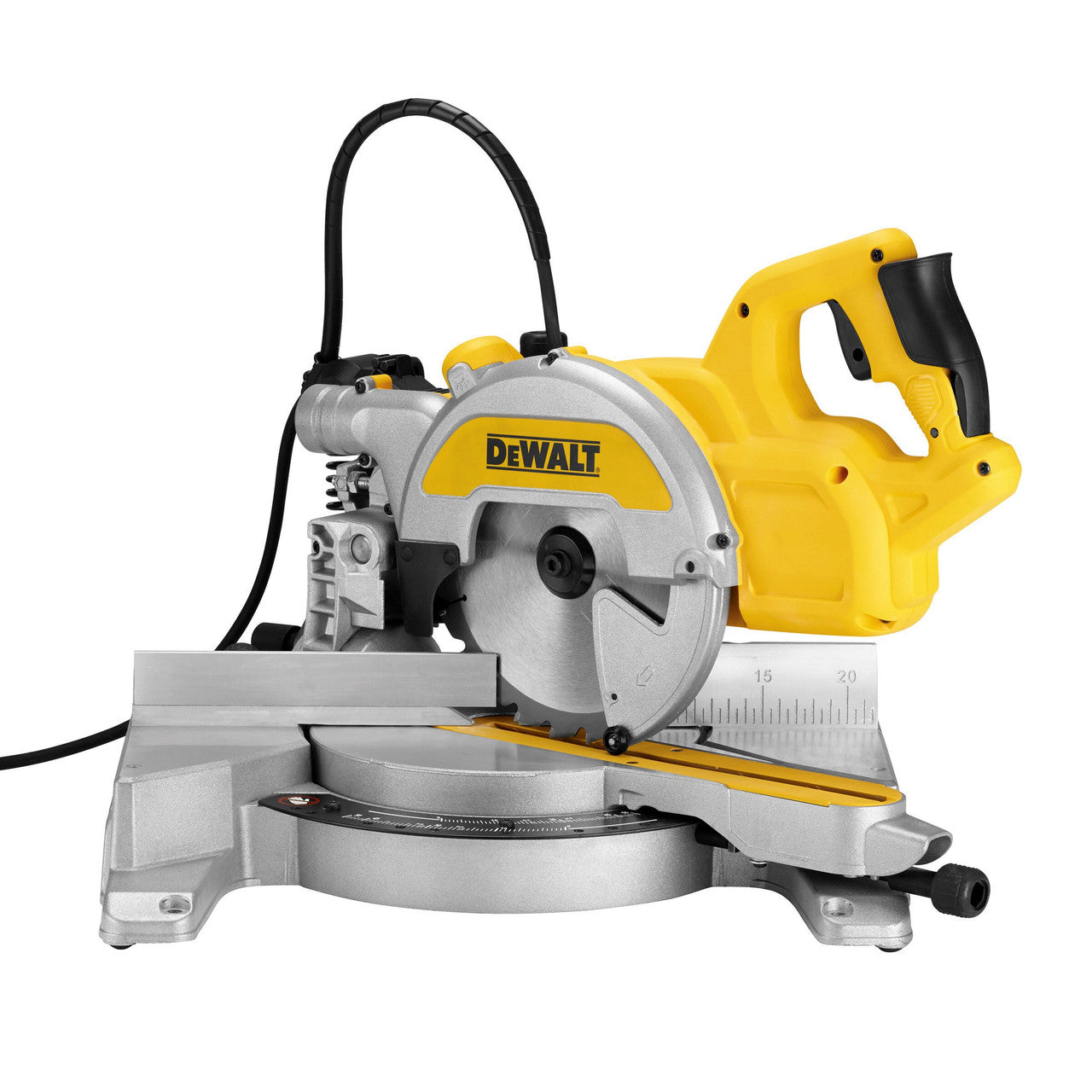

Dewalt DWS777 Mitre Saw with XPS 216mm (240V)

Dewalt DWS777 Mitre Saw with XPS 216mm

The classic saw design improved and updated for the modern user. Made in both 240V and 110V versions with a new 1800 Watt motor for powerful cutting in all materials in the 240V and 1600 Watt motor in the 110V. XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required.

Features:

• New Single Point Dust Extraction Airlock compatible
• The base and fence have been machined to meet the accuracy requirements of the most demanding applications
• Head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
• Integrated positive mitre stops at 15¬∞, 22.5¬∞, 30¬∞, 45¬∞, quick release mitre mechanism up to 50¬∞
• Sliding left hand fence with measuring scale for improved material support and management
• Compact internal rail design for huge cutting capacity in a highly transportable format

Comes With:

• TCT tooth saw blade
• Blade Allen Keys
• Material Clamp

Specification:

• Power Input: 1800 Watts 240V version
• Power Input: 1600 Watts 110V version
• Power Output: 1100 Watt
• Blade Speed: 6300 rpm
• Blade Diameter: 216 mm
• Blade Bore: 30 mm
• Bevel Capacity: 48°
• Mitre Capacity: [right/left] 50/50°
• Cutting Capacity: at 90°/45° (W x H) 173 x 62 mm
• Cutting Capacity: at 90°/90° (W x H) 270 x 62 mm
• Cutting Capacity: at 90°/90° (W x H) 270 x 60 mm
• Cutting Capacity: at 45°/90° (W x H) 189 x 62 mm
• Cutting Capacity: at 45°/90° (W x H) 190 x 60 mm
• Cutting Capacity: at 90°/45° (W x H) 270 x 48 mm
• Max. Cutting Capacity: at 45°/45° 190x48 mm
• Max. Depth of Cut: [Saws] 80 mm
• Depth: 550 mm
• Length: 490 mm
• Height: 590 mm
• Hand/Arm Vibration - Cutting Wood: 2.1 m/s_
• Uncertainty K 1 (Vibration): 1.5 m/s_
• Sound Power: 104 dB(A)
• Sound Power Uncertainty: 3.9 dB(A)
• Sound Pressure: 93 dB(A)
• Sound Pressure Uncertainty: 3 dB(A)
• Weight: 14.0 kg
