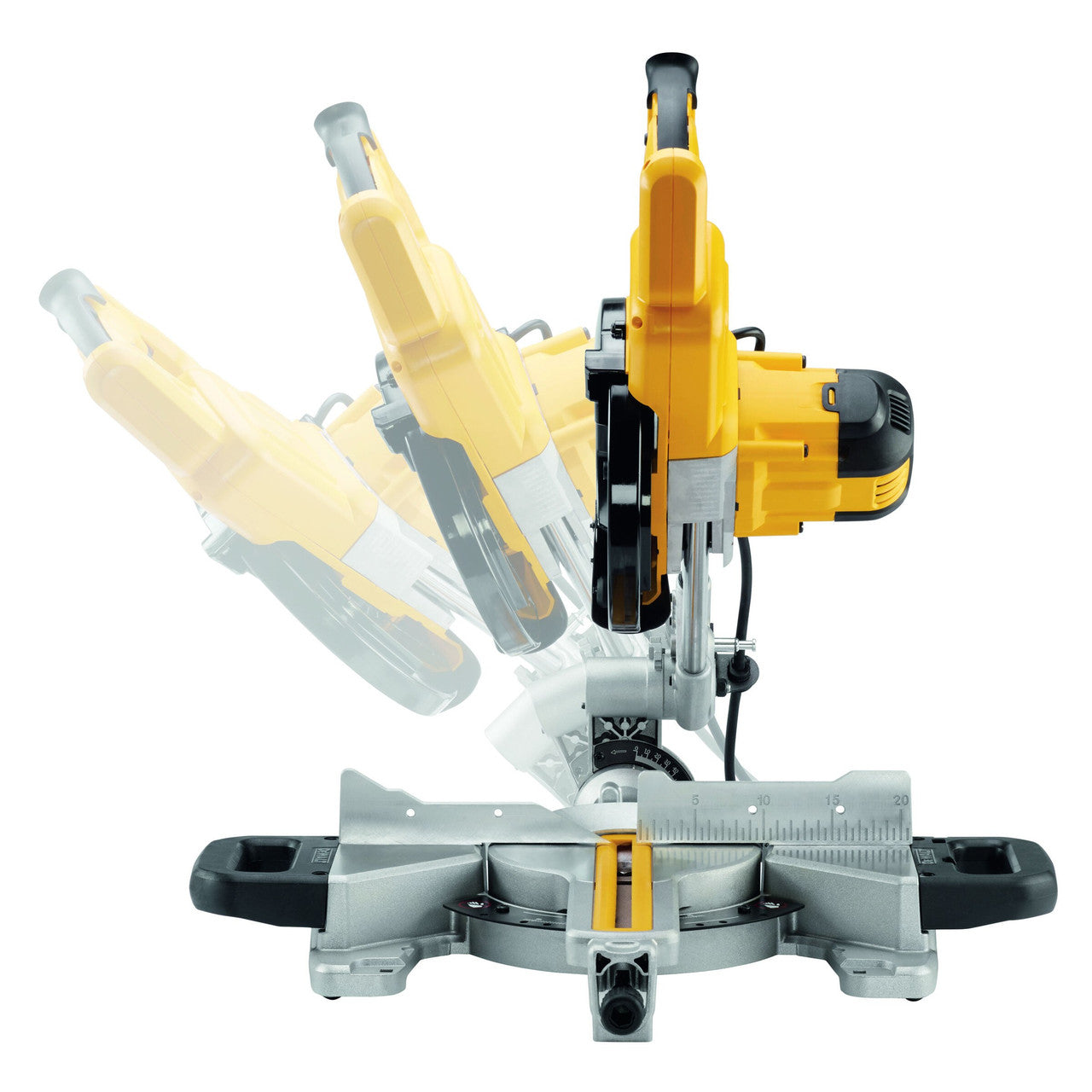

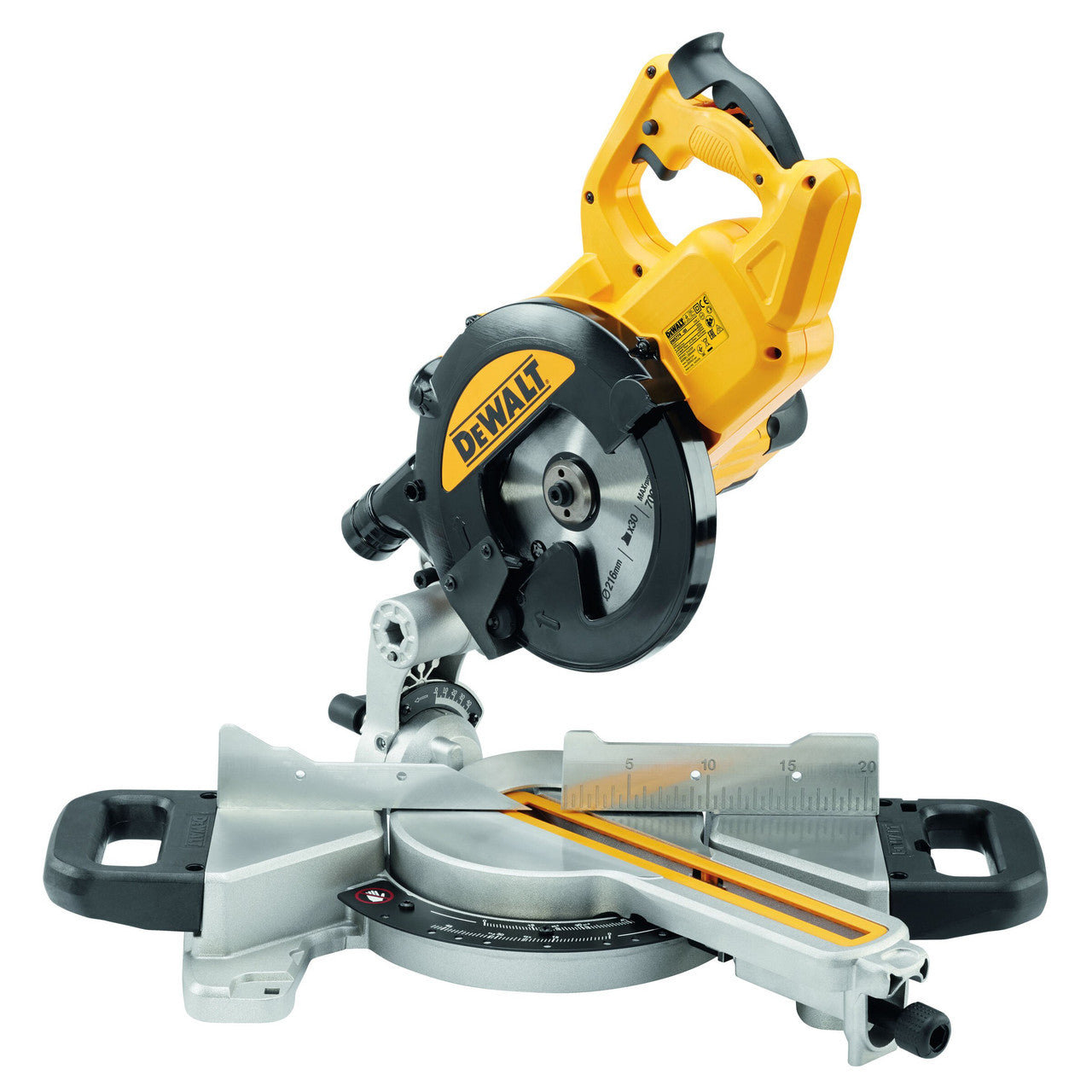

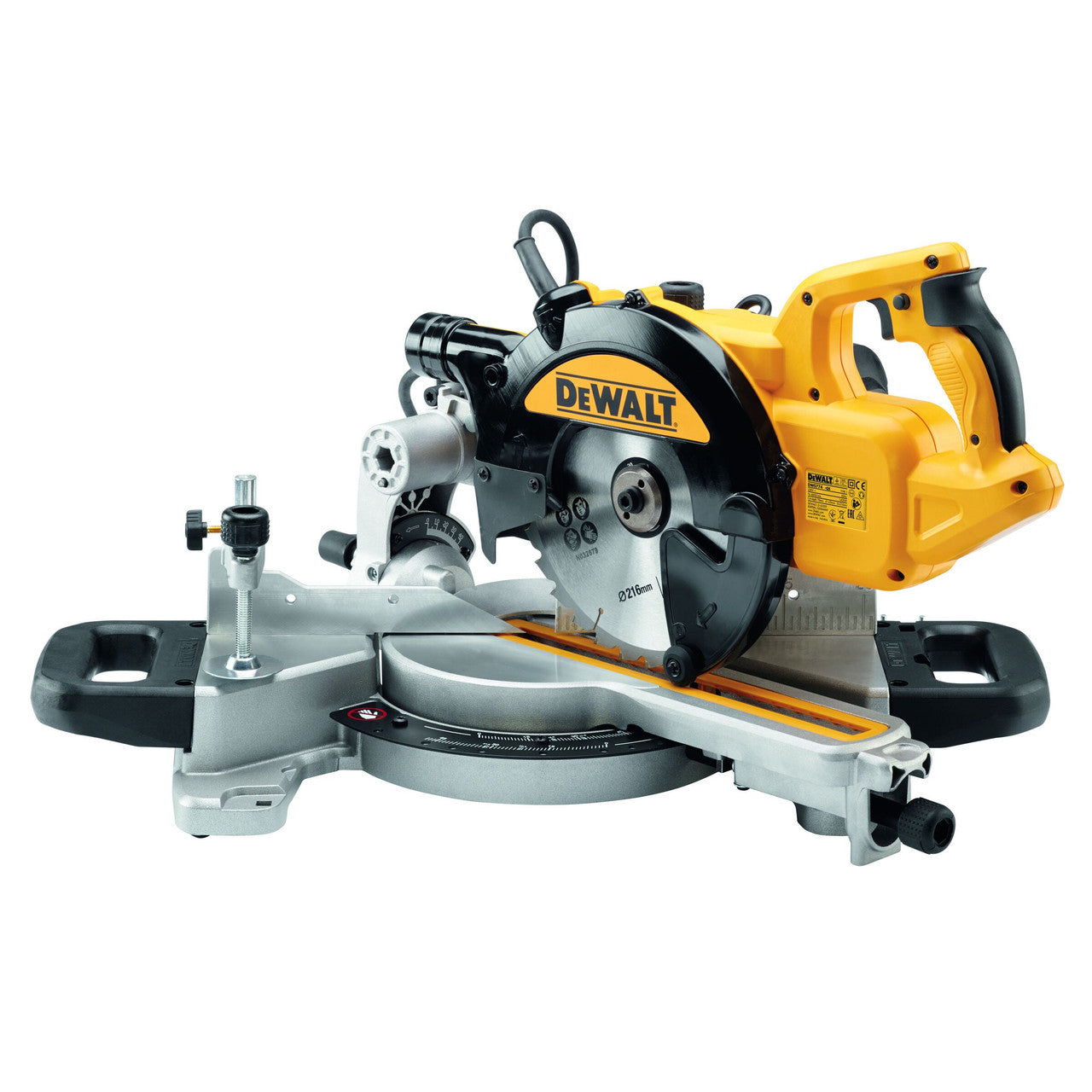

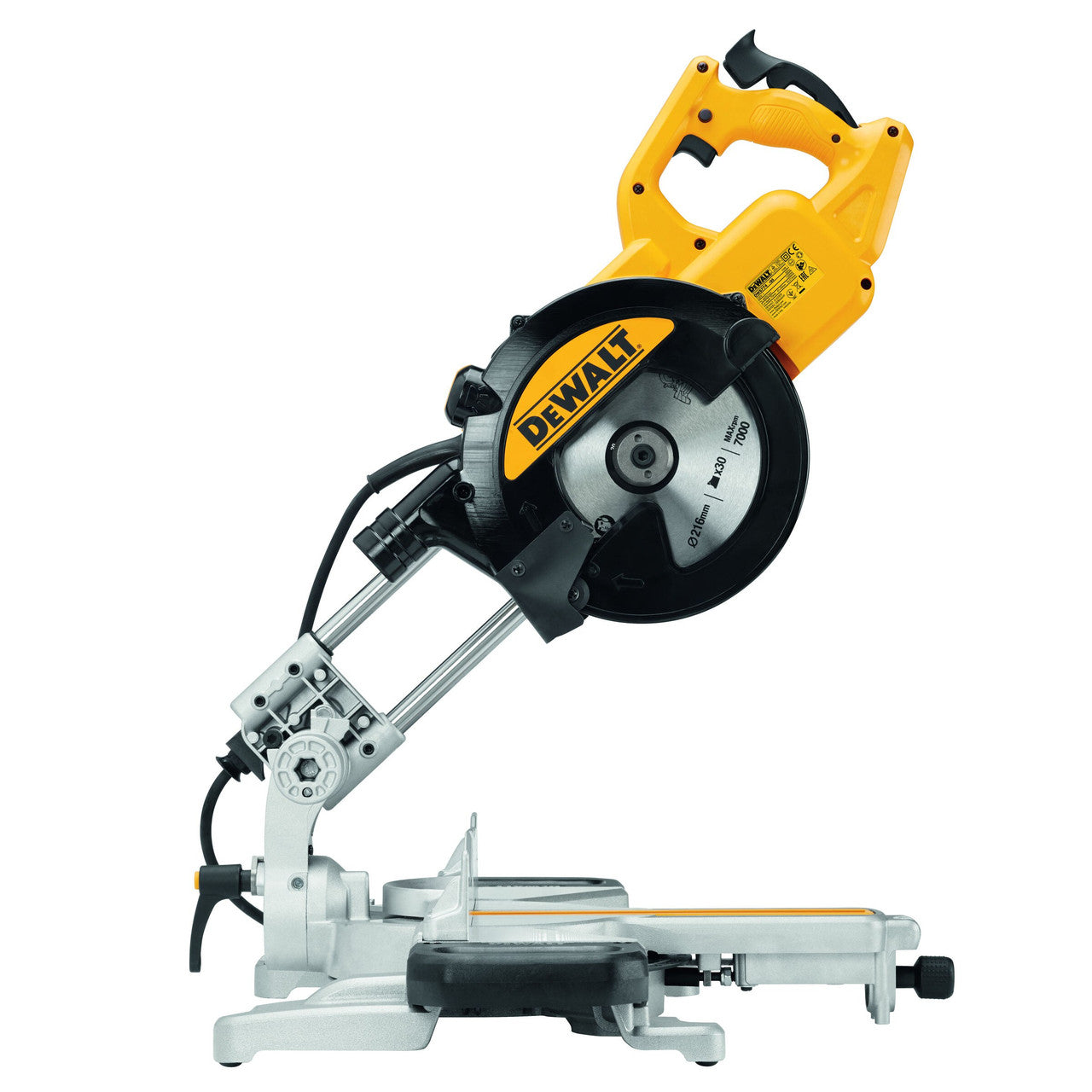

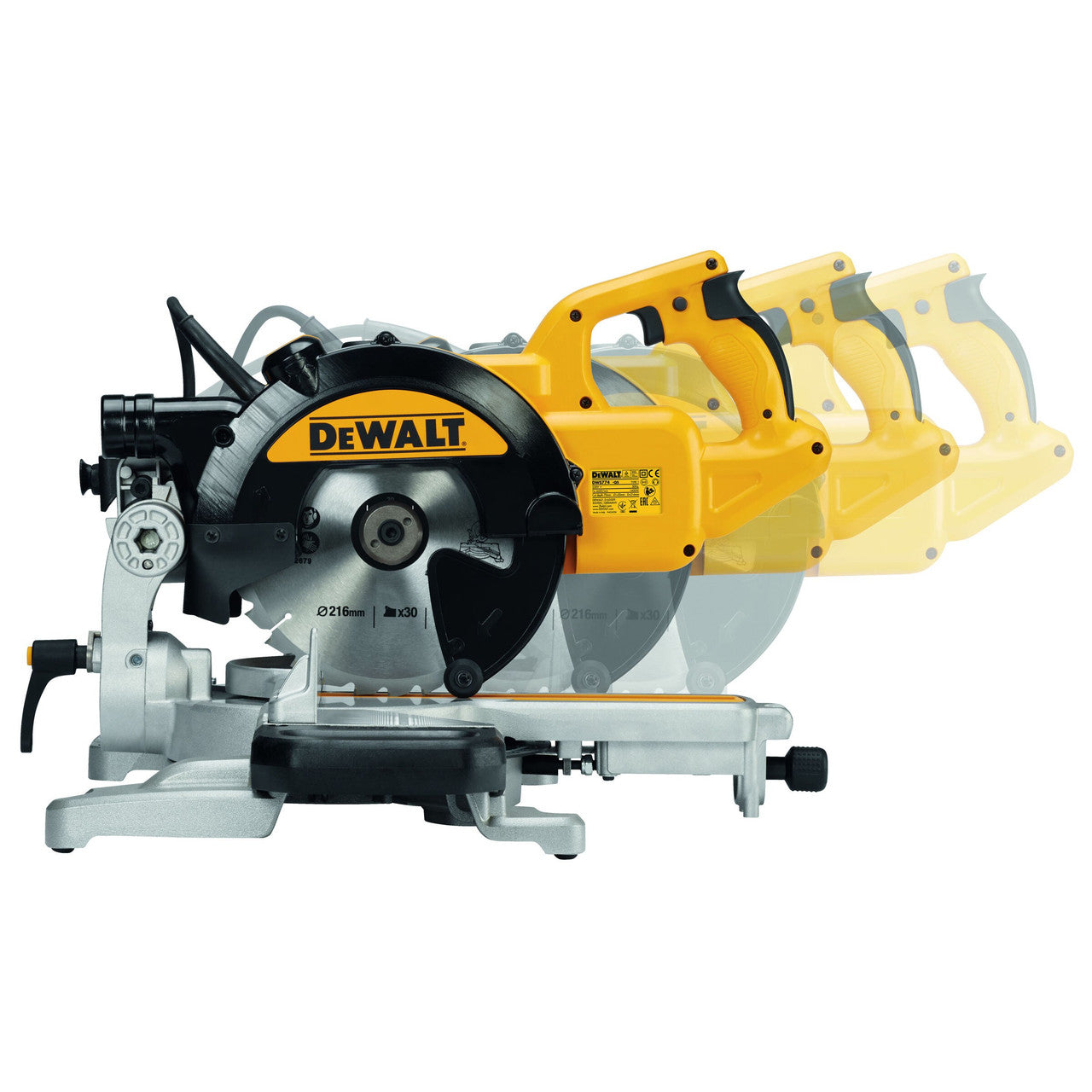

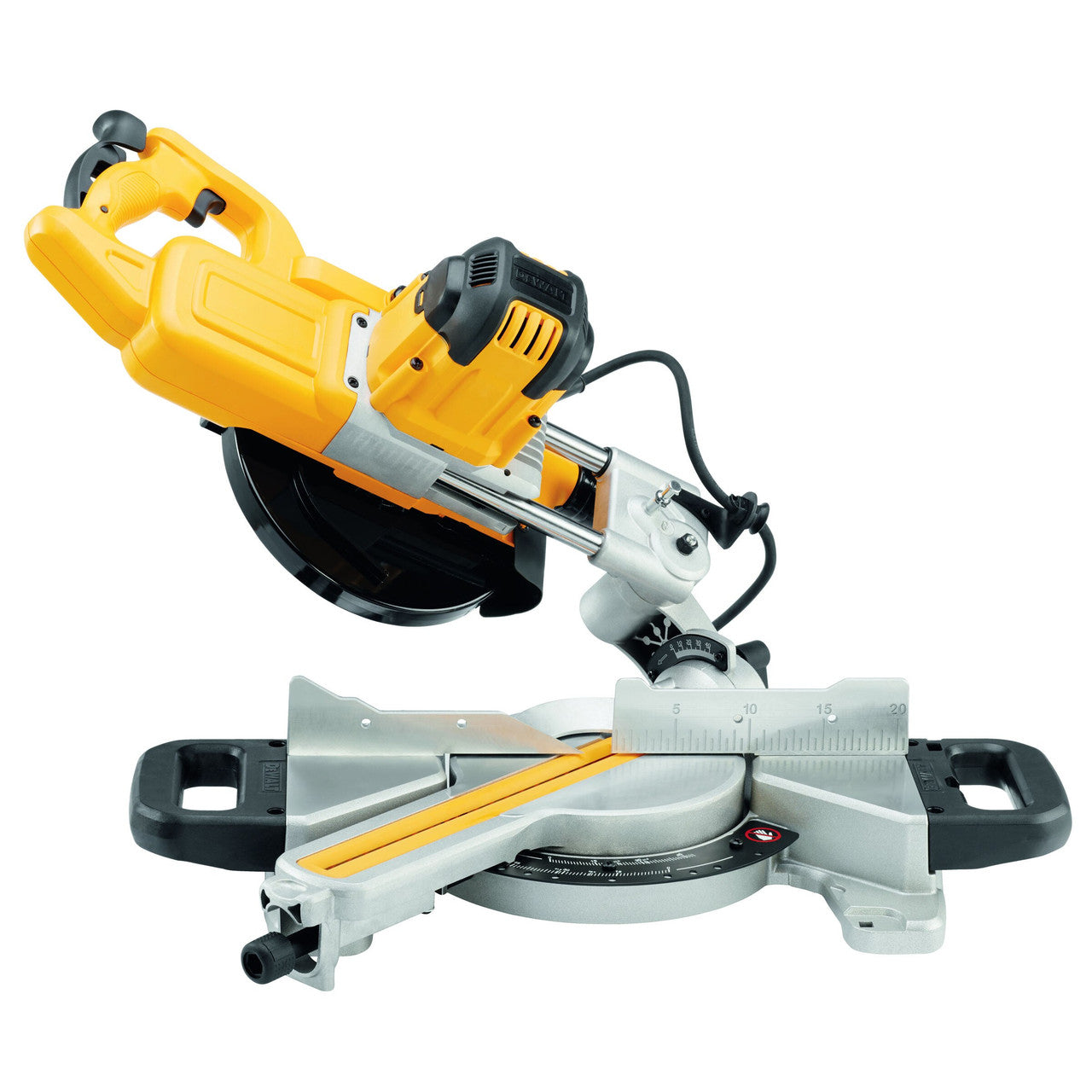

Dewalt DWS774 216mm Sliding Mitre Saw with XPS (240V)

Dewalt DWS774 Slide Mitre Saw with XPS 216mm

The Dewalt DWS774 is a new and improved sliding mitre saw designed for use on wooden materials. It has a powerful 1400W motor making it ideal for the most demanding tasks. The XPS shadow line cut indicator provides fast accurate alignment of the blade while illuminating the workpiece for maximum precision. The improved dust extraction efficiency helps to maintain a clean, safe working environment and side carry handles ensure the ease of transportation.

Features:

• The classic saw design improved and updated for the modern user
• New 1400 Watt motor for powerful cutting in all materials (1400 Watt Low Voltage version UK Only)
• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the workpiece for increased productivity no adjustment required
• Improved Dust extraction efficiency
• The base and fence have been machined to meet the accuracy requirements of the most demanding applications
• New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
• Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
• Fixed left & right hand fences with measuring scale for improved material support and management
• Compact internal rail design for huge cutting capacity in a highly transportable format
• Carry side handles for easy transportation
• Designed for wood cutting only and must not be used to cut any metal (Ferrous or Non-Ferrous)

Come With:

• TCT tooth saw blade
• Blade spanner
• Material Clamp

Specification:

• Power Input: 1400 Watts
• Power Output: 1100 Watt
• Blade Speed: 4500 rpm
• Blade Diameter: 216 mm
• Blade Bore: 30 mm
• Bevel Capacity: 48 °
• Mitre Capacity [right/left]: 48/48 °
• Cutting Capacity at 90°/45° (W x H): 173 x 62 mm
• Cutting Capacity at 90°/90° (W x H): 250 x 62 mm
• Cutting Capacity at 90°/90° (W x H): 250 x 60 mm
• Cutting Capacity at 45°/90° (W x H): 177 x 62 mm
• Cutting Capacity at 45°/90° (W x H): 177 x 60 mm
• Cutting Capacity at 90°/45° (W x H): 265 x 48 mm
• Max. Cutting Capacity at 45°/45°: 190x48 mm
• Max. Depth of Cut [Saws]: 70 mm
• Weight: 12.0 kg
• Depth: 550 mm
• Length: 490 mm
• Height: 590 mm
• Hand/Arm Vibration - Cutting Wood: 2.1 m/s²
• Uncertainty K 1 (Vibration): 1.5 m/s²
• Sound Power: 104 dB(A)
• Sound Power Uncertainty: 3.9 dB(A)
• Sound Pressure: 93 dB(A)
• Sound Pressure Uncertainty: 3 dB(A)
