Home » Dewalt DCD796N 18V XR Brushless Combi Drill (Body Only) in Kit Box
Dewalt

Dewalt DCD796N 18V XR Brushless Combi Drill (Body Only) in Kit Box

SKU: DEW-DCD796N-K

Have any questions about this product or placing bulk orders?

Use this text to encourage communication or promote sharing on social networks.

You can also add links

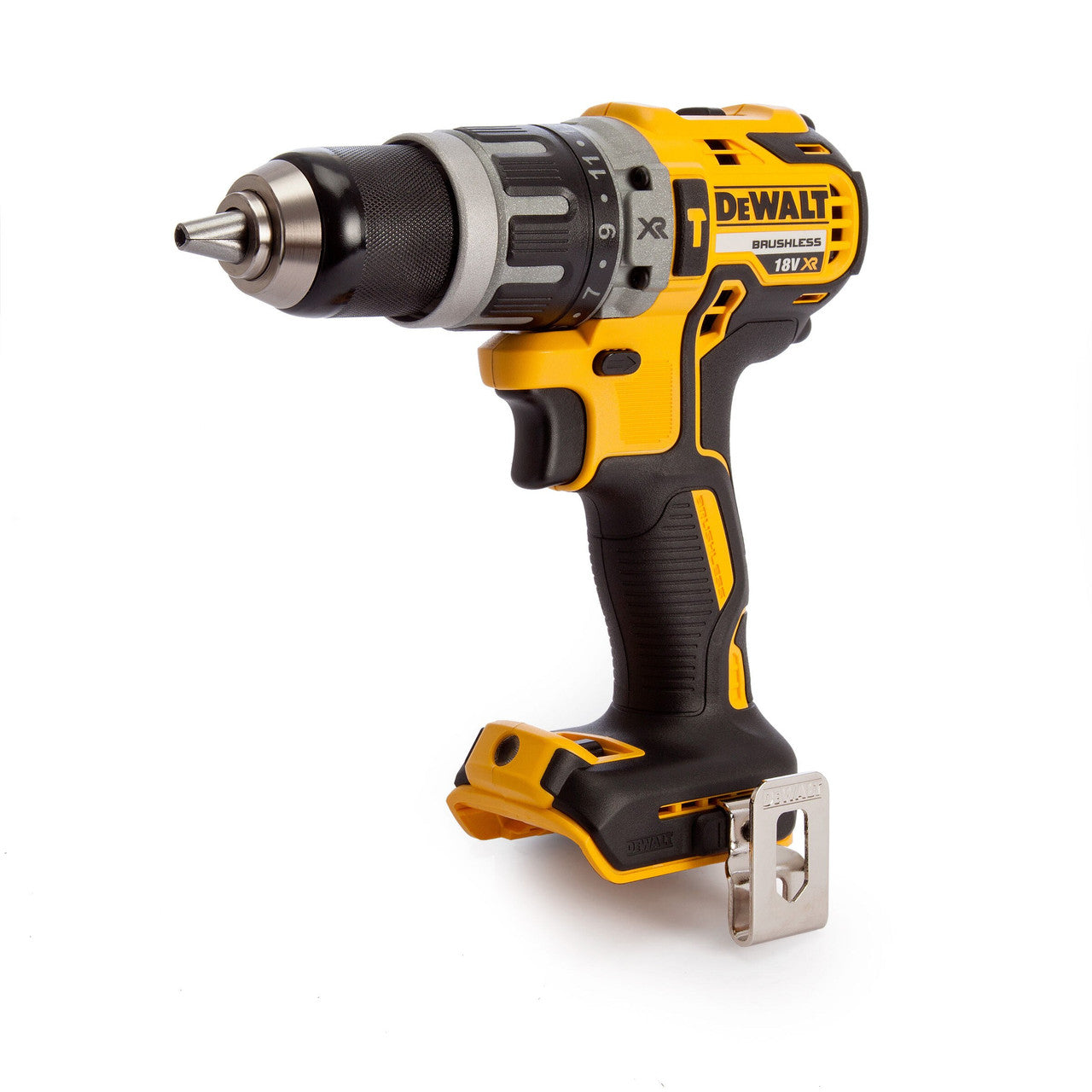

This Dewalt combi drill features 15 positions of adjustable torque control for consistent drilling in a variety of materials

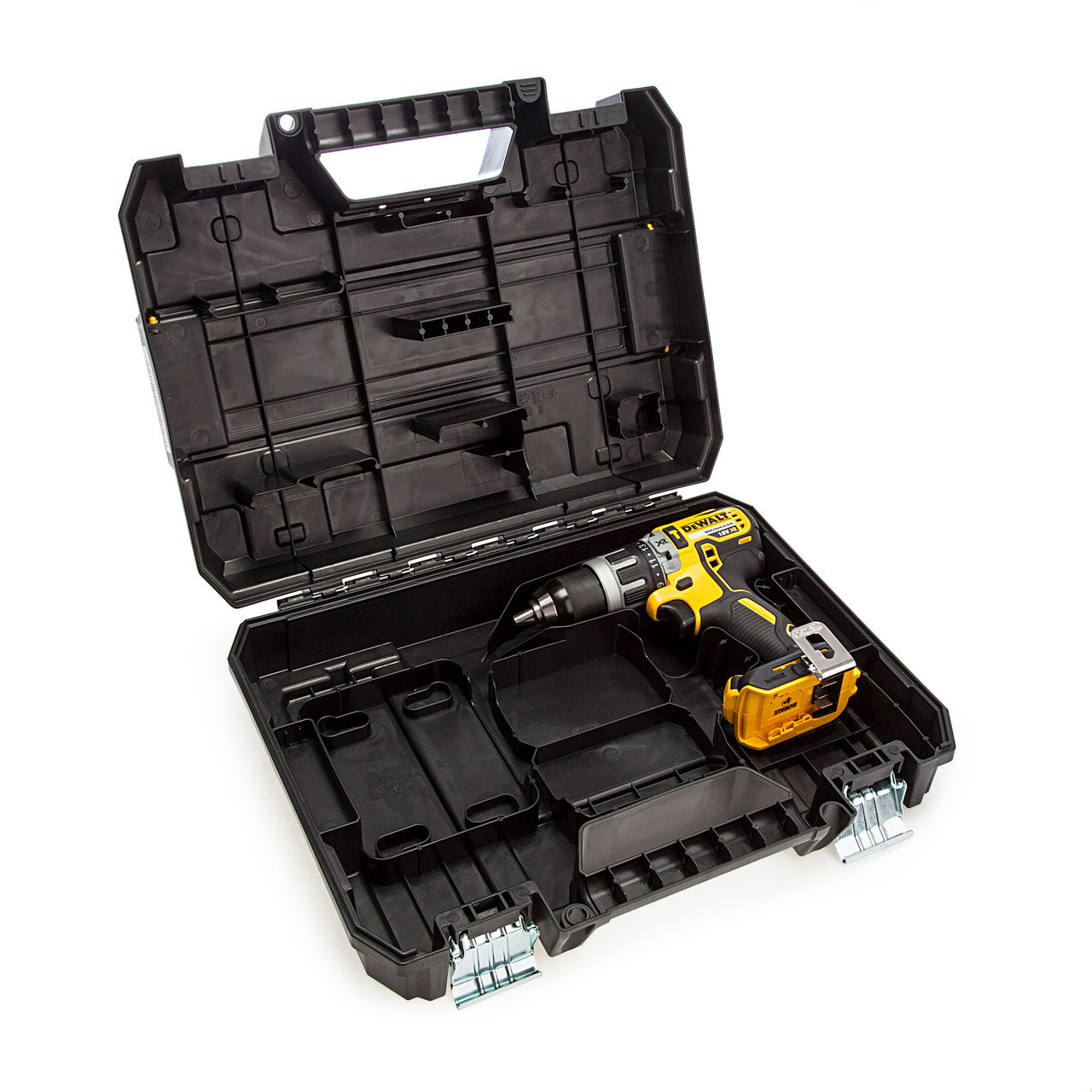

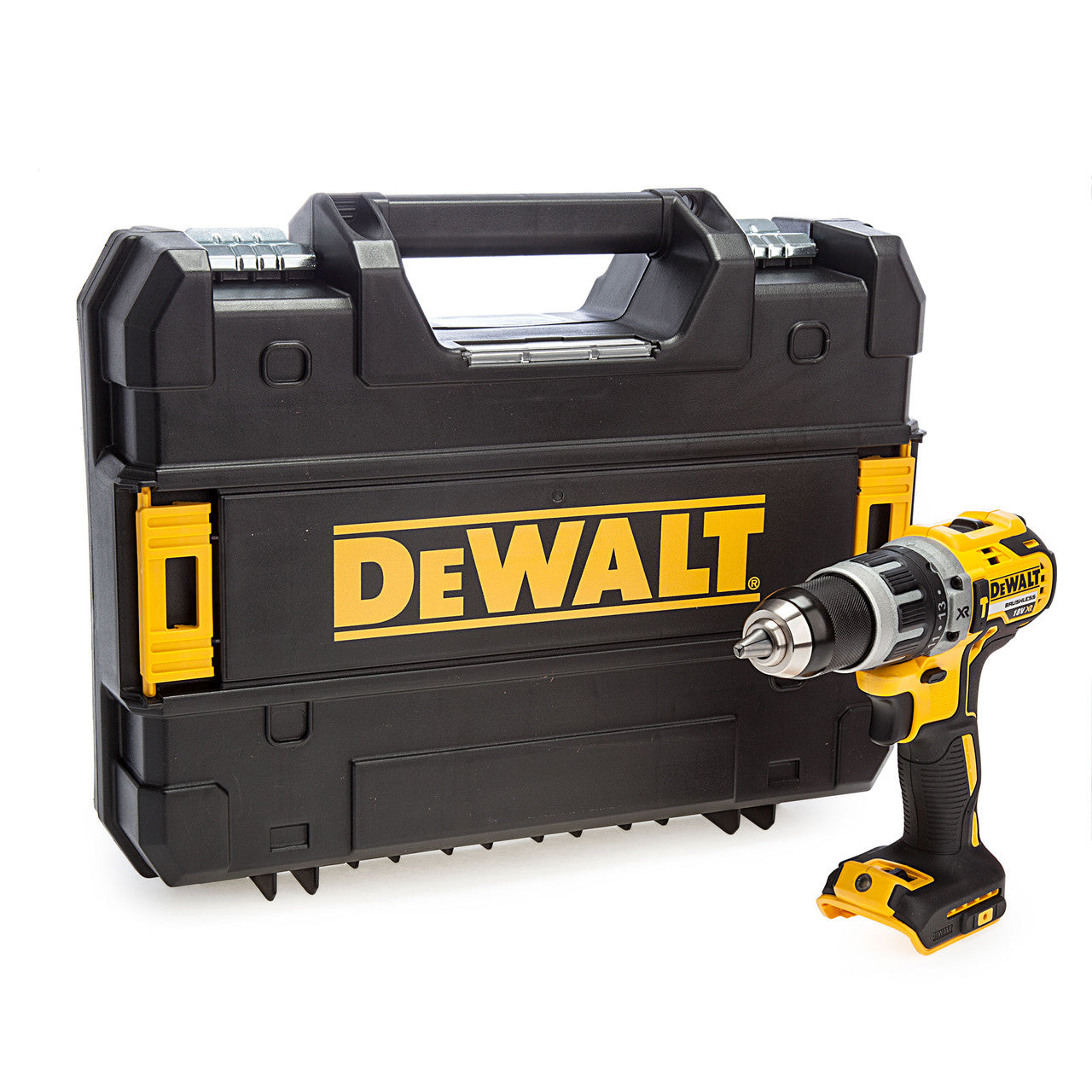

The Dewalt DCD796 features 2nd generation brushless technology for 30% more power and excellent efficiency. Drill length has also been reduced to 190mm for an even more compact feel. Sold without battery or charger. Comes with a heavy-duty kit box to keep the drill protected when not in use.

Features:

  • 18V XR Li-Ion compact hammer drill driver
  • Brushless Motor Technology for excellent efficiency
  • Drill Driver and Hammer feature for multiple applications
  • Intelligent trigger design allows for total control of application
  • Ultra-compact, lightweight design allows use in confined spaces
  • Improved airflow to the motor for cooler electronics and increased power
  • Two speed all metal transmission for increased runtime and longer tool life
  • Improved ergonomic design with rubber grip over mould improving users comfort
  • Li-Ion battery packs allow for superior insertion and removal with state of charge indicator
  • 15 position adjustable torque control for consistent screw driving into a variety of materials
  • Part of the intelligent XR Lithium Ion Series designed for efficiency and making applications faster

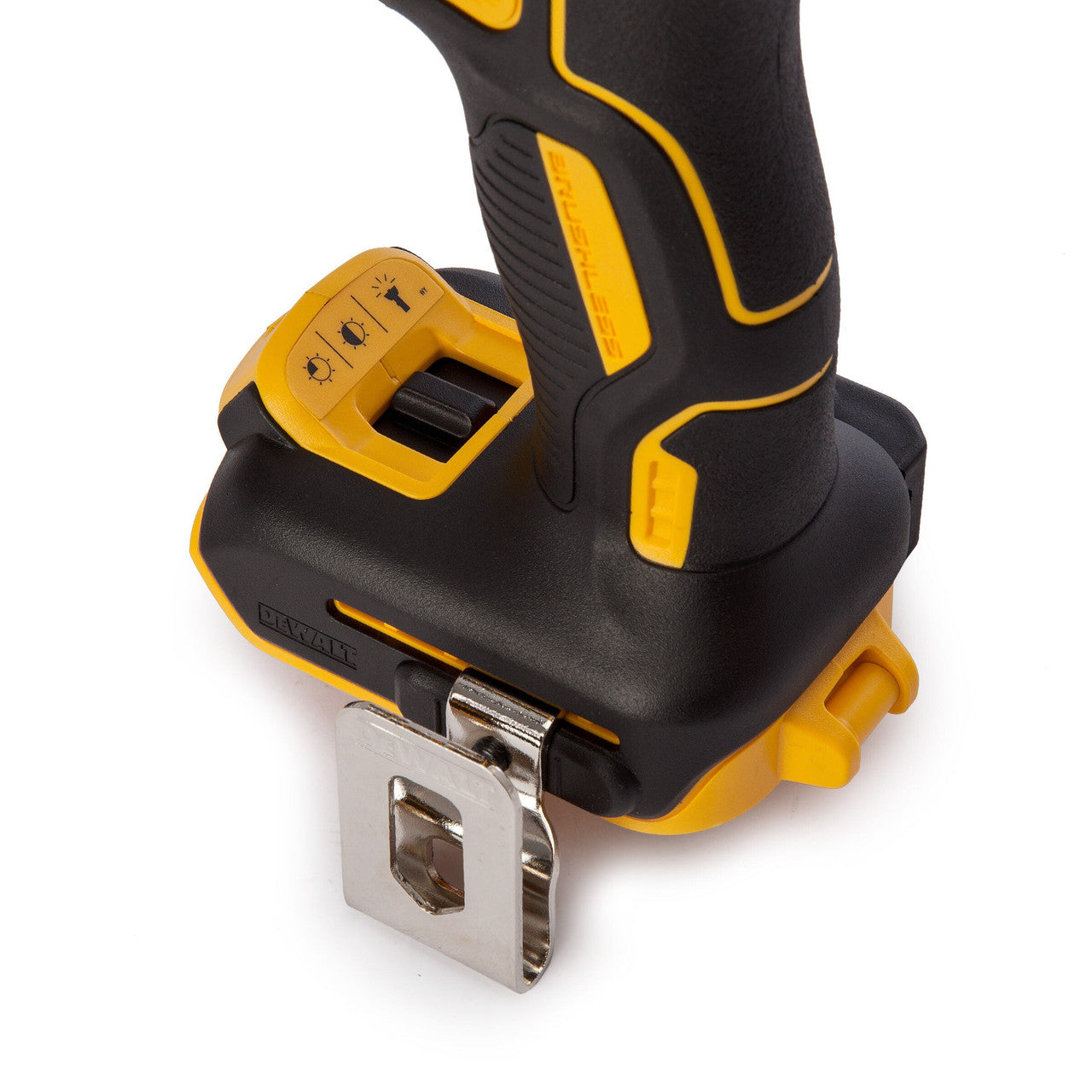

  • 3 position super bright LED light
  • - SET 1 = LOW LIGHT LED on for 20s - 2.6 Lumens
  • - SET 3 = HIGH LIGHT LED on for 20min - 60 Lumens
  • - SET 2 = MEDIUM LIGHT LED on for 20s - 18 Lumens

Comes With:

  • Kitbox
  • Belt hook

Specification:

  • Width: 67mm
  • Weight: 1.8 kg
  • Height: 203mm
  • Length: 174mm
  • Power Output: 460 Watt
  • Sound Power: 100 dB(A)
  • Sound Pressure: 89 dB(A)
  • Max Torque (Soft): 27 Nm
  • Max Torque (Hard): 70 Nm
  • Chuck Capacity: 1.5-13mm
  • No Load Speed: 0-550/2000 rpm
  • Sound Power Uncertainty: 3 dB(A)
  • Sound Pressure Uncertainty: 3 dB(A)
  • Max. Drilling Capacity [Metal]: 13mm
  • Max. Drilling Capacity [Wood]: 40mm
  • Beats per Minute: 0-9350/34000 bpm
  • Max. Drilling Capacity [Masonry]: 13mm
  • Hand/Arm Vibration - Drilling into metal:
  • Uncertainty K 1 (Vibration): 1.5 m/s_
  • Hand/Arm Vibration - Hammer drilling into concrete: 11.5 m/s_
  • Uncertainty K 2 (Vibration): 1.6 m/s_
  • Hand/Arm Vibration - Screw driving without impact:
  • Uncertainty K 3 (Vibration): 1.5 m/s_
