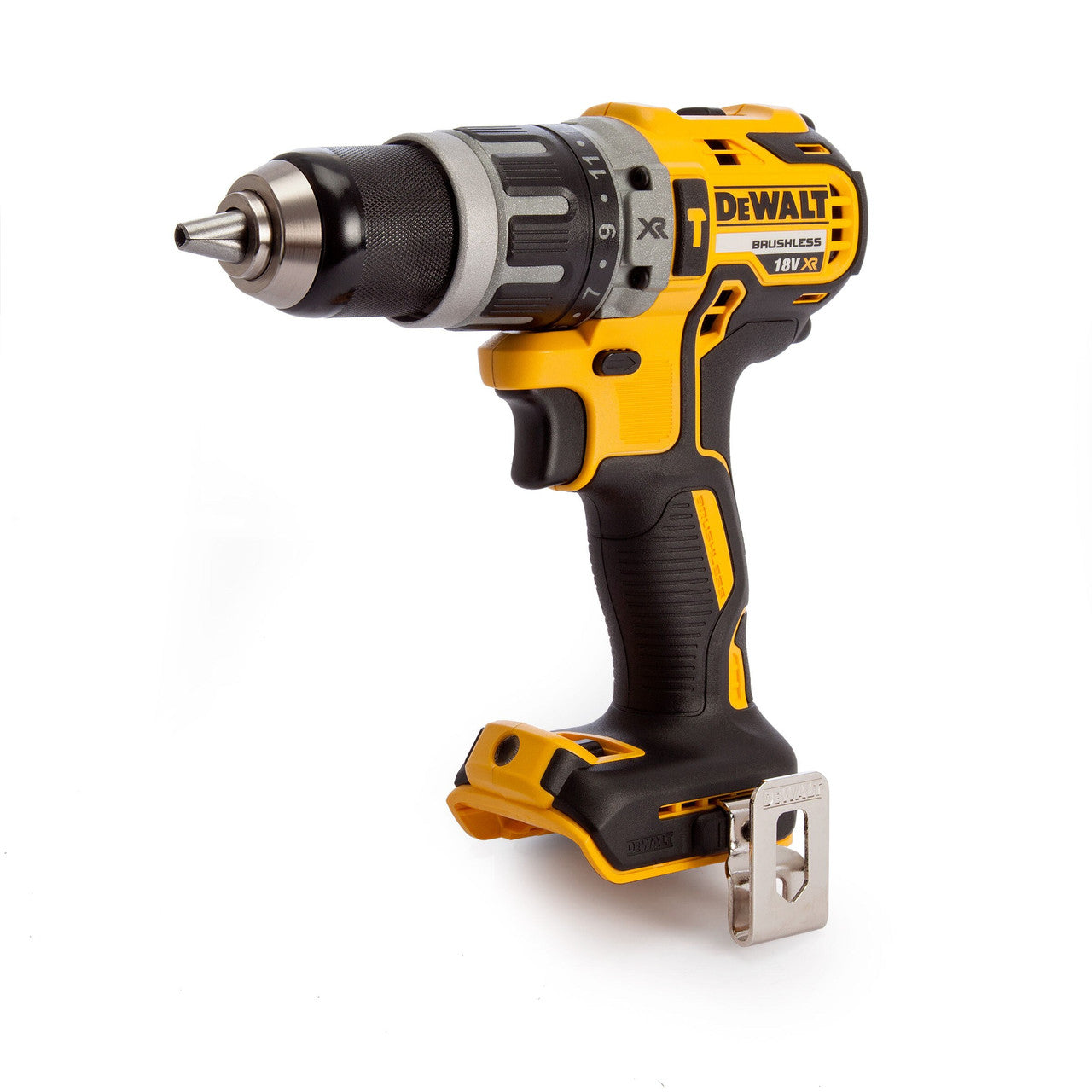

Dewalt DCD796N 18V XR Brushless Combi Drill (Body Only)

SKU: DEW-DCD796N

Have any questions about this product or placing bulk orders?

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The Dewalt DCD796 is one of their most popular combi drills. It is ultra compact and lightweight for use in confined spaces

The Dewalt DCD796 features 2nd generation brushless technology for 30% more power and excellent efficiency. Drill length has also been reduced to 190mm for an even more compact feel. Sold without battery or charger in a cardboard box.

Features:

  • 18V XR Li-Ion compact hammer drill driver
  • Brushless Motor Technology for excellent efficiency
  • Ultra compact, lightweight design allows use in confined spaces
  • Two speed all metal transmission for increased runtime and longer tool life
  • Drill Driver and Hammer feature for multiple applications
  • 15 position adjustable torque control for consistent screw driving into a variety of materials
  • Intelligent trigger design allows for total control of application
  • Improved ergonomic design with rubber grip over mould improving users comfort
  • Improved air flow to the motor for cooler electronics and incrreased power

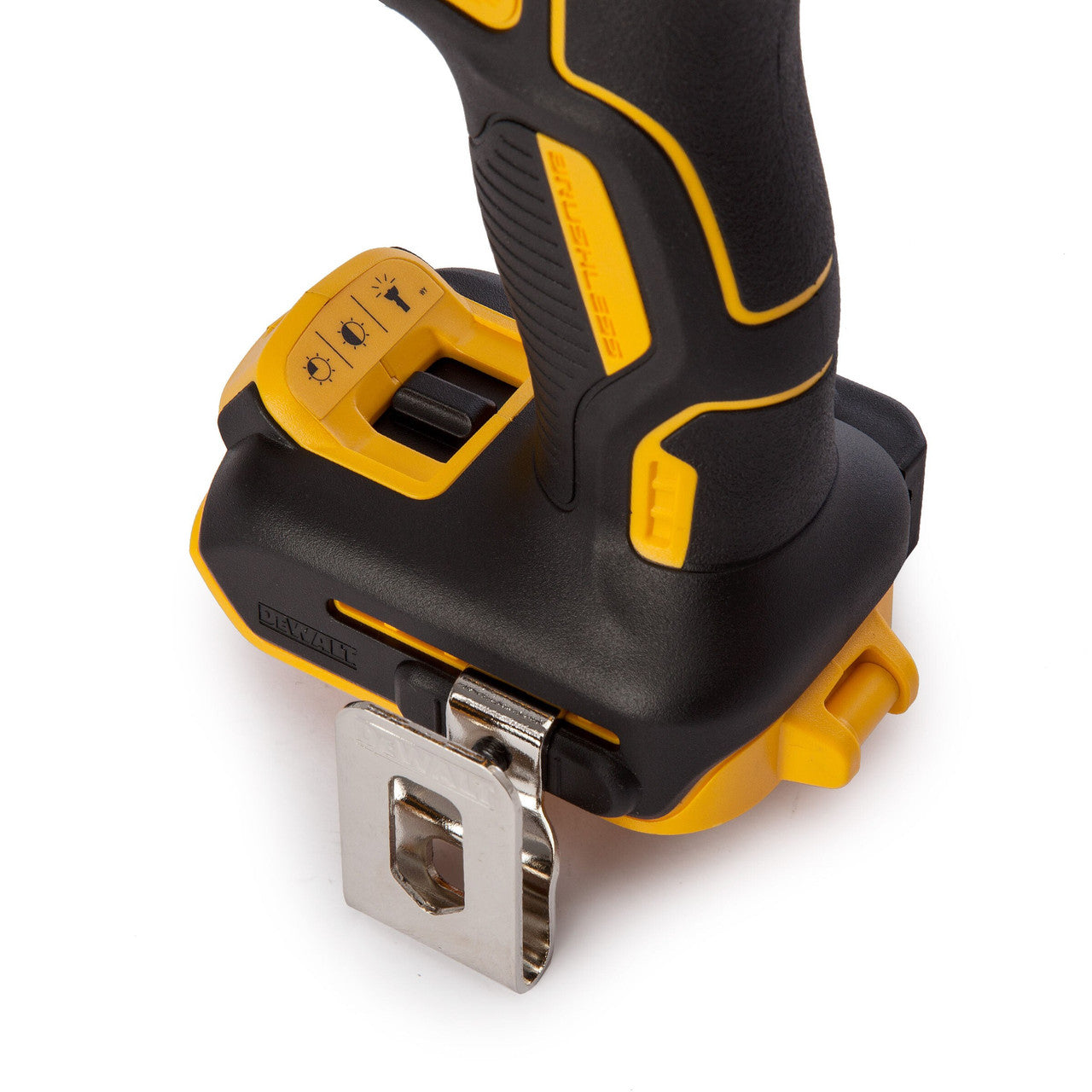

  • 3 position super bright LED light
  • - SET 1 = LOW LIGHT LED on for 20s - 2.6 Lumens
  • - SET 2 = MEDIUM LIGHT LED on for 20s - 18 Lumens
  • - SET 3 = HIGH LIGHT LED on for 20min - 60 Lumens
  • Li-Ion battery packs allow for superior insertion and removal with state of charge indicator
  • Part of the intelligent XR Lithium Ion Series designed for efficiency and making applications faster

Comes With:

  • Belt hook

Specification:

  • Max Torque (Hard): 70 Nm
  • Max Torque (Soft): 27 Nm
  • Power Output: 460 Watt
  • No Load Speed: 0-550/2000 rpm
  • Beats per Minute: 0-9350/34000 bpm
  • Chuck Capacity: 1.5-13 mm
  • Max. Drilling Capacity [Wood]: 40 mm
  • Max. Drilling Capacity [Metal]: 13 mm
  • Max. Drilling Capacity [Masonry]: 13 mm
  • Length: 174 mm
  • Height: 203 mm
  • Width: 67 mm
  • Sound Pressure: 89 dB(A)
  • Sound Pressure Uncertainty: 3 dB(A)
  • Sound Power: 100 dB(A)
  • Sound Power Uncertainty: 3 dB(A)
  • Hand/Arm Vibration - Drilling into metal:
  • Uncertainty K 1 (Vibration): 1.5 m/s_
  • Hand/Arm Vibration - Hammer drilling into concrete: 11.5 m/s_
  • Uncertainty K 2 (Vibration): 1.6 m/s_
  • Hand/Arm Vibration - Screw driving without impact:
  • Uncertainty K 3 (Vibration): 1.5 m/s_
  • Weight: 1.8 kg
